DtDetonationInteraction Class Reference

Instances of DtDetonationInteraction are used to communicate information associated with the impact or detonation of a munition. More...

Inheritance diagram for DtDetonationInteraction:

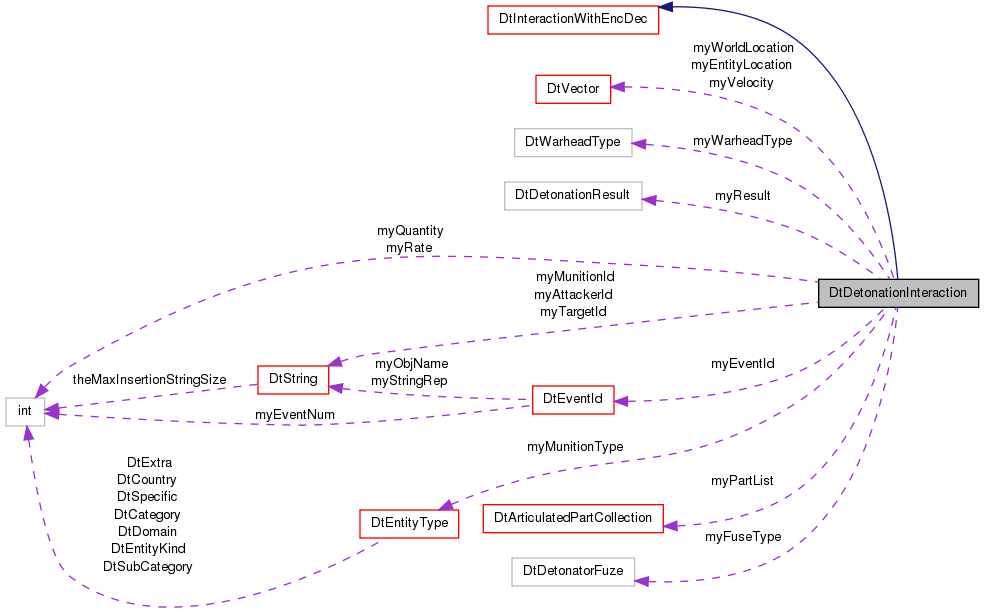

Collaboration diagram for DtDetonationInteraction:

List of all members.

Public Member Functions
	DtDetonationInteraction ()
	default constructor
	DtDetonationInteraction (const DtFireInteraction &fire)
	Constructor Fills in common fields with data from Fire Interaction.
virtual	~DtDetonationInteraction ()
	destructor
	DtDetonationInteraction (const DtDetonationInteraction &orig)
	copy constructor
DtDetonationInteraction &	operator= (const DtDetonationInteraction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data.
virtual void	printDataToString (DtString &str) const
	Print the interaction's data to the string provided.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setAttackerId (const DtGlobalObjectDesignator &id)
	Set/Get the attacker identifier.
virtual const DtGlobalObjectDesignator &	attackerId () const
virtual void	setTargetId (const DtGlobalObjectDesignator &id)
	Set/Get the target identifier.
virtual const DtGlobalObjectDesignator &	targetId () const
virtual void	setMunitionId (const DtGlobalObjectDesignator &id)
	Set/Get the munition identifier.
virtual const DtGlobalObjectDesignator &	munitionId () const
virtual void	setEventId (const DtEventID &id)
	Set/Get the detonation event id.
virtual const DtEventID &	eventId () const
virtual void	setVelocity (const DtVector &velocity)
	Set/Get the velocity.
virtual const DtVector &	velocity () const
virtual void	setWorldLocation (const DtVector &location)
	Set/Get the location of the detonation in world coordinates.
virtual const DtVector &	worldLocation () const
virtual void	setEntityLocation (const DtVector &location)
	Set/Get the location of the detonation in entity coordinates.
virtual const DtVector &	entityLocation () const
virtual void	setResult (DtDetonationResult result)
	Set/Get the detonation result.
virtual DtDetonationResult	result () const
virtual void	setFuseType (DtDetonatorFuze fuse)
	Set/Get the detonator fuze type.
virtual DtDetonatorFuze	fuseType () const
virtual void	setMunitionType (const DtEntityType &munType)
	Set/Get the munition type.
virtual const DtEntityType &	munitionType () const
virtual void	setQuantity (int quant)
	Set/Get the quantity.
virtual int	quantity () const
virtual void	setRate (int rate)
	Set/Get the rate.
virtual int	rate () const
virtual void	setWarheadType (DtWarheadType type)
	Set/Get the warhead type.
virtual DtWarheadType	warheadType () const
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
virtual DtArticulatedPartCollection *	artPartList ()
	Get a pointer to an DtArtPartCollection containing the interaction's articulated part information.
virtual const DtArticulatedPartCollection *	artPartList () const
	Get a pointer to an DtArtPartCollection containing the interaction's articulated part information.
virtual void	setArticulatedParts (const DtArticulatedPartCollection &apList)
	Set/Get the articulated parts collection.
const DtArticulatedPartCollection &	articulatedParts () const
	Set/Get the articulated parts collection.
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtDetonationInteraction.
static void	addCallback (DtExerciseConn *conn, DtDetonationInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtDetonationInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtVector	myWorldLocation
DtDetonationResult	myResult
DtEventID	myEventId
DtGlobalObjectDesignator	myAttackerId
DtVector	myVelocity
DtDetonatorFuze	myFuseType
DtGlobalObjectDesignator	myMunitionId
DtEntityType	myMunitionType
int	myQuantity
int	myRate
DtVector	myEntityLocation
DtGlobalObjectDesignator	myTargetId
DtWarheadType	myWarheadType
DtArticulatedPartCollection	myPartList

---

Detailed Description

Instances of DtDetonationInteraction are used to communicate information associated with the impact or detonation of a munition.

This class is associated with the RPR FOM Detonation Interaction

---

Constructor & Destructor Documentation

DtDetonationInteraction::DtDetonationInteraction

(

)

default constructor

DtDetonationInteraction::DtDetonationInteraction

(

const DtFireInteraction &

fire

)

Constructor Fills in common fields with data from Fire Interaction.

virtual DtDetonationInteraction::~DtDetonationInteraction

(

)

[virtual]

destructor

DtDetonationInteraction::DtDetonationInteraction

(

const DtDetonationInteraction &

orig

)

copy constructor

---

Member Function Documentation

static void DtDetonationInteraction::addCallback	(	DtExerciseConn *	conn,
		DtDetonationInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

const DtArticulatedPartCollection& DtDetonationInteraction::articulatedParts

(

)

const

Set/Get the articulated parts collection.

virtual DtArticulatedPartCollection* DtDetonationInteraction::artPartList

(

)

[virtual]

Get a pointer to an DtArtPartCollection containing the interaction's articulated part information.

These methods are primarily for backwards compatibility. setArticulatedParts() and articulatedParts() are protocol independent and preferred.

virtual const DtArticulatedPartCollection* DtDetonationInteraction::artPartList

(

)

const [virtual]

Get a pointer to an DtArtPartCollection containing the interaction's articulated part information.

These methods are primarily for backwards compatibility. setArticulatedParts() and articulatedParts() are protocol independent and preferred.

virtual const DtGlobalObjectDesignator& DtDetonationInteraction::attackerId

(

)

const [virtual]

static DtInteraction* DtDetonationInteraction::create

(

)

[static]

Create a DtDetonationInteraction.

Caller is responsible for deletion.

virtual const DtVector& DtDetonationInteraction::entityLocation

(

)

const [virtual]

virtual const DtEventID& DtDetonationInteraction::eventId

(

)

const [virtual]

virtual DtDetonatorFuze DtDetonationInteraction::fuseType

(

)

const [virtual]

virtual const DtGlobalObjectDesignator& DtDetonationInteraction::munitionId

(

)

const [virtual]

virtual const DtEntityType& DtDetonationInteraction::munitionType

(

)

const [virtual]

virtual const char* DtDetonationInteraction::name

(

)

const [virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

DtDetonationInteraction& DtDetonationInteraction::operator=

(

const DtDetonationInteraction &

orig

)

assignment operator

virtual void DtDetonationInteraction::printData

(

)

const [virtual]

Print the interaction's data.

Reimplemented from DtInteraction.

virtual void DtDetonationInteraction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

virtual void DtDetonationInteraction::printDataToString

(

DtString &

buff

)

const [virtual]

Print the interaction's data to the string provided.

Reimplemented from DtInteraction.

virtual int DtDetonationInteraction::quantity

(

)

const [virtual]

virtual int DtDetonationInteraction::rate

(

)

const [virtual]

static void DtDetonationInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtDetonationInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

virtual DtDetonationResult DtDetonationInteraction::result

(

)

const [virtual]

virtual void DtDetonationInteraction::setArticulatedParts

(

const DtArticulatedPartCollection &

apList

)

[virtual]

Set/Get the articulated parts collection.

virtual void DtDetonationInteraction::setAttackerId

(

const DtGlobalObjectDesignator &

id

)

[virtual]

Set/Get the attacker identifier.

virtual void DtDetonationInteraction::setEntityLocation

(

const DtVector &

location

)

[virtual]

Set/Get the location of the detonation in entity coordinates.

virtual void DtDetonationInteraction::setEventId

(

const DtEventID &

id

)

[virtual]

Set/Get the detonation event id.

virtual void DtDetonationInteraction::setFuseType

(

DtDetonatorFuze

fuse

)

[virtual]

Set/Get the detonator fuze type.

virtual void DtDetonationInteraction::setMunitionId

(

const DtGlobalObjectDesignator &

id

)

[virtual]

Set/Get the munition identifier.

virtual void DtDetonationInteraction::setMunitionType

(

const DtEntityType &

munType

)

[virtual]

Set/Get the munition type.

virtual void DtDetonationInteraction::setQuantity

(

int

quant

)

[virtual]

Set/Get the quantity.

virtual void DtDetonationInteraction::setRate

(

int

rate

)

[virtual]

Set/Get the rate.

virtual void DtDetonationInteraction::setResult

(

DtDetonationResult

result

)

[virtual]

Set/Get the detonation result.

virtual void DtDetonationInteraction::setTargetId

(

const DtGlobalObjectDesignator &

id

)

[virtual]

Set/Get the target identifier.

virtual void DtDetonationInteraction::setVelocity

(

const DtVector &

velocity

)

[virtual]

Set/Get the velocity.

virtual void DtDetonationInteraction::setWarheadType

(

DtWarheadType

type

)

[virtual]

Set/Get the warhead type.

virtual void DtDetonationInteraction::setWorldLocation

(

const DtVector &

location

)

[virtual]

Set/Get the location of the detonation in world coordinates.

virtual const DtGlobalObjectDesignator& DtDetonationInteraction::targetId

(

)

const [virtual]

virtual const DtVector& DtDetonationInteraction::velocity

(

)

const [virtual]

virtual DtWarheadType DtDetonationInteraction::warheadType

(

)

const [virtual]

virtual const DtVector& DtDetonationInteraction::worldLocation

(

)

const [virtual]

---

Member Data Documentation

DtGlobalObjectDesignator DtDetonationInteraction::myAttackerId [protected]

DtVector DtDetonationInteraction::myEntityLocation [protected]

DtEventID DtDetonationInteraction::myEventId [protected]

DtDetonatorFuze DtDetonationInteraction::myFuseType [protected]

DtGlobalObjectDesignator DtDetonationInteraction::myMunitionId [protected]

DtEntityType DtDetonationInteraction::myMunitionType [protected]

DtArticulatedPartCollection DtDetonationInteraction::myPartList [protected]

int DtDetonationInteraction::myQuantity [protected]

int DtDetonationInteraction::myRate [protected]

DtDetonationResult DtDetonationInteraction::myResult [protected]

DtGlobalObjectDesignator DtDetonationInteraction::myTargetId [protected]

DtVector DtDetonationInteraction::myVelocity [protected]

DtWarheadType DtDetonationInteraction::myWarheadType [protected]

DtVector DtDetonationInteraction::myWorldLocation [protected]

---

The documentation for this class was generated from the following file:

• hDetInter.h
