Instances of DtEntityStateRepository are used to maintain attributes and state of entity objects in a protocol independent way. More...

Inheritance diagram for DtEntityStateRepository:

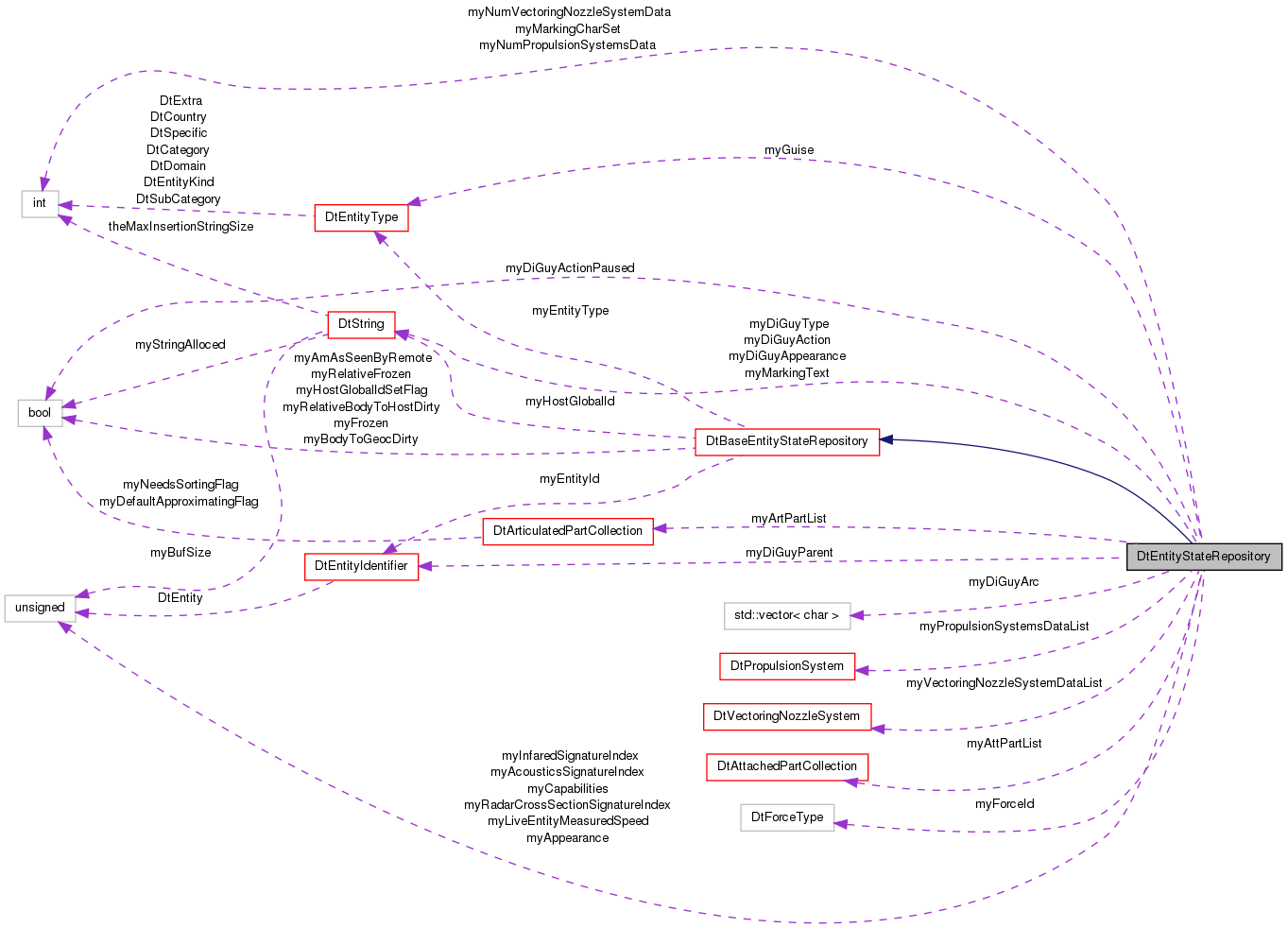

Collaboration diagram for DtEntityStateRepository:

List of all members.

Public Member Functions
	DtEntityStateRepository ()
	default constructor
virtual	~DtEntityStateRepository ()
	destructor
	DtEntityStateRepository (const DtEntityStateRepository &orig)
	copy constructor
DtEntityStateRepository &	operator= (const DtEntityStateRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this.
virtual void	setForceId (DtForceType force)
	Set the force type.
virtual DtForceType	forceId () const
	The force type.
virtual void	setGuise (const DtEntityType &type)
	Set the alternate entity type or guise.
virtual const DtEntityType &	guise () const
	The alternate entity type or guise.
virtual void	setFrozen (bool onOff)
	Set the frozen attribute.
virtual bool	frozen () const
	The frozen state of the entity.
virtual void	setMarkingCharSet (int charSet)
	Set the character set used for the marking.
virtual int	markingCharSet () const
	The character set used for the marking.
virtual void	setMarkingText (const char *text)
	Set the marking text attribute.
virtual const char *	markingText () const
	The marking text attribute.
virtual void	setMaskedCloaked (bool onOff)
	Sets masked/cloaked appearance bit (introduced in DIS enums 2005 doc).
virtual bool	maskedCloaked () const
	Returns the masked/cloaked appearance bit.
virtual void	setAppearance (DtU32 app)
	Set the appearance bit field, use with care.
virtual DtU32	appearance () const
	Return the appearance bit field, use this with care.
virtual void	setAppearanceAttribute (const DtAppearAttribute attr, const DtAppearAttrVal val)
	Set an appearance attribute.
virtual DtAppearAttrVal	appearanceAttribute (const DtAppearAttribute attr) const
	Set an appearance attribute.
virtual void	setClock (DtClock *clock)
	Overrides DtBaseEntityStateRepository's setClock method.
virtual void	printData () const
	Print the state data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	prints the state data to the specified stream.
Appearance Attributes
Appearance attributes describe visual properties of an object. Appearance attributes are optional, and describe the appearance of an object. Not all attributes apply to all entity types. Many non RPR Based FOMs do not contain these attributes, users should keep this in mind when using a FOM Mapper.
virtual bool	powerPlantOn () const
	Set/Get whether entity's power plant is on or not.
virtual void	setPowerPlantOn (bool onOff)
	Set/Get whether entity's power plant is on or not.
virtual void	setDamageState (DtDamageState s)
	Set the damage state.
virtual DtDamageState	damageState () const
	Get the damage state.
virtual void	setEngineSmokeOn (bool onOff)
	Set whether engine smoke is on or not.
virtual bool	engineSmokeOn () const
	Get whether engine smoke is on or not.
virtual void	setFlamesPresent (bool onOff)
	Set whether flames are present or not.
virtual bool	flamesPresent () const
	Get whether flames are present or not.
virtual void	setHasFuelSupplyCap (bool onOff)
	Set whether entity has fuel supplying capability.
virtual bool	hasFuelSupplyCap () const
	Get whether entity has fuel supplying capability.
virtual void	setHasRecoveryCap (bool onOff)
	Set whether entity has recovery capability.
virtual bool	hasRecoveryCap () const
	Get whether entity has recovery capability.
virtual void	setHasRepairCap (bool onOff)
	Set whether entity has repair capability.
virtual bool	hasRepairCap () const
	Get whether entity has repair capability.
virtual void	setHatchState (DtHatchState s)
	Set the entity's hatch state.
virtual DtHatchState	hatchState () const
	Get the entity's hatch state.
virtual void	setImmobilized (bool onOff)
	Set whether the entity is immobilized or not.
virtual bool	immobilized () const
	Get whether the entity is immobilized or not.
virtual void	setLifeformState (DtLifeformState s)
	Set entity life form state.
virtual DtLifeformState	lifeformState () const
	Get entity life form state.
virtual void	setLightState (DtLightType s, bool onOff)
	Set light state of entity.
virtual bool	lightState (DtLightType s) const
	Get light state of entity.
virtual void	setLightState (DtLightState s)
	Set/Get light state of entity.
virtual DtLightState	lightState () const
	Set/Get whether entity's power plant is on or not.

virtual void	setDensity (DtDensityType dens)
	Set/Get density state of entity. (Environment entities).
virtual DtDensityType	density () const
	Set/Get density state of entity. (Environment entities).

virtual void	setRampDeployed (bool onOff)
	Set/Get whether entity has ramp deployed or not.
virtual bool	rampDeployed () const
	Set/Get whether entity has ramp deployed or not.

virtual void	setSmokePlumePresent (bool onOff)
	Set/Get whether a smoke plume is present or not.
virtual bool	smokePlumePresent () const
	Set/Get whether a smoke plume is present or not.

virtual void	setTentDeployed (bool onOff)
	Set/Get whether a tent is deployed or not.
virtual bool	tentDeployed () const
	Set/Get whether a tent is deployed or not.

virtual void	setTrailState (DtTrailState s)
	Set/Get trailing effect state.
virtual DtTrailState	trailState () const
	Set/Get trailing effect state.

virtual void	setCamouflageType (DtCamouflageType type)
	Set/Get camouflage type.
virtual DtCamouflageType	camouflageType () const
	Set/Get camouflage type.

virtual void	setFirePowerDisabled (bool onOff)
	Set/Get whether entity is fire power disabled or not.
virtual bool	firePowerDisabled () const
	Set/Get whether entity is fire power disabled or not.

virtual void	setIsConcealed (bool onOff)
	Set/Get whether entity is concealed or not.
virtual bool	isConcealed () const
	Set/Get whether entity is concealed or not.

virtual void	setAfterburnerOn (bool onOff)
	Set/Get whether entity has after burner on or not.
virtual bool	afterburnerOn () const
	Set/Get whether entity has after burner on or not.

virtual void	setHasAmmunitionSupplyCap (bool onOff)
	Set/Get whether entity has ammunition supply capability or not.
virtual bool	hasAmmunitionSupplyCap () const
	Set/Get whether entity has ammunition supply capability or not.

virtual void	setLauncherRaised (bool onOff)
	Set/Get whether entity has launcher raised or not.
virtual bool	launcherRaised () const
	Set/Get whether entity has launcher raised or not.

virtual void	setLauncherFlashPresent (bool onOff)
	Set/Get whether launcher flash is present or not.
virtual bool	launcherFlashPresent () const
	Set/Get whether launcher flash is present or not.

virtual void	setPrimaryWeaponState (DtWeaponState s)
	Set/Get primary weapon deployment state.
virtual DtWeaponState	primaryWeaponState () const
	Set/Get primary weapon deployment state.

virtual void	setSecondaryWeaponState (DtWeaponState s)
	Set/Get secondary weapon deployment state.
virtual DtWeaponState	secondaryWeaponState () const
	Set/Get secondary weapon deployment state.

virtual void	setComplianceState (DtComplianceState s)
	Set/Get life form compliance state.
virtual DtComplianceState	complianceState () const
	Set/Get life form compliance state.

virtual void	setAntennaRaised (bool upDown)
	Set/Get Antenna Raised status.
virtual bool	antennaRaised () const
	Set/Get Antenna Raised status.

virtual void	setMissionKill (bool yesNo)
	Set/Get Mission Kill status.
virtual bool	missionKill () const
	Set/Get Mission Kill status.

virtual void	setInternalHeatSource (bool onOff)
	Set/Get internal Heat Source status.
virtual bool	internalHeatSource () const
	Set/Get internal Heat Source status.

virtual const DtArticulatedPartCollection *	artPartList () const
	Initialize articulated parts.
virtual DtArticulatedPartCollection *	artPartList ()
	Initialize articulated parts.

virtual const DtAttachedPartCollection *	attPartList () const
	Get the attached parts list.
virtual DtAttachedPartCollection *	attPartList ()
	Get the attached parts list.

virtual void	setInfraRedSigRepIndex (DtU16 value)
	Set/Get infra-red signature representation index.
virtual DtU16	infraRedSigRepIndex () const
	Set/Get infra-red signature representation index.

virtual void	setAcousticSigRepIndex (DtU16 value)
	Set/Get acoustic signature representation index.
virtual DtU16	acousticSigRepIndex () const
	Set/Get acoustic signature representation index.

virtual void	setRadarSigRepIndex (DtU16 value)
	Set/Get radar signature representation index.
virtual DtU16	radarSigRepIndex () const
	Set/Get radar signature representation index.

void	setNumPropulsionSystems (DtU16 value)
	Set/Get number of propulsion systems.
DtU16	numPropulsionSystems () const
	Set/Get number of propulsion systems.

void	setNumNozzleSystems (DtU16 value)
	Set/Get number of nozzle systems.
DtU16	numNozzleSystems () const
	Set/Get number of nozzle systems.

bool	setPropulsionSystem (int index, const DtPropulsionSystem &record)
	Set/Get a propulsion system data record.
bool	getPropulsionSystem (int index, DtPropulsionSystem &record) const
	Set/Get a propulsion system data record.

bool	setNozzleSystem (int index, const DtVectoringNozzleSystem &record)
	Set/Get a vectoring nozzle system data record.
bool	getNozzleSystem (int index, DtVectoringNozzleSystem &record) const
	Set/Get a vectoring nozzle system data record.

virtual void	setMeasuredSpeed (DtU16 value)
	Set/Get measured speed.
virtual DtU16	measuredSpeed () const
	Set/Get measured speed.

virtual void	setCapabilities (DtU32 cap)
	Set/Get the capabilities field.
virtual DtU32	capabilities () const
	Set/Get the capabilities field.

virtual void	setDiGuyAction (const DtString &val, bool paused)
	The DI-Guy attributes.
virtual const DtString &	diGuyAction (bool &paused) const
	The DI-Guy attributes.
virtual void	setDiGuyAppearance (const DtString &val)
	The DI-Guy attributes.
virtual const DtString &	diGuyAppearance () const
	The DI-Guy attributes.
virtual void	setDiGuyArc (const std::vector< char > &val)
	The DI-Guy attributes.
virtual const std::vector< char > &	diGuyArc () const
	The DI-Guy attributes.
virtual void	setDiGuyType (const DtString &newDiGuyType, const DtString &newDiGuyAppearance)
	When updating DiGuy type, it will typicall make sense to also update the DiGuy Appearance.
virtual void	setDiGuyType (const DtString &val)
	The DI-Guy attributes.
virtual const DtString &	diGuyType () const
	The DI-Guy attributes.
virtual void	setDiGuyParent (const DtEntityIdentifier &val)
	The DI-Guy attributes.
virtual const DtEntityIdentifier &	diGuyParent () const
	The DI-Guy attributes.
Static Public Member Functions
static DtEntityStateRepository *	create ()
Protected Member Functions
DtEntityStateRepository *	self () const
	Cast off const-ness for trivial internal change.
void	internalSetMarkingText (const char *text)
	Set the marking text.
Protected Attributes
DtArticulatedPartCollection	myArtPartList
DtAttachedPartCollection	myAttPartList
DtForceType	myForceId
DtEntityType	myGuise
DtU32	myAppearance
int	myMarkingCharSet
DtString	myMarkingText
	myMarkingText is an array of theMaxMarkingSize.
DtU32	myCapabilities
DtU16	myLiveEntityMeasuredSpeed
DtU16	myAcousticsSignatureIndex
DtU16	myInfaredSignatureIndex
DtU16	myRadarCrossSectionSignatureIndex
int	myNumPropulsionSystemsData
int	myNumVectoringNozzleSystemData
DtPropulsionSystem *	myPropulsionSystemsDataList
DtVectoringNozzleSystem *	myVectoringNozzleSystemDataList
DtString	myDiGuyAction
	The DIGuy extension attributes.
bool	myDiGuyActionPaused
DtString	myDiGuyAppearance
std::vector< char >	myDiGuyArc
DtString	myDiGuyType
DtEntityIdentifier	myDiGuyParent

Detailed Description

Instances of DtEntityStateRepository are used to maintain attributes and state of entity objects in a protocol independent way.

It provides a fat interface which covers various types of entities. As a result, individual fields may not apply depending on the type of entity. TSPI information is found in the parent class DtBaseEntityStateRepository.

Examples

Constructor & Destructor Documentation

DtEntityStateRepository::DtEntityStateRepository ( )

default constructor

virtual DtEntityStateRepository::~DtEntityStateRepository ( ) [virtual]

destructor

DtEntityStateRepository::DtEntityStateRepository ( const DtEntityStateRepository & orig )

copy constructor

Member Function Documentation

DtU16 DtEntityStateRepository::acousticSigRepIndex ( ) const [inline, virtual]

Set/Get acoustic signature representation index.

References myAcousticsSignatureIndex.

virtual bool DtEntityStateRepository::afterburnerOn ( ) const [virtual]

Set/Get whether entity has after burner on or not.

virtual bool DtEntityStateRepository::antennaRaised ( ) const [virtual]

Set/Get Antenna Raised status.

DtU32 DtEntityStateRepository::appearance ( ) const [inline, virtual]

Return the appearance bit field, use this with care.

This is an alternate method of returning individual appearance settings.

Note:: This may not work in HLA.

References myAppearance.

virtual DtAppearAttrVal DtEntityStateRepository::appearanceAttribute ( const DtAppearAttribute attr ) const [virtual]

Set an appearance attribute.

attr is the appearance bitfield mask val is the hex number to be or'ed in.

Note:: This should not be used in HLA.

const DtArticulatedPartCollection * DtEntityStateRepository::artPartList ( ) const [inline, virtual]

Initialize articulated parts.

Get the articulated parts list.

References myArtPartList.

DtArticulatedPartCollection * DtEntityStateRepository::artPartList ( ) [inline, virtual]

Initialize articulated parts.

Get the articulated parts list.

References myArtPartList.

const DtAttachedPartCollection * DtEntityStateRepository::attPartList ( ) const [inline, virtual]

Get the attached parts list.

References myAttPartList.

DtAttachedPartCollection * DtEntityStateRepository::attPartList ( ) [inline, virtual]

Get the attached parts list.

References myAttPartList.

virtual DtCamouflageType DtEntityStateRepository::camouflageType ( ) const [virtual]

Set/Get camouflage type.

DtU32 DtEntityStateRepository::capabilities ( ) const [inline, virtual]

Set/Get the capabilities field.

References myCapabilities.

virtual DtStateRepository* DtEntityStateRepository::clone ( bool copy = false ) const [virtual]

Return a copy/empty object of the same type as this.

Reimplemented from DtBaseEntityStateRepository.

Reimplemented in MyEntityStateRep.

virtual DtComplianceState DtEntityStateRepository::complianceState ( ) const [virtual]

Set/Get life form compliance state.

static DtEntityStateRepository* DtEntityStateRepository::create ( ) [static]

Reimplemented in DtF18EntityStateRep, and MyEntityStateRep.

virtual DtDamageState DtEntityStateRepository::damageState ( ) const [virtual]

Get the damage state.

virtual DtDensityType DtEntityStateRepository::density ( ) const [virtual]

Set/Get density state of entity. (Environment entities).

virtual const DtString& DtEntityStateRepository::diGuyAction ( bool & paused ) const [virtual]

The DI-Guy attributes.

In HLA, only if the DI-Guy PhysicalEntity extensions appear in the FOM will these be updated.

virtual const DtString& DtEntityStateRepository::diGuyAppearance ( ) const [virtual]

The DI-Guy attributes.

In HLA, only if the DI-Guy PhysicalEntity extensions appear in the FOM will these be updated.

virtual const std::vector<char>& DtEntityStateRepository::diGuyArc ( ) const [virtual]

The DI-Guy attributes.

In HLA, only if the DI-Guy PhysicalEntity extensions appear in the FOM will these be updated.

virtual const DtEntityIdentifier& DtEntityStateRepository::diGuyParent ( ) const [virtual]

The DI-Guy attributes.

In HLA, only if the DI-Guy PhysicalEntity extensions appear in the FOM will these be updated.

virtual const DtString& DtEntityStateRepository::diGuyType ( ) const [virtual]

The DI-Guy attributes.

In HLA, only if the DI-Guy PhysicalEntity extensions appear in the FOM will these be updated.

virtual bool DtEntityStateRepository::engineSmokeOn ( ) const [virtual]

Get whether engine smoke is on or not.

virtual bool DtEntityStateRepository::firePowerDisabled ( ) const [virtual]

Set/Get whether entity is fire power disabled or not.

virtual bool DtEntityStateRepository::flamesPresent ( ) const [virtual]

Get whether flames are present or not.

DtForceType DtEntityStateRepository::forceId ( ) const [inline, virtual]

The force type.

References myForceId.

virtual bool DtEntityStateRepository::frozen ( ) const [virtual]

The frozen state of the entity.

Reimplemented from DtBaseEntityStateRepository.

bool DtEntityStateRepository::getNozzleSystem	(	int	index,
		DtVectoringNozzleSystem &	record
	)		const

Set/Get a vectoring nozzle system data record.

Returns false if the record does not exist. Non Virtual -- Used in Ctor

bool DtEntityStateRepository::getPropulsionSystem	(	int	index,
		DtPropulsionSystem &	record
	)		const

Set/Get a propulsion system data record.

Returns false if the record does not exist. Non Virtual -- Used in Ctor

const DtEntityType & DtEntityStateRepository::guise ( ) const [inline, virtual]

The alternate entity type or guise.

References myGuise.

virtual bool DtEntityStateRepository::hasAmmunitionSupplyCap ( ) const [virtual]

Set/Get whether entity has ammunition supply capability or not.

virtual bool DtEntityStateRepository::hasFuelSupplyCap ( ) const [virtual]

Get whether entity has fuel supplying capability.

virtual bool DtEntityStateRepository::hasRecoveryCap ( ) const [virtual]

Get whether entity has recovery capability.

virtual bool DtEntityStateRepository::hasRepairCap ( ) const [virtual]

Get whether entity has repair capability.

virtual DtHatchState DtEntityStateRepository::hatchState ( ) const [virtual]

Get the entity's hatch state.

virtual bool DtEntityStateRepository::immobilized ( ) const [virtual]

Get whether the entity is immobilized or not.

DtU16 DtEntityStateRepository::infraRedSigRepIndex ( ) const [inline, virtual]

Set/Get infra-red signature representation index.

References myInfaredSignatureIndex.

virtual bool DtEntityStateRepository::internalHeatSource ( ) const [virtual]

Set/Get internal Heat Source status.

void DtEntityStateRepository::internalSetMarkingText ( const char * text ) [inline, protected]

Set the marking text.

Non-virtual since meant to be used by constructor.

References myMarkingText.

Referenced by setMarkingText().

virtual bool DtEntityStateRepository::isConcealed ( ) const [virtual]

Set/Get whether entity is concealed or not.

virtual bool DtEntityStateRepository::launcherFlashPresent ( ) const [virtual]

Set/Get whether launcher flash is present or not.

virtual bool DtEntityStateRepository::launcherRaised ( ) const [virtual]

Set/Get whether entity has launcher raised or not.

virtual DtLifeformState DtEntityStateRepository::lifeformState ( ) const [virtual]

Get entity life form state.

In the RPR FOM this is called the Stance State.

virtual bool DtEntityStateRepository::lightState ( DtLightType s ) const [virtual]

Get light state of entity.

virtual DtLightState DtEntityStateRepository::lightState ( ) const [virtual]

Set/Get whether entity's power plant is on or not.

int DtEntityStateRepository::markingCharSet ( ) const [inline, virtual]

The character set used for the marking.

Defaults to 1.

References myMarkingCharSet.

const char * DtEntityStateRepository::markingText ( ) const [inline, virtual]

The marking text attribute.

This is typically used as the vehicle bumper number, though some applications may use it as a unique identifier.

References DtString::c_str(), and myMarkingText.

virtual bool DtEntityStateRepository::maskedCloaked ( ) const [virtual]

Returns the masked/cloaked appearance bit.

DtU16 DtEntityStateRepository::measuredSpeed ( ) const [inline, virtual]

Set/Get measured speed.

References myLiveEntityMeasuredSpeed.

virtual bool DtEntityStateRepository::missionKill ( ) const [virtual]

Set/Get Mission Kill status.

DtU16 DtEntityStateRepository::numNozzleSystems ( ) const

Set/Get number of nozzle systems.

Non Virtual -- Used in Ctor

DtU16 DtEntityStateRepository::numPropulsionSystems ( ) const

Set/Get number of propulsion systems.

Non Virtual -- Used in Ctor

DtEntityStateRepository& DtEntityStateRepository::operator= ( const DtEntityStateRepository & orig )

assignment operator

virtual bool DtEntityStateRepository::powerPlantOn ( ) const [virtual]

Set/Get whether entity's power plant is on or not.

virtual DtWeaponState DtEntityStateRepository::primaryWeaponState ( ) const [virtual]

Set/Get primary weapon deployment state.

virtual void DtEntityStateRepository::printData ( ) const [virtual]

Print the state data to the DtInfo stream.

Reimplemented from DtBaseEntityStateRepository.

Reimplemented in MyEntityStateRep.

virtual void DtEntityStateRepository::printDataToStream ( std::ostream & stream ) const [virtual]

prints the state data to the specified stream.

Reimplemented from DtBaseEntityStateRepository.

DtU16 DtEntityStateRepository::radarSigRepIndex ( ) const [inline, virtual]

Set/Get radar signature representation index.

References myRadarCrossSectionSignatureIndex.

virtual bool DtEntityStateRepository::rampDeployed ( ) const [virtual]

Set/Get whether entity has ramp deployed or not.

virtual DtWeaponState DtEntityStateRepository::secondaryWeaponState ( ) const [virtual]

Set/Get secondary weapon deployment state.

DtEntityStateRepository * DtEntityStateRepository::self ( ) const [inline, protected]

Cast off const-ness for trivial internal change.

Non-virtual since can't override on return type.

Reimplemented from DtBaseEntityStateRepository.

void DtEntityStateRepository::setAcousticSigRepIndex ( DtU16 value ) [inline, virtual]

Set/Get acoustic signature representation index.

References myAcousticsSignatureIndex.

virtual void DtEntityStateRepository::setAfterburnerOn ( bool onOff ) [virtual]

Set/Get whether entity has after burner on or not.

virtual void DtEntityStateRepository::setAntennaRaised ( bool upDown ) [virtual]

Set/Get Antenna Raised status.

void DtEntityStateRepository::setAppearance ( DtU32 app ) [inline, virtual]

Set the appearance bit field, use with care.

Note:: This is an alternate method of setting the appearance which may not work in HLA.

References myAppearance.

virtual void DtEntityStateRepository::setAppearanceAttribute	(	const DtAppearAttribute	attr,
		const DtAppearAttrVal	val
	)		`[virtual]`

Set an appearance attribute.

attr is the appearance bitfield mask val is the hex number to be or'ed in.

Note:: This should not be used in HLA

virtual void DtEntityStateRepository::setCamouflageType ( DtCamouflageType type ) [virtual]

Set/Get camouflage type.

void DtEntityStateRepository::setCapabilities ( DtU32 cap ) [inline, virtual]

Set/Get the capabilities field.

References myCapabilities.

virtual void DtEntityStateRepository::setClock ( DtClock * clock ) [virtual]

Overrides DtBaseEntityStateRepository's setClock method.

Reimplemented from DtBaseEntityStateRepository.

virtual void DtEntityStateRepository::setComplianceState ( DtComplianceState s ) [virtual]

Set/Get life form compliance state.

virtual void DtEntityStateRepository::setDamageState ( DtDamageState s ) [virtual]

Set the damage state.

virtual void DtEntityStateRepository::setDensity ( DtDensityType dens ) [virtual]

Set/Get density state of entity. (Environment entities).

virtual void DtEntityStateRepository::setDiGuyAction	(	const DtString &	val,
		bool	paused
	)		`[virtual]`

The DI-Guy attributes.

In HLA, only if the DI-Guy PhysicalEntity extensions appear in the FOM will these be updated.

virtual void DtEntityStateRepository::setDiGuyAppearance ( const DtString & val ) [virtual]

The DI-Guy attributes.

In HLA, only if the DI-Guy PhysicalEntity extensions appear in the FOM will these be updated.

virtual void DtEntityStateRepository::setDiGuyArc ( const std::vector< char > & val ) [virtual]

The DI-Guy attributes.

In HLA, only if the DI-Guy PhysicalEntity extensions appear in the FOM will these be updated.

virtual void DtEntityStateRepository::setDiGuyParent ( const DtEntityIdentifier & val ) [virtual]

The DI-Guy attributes.

In HLA, only if the DI-Guy PhysicalEntity extensions appear in the FOM will these be updated.

virtual void DtEntityStateRepository::setDiGuyType	(	const DtString &	newDiGuyType,
		const DtString &	newDiGuyAppearance
	)		`[virtual]`

When updating DiGuy type, it will typicall make sense to also update the DiGuy Appearance.

Prefer the setDiGuyType form that also updates appearance.

virtual void DtEntityStateRepository::setDiGuyType ( const DtString & val ) [virtual]

The DI-Guy attributes.

In HLA, only if the DI-Guy PhysicalEntity extensions appear in the FOM will these be updated.

virtual void DtEntityStateRepository::setEngineSmokeOn ( bool onOff ) [virtual]

Set whether engine smoke is on or not.

virtual void DtEntityStateRepository::setFirePowerDisabled ( bool onOff ) [virtual]

Set/Get whether entity is fire power disabled or not.

virtual void DtEntityStateRepository::setFlamesPresent ( bool onOff ) [virtual]

Set whether flames are present or not.

void DtEntityStateRepository::setForceId ( DtForceType force ) [inline, virtual]

Set the force type.

References myForceId.

virtual void DtEntityStateRepository::setFrozen ( bool onOff ) [virtual]

Set the frozen attribute.

Reimplemented from DtBaseEntityStateRepository.

void DtEntityStateRepository::setGuise ( const DtEntityType & type ) [inline, virtual]

Set the alternate entity type or guise.

References myGuise.

virtual void DtEntityStateRepository::setHasAmmunitionSupplyCap ( bool onOff ) [virtual]

Set/Get whether entity has ammunition supply capability or not.

virtual void DtEntityStateRepository::setHasFuelSupplyCap ( bool onOff ) [virtual]

Set whether entity has fuel supplying capability.

virtual void DtEntityStateRepository::setHasRecoveryCap ( bool onOff ) [virtual]

Set whether entity has recovery capability.

virtual void DtEntityStateRepository::setHasRepairCap ( bool onOff ) [virtual]

Set whether entity has repair capability.

virtual void DtEntityStateRepository::setHatchState ( DtHatchState s ) [virtual]

Set the entity's hatch state.

virtual void DtEntityStateRepository::setImmobilized ( bool onOff ) [virtual]

Set whether the entity is immobilized or not.

void DtEntityStateRepository::setInfraRedSigRepIndex ( DtU16 value ) [inline, virtual]

Set/Get infra-red signature representation index.

References myInfaredSignatureIndex.

virtual void DtEntityStateRepository::setInternalHeatSource ( bool onOff ) [virtual]

Set/Get internal Heat Source status.

virtual void DtEntityStateRepository::setIsConcealed ( bool onOff ) [virtual]

Set/Get whether entity is concealed or not.

virtual void DtEntityStateRepository::setLauncherFlashPresent ( bool onOff ) [virtual]

Set/Get whether launcher flash is present or not.

virtual void DtEntityStateRepository::setLauncherRaised ( bool onOff ) [virtual]

Set/Get whether entity has launcher raised or not.

virtual void DtEntityStateRepository::setLifeformState ( DtLifeformState s ) [virtual]

Set entity life form state.

In the RPR FOM this is called the Stance State.

virtual void DtEntityStateRepository::setLightState	(	DtLightType	s,
		bool	onOff
	)		`[virtual]`

Set light state of entity.

virtual void DtEntityStateRepository::setLightState ( DtLightState s ) [virtual]

Set/Get light state of entity.

This is for <= vrlink3.4 compatibility.

void DtEntityStateRepository::setMarkingCharSet ( int charSet ) [inline, virtual]

Set the character set used for the marking.

Defaults to 1.

References myMarkingCharSet.

void DtEntityStateRepository::setMarkingText ( const char * text ) [inline, virtual]

Set the marking text attribute.

This is typically used as the vehicle bumper number, though some applications may use it as a unique identifier.

References internalSetMarkingText().

virtual void DtEntityStateRepository::setMaskedCloaked ( bool onOff ) [virtual]

Sets masked/cloaked appearance bit (introduced in DIS enums 2005 doc).

void DtEntityStateRepository::setMeasuredSpeed ( DtU16 value ) [inline, virtual]

Set/Get measured speed.

References myLiveEntityMeasuredSpeed.

virtual void DtEntityStateRepository::setMissionKill ( bool yesNo ) [virtual]

Set/Get Mission Kill status.

bool DtEntityStateRepository::setNozzleSystem	(	int	index,
		const DtVectoringNozzleSystem &	record
	)

Set/Get a vectoring nozzle system data record.

Returns false if the record does not exist. Non Virtual -- Used in Ctor

void DtEntityStateRepository::setNumNozzleSystems ( DtU16 value )

Set/Get number of nozzle systems.

Non Virtual -- Used in Ctor

void DtEntityStateRepository::setNumPropulsionSystems ( DtU16 value )

Set/Get number of propulsion systems.

Non Virtual -- Used in Ctor

virtual void DtEntityStateRepository::setPowerPlantOn ( bool onOff ) [virtual]

Set/Get whether entity's power plant is on or not.

virtual void DtEntityStateRepository::setPrimaryWeaponState ( DtWeaponState s ) [virtual]

Set/Get primary weapon deployment state.

bool DtEntityStateRepository::setPropulsionSystem	(	int	index,
		const DtPropulsionSystem &	record
	)

Set/Get a propulsion system data record.

Returns false if the record does not exist. Non Virtual -- Used in Ctor

void DtEntityStateRepository::setRadarSigRepIndex ( DtU16 value ) [inline, virtual]

Set/Get radar signature representation index.

References myRadarCrossSectionSignatureIndex.

virtual void DtEntityStateRepository::setRampDeployed ( bool onOff ) [virtual]

Set/Get whether entity has ramp deployed or not.

virtual void DtEntityStateRepository::setSecondaryWeaponState ( DtWeaponState s ) [virtual]

Set/Get secondary weapon deployment state.

virtual void DtEntityStateRepository::setSmokePlumePresent ( bool onOff ) [virtual]

Set/Get whether a smoke plume is present or not.

virtual void DtEntityStateRepository::setTentDeployed ( bool onOff ) [virtual]

Set/Get whether a tent is deployed or not.

virtual void DtEntityStateRepository::setTrailState ( DtTrailState s ) [virtual]

Set/Get trailing effect state.

virtual bool DtEntityStateRepository::smokePlumePresent ( ) const [virtual]

Set/Get whether a smoke plume is present or not.

virtual bool DtEntityStateRepository::tentDeployed ( ) const [virtual]

Set/Get whether a tent is deployed or not.

virtual DtTrailState DtEntityStateRepository::trailState ( ) const [virtual]

Set/Get trailing effect state.

Member Data Documentation

DtU16 DtEntityStateRepository::myAcousticsSignatureIndex [protected]

Referenced by acousticSigRepIndex(), and setAcousticSigRepIndex().

DtU32 DtEntityStateRepository::myAppearance [protected]

Referenced by appearance(), and setAppearance().

DtArticulatedPartCollection DtEntityStateRepository::myArtPartList [protected]

Referenced by artPartList().

DtAttachedPartCollection DtEntityStateRepository::myAttPartList [protected]

Referenced by attPartList().

DtU32 DtEntityStateRepository::myCapabilities [protected]

Referenced by capabilities(), and setCapabilities().

DtString DtEntityStateRepository::myDiGuyAction [protected]

The DIGuy extension attributes.

These will only be used in HLA, and only if the DIGuy PhysicalEntity extensions appear in the FOM

bool DtEntityStateRepository::myDiGuyActionPaused [protected]

DtString DtEntityStateRepository::myDiGuyAppearance [protected]

std::vector<char> DtEntityStateRepository::myDiGuyArc [protected]

DtEntityIdentifier DtEntityStateRepository::myDiGuyParent [protected]

DtString DtEntityStateRepository::myDiGuyType [protected]

DtForceType DtEntityStateRepository::myForceId [protected]

Referenced by forceId(), and setForceId().

DtEntityType DtEntityStateRepository::myGuise [protected]

Referenced by guise(), and setGuise().

DtU16 DtEntityStateRepository::myInfaredSignatureIndex [protected]

Referenced by infraRedSigRepIndex(), and setInfraRedSigRepIndex().

DtU16 DtEntityStateRepository::myLiveEntityMeasuredSpeed [protected]

Referenced by measuredSpeed(), and setMeasuredSpeed().

int DtEntityStateRepository::myMarkingCharSet [protected]

Referenced by markingCharSet(), and setMarkingCharSet().

DtString DtEntityStateRepository::myMarkingText [protected]

myMarkingText is an array of theMaxMarkingSize.

String length is theMaxMarkingSize - 1 (doesn't include NULL).

Referenced by internalSetMarkingText(), and markingText().

int DtEntityStateRepository::myNumPropulsionSystemsData [protected]

int DtEntityStateRepository::myNumVectoringNozzleSystemData [protected]

DtPropulsionSystem* DtEntityStateRepository::myPropulsionSystemsDataList [protected]

DtU16 DtEntityStateRepository::myRadarCrossSectionSignatureIndex [protected]

Referenced by radarSigRepIndex(), and setRadarSigRepIndex().

DtVectoringNozzleSystem* DtEntityStateRepository::myVectoringNozzleSystemDataList [protected]

The documentation for this class was generated from the following file:

entitySR.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
