An instance of DtObjClassDesc is a "class descriptor" for an HLA Object class. More...

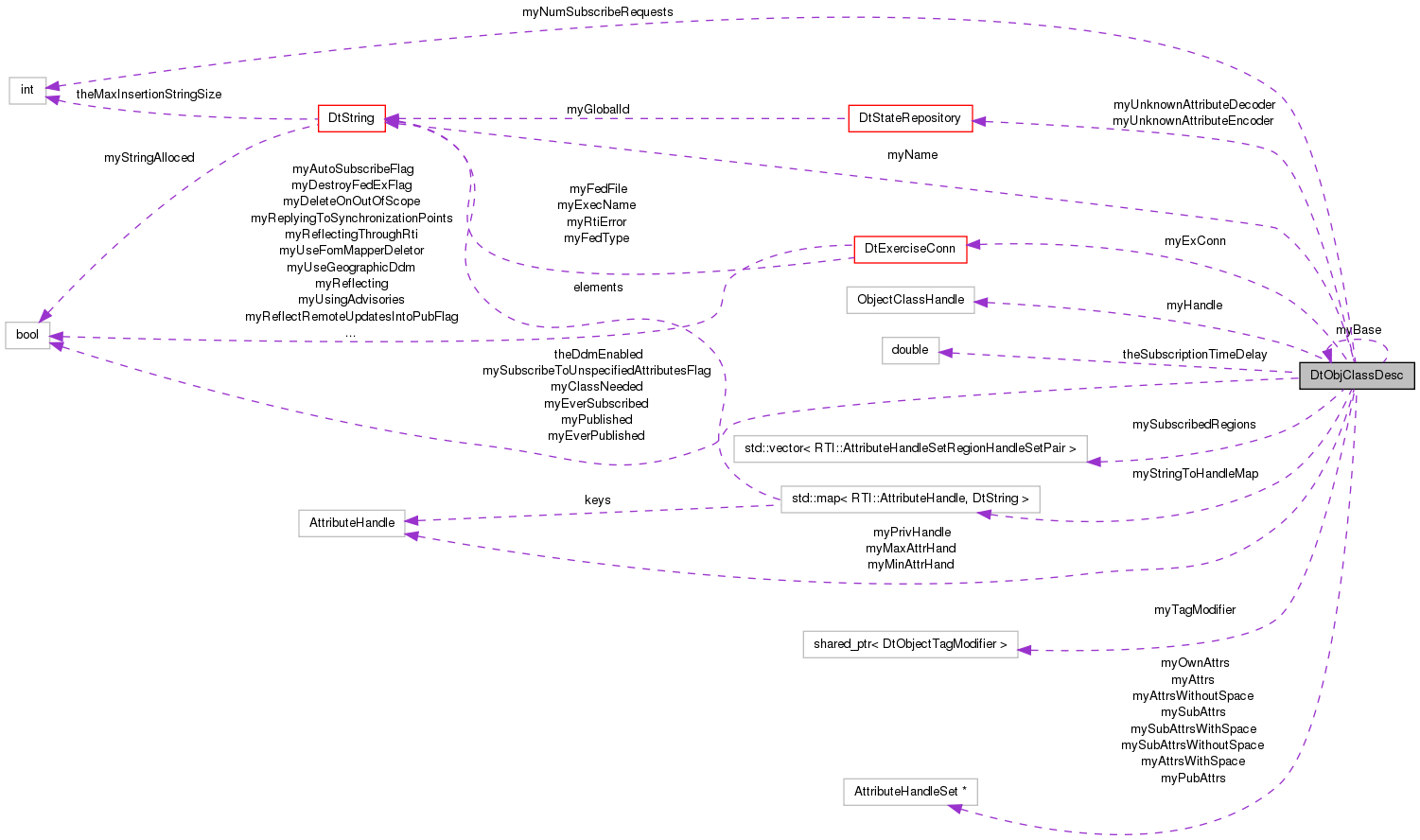

Collaboration diagram for DtObjClassDesc:

Public Member Functions
	DtObjClassDesc (const char className, DtObjClassDesc base, RTI::ObjectClassHandle handle, DtExerciseConn *exConn)
	Constructor.
virtual	~DtObjClassDesc ()
	destructor
virtual void	addAttr (const char *attrName, bool withSpace=false)
	Add an attribute (Used when reading FED file).
virtual RTI::ObjectClassHandle	handle () const
	Get the object's class handle.
virtual RTI::AttributeHandle	attributeHandleByName (const char *attrName) const
	Returns the attribute handle for this attribute name.
virtual DtString	attributeNameByHandle (const RTI::AttributeHandle &hand) const
	Returns a string holding the name of the attribute handle.
virtual const char *	name () const
	Get the object's class handle.
virtual const DtObjClassDesc *	baseClass () const
	Return a pointer to the base class's descriptor, NULL if none.
virtual DtObjClassDesc *	baseClass ()
	Return a pointer to the base class's descriptor, NULL if none.
virtual int	isOfClass (RTI::ObjectClassHandle hand) const
	Returns 1 if the class is of class hand or a subclass of hand, 0 otherwise.
virtual int	numAttributes () const
	Get the number of attributes associated with this object, including privilege to delete.
virtual bool	hasAttribute (const char *attrName) const
	Determine whether a particular object has the attribute name specified.
virtual const RTI::AttributeHandleSet &	attrHandleSet () const
	Get the set of valid attribute handles for this class.
virtual const RTI::AttributeHandleSet &	ownAttrHandles () const
	Get the set of non-inherited attribute handles for this class.
virtual bool	classNeededByFederation ()
	Returns true if the class is currently needed by the federation.
virtual void	publish ()
	Publishes the class, along with the attributes specified by hSet (or all attributes if no hSet is given).
virtual void	publish (const RTI::AttributeHandleSet &hSet)
virtual void	unpublish ()
	Unpublishes the class. Same as publish with an empty attribute set.
virtual void	subscribe (std::wstring const &updateRateDesignator=L"", bool active=true)
	Subscribes to the class, along with the attributes specified by hSet (or all attributes is no hSet is given) and a boolean to indicate whether VR-Link should subscribe actively or passively.
virtual void	subscribe (const DtDDMRegionSet &region, std::wstring const &updateRateDesignator=L"", bool active=true)
virtual void	subscribe (const RTI::AttributeHandleSet &hSet, std::wstring const &updateRateDesignator=L"", bool active=true)
virtual void	subscribe (const RTI::AttributeHandleSet &hSet, DtDDMRegionSP region, std::wstring const &updateRateDesignator=L"", bool active=true)
	subscribe with the region passed in.
virtual void	passiveSubscribe ()
virtual void	unsubscribe ()
	Unsubscribe to the class.
virtual void	unsubscribe (const DtDDMRegionSet &regionSet)
virtual void	requestUpdates ()
	Request updates of all objects of this class, include the attributes specified by hSet (or all subscribed attributes if no hSet is given).
virtual void	requestUpdates (const DtDDMRegionSet &region)
virtual void	requestUpdates (const RTI::AttributeHandleSet &hSet)
virtual void	requestUpdates (const RTI::AttributeHandleSet &hSet, DtDDMRegionSP region)
virtual const RTI::AttributeHandleSet &	publishedAttrs () const
	Returns the set of published attributes.
virtual bool	everPublished () const
	Return true if we have ever published the class using DtObjClassDesc::publish, false otherwise.
virtual const RTI::AttributeHandleSet &	subscribedAttrs () const
	Returns the set of subscribed attributes.
virtual const RTI::AttributeHandleSet &	attributesWithSpace () const
virtual const RTI::AttributeHandleSet &	attributesWithoutSpace () const
virtual const RTI::AttributeHandleSet &	subscribedAttrsWithSpace () const
virtual const RTI::AttributeHandleSet &	subscribedAttrsWithoutSpace () const
virtual bool	everSubscribed () const
	Return true if we have ever subscribed to the class using DtObjClassDesc::subscribe, false otherwise.
virtual DtVrlRtiAmbassador *	rtiAmb ()
	Get my RTI ambassador.
virtual DtVrlFederateAmbassador *	fedAmb ()
	Get my federate ambassador.
virtual RTI::AttributeHandle	privilegeHandle () const
	Returns the attribute handle of the privilegeToDelete attribute.
virtual void	setUserTagModifier (DtObjectTagModifierSP modifier)
virtual DtObjectTagModifierSP	userTagModifier ()
virtual void	setSubscribeToUnspecifiedAttributesFlag (bool subscribe)
	Set/get whether subscriptions default unspecified attributes to subscription without region When true, subscriptions with regionset will subscribe without region to attributes not specified anywhere When false, subscriptions with regionset will only subscribe to specified attributes.
virtual bool	subscribeToUnspecifiedAttributesFlag ()
virtual void	setUnknownAttributeEncoder (DtHlaStateEncoder::DtAttributeEncoder encoder)
	Set an encoder to be called for this object class for any attribute that doesn't have an encoder set for it.
virtual void	setUnknownAttributeDecoder (DtHlaStateDecoder::DtAttributeDecoder decoder)
	Set a decoder to be called for this object class for any attribute received in an update that doesn't have a decoder.
virtual DtHlaStateEncoder::DtAttributeEncoder	unknownAttributeEncoder ()
	Returns the unknown attribute encoder. Returns null if not set.
virtual DtHlaStateDecoder::DtAttributeDecoder	unknownAttributeDecoder ()
	Returns the unknown attribute decoder. Returns null if not set.
Static Public Member Functions
static void	setSubscriptionTimeDelay (double delay)
	Set a time delay to occur after calling RTI::RTIambassador::subscribe() The purpose of this function is to get around a bug in DMSO RTI NG v3.2 for Win98.
Protected Types
typedef std::map < RTI::AttributeHandle, DtString >	StringToAttributeHandleMap
typedef std::vector < RTI::AttributeHandleSetRegionHandleSetPair >	RegionHandleVector
Protected Member Functions
virtual void	processStartReg (RTI::ObjectClassHandle h)
	Callback for handling startRegistration RTI callback.
virtual void	processStopReg (RTI::ObjectClassHandle h)
	Callback for handling stopRegistration RTI callback.
virtual DtObjClassDesc *	self () const
	Casts away const-ness. Use with caution.
virtual void	synchSubscribedAttributes ()
	Updates subscribed attributes using values from subscribed attributes with/without space.
virtual void	fillInAttributeHandleSetRegionHandleSetPairVector (const RTI::AttributeHandleSet &hSet, DtDDMRegionSP region, RTI::AttributeHandleSetRegionHandleSetPairVector &pairVector)
	Utility function that fills in the pair vector for subscription with region in HLA 1516.
Static Protected Member Functions
static void	startRegCb (RTI::ObjectClassHandle h, void *usr)
	Callback for handling startRegistration RTI callback.
static void	stopRegCb (RTI::ObjectClassHandle h, void *usr)
	Callback for handling stopRegistration RTI callback.
static void	ddmDisabled ()
Protected Attributes
DtString	myName
RTI::ObjectClassHandle	myHandle
RTI::AttributeHandleSet *	myAttrs
RTI::AttributeHandleSet *	myOwnAttrs
RTI::AttributeHandleSet *	mySubAttrs
RTI::AttributeHandleSet *	myPubAttrs
RTI::AttributeHandleSet *	myAttrsWithSpace
	Attributes with a space (or dimensions in 1516) defined in the FOM.
RTI::AttributeHandleSet *	myAttrsWithoutSpace
	Attributes without a space (or dimensions in 1516) defined in the FOM.
RTI::AttributeHandleSet *	mySubAttrsWithSpace
RTI::AttributeHandleSet *	mySubAttrsWithoutSpace
bool	myClassNeeded
DtObjClassDesc *	myBase
DtExerciseConn *	myExConn
bool	myPublished
bool	myEverPublished
bool	myEverSubscribed
int	myNumSubscribeRequests
bool	mySubscribeToUnspecifiedAttributesFlag
RTI::AttributeHandle	myPrivHandle
	Handle of the privilegeToDelete attribute.
RTI::AttributeHandle	myMinAttrHand
RTI::AttributeHandle	myMaxAttrHand
StringToAttributeHandleMap	myStringToHandleMap
DtObjectTagModifierSP	myTagModifier
RegionHandleVector	mySubscribedRegions
DtHlaStateEncoder::DtAttributeEncoder	myUnknownAttributeEncoder
DtHlaStateDecoder::DtAttributeDecoder	myUnknownAttributeDecoder
Static Protected Attributes
static bool	theDdmEnabled
static double	theSubscriptionTimeDelay

Detailed Description

An instance of DtObjClassDesc is a "class descriptor" for an HLA Object class.

A list of all DtObjClassDescs for the various classes in a FOM can be obtained from a DtFom. A DtObjClassDesc can tell you the set of attributes associated with the class, the class's handle, name, and base class. Publication, subscription and update requests are done through the DtObjClassDesc as well, and the DtObjClassDesc maintains information on which attributes of the class are subscribed to by remote federates. By registering callbacks on start/stopUpdates, a DtObjClassDesc can tell you which attributes of the class have been subscribed to by other federates.

Member Typedef Documentation

typedef std::vector<RTI::AttributeHandleSetRegionHandleSetPair> DtObjClassDesc::RegionHandleVector [protected]

typedef std::map<RTI::AttributeHandle, DtString> DtObjClassDesc::StringToAttributeHandleMap [protected]

Constructor & Destructor Documentation

DtObjClassDesc::DtObjClassDesc	(	const char *	className,
		DtObjClassDesc *	base,
		RTI::ObjectClassHandle	handle,
		DtExerciseConn *	exConn
	)

Constructor.

Adds the base class's attributes to our attribute set. Used when reading FED file.

virtual DtObjClassDesc::~DtObjClassDesc ( ) [virtual]

destructor

Member Function Documentation

virtual void DtObjClassDesc::addAttr	(	const char *	attrName,
		bool	withSpace = `false`
	)		`[virtual]`

Add an attribute (Used when reading FED file).

const RTI::AttributeHandleSet & DtObjClassDesc::attrHandleSet ( ) const [inline, virtual]

Get the set of valid attribute handles for this class.

Includes attributes inherited from base classes.

References myAttrs.

Referenced by DtHlaObject::attrHandleSet().

virtual RTI::AttributeHandle DtObjClassDesc::attributeHandleByName ( const char * attrName ) const [virtual]

Returns the attribute handle for this attribute name.

virtual DtString DtObjClassDesc::attributeNameByHandle ( const RTI::AttributeHandle & hand ) const [virtual]

Returns a string holding the name of the attribute handle.

virtual const RTI::AttributeHandleSet& DtObjClassDesc::attributesWithoutSpace ( ) const [virtual]

virtual const RTI::AttributeHandleSet& DtObjClassDesc::attributesWithSpace ( ) const [virtual]

const DtObjClassDesc * DtObjClassDesc::baseClass ( ) const [inline, virtual]

Return a pointer to the base class's descriptor, NULL if none.

References myBase.

DtObjClassDesc * DtObjClassDesc::baseClass ( ) [inline, virtual]

Return a pointer to the base class's descriptor, NULL if none.

References myBase.

virtual bool DtObjClassDesc::classNeededByFederation ( ) [virtual]

Returns true if the class is currently needed by the federation.

If VR-Link is using advisories, this function will return true if we've either received a startRegistrationForObjectClass call for the class; otherwise this function will always return true. NOTE: We will only receive calls such as startRegistrationForObjectClass if the class has been published using DtObjClassDesc::publish.

static void DtObjClassDesc::ddmDisabled ( ) [static, protected]

virtual bool DtObjClassDesc::everPublished ( ) const [virtual]

Return true if we have ever published the class using DtObjClassDesc::publish, false otherwise.

virtual bool DtObjClassDesc::everSubscribed ( ) const [virtual]

Return true if we have ever subscribed to the class using DtObjClassDesc::subscribe, false otherwise.

virtual DtVrlFederateAmbassador* DtObjClassDesc::fedAmb ( ) [virtual]

Get my federate ambassador.

virtual void DtObjClassDesc::fillInAttributeHandleSetRegionHandleSetPairVector	(	const RTI::AttributeHandleSet &	hSet,
		DtDDMRegionSP	region,
		RTI::AttributeHandleSetRegionHandleSetPairVector &	pairVector
	)		`[protected, virtual]`

Utility function that fills in the pair vector for subscription with region in HLA 1516.

RTI::ObjectClassHandle DtObjClassDesc::handle ( ) const [inline, virtual]

Get the object's class handle.

References myHandle.

Referenced by DtHlaObject::objectClassHandle().

virtual bool DtObjClassDesc::hasAttribute ( const char * attrName ) const [virtual]

Determine whether a particular object has the attribute name specified.

virtual int DtObjClassDesc::isOfClass ( RTI::ObjectClassHandle hand ) const [virtual]

Returns 1 if the class is of class hand or a subclass of hand, 0 otherwise.

const char * DtObjClassDesc::name ( ) const [inline, virtual]

Get the object's class handle.

References DtString::c_str(), and myName.

int DtObjClassDesc::numAttributes ( ) const [inline, virtual]

Get the number of attributes associated with this object, including privilege to delete.

References myAttrs.

Referenced by DtHlaObject::numAttributes().

const RTI::AttributeHandleSet & DtObjClassDesc::ownAttrHandles ( ) const [inline, virtual]

Get the set of non-inherited attribute handles for this class.

References myOwnAttrs.

virtual void DtObjClassDesc::passiveSubscribe ( ) [virtual]

RTI::AttributeHandle DtObjClassDesc::privilegeHandle ( ) const [inline, virtual]

Returns the attribute handle of the privilegeToDelete attribute.

References myPrivHandle.

virtual void DtObjClassDesc::processStartReg ( RTI::ObjectClassHandle h ) [protected, virtual]

Callback for handling startRegistration RTI callback.

virtual void DtObjClassDesc::processStopReg ( RTI::ObjectClassHandle h ) [protected, virtual]

Callback for handling stopRegistration RTI callback.

virtual void DtObjClassDesc::publish ( ) [virtual]

Publishes the class, along with the attributes specified by hSet (or all attributes if no hSet is given).

Also, registers start and stopUpdates callbacks on the published classes. Can be called multiple times to change the set of published classes.

virtual void DtObjClassDesc::publish ( const RTI::AttributeHandleSet & hSet ) [virtual]

virtual const RTI::AttributeHandleSet& DtObjClassDesc::publishedAttrs ( ) const [virtual]

Returns the set of published attributes.

For this to work correctly, do not publish directly through the RTI. Instead, use DtObjClassDesc::publish.

virtual void DtObjClassDesc::requestUpdates ( ) [virtual]

Request updates of all objects of this class, include the attributes specified by hSet (or all subscribed attributes if no hSet is given).

virtual void DtObjClassDesc::requestUpdates ( const DtDDMRegionSet & region ) [virtual]

virtual void DtObjClassDesc::requestUpdates ( const RTI::AttributeHandleSet & hSet ) [virtual]

virtual void DtObjClassDesc::requestUpdates	(	const RTI::AttributeHandleSet &	hSet,
		DtDDMRegionSP	region
	)		`[virtual]`

virtual DtVrlRtiAmbassador* DtObjClassDesc::rtiAmb ( ) [virtual]

Get my RTI ambassador.

DtObjClassDesc * DtObjClassDesc::self ( ) const [inline, protected, virtual]

Casts away const-ness. Use with caution.

virtual void DtObjClassDesc::setSubscribeToUnspecifiedAttributesFlag ( bool subscribe ) [virtual]

Set/get whether subscriptions default unspecified attributes to subscription without region When true, subscriptions with regionset will subscribe without region to attributes not specified anywhere When false, subscriptions with regionset will only subscribe to specified attributes.

void DtObjClassDesc::setSubscriptionTimeDelay ( double delay ) [inline, static]

Set a time delay to occur after calling RTI::RTIambassador::subscribe() The purpose of this function is to get around a bug in DMSO RTI NG v3.2 for Win98.

If a delay is not used on Win98, DMSO RTI NG may miss subscribe messages and then fail to call discoverObjectInstance() when it's appropriate In most circumstances, you would never want to call this function.

References theSubscriptionTimeDelay.

virtual void DtObjClassDesc::setUnknownAttributeDecoder ( DtHlaStateDecoder::DtAttributeDecoder decoder ) [virtual]

Set a decoder to be called for this object class for any attribute received in an update that doesn't have a decoder.

virtual void DtObjClassDesc::setUnknownAttributeEncoder ( DtHlaStateEncoder::DtAttributeEncoder encoder ) [virtual]

Set an encoder to be called for this object class for any attribute that doesn't have an encoder set for it.

Note that this will be called every tick for each unknown attribute in the object class, as there is no checker. The user can simply not add the handle/value to the AttributeHandleValuePairSet if an update should not be made.

virtual void DtObjClassDesc::setUserTagModifier ( DtObjectTagModifierSP modifier ) [virtual]

static void DtObjClassDesc::startRegCb	(	RTI::ObjectClassHandle	h,
		void *	usr
	)		`[static, protected]`

Callback for handling startRegistration RTI callback.

static void DtObjClassDesc::stopRegCb	(	RTI::ObjectClassHandle	h,
		void *	usr
	)		`[static, protected]`

Callback for handling stopRegistration RTI callback.

virtual void DtObjClassDesc::subscribe	(	std::wstring const &	updateRateDesignator = `L""`,
		bool	active = `true`
	)		`[virtual]`

Subscribes to the class, along with the attributes specified by hSet (or all attributes is no hSet is given) and a boolean to indicate whether VR-Link should subscribe actively or passively.

Additionally place the update rate restriction on the subscription The updateRateDesignator takes effect on HLA Evolved ONLY.

virtual void DtObjClassDesc::subscribe	(	const DtDDMRegionSet &	region,
		std::wstring const &	updateRateDesignator = `L""`,
		bool	active = `true`
	)		`[virtual]`

virtual void DtObjClassDesc::subscribe	(	const RTI::AttributeHandleSet &	hSet,
		std::wstring const &	updateRateDesignator = `L""`,
		bool	active = `true`
	)		`[virtual]`

virtual void DtObjClassDesc::subscribe	(	const RTI::AttributeHandleSet &	hSet,
		DtDDMRegionSP	region,
		std::wstring const &	updateRateDesignator = `L""`,
		bool	active = `true`
	)		`[virtual]`
