VR-Link API Documentation for HLA 1516
Classes | Public Member Functions | Static Public Member Functions | Protected Member Functions | Static Protected Member Functions | Protected Attributes
DtVrlFederateAmbassador Class Reference
The VR-Link Simulation Library (vlProt)

Instances of DtVrlFederateAmbassador are used to manage the interface between the RTI and the VR-Link Federate. More...

+ Inheritance diagram for DtVrlFederateAmbassador:

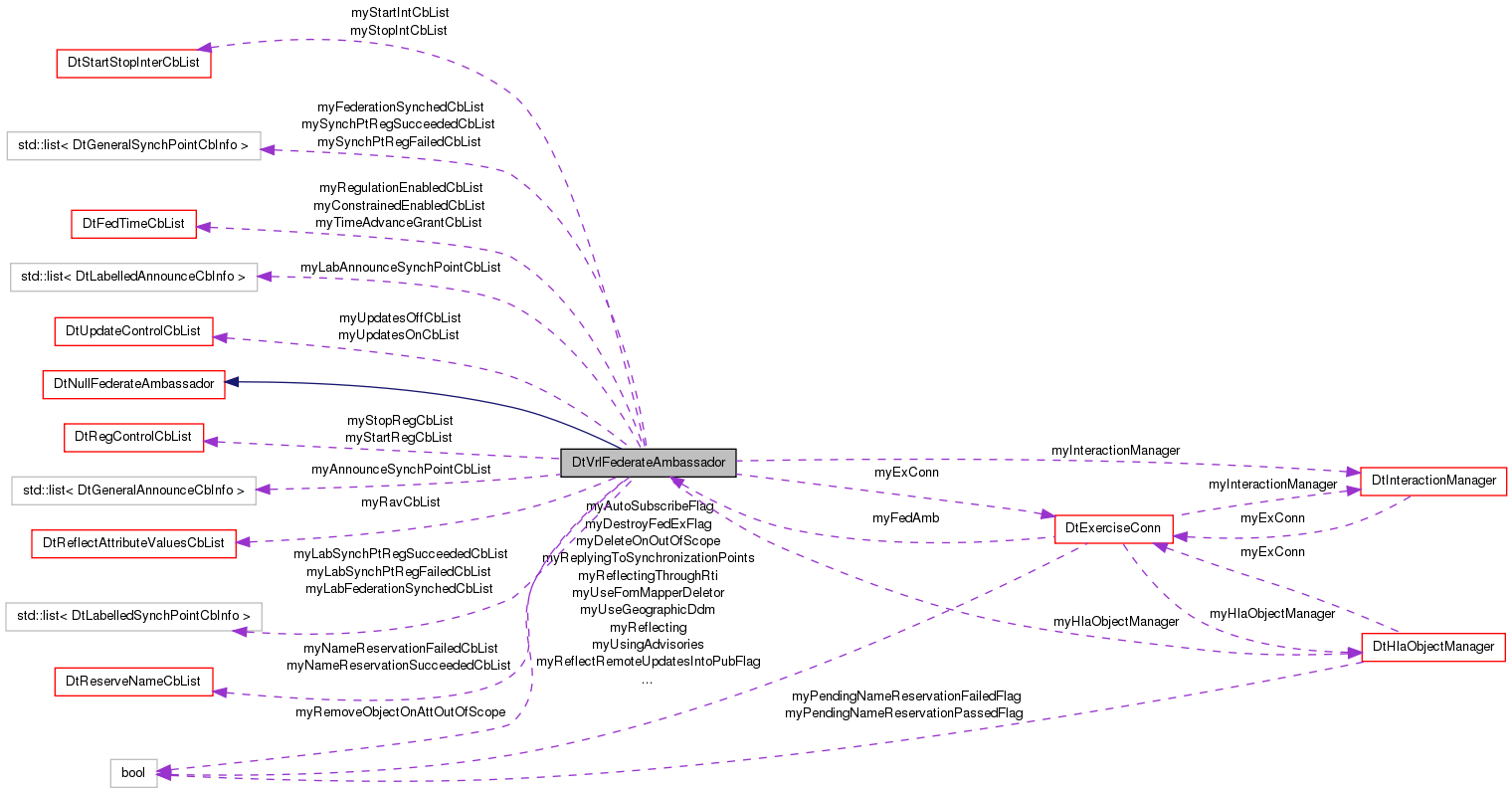

+ Collaboration diagram for DtVrlFederateAmbassador:

List of all members.

Classes

struct  DtGeneralAnnounceCbInfo
struct  DtGeneralSynchPointCbInfo
 Fly-weight classes to store sync point cb info. More...
struct  DtLabelledAnnounceCbInfo
struct  DtLabelledSynchPointCbInfo
struct  DtScopeChangeCallbackData

Public Member Functions

 DtVrlFederateAmbassador () throw (RTI::FederateInternalError)
 default constructor
virtual ~DtVrlFederateAmbassador () throw ( )
 destructor
virtual void init (DtExerciseConn *exConn, DtHlaObjectManager *hlaObjMgr, DtInteractionManager *interMgr)
 Initialize the ambassador.
virtual void addReflectAttributeValuesCb (RTI::ObjectInstanceHandle id, DtReflectAttributeValuesCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's reflectAttributeValues service is invoked.
virtual void removeReflectAttributeValuesCb (RTI::ObjectInstanceHandle id, DtReflectAttributeValuesCb cb, void *usr)
virtual void addDiscoverObjectCb (RTI::ObjectClassHandle hand, DtDiscoverObjectCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's discoverObject service is invoked.
virtual void removeDiscoverObjectCb (RTI::ObjectClassHandle hand, DtDiscoverObjectCb cb, void *usr)
virtual void addRemoveObjectCb (RTI::ObjectInstanceHandle id, DtRemoveObjectCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's removeObject service is invoked.
virtual void removeRemoveObjectCb (RTI::ObjectInstanceHandle id, DtRemoveObjectCb cb, void *usr)
virtual void addStartRegCb (RTI::ObjectClassHandle hand, DtStartRegCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's startRegistration service is invoked.
virtual void removeStartRegCb (RTI::ObjectClassHandle hand, DtStartRegCb cb, void *usr)
virtual void addStopRegCb (RTI::ObjectClassHandle hand, DtStopRegCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's stopReg service is invoked.
virtual void removeStopRegCb (RTI::ObjectClassHandle hand, DtStopRegCb cb, void *usr)
virtual void addUpdatesOnCb (RTI::ObjectInstanceHandle hand, DtUpdatesOnCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOn service is invoked.
virtual void removeUpdatesOnCb (RTI::ObjectInstanceHandle hand, DtUpdatesOnCb cb, void *usr)
virtual void addUpdatesOffCb (RTI::ObjectInstanceHandle hand, DtUpdatesOffCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOff service is invoked.
virtual void removeUpdatesOffCb (RTI::ObjectInstanceHandle hand, DtUpdatesOffCb cb, void *usr)
virtual void addStartInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's startInteractionGeneration service is invoked.
virtual void removeStartInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
virtual void addStopInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's stopInteractionGeneration service is invoked.
virtual void removeStopInteractionsCb (RTI::InteractionClassHandle hand, DtStartStopInterCb cb, void *usr)
virtual void addReceiveInteractionCb (RTI::InteractionClassHandle hand, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
 Add/Remove (register/deregister) function to be called when the RTI's receiveInteraction service is invoked.
virtual void removeReceiveInteractionCb (RTI::InteractionClassHandle hand, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
virtual void addTimeAdvanceGrantCb (DtFedTimeCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's TimeAdvanceGrant service is invoked.
virtual void removeTimeAdvanceGrantCb (DtFedTimeCb cb, void *usr)
virtual void addTimeRegulationEnabledCb (DtFedTimeCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's TimeRegulationEnabled service is invoked.
virtual void removeTimeRegulationEnabledCb (DtFedTimeCb cb, void *usr)
virtual void addTimeConstrainedEnabledCb (DtFedTimeCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's TimeConstrainedEnabled service is invoked.
virtual void removeTimeConstrainedEnabledCb (DtFedTimeCb cb, void *usr)
virtual void addNameReservationSucceeded (DtReserveNameCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's objectInstanceNameReservationSucceeded service is invoked.
virtual void removeNameReservationSucceeded (DtReserveNameCb cb, void *usr)
virtual void addNameReservationFailed (DtReserveNameCb cb, void *usr)
 Add/Remove (register/deregister) function to be called when the RTI's objectInstanceNameReservationFailed service is invoked.
virtual void removeNameReservationFailed (DtReserveNameCb cb, void *usr)
virtual void addSynchPointRegSucceededCb (const DtString &label, DtSynchPointCb func, void *usr)
 Methods to add/remove user callbacks for sync point callbacks.
virtual void addSynchPointRegSucceededCb (DtSynchPointCb func, void *usr)
virtual void removeSynchPointRegSucceededCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void removeSynchPointRegSucceededCb (DtSynchPointCb func, void *usr)
virtual void addSynchPointRegFailedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void addSynchPointRegFailedCb (DtSynchPointCb func, void *usr)
virtual void removeSynchPointRegFailedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void removeSynchPointRegFailedCb (DtSynchPointCb func, void *usr)
virtual void addFederationSynchedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void addFederationSynchedCb (DtSynchPointCb func, void *usr)
virtual void removeFederationSynchedCb (const DtString &label, DtSynchPointCb func, void *usr)
virtual void removeFederationSynchedCb (DtSynchPointCb func, void *usr)
virtual void addAnnounceSynchPointCb (const DtString &label, DtAnnounceSynchPointCb func, void *usr)
virtual void addAnnounceSynchPointCb (DtAnnounceSynchPointCb func, void *usr)
virtual void removeAnnounceSynchPointCb (const DtString &label, DtAnnounceSynchPointCb func, void *usr)
virtual void removeAnnounceSynchPointCb (DtAnnounceSynchPointCb func, void *usr)
virtual void setRemoveObjectOnAttOutOfScope (bool remove)
virtual bool removeObjectOnAttOutOfScope () const
virtual void synchronizationPointRegistrationSucceeded (std::wstring const &label) throw (RTI::FederateInternalError)
 4.7
virtual void synchronizationPointRegistrationFailed (std::wstring const &label, RTI::SynchronizationFailureReason reason) throw (RTI::FederateInternalError)
virtual void announceSynchronizationPoint (std::wstring const &label, RTI::VariableLengthData const &aTag) throw (RTI::FederateInternalError)
 4.8
virtual void federationSynchronized (std::wstring const &label) throw (RTI::FederateInternalError)
 4.10
virtual void initiateFederateSave (std::wstring const &label) throw (RTI::UnableToPerformSave, RTI::FederateInternalError)
 4.12
virtual void initiateFederateSave (std::wstring const &label, RTI::LogicalTime const &theTime) throw (RTI::UnableToPerformSave, RTI::InvalidLogicalTime, RTI::FederateInternalError)
virtual void federationSaved () throw (RTI::FederateInternalError)
 4.15
virtual void federationNotSaved (RTI::SaveFailureReason theSaveFailureReason) throw (RTI::FederateInternalError)
virtual void federationSaveStatusResponse (RTI::FederateHandleSaveStatusPairVector const &theFederateStatusVector) throw (RTI::FederateInternalError)
 4.17
virtual void requestFederationRestoreSucceeded (std::wstring const &label) throw (RTI::FederateInternalError)
 4.19
virtual void requestFederationRestoreFailed (std::wstring const &label) throw (RTI::FederateInternalError)
virtual void federationRestoreBegun () throw (RTI::FederateInternalError)
 4.20
virtual void initiateFederateRestore (std::wstring const &label, RTI::FederateHandle handle) throw (RTI::SpecifiedSaveLabelDoesNotExist, RTI::CouldNotInitiateRestore, RTI::FederateInternalError)
 4.21
virtual void federationRestored () throw (RTI::FederateInternalError)
 4.23
virtual void federationNotRestored (RTI::RestoreFailureReason theRestoreFailureReason) throw (RTI::FederateInternalError)
virtual void federationRestoreStatusResponse (RTI::FederateHandleRestoreStatusPairVector const &theFederateStatusVector) throw (RTI::FederateInternalError)
 4.25
virtual void startRegistrationForObjectClass (RTI::ObjectClassHandle theClass) throw (RTI::ObjectClassNotPublished, RTI::FederateInternalError)
 ! Declaration Management Services //!
virtual void stopRegistrationForObjectClass (RTI::ObjectClassHandle theClass) throw (RTI::ObjectClassNotPublished, RTI::FederateInternalError)
 5.11
virtual void turnInteractionsOn (RTI::InteractionClassHandle theHandle) throw (RTI::InteractionClassNotPublished, RTI::FederateInternalError)
 5.12
virtual void turnInteractionsOff (RTI::InteractionClassHandle theHandle) throw (RTI::InteractionClassNotPublished, RTI::FederateInternalError)
 5.13
virtual void objectInstanceNameReservationSucceeded (std::wstring const &theObjectInstanceName) throw (RTI::UnknownName, RTI::FederateInternalError)
 ! Object Management Services //!
virtual void objectInstanceNameReservationFailed (std::wstring const &theObjectInstanceName) throw (RTI::UnknownName, RTI::FederateInternalError)
virtual void discoverObjectInstance (RTI::ObjectInstanceHandle theObject, RTI::ObjectClassHandle theObjectClass, std::wstring const &theObjectInstanceName) throw (RTI::CouldNotDiscover, RTI::ObjectClassNotKnown, RTI::FederateInternalError)
 6.5
virtual void reflectAttributeValues (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleValueMap const &theAttributeValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError)
 6.7
virtual void reflectAttributeValues (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleValueMap const &theAttributeValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType, RTI::RegionHandleSet const &theSentRegionHandleSet) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError)
virtual void reflectAttributeValues (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleValueMap const &theAttributeValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType, RTI::LogicalTime const &theTime, RTI::OrderType receivedOrder) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError)
virtual void reflectAttributeValues (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleValueMap const &theAttributeValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType, RTI::LogicalTime const &theTime, RTI::OrderType receivedOrder, RTI::RegionHandleSet const &theSentRegionHandleSet) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError)
virtual void reflectAttributeValues (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleValueMap const &theAttributeValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType, RTI::LogicalTime const &theTime, RTI::OrderType receivedOrder, RTI::MessageRetractionHandle theHandle) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::InvalidLogicalTime, RTI::FederateInternalError)
virtual void reflectAttributeValues (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleValueMap const &theAttributeValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType, RTI::LogicalTime const &theTime, RTI::OrderType receivedOrder, RTI::MessageRetractionHandle theHandle, RTI::RegionHandleSet const &theSentRegionHandleSet) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::InvalidLogicalTime, RTI::FederateInternalError)
virtual void receiveInteraction (RTI::InteractionClassHandle theInteraction, RTI::ParameterHandleValueMap const &theParameterValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::FederateInternalError)
 6.9
virtual void receiveInteraction (RTI::InteractionClassHandle theInteraction, RTI::ParameterHandleValueMap const &theParameterValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType, RTI::RegionHandleSet const &theSentRegionHandleSet) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::FederateInternalError)
virtual void receiveInteraction (RTI::InteractionClassHandle theInteraction, RTI::ParameterHandleValueMap const &theParameterValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType, RTI::LogicalTime const &theTime, RTI::OrderType receivedOrder) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::FederateInternalError)
virtual void receiveInteraction (RTI::InteractionClassHandle theInteraction, RTI::ParameterHandleValueMap const &theParameterValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType, RTI::LogicalTime const &theTime, RTI::OrderType receivedOrder, RTI::RegionHandleSet const &theSentRegionHandleSet) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::FederateInternalError)
virtual void receiveInteraction (RTI::InteractionClassHandle theInteraction, RTI::ParameterHandleValueMap const &theParameterValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType, RTI::LogicalTime const &theTime, RTI::OrderType receivedOrder, RTI::MessageRetractionHandle theHandle) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::InvalidLogicalTime, RTI::FederateInternalError)
virtual void receiveInteraction (RTI::InteractionClassHandle theInteraction, RTI::ParameterHandleValueMap const &theParameterValues, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::TransportationType theType, RTI::LogicalTime const &theTime, RTI::OrderType receivedOrder, RTI::MessageRetractionHandle theHandle, RTI::RegionHandleSet const &theSentRegionHandleSet) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::InvalidLogicalTime, RTI::FederateInternalError)
virtual void removeObjectInstance (RTI::ObjectInstanceHandle theObject, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder) throw (RTI::ObjectInstanceNotKnown, RTI::FederateInternalError)
 6.11
virtual void removeObjectInstance (RTI::ObjectInstanceHandle theObject, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::LogicalTime const &theTime, RTI::OrderType receivedOrder) throw (RTI::ObjectInstanceNotKnown, RTI::FederateInternalError)
virtual void removeObjectInstance (RTI::ObjectInstanceHandle theObject, RTI::VariableLengthData const &aTag, RTI::OrderType sentOrder, RTI::LogicalTime const &theTime, RTI::OrderType receivedOrder, RTI::MessageRetractionHandle theHandle) throw (RTI::ObjectInstanceNotKnown, RTI::InvalidLogicalTime, RTI::FederateInternalError)
virtual void attributesInScope (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &theAttributes) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError)
 6.15
virtual void attributesOutOfScope (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &theAttributes) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError)
 6.16
virtual void provideAttributeValueUpdate (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &theAttributes, RTI::VariableLengthData const &aTag) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotOwned, RTI::FederateInternalError)
 6.18
virtual void turnUpdatesOnForObjectInstance (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &theAttributes) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotOwned, RTI::FederateInternalError)
 6.19
virtual void turnUpdatesOffForObjectInstance (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &theAttributes) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotOwned, RTI::FederateInternalError)
 6.20
virtual void requestAttributeOwnershipAssumption (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &offeredAttributes, RTI::VariableLengthData const &aTag) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError)
 ! Ownership Management Services //!
virtual void requestDivestitureConfirmation (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &releasedAttributes) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotOwned, RTI::AttributeDivestitureWasNotRequested, RTI::FederateInternalError)
 7.5
virtual void attributeOwnershipAcquisitionNotification (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &securedAttributes, RTI::VariableLengthData const &aTag) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeAcquisitionWasNotRequested, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError)
 7.7
virtual void attributeOwnershipUnavailable (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &theAttributes) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotRequested, RTI::FederateInternalError)
 7.10
virtual void requestAttributeOwnershipRelease (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &candidateAttributes, RTI::VariableLengthData const &aTag) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotOwned, RTI::FederateInternalError)
 7.11
virtual void confirmAttributeOwnershipAcquisitionCancellation (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandleSet const &theAttributes) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotCanceled, RTI::FederateInternalError)
 7.15
virtual void informAttributeOwnership (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandle theAttribute, RTI::FederateHandle theOwner) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::FederateInternalError)
 7.17
virtual void attributeIsNotOwned (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandle theAttribute) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::FederateInternalError)
virtual void attributeIsOwnedByRTI (RTI::ObjectInstanceHandle theObject, RTI::AttributeHandle theAttribute) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::FederateInternalError)
virtual void timeRegulationEnabled (RTI::LogicalTime const &theFederateTime) throw (RTI::InvalidLogicalTime, RTI::NoRequestToEnableTimeRegulationWasPending, RTI::FederateInternalError)
 ! Time Management Services //!
virtual void timeConstrainedEnabled (RTI::LogicalTime const &theFederateTime) throw (RTI::InvalidLogicalTime, RTI::NoRequestToEnableTimeConstrainedWasPending, RTI::FederateInternalError)
 8.6
virtual void timeAdvanceGrant (RTI::LogicalTime const &theTime) throw (RTI::InvalidLogicalTime, RTI::JoinedFederateIsNotInTimeAdvancingState, RTI::FederateInternalError)
 8.13
virtual void requestRetraction (RTI::MessageRetractionHandle theHandle) throw (RTI::FederateInternalError)
 8.22

Static Public Member Functions

static DtVrlFederateAmbassador * create ()
 returns a new DtVrlFedAmbassador

Protected Member Functions

 DtVrlFederateAmbassador (const DtVrlFederateAmbassador &src)
 copy constructor - not implemented.
DtVrlFederateAmbassador & operator= (const DtVrlFederateAmbassador &src)
 assignment operator - not implemented.
virtual void processAttributesOutOfScope (RTI::ObjectInstanceHandle handle)
virtual void applyFedsSynchedCallbacks (const DtString &label)
 Utility functions.
virtual void applyRegistrationSucceededCallbacks (const DtString &label)
virtual void applyRegistrationFailedCallbacks (const DtString &label)
virtual bool applyAnnounceCallbacks (const DtString &label, const RTI::VariableLengthData &tag)
 Return true if any are applied (i.e., don't auto-reply)

Static Protected Member Functions

static void attributesOutOfScopeCb (void *usr)

Protected Attributes

DtExerciseConn * myExConn
DtInteractionManager * myInteractionManager
DtHlaObjectManager * myHlaObjectManager
DtReflectAttributeValuesCbList myRavCbList
DtUpdatesOnCbList myUpdatesOnCbList
DtUpdatesOffCbList myUpdatesOffCbList
DtStartRegCbList myStartRegCbList
DtStopRegCbList myStopRegCbList
DtStartStopInterCbList myStartIntCbList
DtStartStopInterCbList myStopIntCbList
DtFedTimeCbList myTimeAdvanceGrantCbList
DtFedTimeCbList myRegulationEnabledCbList
DtFedTimeCbList myConstrainedEnabledCbList
DtReserveNameCbList myNameReservationSucceededCbList
DtReserveNameCbList myNameReservationFailedCbList
std::list
< DtLabelledSynchPointCbInfo > 		myLabSynchPtRegSucceededCbList
 Lists for specific callbacks registered with VR-Link.
std::list
< DtLabelledSynchPointCbInfo > 		myLabSynchPtRegFailedCbList
std::list
< DtLabelledSynchPointCbInfo > 		myLabFederationSynchedCbList
std::list
< DtLabelledAnnounceCbInfo > 		myLabAnnounceSynchPointCbList
std::list
< DtGeneralSynchPointCbInfo > 		mySynchPtRegSucceededCbList
std::list
< DtGeneralSynchPointCbInfo > 		mySynchPtRegFailedCbList
std::list
< DtGeneralSynchPointCbInfo > 		myFederationSynchedCbList
std::list
< DtGeneralAnnounceCbInfo > 		myAnnounceSynchPointCbList
bool myRemoveObjectOnAttOutOfScope

Detailed Description

Instances of DtVrlFederateAmbassador are used to manage the interface between the RTI and the VR-Link Federate.

Constructor & Destructor Documentation

DtVrlFederateAmbassador::DtVrlFederateAmbassador ( ) throw (RTI::FederateInternalError)

default constructor

virtual DtVrlFederateAmbassador::~DtVrlFederateAmbassador ( ) throw ( ) [virtual]

destructor

DtVrlFederateAmbassador::DtVrlFederateAmbassador ( const DtVrlFederateAmbassador &  src) [protected]

copy constructor - not implemented.

Member Function Documentation

virtual void DtVrlFederateAmbassador::addAnnounceSynchPointCb ( const DtString &  label,
DtAnnounceSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::addAnnounceSynchPointCb ( DtAnnounceSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::addDiscoverObjectCb ( RTI::ObjectClassHandle  hand,
DtDiscoverObjectCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's discoverObject service is invoked.

virtual void DtVrlFederateAmbassador::addFederationSynchedCb ( const DtString &  label,
DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::addFederationSynchedCb ( DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::addNameReservationFailed ( DtReserveNameCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's objectInstanceNameReservationFailed service is invoked.

virtual void DtVrlFederateAmbassador::addNameReservationSucceeded ( DtReserveNameCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's objectInstanceNameReservationSucceeded service is invoked.

virtual void DtVrlFederateAmbassador::addReceiveInteractionCb ( RTI::InteractionClassHandle  hand,
DtReceiveInteractionCb  cb,
void *  usr,
DtDDMRegionSP  region = DtDDMRegionSP()
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's receiveInteraction service is invoked.

virtual void DtVrlFederateAmbassador::addReflectAttributeValuesCb ( RTI::ObjectInstanceHandle  id,
DtReflectAttributeValuesCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's reflectAttributeValues service is invoked.

virtual void DtVrlFederateAmbassador::addRemoveObjectCb ( RTI::ObjectInstanceHandle  id,
DtRemoveObjectCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's removeObject service is invoked.

virtual void DtVrlFederateAmbassador::addStartInteractionsCb ( RTI::InteractionClassHandle  hand,
DtStartStopInterCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's startInteractionGeneration service is invoked.

virtual void DtVrlFederateAmbassador::addStartRegCb ( RTI::ObjectClassHandle  hand,
DtStartRegCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's startRegistration service is invoked.

virtual void DtVrlFederateAmbassador::addStopInteractionsCb ( RTI::InteractionClassHandle  hand,
DtStartStopInterCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's stopInteractionGeneration service is invoked.

virtual void DtVrlFederateAmbassador::addStopRegCb ( RTI::ObjectClassHandle  hand,
DtStopRegCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's stopReg service is invoked.

virtual void DtVrlFederateAmbassador::addSynchPointRegFailedCb ( const DtString &  label,
DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::addSynchPointRegFailedCb ( DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::addSynchPointRegSucceededCb ( const DtString &  label,
DtSynchPointCb  func,
void *  usr
) [virtual]

Methods to add/remove user callbacks for sync point callbacks.

virtual void DtVrlFederateAmbassador::addSynchPointRegSucceededCb ( DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::addTimeAdvanceGrantCb ( DtFedTimeCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's TimeAdvanceGrant service is invoked.

virtual void DtVrlFederateAmbassador::addTimeConstrainedEnabledCb ( DtFedTimeCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's TimeConstrainedEnabled service is invoked.

virtual void DtVrlFederateAmbassador::addTimeRegulationEnabledCb ( DtFedTimeCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's TimeRegulationEnabled service is invoked.

virtual void DtVrlFederateAmbassador::addUpdatesOffCb ( RTI::ObjectInstanceHandle  hand,
DtUpdatesOffCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOff service is invoked.

virtual void DtVrlFederateAmbassador::addUpdatesOnCb ( RTI::ObjectInstanceHandle  hand,
DtUpdatesOnCb  cb,
void *  usr
) [virtual]

Add/Remove (register/deregister) function to be called when the RTI's turnUpdatesOn service is invoked.

virtual void DtVrlFederateAmbassador::announceSynchronizationPoint ( std::wstring const &  label,
RTI::VariableLengthData const &  aTag
) throw (RTI::FederateInternalError) [virtual]

4.8

Reimplemented from DtNullFederateAmbassador.

virtual bool DtVrlFederateAmbassador::applyAnnounceCallbacks ( const DtString &  label,
const RTI::VariableLengthData &  tag
) [protected, virtual]

Return true if any are applied (i.e., don't auto-reply)

virtual void DtVrlFederateAmbassador::applyFedsSynchedCallbacks ( const DtString &  label) [protected, virtual]

Utility functions.

virtual void DtVrlFederateAmbassador::applyRegistrationFailedCallbacks ( const DtString &  label) [protected, virtual]
virtual void DtVrlFederateAmbassador::applyRegistrationSucceededCallbacks ( const DtString &  label) [protected, virtual]
virtual void DtVrlFederateAmbassador::attributeIsNotOwned ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandle  theAttribute
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeIsOwnedByRTI ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandle  theAttribute
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeOwnershipAcquisitionNotification ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  theAttributes,
RTI::VariableLengthData const &  theUserSuppliedTag
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeAcquisitionWasNotRequested, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError) [virtual]

7.7

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributeOwnershipUnavailable ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  theAttributes
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotRequested, RTI::FederateInternalError) [virtual]

7.10

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributesInScope ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  theAttributes
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError) [virtual]

6.15

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::attributesOutOfScope ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  theAttributes
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError) [virtual]

6.16

Reimplemented from DtNullFederateAmbassador.

static void DtVrlFederateAmbassador::attributesOutOfScopeCb ( void *  usr) [static, protected]
virtual void DtVrlFederateAmbassador::confirmAttributeOwnershipAcquisitionCancellation ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  theAttributes
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeAlreadyOwned, RTI::AttributeAcquisitionWasNotCanceled, RTI::FederateInternalError) [virtual]

7.15

Reimplemented from DtNullFederateAmbassador.

static DtVrlFederateAmbassador* DtVrlFederateAmbassador::create ( ) [static]

returns a new DtVrlFedAmbassador

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::discoverObjectInstance ( RTI::ObjectInstanceHandle  theObject,
RTI::ObjectClassHandle  theObjectClass,
std::wstring const &  theObjectInstanceName
) throw (RTI::CouldNotDiscover, RTI::ObjectClassNotKnown, RTI::FederateInternalError) [virtual]

6.5

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationNotRestored ( RTI::RestoreFailureReason  theRestoreFailureReason) throw (RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationNotSaved ( RTI::SaveFailureReason  theSaveFailureReason) throw (RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationRestoreBegun ( ) throw (RTI::FederateInternalError) [virtual]

4.20

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationRestored ( ) throw (RTI::FederateInternalError) [virtual]

4.23

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationRestoreStatusResponse ( RTI::FederateHandleRestoreStatusPairVector const &  theFederateStatusVector) throw (RTI::FederateInternalError) [virtual]

4.25

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationSaved ( ) throw (RTI::FederateInternalError) [virtual]

4.15

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationSaveStatusResponse ( RTI::FederateHandleSaveStatusPairVector const &  theFederateStatusVector) throw (RTI::FederateInternalError) [virtual]

4.17

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::federationSynchronized ( std::wstring const &  label) throw (RTI::FederateInternalError) [virtual]

4.10

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::informAttributeOwnership ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandle  theAttribute,
RTI::FederateHandle  theOwner
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::FederateInternalError) [virtual]

7.17

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::init ( DtExerciseConn *  exConn,
DtHlaObjectManager *  hlaObjMgr,
DtInteractionManager *  interMgr
) [virtual]

Initialize the ambassador.

Needs to be called after construction.

virtual void DtVrlFederateAmbassador::initiateFederateRestore ( std::wstring const &  label,
RTI::FederateHandle  handle
) throw (RTI::SpecifiedSaveLabelDoesNotExist, RTI::CouldNotInitiateRestore, RTI::FederateInternalError) [virtual]

4.21

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::initiateFederateSave ( std::wstring const &  label) throw (RTI::UnableToPerformSave, RTI::FederateInternalError) [virtual]

4.12

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::initiateFederateSave ( std::wstring const &  label,
RTI::LogicalTime const &  theTime
) throw (RTI::UnableToPerformSave, RTI::InvalidLogicalTime, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::objectInstanceNameReservationFailed ( std::wstring const &  theObjectInstanceName) throw (RTI::UnknownName, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::objectInstanceNameReservationSucceeded ( std::wstring const &  theObjectInstanceName) throw (RTI::UnknownName, RTI::FederateInternalError) [virtual]

! Object Management Services //!

6.3

Reimplemented from DtNullFederateAmbassador.

DtVrlFederateAmbassador& DtVrlFederateAmbassador::operator= ( const DtVrlFederateAmbassador &  src) [protected]

assignment operator - not implemented.

virtual void DtVrlFederateAmbassador::processAttributesOutOfScope ( RTI::ObjectInstanceHandle  handle) [protected, virtual]
virtual void DtVrlFederateAmbassador::provideAttributeValueUpdate ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  theAttributes,
RTI::VariableLengthData const &  aTag
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotOwned, RTI::FederateInternalError) [virtual]

6.18

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::receiveInteraction ( RTI::InteractionClassHandle  theInteraction,
RTI::ParameterHandleValueMap const &  theParameterValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType
) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::FederateInternalError) [virtual]

6.9

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::receiveInteraction ( RTI::InteractionClassHandle  theInteraction,
RTI::ParameterHandleValueMap const &  theParameterValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType,
RTI::RegionHandleSet const &  theSentRegionHandleSet
) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::receiveInteraction ( RTI::InteractionClassHandle  theInteraction,
RTI::ParameterHandleValueMap const &  theParameterValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType,
RTI::LogicalTime const &  theTime,
RTI::OrderType  receivedOrder
) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::receiveInteraction ( RTI::InteractionClassHandle  theInteraction,
RTI::ParameterHandleValueMap const &  theParameterValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType,
RTI::LogicalTime const &  theTime,
RTI::OrderType  receivedOrder,
RTI::RegionHandleSet const &  theSentRegionHandleSet
) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::receiveInteraction ( RTI::InteractionClassHandle  theInteraction,
RTI::ParameterHandleValueMap const &  theParameterValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType,
RTI::LogicalTime const &  theTime,
RTI::OrderType  receivedOrder,
RTI::MessageRetractionHandle  theHandle
) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::InvalidLogicalTime, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::receiveInteraction ( RTI::InteractionClassHandle  theInteraction,
RTI::ParameterHandleValueMap const &  theParameterValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType,
RTI::LogicalTime const &  theTime,
RTI::OrderType  receivedOrder,
RTI::MessageRetractionHandle  theHandle,
RTI::RegionHandleSet const &  theSentRegionHandleSet
) throw (RTI::InteractionClassNotRecognized, RTI::InteractionParameterNotRecognized, RTI::InteractionClassNotSubscribed, RTI::InvalidLogicalTime, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::reflectAttributeValues ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleValueMap const &  theAttributeValues,
RTI::VariableLengthData const &  theUserSuppliedTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError) [virtual]

6.7

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::reflectAttributeValues ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleValueMap const &  theAttributeValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType,
RTI::RegionHandleSet const &  theSentRegionHandleSet
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::reflectAttributeValues ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleValueMap const &  theAttributeValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType,
RTI::LogicalTime const &  theTime,
RTI::OrderType  receivedOrder
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::reflectAttributeValues ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleValueMap const &  theAttributeValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType,
RTI::LogicalTime const &  theTime,
RTI::OrderType  receivedOrder,
RTI::RegionHandleSet const &  theSentRegionHandleSet
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::reflectAttributeValues ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleValueMap const &  theAttributeValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType,
RTI::LogicalTime const &  theTime,
RTI::OrderType  receivedOrder,
RTI::MessageRetractionHandle  theHandle
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::InvalidLogicalTime, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::reflectAttributeValues ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleValueMap const &  theAttributeValues,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::TransportationType  theType,
RTI::LogicalTime const &  theTime,
RTI::OrderType  receivedOrder,
RTI::MessageRetractionHandle  theHandle,
RTI::RegionHandleSet const &  theSentRegionHandleSet
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotSubscribed, RTI::InvalidLogicalTime, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::removeAnnounceSynchPointCb ( const DtString &  label,
DtAnnounceSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeAnnounceSynchPointCb ( DtAnnounceSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeDiscoverObjectCb ( RTI::ObjectClassHandle  hand,
DtDiscoverObjectCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeFederationSynchedCb ( const DtString &  label,
DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeFederationSynchedCb ( DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeNameReservationFailed ( DtReserveNameCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeNameReservationSucceeded ( DtReserveNameCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeObjectInstance ( RTI::ObjectInstanceHandle  theObject,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder
) throw (RTI::ObjectInstanceNotKnown, RTI::FederateInternalError) [virtual]

6.11

Reimplemented from DtNullFederateAmbassador.

Reimplemented in DtDdmFederateAmbassador.

virtual void DtVrlFederateAmbassador::removeObjectInstance ( RTI::ObjectInstanceHandle  theObject,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::LogicalTime const &  theTime,
RTI::OrderType  receivedOrder
) throw (RTI::ObjectInstanceNotKnown, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::removeObjectInstance ( RTI::ObjectInstanceHandle  theObject,
RTI::VariableLengthData const &  aTag,
RTI::OrderType  sentOrder,
RTI::LogicalTime const &  theTime,
RTI::OrderType  receivedOrder,
RTI::MessageRetractionHandle  theHandle
) throw (RTI::ObjectInstanceNotKnown, RTI::InvalidLogicalTime, RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual bool DtVrlFederateAmbassador::removeObjectOnAttOutOfScope ( ) const [virtual]
virtual void DtVrlFederateAmbassador::removeReceiveInteractionCb ( RTI::InteractionClassHandle  hand,
DtReceiveInteractionCb  cb,
void *  usr,
DtDDMRegionSP  region = DtDDMRegionSP()
) [virtual]
virtual void DtVrlFederateAmbassador::removeReflectAttributeValuesCb ( RTI::ObjectInstanceHandle  id,
DtReflectAttributeValuesCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeRemoveObjectCb ( RTI::ObjectInstanceHandle  id,
DtRemoveObjectCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeStartInteractionsCb ( RTI::InteractionClassHandle  hand,
DtStartStopInterCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeStartRegCb ( RTI::ObjectClassHandle  hand,
DtStartRegCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeStopInteractionsCb ( RTI::InteractionClassHandle  hand,
DtStartStopInterCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeStopRegCb ( RTI::ObjectClassHandle  hand,
DtStopRegCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeSynchPointRegFailedCb ( const DtString &  label,
DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeSynchPointRegFailedCb ( DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeSynchPointRegSucceededCb ( const DtString &  label,
DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeSynchPointRegSucceededCb ( DtSynchPointCb  func,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeTimeAdvanceGrantCb ( DtFedTimeCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeTimeConstrainedEnabledCb ( DtFedTimeCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeTimeRegulationEnabledCb ( DtFedTimeCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeUpdatesOffCb ( RTI::ObjectInstanceHandle  hand,
DtUpdatesOffCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::removeUpdatesOnCb ( RTI::ObjectInstanceHandle  hand,
DtUpdatesOnCb  cb,
void *  usr
) [virtual]
virtual void DtVrlFederateAmbassador::requestAttributeOwnershipAssumption ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  offeredAttributes,
RTI::VariableLengthData const &  aTag
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeAlreadyOwned, RTI::AttributeNotPublished, RTI::FederateInternalError) [virtual]

! Ownership Management Services //!

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::requestAttributeOwnershipRelease ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  theAttributes,
RTI::VariableLengthData const &  theUserSuppliedTag
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotOwned, RTI::FederateInternalError) [virtual]

7.11

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::requestDivestitureConfirmation ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  theAttributes
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotOwned, RTI::AttributeDivestitureWasNotRequested, RTI::FederateInternalError) [virtual]

7.5

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::requestFederationRestoreFailed ( std::wstring const &  label) throw (RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::requestFederationRestoreSucceeded ( std::wstring const &  label) throw (RTI::FederateInternalError) [virtual]

4.19

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::requestRetraction ( RTI::MessageRetractionHandle  theHandle) throw (RTI::FederateInternalError) [virtual]

8.22

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::setRemoveObjectOnAttOutOfScope ( bool  remove) [virtual]
virtual void DtVrlFederateAmbassador::startRegistrationForObjectClass ( RTI::ObjectClassHandle  theClass) throw (RTI::ObjectClassNotPublished, RTI::FederateInternalError) [virtual]

! Declaration Management Services //!

5.10

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::stopRegistrationForObjectClass ( RTI::ObjectClassHandle  theClass) throw (RTI::ObjectClassNotPublished, RTI::FederateInternalError) [virtual]

5.11

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::synchronizationPointRegistrationFailed ( std::wstring const &  label,
RTI::SynchronizationFailureReason  reason
) throw (RTI::FederateInternalError) [virtual]

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::synchronizationPointRegistrationSucceeded ( std::wstring const &  label) throw (RTI::FederateInternalError) [virtual]

4.7

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::timeAdvanceGrant ( RTI::LogicalTime const &  theTime) throw (RTI::InvalidLogicalTime, RTI::JoinedFederateIsNotInTimeAdvancingState, RTI::FederateInternalError) [virtual]

8.13

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::timeConstrainedEnabled ( RTI::LogicalTime const &  theFederateTime) throw (RTI::InvalidLogicalTime, RTI::NoRequestToEnableTimeConstrainedWasPending, RTI::FederateInternalError) [virtual]

8.6

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::timeRegulationEnabled ( RTI::LogicalTime const &  theFederateTime) throw (RTI::InvalidLogicalTime, RTI::NoRequestToEnableTimeRegulationWasPending, RTI::FederateInternalError) [virtual]

! Time Management Services //!

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnInteractionsOff ( RTI::InteractionClassHandle  theHandle) throw (RTI::InteractionClassNotPublished, RTI::FederateInternalError) [virtual]

5.13

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnInteractionsOn ( RTI::InteractionClassHandle  theHandle) throw (RTI::InteractionClassNotPublished, RTI::FederateInternalError) [virtual]

5.12

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnUpdatesOffForObjectInstance ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  theAttributes
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotOwned, RTI::FederateInternalError) [virtual]

6.20

Reimplemented from DtNullFederateAmbassador.

virtual void DtVrlFederateAmbassador::turnUpdatesOnForObjectInstance ( RTI::ObjectInstanceHandle  theObject,
RTI::AttributeHandleSet const &  theAttributes
) throw (RTI::ObjectInstanceNotKnown, RTI::AttributeNotRecognized, RTI::AttributeNotOwned, RTI::FederateInternalError) [virtual]

6.19

Reimplemented from DtNullFederateAmbassador.

Member Data Documentation

std::list<DtGeneralAnnounceCbInfo> DtVrlFederateAmbassador::myAnnounceSynchPointCbList [protected]
DtFedTimeCbList DtVrlFederateAmbassador::myConstrainedEnabledCbList [protected]
DtExerciseConn* DtVrlFederateAmbassador::myExConn [protected]
std::list<DtGeneralSynchPointCbInfo> DtVrlFederateAmbassador::myFederationSynchedCbList [protected]
DtHlaObjectManager* DtVrlFederateAmbassador::myHlaObjectManager [protected]
DtInteractionManager* DtVrlFederateAmbassador::myInteractionManager [protected]
std::list<DtLabelledAnnounceCbInfo> DtVrlFederateAmbassador::myLabAnnounceSynchPointCbList [protected]
std::list<DtLabelledSynchPointCbInfo> DtVrlFederateAmbassador::myLabFederationSynchedCbList [protected]
std::list<DtLabelledSynchPointCbInfo> DtVrlFederateAmbassador::myLabSynchPtRegFailedCbList [protected]
std::list<DtLabelledSynchPointCbInfo> DtVrlFederateAmbassador::myLabSynchPtRegSucceededCbList [protected]

Lists for specific callbacks registered with VR-Link.

DtReserveNameCbList DtVrlFederateAmbassador::myNameReservationFailedCbList [protected]
DtReserveNameCbList DtVrlFederateAmbassador::myNameReservationSucceededCbList [protected]
DtReflectAttributeValuesCbList DtVrlFederateAmbassador::myRavCbList [protected]
DtFedTimeCbList DtVrlFederateAmbassador::myRegulationEnabledCbList [protected]
bool DtVrlFederateAmbassador::myRemoveObjectOnAttOutOfScope [protected]
DtStartStopInterCbList DtVrlFederateAmbassador::myStartIntCbList [protected]
DtStartRegCbList DtVrlFederateAmbassador::myStartRegCbList [protected]
DtStartStopInterCbList DtVrlFederateAmbassador::myStopIntCbList [protected]
DtStopRegCbList DtVrlFederateAmbassador::myStopRegCbList [protected]
std::list<DtGeneralSynchPointCbInfo> DtVrlFederateAmbassador::mySynchPtRegFailedCbList [protected]
std::list<DtGeneralSynchPointCbInfo> DtVrlFederateAmbassador::mySynchPtRegSucceededCbList [protected]
DtFedTimeCbList DtVrlFederateAmbassador::myTimeAdvanceGrantCbList [protected]
DtUpdatesOffCbList DtVrlFederateAmbassador::myUpdatesOffCbList [protected]
DtUpdatesOnCbList DtVrlFederateAmbassador::myUpdatesOnCbList [protected]
The documentation for this class was generated from the following file:
Document ID: Generated on Mon May 14 08:06:18 EDT 2012 from SVN revision 114750
Copyright © 2005-2012 VT MÄK Inc. All Rights Reserved (www.mak.com)
