DtReflectedAggregateList Class Reference

class DtReflectedAggregateList: More...

Inheritance diagram for DtReflectedAggregateList:

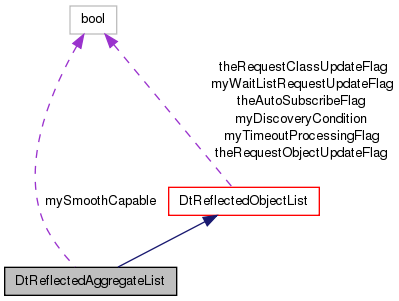

Collaboration diagram for DtReflectedAggregateList:

List of all members.

Public Member Functions
	DtReflectedAggregateList (DtExerciseConn *exConn, bool smoothCapable=false, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper.
	DtReflectedAggregateList (DtExerciseConn *exConn, const DtList *handleList, bool smoothCapable=false, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.
virtual	~DtReflectedAggregateList ()
	destructor
virtual DtReflectedAggregate *	lookup (RTI::ObjectInstanceHandle id)
	Look up aggregate by identifier.
virtual DtReflectedAggregate *	lookup (const DtGlobalObjectDesignator &objName)
	Look up aggregate by name.
virtual DtReflectedAggregate *	first () const
	Get the first/last entity in the list.
virtual DtReflectedAggregate *	last () const
virtual void	addAggregateAdditionCallback (DtAggregateCallbackFunction cb, void *userData)
	Aggregate added callback registration/deregistration.
virtual void	removeAggregateAdditionCallback (DtAggregateCallbackFunction cb, void *userData)
virtual void	addAggregateRemovalCallback (DtAggregateCallbackFunction cb, void *userData)
	Aggregate removed callback registration/deregistration.
virtual void	removeAggregateRemovalCallback (DtAggregateCallbackFunction cb, void *userData)
Protected Member Functions
	DtReflectedAggregateList (const DtReflectedAggregateList &orig)
	copy constructor
DtReflectedAggregateList &	operator= (const DtReflectedAggregateList &orig)
	assignment operator
virtual const DtList *	dfltHandleList ()
	Asks the FOM Mapper for the DtList of RTI::ObjectClassHandles to use.
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
	Override of virtual function. Calls newReflectedAggregate.
virtual DtReflectedAggregate *	newReflectedAggregate (DtHlaObject *obj) const
	Create a remote aggregate object for the HLA object.
virtual void	removeAndDelete (DtReflectedObject *object, char *msg)
	Virtual function override.
virtual void	removeAndDelete (DtReflectedAggregate *aggregate, char *msg=NULL)
	Default calls down to base class version, but can be overridden.
virtual void	objectAdded (DtReflectedObject *obj)
	Called from processDiscoverObject() after a remote transmitter has been added to the list.
virtual void	aggregateAdded (DtReflectedAggregate *ent)
	Called by objectAdded (which is called from processDiscoverObject()) after a remote aggregate has been added to the list.
Protected Attributes
bool	mySmoothCapable

---

Detailed Description

class DtReflectedAggregateList:

Instances of DtReflectedAggregateList are used to manage remote aggregates from the network.

---

Constructor & Destructor Documentation

DtReflectedAggregateList::DtReflectedAggregateList	(	DtExerciseConn *	exConn,
		bool	smoothCapable = false,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = DtString("")
	)

Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper.

DtReflectedAggregateList::DtReflectedAggregateList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		bool	smoothCapable = false,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = DtString("")
	)

Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.

virtual DtReflectedAggregateList::~DtReflectedAggregateList

(

)

[virtual]

destructor

DtReflectedAggregateList::DtReflectedAggregateList

(

const DtReflectedAggregateList &

orig

)

[protected]

copy constructor

---

Member Function Documentation

virtual void DtReflectedAggregateList::addAggregateAdditionCallback	(	DtAggregateCallbackFunction	cb,
		void *	userData
	)		[virtual]

Aggregate added callback registration/deregistration.

virtual void DtReflectedAggregateList::addAggregateRemovalCallback	(	DtAggregateCallbackFunction	cb,
		void *	userData
	)		[virtual]

Aggregate removed callback registration/deregistration.

virtual void DtReflectedAggregateList::aggregateAdded

(

DtReflectedAggregate *

ent

)

[protected, virtual]

Called by objectAdded (which is called from processDiscoverObject()) after a remote aggregate has been added to the list.

Default implementation prints a message. Subclasses can override this function to add functionality on addition.

virtual const DtList* DtReflectedAggregateList::dfltHandleList

(

)

[protected, virtual]

Asks the FOM Mapper for the DtList of RTI::ObjectClassHandles to use.

virtual DtReflectedAggregate* DtReflectedAggregateList::first

(

)

const [virtual]

Get the first/last entity in the list.

virtual DtReflectedAggregate* DtReflectedAggregateList::last

(

)

const [virtual]

virtual DtReflectedAggregate* DtReflectedAggregateList::lookup

(

RTI::ObjectInstanceHandle

id

)

[virtual]

Look up aggregate by identifier.

virtual DtReflectedAggregate* DtReflectedAggregateList::lookup

(

const DtGlobalObjectDesignator &

objName

)

[virtual]

Look up aggregate by name.

virtual DtReflectedAggregate* DtReflectedAggregateList::newReflectedAggregate

(

DtHlaObject *

obj

)

const [protected, virtual]

Create a remote aggregate object for the HLA object.

Caller is responsible for deletion.

virtual DtReflectedObject* DtReflectedAggregateList::newReflectedObject

(

DtHlaObject *

obj

)

const [protected, virtual]

Override of virtual function. Calls newReflectedAggregate.

Implements DtReflectedObjectList.

virtual void DtReflectedAggregateList::objectAdded

(

DtReflectedObject *

obj

)

[protected, virtual]

Called from processDiscoverObject() after a remote transmitter has been added to the list.

Calls aggregateAdded.

Reimplemented from DtReflectedObjectList.

DtReflectedAggregateList& DtReflectedAggregateList::operator=

(

const DtReflectedAggregateList &

orig

)

[protected]

assignment operator

virtual void DtReflectedAggregateList::removeAggregateAdditionCallback	(	DtAggregateCallbackFunction	cb,
		void *	userData
	)		[virtual]

virtual void DtReflectedAggregateList::removeAggregateRemovalCallback	(	DtAggregateCallbackFunction	cb,
		void *	userData
	)		[virtual]

virtual void DtReflectedAggregateList::removeAndDelete	(	DtReflectedObject *	object,
		char *	msg
	)		[protected, virtual]

Virtual function override.

Calls removeAndDelete(DtReflectedAggregate*....)

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedAggregateList::removeAndDelete	(	DtReflectedAggregate *	aggregate,
		char *	msg = NULL
	)		[protected, virtual]

Default calls down to base class version, but can be overridden.

---

Member Data Documentation

bool DtReflectedAggregateList::mySmoothCapable [protected]

---

The documentation for this class was generated from the following file:

• hReflAggList.h
