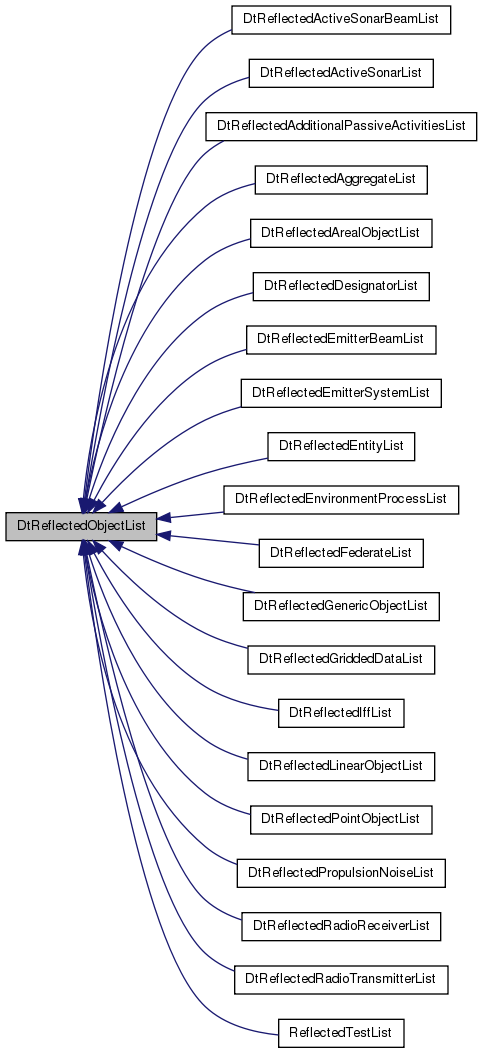

Inheritance diagram for DtReflectedObjectList:

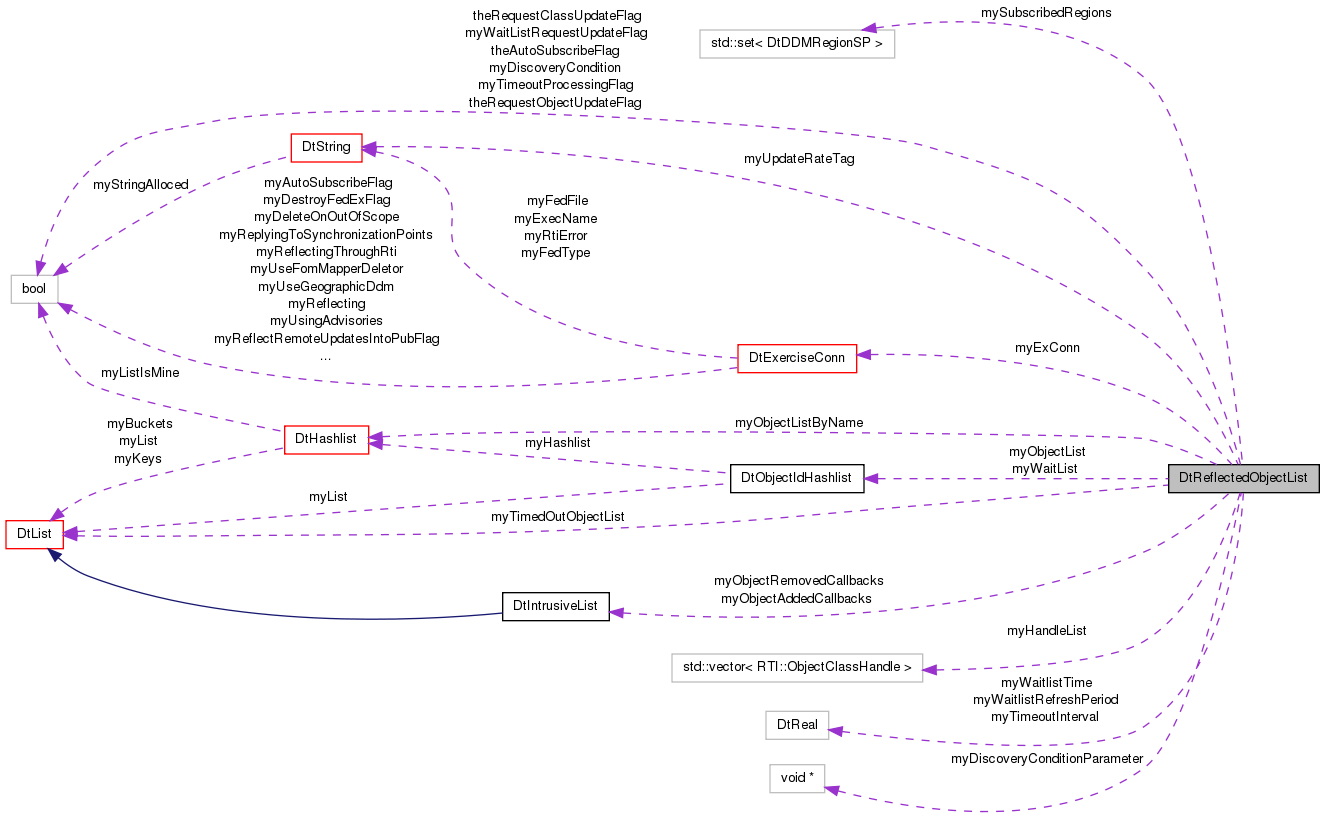

Collaboration diagram for DtReflectedObjectList:

Public Member Functions
	DtReflectedObjectList (DtExerciseConn exConn, const DtDDMRegionSet regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor.
virtual	~DtReflectedObjectList ()
	destructor
virtual DtReflectedObject *	lookupObj (RTI::ObjectInstanceHandle id)
	Look up object by identifier.
virtual DtReflectedObject *	lookupObj (const DtGlobalObjectDesignator &objName)
	Look up object by global ID (which is the object name in RTI1.3.3).
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list.
virtual DtReflectedObject *	lastObj () const
virtual int	count () const
	Get number of objects.
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn.
virtual void	manageObjectClass (RTI::ObjectClassHandle handle)
	Register callbacks with exercise connection so that we get notified when an object of this class is discovered.
virtual bool	removeObject (const DtObjectId &id)
	Have the application act as though we had never discovered the object.
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration.
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration.
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects.
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs.
virtual void	setWaitListRefreshEnabled (bool on)
	Set whether or not we will request updates for objects which have not met discovery and are therefor wait listed.
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period.
virtual DtTime	timeoutInterval ()
virtual void	setWaitlistRefreshPeriod (DtTime time)
	Set/Get the wait list refresh period.
virtual DtTime	waitlistRefreshPeriod ()
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the reflected list.
virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition.
virtual const DtDDMRegionSet &	subscribedRegions ()
	Returns list of regions subscribed to.
Static Public Member Functions
static void	setAutoSubscribeFlag (bool flag)
	Set/Get flag which determines whether to subscribe to object classes that this list manages.
static bool	autoSubscribeFlag ()
static void	setRequestClassUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to.
static bool	requestClassUpdateFlag ()
static void	setRequestObjectUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from an object as we discover it.
static bool	requestObjectUpdateFlag ()
static void	findDiscoveredObjectsCb (void *usr)
	Post-drain callback that calls findAlreadyDiscovedObjects().
Protected Member Functions
virtual void	processDiscoverObject (DtHlaObject *obj)
	Process the discovery of a remote object on the network.
virtual void	processRemoveObject (DtHlaObject *obj)
	Process the removal of a remote object from the network.
virtual void	processTimedOutObjectReflect (const DtStateMsg &msg, DtHlaObject *obj)
	Handle the receipt of attributes for a remote object which was timed out.
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period.
virtual void	doRequestWaitListUpdates ()
	Request an update for any objects which have not met their discovery criteria yet.
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const =0
	Create a remote object object for the HLA object.
virtual void	removeAndDelete (DtReflectedObject obj, char msg=NULL)
	Remove the remote object from the list if found and delete it.
virtual void	objectAdded (DtReflectedObject *object)
	Called from processDiscoverObject() after a remote object has been added to the list.
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out.
virtual void	timeOutObject (DtReflectedObject *object)
	Times out object by removing it from the remote object list and deleting it.
virtual void	unTimeOutObject (DtHlaObject *obj)
	Manages callbacks and data used for reinstating a remote object which was timed out.
virtual void	addObjectClass (RTI::ObjectClassHandle handle)
	Register interest in this FOM object class.
virtual void	addObjectClassByName (const char *className)
	Register interest in this FOM object class by className.
virtual void	init (const DtList *handleList)
	Register interest in a whole list of RTI::ObjectClassHandles all at once.
void	emptyLists ()
	Empty the object list and the timeout list.
void	emptyCallbackLists ()
	Empty the callback lists.
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks.
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual void	findAlreadyDiscoveredObjects ()
	When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list.
virtual void	checkDiscoveryCondition (DtReflectedObject *refObj)
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within.
virtual void	addToObjectList (DtReflectedObject *refObj)
	Add refObj to myObjectList and initiates discovery callbacks.
virtual DtReflectedObject *	lookupObjInWaitList (const DtGlobalObjectDesignator &name)
	Find object in waitList by name.
void	unsubscribeRegions ()
Static Protected Member Functions
static void	discoverObjectCb (DtHlaObject hlaObj, void rel)
	Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject().
static void	removeObjectCb (DtHlaObject hlaObj, void rel)
	Cast the void* to a DtReflectedObjectList* and calls processRemoveObject().
static void	timedOutObjectReflectCb (const DtStateMsg &msg, DtHlaObject obj, void usr)
	Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect().
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts.
static void	doRequestWaitListUpdatesPostDrainCb (void *usr)
	Calls doRequestWaitListUpdates.
static void	postUpdateCb (DtReflectedObject obj, void usr)
	Calls checkDiscoveryCondition.
Protected Attributes
DtExerciseConn *	myExConn
DtObjectIdHashList	myObjectList
DtHashList	myObjectListByName
DtObjectIdHashList	myWaitList
DtList	myTimedOutObjectList
std::vector < RTI::ObjectClassHandle >	myHandleList
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtTime	myTimeoutInterval
bool	myTimeoutProcessingFlag
bool	myWaitListRequestUpdateFlag
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
DtTime	myWaitlistTime
DtTime	myWaitlistRefreshPeriod
DtDDMRegionSet	mySubscribedRegions
DtString	myUpdateRateTag
Static Protected Attributes
static bool	theAutoSubscribeFlag
static bool	theRequestClassUpdateFlag
static bool	theRequestObjectUpdateFlag
Private Member Functions
	DtReflectedObjectList (const DtReflectedObjectList &orig)
	copy constructor -- not implemented
DtReflectedObjectList &	operator= (const DtReflectedObjectList &orig)
	assignment operator -- not implemented

Detailed Description

class DtReflectedObjectList

Instances of DtReflectedObjectList are list of instances of classes derived from DtReflectedObject. A DtReflectedObjectList manages the comings and goings of its reflected objects based on discoveries and removes received from the RTI.

Constructor & Destructor Documentation

DtReflectedObjectList::DtReflectedObjectList	(	DtExerciseConn *	exConn,
		const DtDDMRegionSet *	regionSetToUse = `0`,
		const DtString &	updateRateTag = `DtString("")`
	)

Constructor.

virtual DtReflectedObjectList::~DtReflectedObjectList ( ) [virtual]

destructor

DtReflectedObjectList::DtReflectedObjectList ( const DtReflectedObjectList & orig ) [private]

copy constructor -- not implemented

Member Function Documentation

virtual void DtReflectedObjectList::addObjectAdditionCallback	(	DtReflectedObjectCallbackFunction	cb,
		void *	userData
	)		`[virtual]`

Object added callback registration/deregistration.

virtual void DtReflectedObjectList::addObjectClass ( RTI::ObjectClassHandle handle ) [protected, virtual]

Register interest in this FOM object class.

Typically called by derived class constructor.

virtual void DtReflectedObjectList::addObjectClassByName ( const char * className ) [protected, virtual]

Register interest in this FOM object class by className.

Typically called by derived class constructor.

virtual void DtReflectedObjectList::addObjectRemovalCallback	(	DtReflectedObjectCallbackFunction	cb,
		void *	userData
	)		`[virtual]`

Object removed callback registration/deregistration.

virtual void DtReflectedObjectList::addToObjectList ( DtReflectedObject * refObj ) [protected, virtual]

Add refObj to myObjectList and initiates discovery callbacks.

Reimplemented in DtReflectedEntityList.

static bool DtReflectedObjectList::autoSubscribeFlag ( ) [static]

virtual void DtReflectedObjectList::checkDiscoveryCondition ( DtReflectedObject * refObj ) [protected, virtual]

virtual void DtReflectedObjectList::clearDiscoveryCondition ( ) [virtual]

Unregisters the checker function set in setDiscoverCondition.

If there is none set, this has no effect.

Reimplemented in DtReflectedEmitterSystemList.

virtual int DtReflectedObjectList::count ( ) const [virtual]

Get number of objects.

static void DtReflectedObjectList::discoverObjectCb	(	DtHlaObject *	hlaObj,
		void *	rel
	)		`[static, protected]`

Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject().

virtual void DtReflectedObjectList::doRequestWaitListUpdates ( ) [protected, virtual]

Request an update for any objects which have not met their discovery criteria yet.

static void DtReflectedObjectList::doRequestWaitListUpdatesPostDrainCb ( void * usr ) [static, protected]

Calls doRequestWaitListUpdates.

virtual void DtReflectedObjectList::doTimeouts ( ) [protected, virtual]

Remove any remote objects which have not been updated during the timeout period.

Gets called automatically by a postDrainCallback registered by the constructor. Users should not need to call this.

static void DtReflectedObjectList::doTimeoutsPostDrainCb ( void * usr ) [static, protected]

Calls doTimeouts.

void DtReflectedObjectList::emptyCallbackLists ( ) [protected]

Empty the callback lists.

Non-virtual since it's meant to be called from the destructor

void DtReflectedObjectList::emptyLists ( ) [protected]

Empty the object list and the timeout list.

Non-virtual since meant to be called from destructor.

DtExerciseConn * DtReflectedObjectList::exerciseConn ( ) const [inline, virtual]

Get my exerciseConn.

References myExConn.

virtual void DtReflectedObjectList::findAlreadyDiscoveredObjects ( ) [protected, virtual]

When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list.

Otherwise, this list only hears about objects that are discovered by the app after the creation of this list.

static void DtReflectedObjectList::findDiscoveredObjectsCb ( void * usr ) [static]

Post-drain callback that calls findAlreadyDiscovedObjects().

DtReflectedObject * DtReflectedObjectList::firstObj ( ) const [inline, virtual]

Get the first/last object in the list.

References DtListItem::data(), DtList::first(), DtObjectIdHashlist::list(), and myObjectList.

virtual void DtReflectedObjectList::init ( const DtList * handleList ) [protected, virtual]

Register interest in a whole list of RTI::ObjectClassHandles all at once.

Uses addObjectClass above.

DtReflectedObject * DtReflectedObjectList::lastObj ( ) const [inline, virtual]

References DtListItem::data(), DtList::last(), DtObjectIdHashlist::list(), and myObjectList.

virtual DtReflectedObject* DtReflectedObjectList::lookupObj ( RTI::ObjectInstanceHandle id ) [virtual]

Look up object by identifier.

virtual DtReflectedObject* DtReflectedObjectList::lookupObj ( const DtGlobalObjectDesignator & objName ) [virtual]

Look up object by global ID (which is the object name in RTI1.3.3).

virtual DtReflectedObject* DtReflectedObjectList::lookupObjInWaitList ( const DtGlobalObjectDesignator & name ) [protected, virtual]

Find object in waitList by name.

virtual void DtReflectedObjectList::manageObjectClass ( RTI::ObjectClassHandle handle ) [virtual]

Register callbacks with exercise connection so that we get notified when an object of this class is discovered.

Automatically called for all object classes passed to the constructor, or for the default set of objects classes if the ctor without a handleList is used. But if you want to handle your own subscription and update requests, pass an empty handleSet to the constructor, use DtObjectClassDesc's registerInterest and requestUpdates, then use this function to tell the ROL to manage the objects that get discovered.

virtual DtReflectedObject* DtReflectedObjectList::newReflectedObject ( DtHlaObject * obj ) const [protected, pure virtual]

Create a remote object object for the HLA object.

Caller is responsible for deletion.

Implemented in DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedIffList, DtReflectedActiveSonarBeamList, DtReflectedGenericObjectList, DtReflectedEnvironmentProcessList, DtReflectedGriddedDataList, DtReflectedAggregateList, DtReflectedRadioReceiverList, DtReflectedRadioTransmitterList, DtReflectedLinearObjectList, DtReflectedActiveSonarList, DtReflectedPointObjectList, DtReflectedAdditionalPassiveActivitiesList, DtReflectedDesignatorList, DtReflectedArealObjectList, DtReflectedEmitterBeamList, DtReflectedPropulsionNoiseList, DtReflectedFederateList, and ReflectedTestList.

virtual void DtReflectedObjectList::objectAdded ( DtReflectedObject * object ) [protected, virtual]

Called from processDiscoverObject() after a remote object has been added to the list.

Defaults to do nothing. Subclasses can override this function to add functionality on addition.

Reimplemented in DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedAggregateList, DtReflectedActiveSonarBeamList, DtReflectedEnvironmentProcessList, DtReflectedGriddedDataList, DtReflectedRadioReceiverList, DtReflectedRadioTransmitterList, DtReflectedLinearObjectList, DtReflectedActiveSonarList, DtReflectedIffList, DtReflectedPointObjectList, DtReflectedAdditionalPassiveActivitiesList, DtReflectedEmitterBeamList, DtReflectedDesignatorList, DtReflectedArealObjectList, DtReflectedPropulsionNoiseList, and DtReflectedFederateList.

DtReflectedObjectList& DtReflectedObjectList::operator= ( const DtReflectedObjectList & orig ) [private]

assignment operator -- not implemented

static void DtReflectedObjectList::postUpdateCb	(	DtReflectedObject *	obj,
		void *	usr
	)		`[static, protected]`

Calls checkDiscoveryCondition.

virtual void DtReflectedObjectList::print ( ) [virtual]

Print the SRs of all objects.

virtual void DtReflectedObjectList::processDiscoverObject ( DtHlaObject * obj ) [protected, virtual]

Process the discovery of a remote object on the network.

Adds the remote object to this list.

Reimplemented in DtReflectedEmitterSystemList.

virtual void DtReflectedObjectList::processObjectAdditionCallbacks ( DtReflectedObject * object ) [protected, virtual]

Process object addition/removal callbacks.

virtual void DtReflectedObjectList::processObjectRemovalCallbacks ( DtReflectedObject * object ) [protected, virtual]

virtual void DtReflectedObjectList::processRemoveObject ( DtHlaObject * obj ) [protected, virtual]

Process the removal of a remote object from the network.

Removes the remote object from this list.

Reimplemented in DtReflectedEmitterSystemList.

virtual void DtReflectedObjectList::processTimedOutObjectReflect	(	const DtStateMsg &	msg,
		DtHlaObject *	obj
	)		`[protected, virtual]`

Handle the receipt of attributes for a remote object which was timed out.

Reinstates the remote object in this list.

virtual bool DtReflectedObjectList::readyToAdd ( DtReflectedObject * obj ) [protected, virtual]

Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within.

virtual void DtReflectedObjectList::removeAndDelete	(	DtReflectedObject *	obj,
		char *	msg = `NULL`
	)		`[protected, virtual]`

Remove the remote object from the list if found and delete it.

Prints a message on deletion if specified.

Reimplemented in DtReflectedEntityList, DtReflectedIffList, and DtReflectedAggregateList.

virtual bool DtReflectedObjectList::removeObject ( const DtObjectId & id ) [virtual]

Have the application act as though we had never discovered the object.

We call the RTI's localDelete service, and delete the DtHlaObject, which causes any DtReflectedObjects associated with id (in this list and in any others) to be removed. The object will be re-discovered (perhaps immediately), unless your subscriptions have changed so that the object is no longer relevant. Returns true if successful, false otherwise. Will be unsuccessful if you own attributes of the object in question.

virtual void DtReflectedObjectList::removeObjectAdditionCallback	(	DtReflectedObjectCallbackFunction	cb,
		void *	userData
	)		`[virtual]`

static void DtReflectedObjectList::removeObjectCb	(	DtHlaObject *	hlaObj,
		void *	rel
	)		`[static, protected]`

Cast the void* to a DtReflectedObjectList* and calls processRemoveObject().

virtual void DtReflectedObjectList::removeObjectRemovalCallback	(	DtReflectedObjectCallbackFunction	cb,
		void *	userData
	)		`[virtual]`

static bool DtReflectedObjectList::requestClassUpdateFlag ( ) [static]

static bool DtReflectedObjectList::requestObjectUpdateFlag ( ) [static]

static void DtReflectedObjectList::setAutoSubscribeFlag ( bool flag ) [static]

Set/Get flag which determines whether to subscribe to object classes that this list manages.

Defaults to true, but should be set to false if you will be managing subscriptions manually, e.g. if using DDM.

virtual void DtReflectedObjectList::setDiscoveryCondition	(	DtDiscoveryCondition	fn,
		void *	usr
	)		`[virtual]`

Set the checker function which will determine when an object gets discovered and put into the reflected list.

Reimplemented in DtReflectedEmitterSystemList.

static void DtReflectedObjectList::setRequestClassUpdateFlag ( bool onOff ) [static]

Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to.

Default is true.

static void DtReflectedObjectList::setRequestObjectUpdateFlag ( bool onOff ) [static]

Set/Get flag that determines whether we request updates from an object as we discover it.

Default is true.

void DtReflectedObjectList::setTimeoutInterval ( DtTime time ) [inline, virtual]

Set/Get the remote object timeout period.

References myTimeoutInterval.

virtual void DtReflectedObjectList::setTimeoutProcessing ( bool onOff ) [virtual]

Set whether or not timeout processing occurs.

Defaults to off.

virtual void DtReflectedObjectList::setWaitListRefreshEnabled ( bool on ) [virtual]

Set whether or not we will request updates for objects which have not met discovery and are therefor wait listed.

void DtReflectedObjectList::setWaitlistRefreshPeriod ( DtTime time ) [inline, virtual]

Set/Get the wait list refresh period.

References myWaitlistRefreshPeriod.

virtual bool DtReflectedObjectList::shouldBeTimedOut ( DtReflectedObject * object ) [protected, virtual]

Returns whether or not the object should be timed out.

Assumes that timeout processing is enabled.

Reimplemented in DtReflectedEmitterSystemList.

virtual const DtDDMRegionSet& DtReflectedObjectList::subscribedRegions ( ) [virtual]

Returns list of regions subscribed to.

static void DtReflectedObjectList::timedOutObjectReflectCb	(	const DtStateMsg &	msg,
		DtHlaObject *	obj,
		void *	usr
	)		`[static, protected]`

Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect().

DtTime DtReflectedObjectList::timeoutInterval ( ) [inline, virtual]

References myTimeoutInterval.

virtual void DtReflectedObjectList::timeOutObject ( DtReflectedObject * object ) [protected, virtual]

Times out object by removing it from the remote object list and deleting it.

Manages callbacks to reinstate remote object upon receiving attribute updates for the timed out object.

void DtReflectedObjectList::unsubscribeRegions ( ) [protected]

virtual void DtReflectedObjectList::unTimeOutObject ( DtHlaObject * obj ) [protected, virtual]

Manages callbacks and data used for reinstating a remote object which was timed out.

DtTime DtReflectedObjectList::waitlistRefreshPeriod ( ) [inline, virtual]

References myWaitlistRefreshPeriod.

Member Data Documentation

DtDiscoveryCondition DtReflectedObjectList::myDiscoveryCondition [protected]

void* DtReflectedObjectList::myDiscoveryConditionParameter [protected]

DtExerciseConn* DtReflectedObjectList::myExConn [protected]

Referenced by exerciseConn().

std::vector<RTI::ObjectClassHandle> DtReflectedObjectList::myHandleList [protected]

DtIntrusiveList DtReflectedObjectList::myObjectAddedCallbacks [protected]

DtObjectIdHashList DtReflectedObjectList::myObjectList [protected]

Referenced by firstObj(), and lastObj().

DtHashList DtReflectedObjectList::myObjectListByName [protected]

DtIntrusiveList DtReflectedObjectList::myObjectRemovedCallbacks [protected]

DtDDMRegionSet DtReflectedObjectList::mySubscribedRegions [protected]

DtList DtReflectedObjectList::myTimedOutObjectList [protected]

DtTime DtReflectedObjectList::myTimeoutInterval [protected]

Referenced by setTimeoutInterval(), and timeoutInterval().

bool DtReflectedObjectList::myTimeoutProcessingFlag [protected]

DtString DtReflectedObjectList::myUpdateRateTag [protected]

DtObjectIdHashList DtReflectedObjectList::myWaitList [protected]

DtTime DtReflectedObjectList::myWaitlistRefreshPeriod [protected]

Referenced by setWaitlistRefreshPeriod(), and waitlistRefreshPeriod().

bool DtReflectedObjectList::myWaitListRequestUpdateFlag [protected]

DtTime DtReflectedObjectList::myWaitlistTime [protected]

bool DtReflectedObjectList::theAutoSubscribeFlag [static, protected]

bool DtReflectedObjectList::theRequestClassUpdateFlag [static, protected]

bool DtReflectedObjectList::theRequestObjectUpdateFlag [static, protected]

The documentation for this class was generated from the following file:

hRefObjList.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
