Instances of DtReflectedEntityList are used to manage remote entities from the network. More...

Inheritance diagram for DtReflectedEntityList:

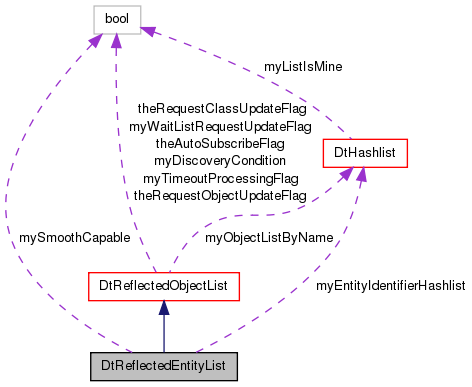

Collaboration diagram for DtReflectedEntityList:

Public Member Functions
	DtReflectedEntityList (DtExerciseConn exConn, bool smoothCapable=false, const DtDDMRegionSet regionSetToUse=0)
	Constructor that uses subscription criteria from the exConn's fomMapper.
	DtReflectedEntityList (DtExerciseConn exConn, const DtString &updateRateTag, bool smoothCapable=false, const DtDDMRegionSet regionSetToUse=0)
	DtReflectedEntityList (DtExerciseConn exConn, const DtList handleList, bool smoothCapable=false, const DtDDMRegionSet *regionSetToUse=0)
	Constructor that uses a handle list as subscription criteria.
	DtReflectedEntityList (DtExerciseConn exConn, const DtList handleList, const DtString &updateRateTag, bool smoothCapable=false, const DtDDMRegionSet *regionSetToUse=0)
virtual	~DtReflectedEntityList ()
	Destructor.
virtual DtReflectedEntity *	lookup (RTI::ObjectInstanceHandle id)
	Look up entity by object handle.
virtual DtReflectedEntity *	lookup (const DtGlobalObjectDesignator &objName)
	Look up entity by name.
virtual DtReflectedEntity *	lookup (const DtEntityIdentifier &entityId)
	Look up entity by entityId.
virtual DtReflectedEntity *	first () const
	Get the first entity in the list.
virtual DtReflectedEntity *	last () const
	Get the last entity in the list.
virtual void	addToObjectList (DtReflectedObject *refObj)
	Adds an object the the list.
virtual void	addToEntityIdentifierHashList (DtReflectedEntity *ent)
	Adds the entity id of ent to myEntityIdentifierHashlist.
virtual void	addEntityAdditionCallback (DtEntityCallbackFunction cb, void *userData)
	Entity added callback registration.
virtual void	removeEntityAdditionCallback (DtEntityCallbackFunction cb, void *userData)
	Entity added callback deregistration.
virtual void	addEntityRemovalCallback (DtEntityCallbackFunction cb, void *userData)
	Entity removed callback registration.
virtual void	removeEntityRemovalCallback (DtEntityCallbackFunction cb, void *userData)
	Entity removed callback deregistration.
virtual void	discoverOnlyWhenEntityTypeKnown (bool yesNo)
	Allows one to specify whether discover should delayed until the entity type is known before adding the entity to the list.
Protected Member Functions
virtual const DtList *	dfltHandleList ()
	Returns the list of handles that the FOM Mapper associates with a DtReflectedEntityList.
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
	Override of the virtual function in DtReflectedObjectList.
virtual DtReflectedEntity *	newReflectedEntity (DtHlaObject *obj) const
	Create a remote entity object for the HLA object.
virtual void	removeAndDelete (DtReflectedObject object, char msg)
	Override of the virtual function in DtReflectedObjectList.
virtual void	removeAndDelete (DtReflectedEntity entity, char msg=NULL)
	Default calls down to base class version, but can be overridden.
virtual void	objectAdded (DtReflectedObject *obj)
	Called from processDiscoverObject() after a remote entity has been added to the list.
virtual void	entityAdded (DtReflectedEntity *ent)
	Called by objectAdded (which is called from processDiscoverObject()) after a remote entity has been added to the list.
Static Protected Member Functions
static bool	checkEntityType (DtReflectedObject obj, void usr)
	Callback which checks whether the entity type has arrived yet.
static void	checkEntityId (DtReflectedEntity ent, void usr)
	Callback which checks whether the entity id of the entity has arrived yet.
Protected Attributes
bool	mySmoothCapable
	Determines whether to use smoothing for reflected entities.
DtHashlist	myEntityIdentifierHashlist
	Hash list used for lookup of entity identifiers.
Private Member Functions
	DtReflectedEntityList (const DtReflectedEntityList &orig)
	Copy constructor -- not implemented.
DtReflectedEntityList &	operator= (const DtReflectedEntityList &orig)
	Assignment operator -- not implemented.

Detailed Description

Instances of DtReflectedEntityList are used to manage remote entities from the network.

DtReflectedEntityList, when instantiated, subscribes to all of the classes either specified by the FOM Mapper used by the DtExerciseConn or provided in the form of Object Class Handles. When an object of type handled by DtReflectedEntityList is discovered, a DtReflectedEntity is created and added to the list. DtReflectedEntityList provides a mechanism to maintain the list of remote entities and their data. In addition, DtReflectedEntityList provides callback mechanisms that the user may register for, so that the user may be notified and do certain processing when an entity is added/removed from the reflected entity list.

Examples

Constructor & Destructor Documentation

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		bool	smoothCapable = `false`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor that uses subscription criteria from the exConn's fomMapper.

This constructor determines what entity classes to subscribe to by obtaining them from the exConn's fomMapper.

Parameters:

smoothCapable If smoothCapable is set to true, any reflected entity maintained by this list will use a smoother.

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		const DtString &	updateRateTag,
		bool	smoothCapable = `false`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		bool	smoothCapable = `false`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor that uses a handle list as subscription criteria.

This constructor determines what entity classes to subscribe to by obtaining them from the handle list.

Parameters:

handleList	is a list of RTI::ObjectClassHandle's that specifies what classes to subscribe to.
smoothCapable	If smoothCapable is set to true, any reflected entity maintained by this list will use a smoother.

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		const DtString &	updateRateTag,
		bool	smoothCapable = `false`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

virtual DtReflectedEntityList::~DtReflectedEntityList ( ) [virtual]

Destructor.

DtReflectedEntityList::DtReflectedEntityList ( const DtReflectedEntityList & orig ) [private]

Copy constructor -- not implemented.

Member Function Documentation

virtual void DtReflectedEntityList::addEntityAdditionCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)		`[virtual]`

Entity added callback registration.

Allows the user to specify a function to be called when an entity is discovered and added to the list.

virtual void DtReflectedEntityList::addEntityRemovalCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)		`[virtual]`

Entity removed callback registration.

Allows the user to specify a function to be called when and entity is removed from the list.

virtual void DtReflectedEntityList::addToEntityIdentifierHashList ( DtReflectedEntity * ent ) [virtual]

Adds the entity id of ent to myEntityIdentifierHashlist.

This is called by checkEntityId, and needs to be public so that it can be called by the callback.

virtual void DtReflectedEntityList::addToObjectList ( DtReflectedObject * refObj ) [virtual]

Adds an object the the list.

Override DtReflectedObjectList::addToObjectList() (which it calls down to) to add entities to the entity identifier hash list

Reimplemented from DtReflectedObjectList.

static void DtReflectedEntityList::checkEntityId	(	DtReflectedEntity *	ent,
		void *	usr
	)		`[static, protected]`

Callback which checks whether the entity id of the entity has arrived yet.

If it has, the entity id is added to myEntityIdentifierHashlist to be used for lookup purposes, and the callback is deregistered. Registered addToObjectList().

static bool DtReflectedEntityList::checkEntityType	(	DtReflectedObject *	obj,
		void *	usr
	)		`[static, protected]`

Callback which checks whether the entity type has arrived yet.

This callback is registered/deregistered using the function: discoverOnlyWhenEntityTypeKnown()

virtual const DtList* DtReflectedEntityList::dfltHandleList ( ) [protected, virtual]

Returns the list of handles that the FOM Mapper associates with a DtReflectedEntityList.

Uses the FOM Mapper of the DtExerciseConn that is passed in through the constructor.

virtual void DtReflectedEntityList::discoverOnlyWhenEntityTypeKnown ( bool yesNo ) [virtual]

Allows one to specify whether discover should delayed until the entity type is known before adding the entity to the list.

The default value is no, meaning entities will get added to the list immediately -- regardless of whether it has received any attr values or not.

virtual void DtReflectedEntityList::entityAdded ( DtReflectedEntity * ent ) [protected, virtual]

Called by objectAdded (which is called from processDiscoverObject()) after a remote entity has been added to the list.

Default implementation prints a message. Subclasses can override this function to add functionality on entity addition.

virtual DtReflectedEntity* DtReflectedEntityList::first ( ) const [virtual]

Get the first entity in the list.

Returns:: The first reflected entity in the list if there is one, and NULL otherwise.

virtual DtReflectedEntity* DtReflectedEntityList::last ( ) const [virtual]

Get the last entity in the list.

Returns:: The last reflected entity in the list if there is one, and NULL otherwise.

virtual DtReflectedEntity* DtReflectedEntityList::lookup ( RTI::ObjectInstanceHandle id ) [virtual]

Look up entity by object handle.

Returns:: The reflected entity if it is on the list, and NULL otherwise.

virtual DtReflectedEntity* DtReflectedEntityList::lookup ( const DtGlobalObjectDesignator & objName ) [virtual]

Look up entity by name.

Returns:: The reflected entity if found, and NULL if not found.

virtual DtReflectedEntity* DtReflectedEntityList::lookup ( const DtEntityIdentifier & entityId ) [virtual]

Look up entity by entityId.

Returns:: The reflected entity if found, and NULL if not found.

virtual DtReflectedEntity* DtReflectedEntityList::newReflectedEntity ( DtHlaObject * obj ) const [protected, virtual]

Create a remote entity object for the HLA object.

Caller is responsible for deletion.

virtual DtReflectedObject* DtReflectedEntityList::newReflectedObject ( DtHlaObject * obj ) const [protected, virtual]

Override of the virtual function in DtReflectedObjectList.

newReflectedObject calls newReflectedEntity.

Implements DtReflectedObjectList.

virtual void DtReflectedEntityList::objectAdded ( DtReflectedObject * obj ) [protected, virtual]

Called from processDiscoverObject() after a remote entity has been added to the list.

Calls entityAdded.

Reimplemented from DtReflectedObjectList.

DtReflectedEntityList& DtReflectedEntityList::operator= ( const DtReflectedEntityList & orig ) [private]

Assignment operator -- not implemented.

virtual void DtReflectedEntityList::removeAndDelete	(	DtReflectedObject *	object,
		char *	msg
	)		`[protected, virtual]`

Override of the virtual function in DtReflectedObjectList.

Calls removeAndDelete(DtReflectedEntity*....)

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedEntityList::removeAndDelete	(	DtReflectedEntity *	entity,
		char *	msg = `NULL`
	)		`[protected, virtual]`

Default calls down to base class version, but can be overridden.

Parameters:

msg	If msg is specified, msg is printed to DtInfo with the object handle of the object deleted

virtual void DtReflectedEntityList::removeEntityAdditionCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)		`[virtual]`

Entity added callback deregistration.

Allows the user to remove the callback function that is called when an entity is discovered and added to the list.

virtual void DtReflectedEntityList::removeEntityRemovalCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)		`[virtual]`

Entity removed callback deregistration.

Allows the user to remove the callback function that is called when an entity is removed from the list.

Member Data Documentation

DtHashlist DtReflectedEntityList::myEntityIdentifierHashlist [protected]

Hash list used for lookup of entity identifiers.

bool DtReflectedEntityList::mySmoothCapable [protected]

Determines whether to use smoothing for reflected entities.

The documentation for this class was generated from the following file:

hReflEntList.h
