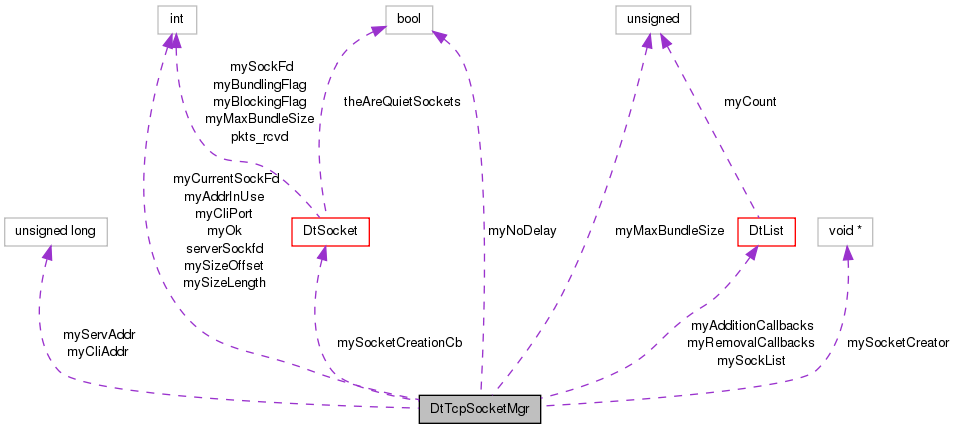

Collaboration diagram for DtTcpSocketMgr:

Public Member Functions
	DtTcpSocketMgr (int port=DtDEFAULT_PORT)
	Constructor.
	DtTcpSocketMgr (DtSocketCreationCallback cb, void *socketCreator, int port=DtDEFAULT_PORT)
	Constructor.
virtual	~DtTcpSocketMgr ()
	Destructor.
virtual void	processConnections ()
	Check to see if any clients are trying to connect.
virtual int	isOk () const
	Returns 1 if the object is OK to use, 0 otherwise.
virtual int	addrInUse () const
	Returns 1 if the socket could not be created because the given port is already in use; 0 otherwise.
virtual DtIpv4Addr	currentClientAddr () const
	Returns the current client address.
virtual int	currentClientPort () const
	Returns the current client port.
virtual int	currentSockFd () const
	Returns the current client socket descriptor.
virtual const DtList *	socketList ()
	Return a list of sockets that we are managing.
void	removeAndDelete (DtTcpSocket *sock)
	Remove the socket from the list, and delete it.
void	setNoDelay (bool onOff)
	If true (the default), set the TCP_NODELAY sockopt in all child DtTcpSockets to 1.
virtual void	addSocketAdditionCallback (DtSocketAdditionCallback cb, void *usr)
	Add/remove socket addition callback to be callled when a new socket connection is accepted.
virtual void	removeSocketAdditionCallback (DtSocketAdditionCallback cb, void *usr)
virtual void	addSocketRemovalCallback (DtSocketRemovalCallback cb, void *usr)
	Add/remove socket addition callback to be callled when a managed socket connection is removed.
virtual void	removeSocketRemovalCallback (DtSocketRemovalCallback cb, void *usr)
virtual int	sizeOffset ()
	Sets offset and length so that it can create sockets whose lengthOffset and lengthSize are different from the default values.
virtual int	sizeLength ()
virtual void	setSizeOffset (int offset)
virtual void	setSizeLength (int length)
virtual void	setPacketBundling (unsigned int maxBundleSize)
	Enable / Disable packet bundling.
Protected Member Functions
virtual void	emptyCallbackLists ()
	Empty the callback lists.
	DtTcpSocketMgr (const DtTcpSocketMgr &)
	Copy CTOR Not Implemented.
DtTcpSocketMgr &	operator= (const DtTcpSocketMgr &)
	Assignment Operator Not Implemented.
Protected Attributes
int	serverSockfd
int	mySizeOffset
int	mySizeLength
int	myCurrentSockFd
	Socket descriptor associated with most recently accessed connection.
DtIpv4Addr	myServAddr
	Unused.
DtIpv4Addr	myCliAddr
int	myCliPort
	Peer TCP port of most recent client to connect.
DtList *	mySockList
	Pointer to list of all open TCP sockets.
int	myOk
int	myAddrInUse
bool	myNoDelay
unsigned int	myMaxBundleSize
DtSocketCreationCallback	mySocketCreationCb
	Callback for creation of specialized sockets.
void *	mySocketCreator
	Pointer to the object that will create the specialized socket.
DtList	myAdditionCallbacks
	Lists of pointers to DtSocketCbInfos.
DtList	myRemovalCallbacks

Detailed Description

Deprecated:: This class is replaced by DtInetSocketMgr and other classes as of VR-Link 3.13

Constructor & Destructor Documentation

DtTcpSocketMgr::DtTcpSocketMgr ( int port = DtDEFAULT_PORT )

Constructor.

DtTcpSocketMgr::DtTcpSocketMgr	(	DtSocketCreationCallback	cb,
		void *	socketCreator,
		int	port = `DtDEFAULT_PORT`
	)

Constructor.

Accepts socket creator callback function pointer, a pointer to the object that will create said socket, and the port number which said socket will listen on. This ctor allows the owner of a DtTcpSocketMgr object to create specialized sockets (such as compression-enabled TCP sockets).

virtual DtTcpSocketMgr::~DtTcpSocketMgr ( ) [virtual]

Destructor.

DtTcpSocketMgr::DtTcpSocketMgr ( const DtTcpSocketMgr & ) [protected]

Copy CTOR Not Implemented.

Member Function Documentation

virtual int DtTcpSocketMgr::addrInUse ( ) const [virtual]

Returns 1 if the socket could not be created because the given port is already in use; 0 otherwise.

virtual void DtTcpSocketMgr::addSocketAdditionCallback	(	DtSocketAdditionCallback	cb,
		void *	usr
	)		`[virtual]`

Add/remove socket addition callback to be callled when a new socket connection is accepted.

virtual void DtTcpSocketMgr::addSocketRemovalCallback	(	DtSocketRemovalCallback	cb,
		void *	usr
	)		`[virtual]`

Add/remove socket addition callback to be callled when a managed socket connection is removed.

virtual DtIpv4Addr DtTcpSocketMgr::currentClientAddr ( ) const [virtual]

Returns the current client address.

This method may be invoked by specialized socket creation callback functions when a new connection is accepted which requires a non-standard socket type, such as a socket which supports TCP compression.

virtual int DtTcpSocketMgr::currentClientPort ( ) const [virtual]

Returns the current client port.

This method may be invoked by specialized socket creation callback functions when a new connection is accepted which requires a non-standard socket type, such as a socket which supports TCP compression.

virtual int DtTcpSocketMgr::currentSockFd ( ) const [virtual]

Returns the current client socket descriptor.

This method is invoked by specialized socket creation callback functions when a new connection is accepted which requires a non-standard socket type, such as a socket which supports TCP compression.

virtual void DtTcpSocketMgr::emptyCallbackLists ( ) [protected, virtual]

Empty the callback lists.

int DtTcpSocketMgr::isOk ( ) const [inline, virtual]

Returns 1 if the object is OK to use, 0 otherwise.

DtTcpSocketMgr& DtTcpSocketMgr::operator= ( const DtTcpSocketMgr & ) [protected]

Assignment Operator Not Implemented.

virtual void DtTcpSocketMgr::processConnections ( ) [virtual]

Check to see if any clients are trying to connect.

If so, add new DtTcpSockets to handle the connections.

void DtTcpSocketMgr::removeAndDelete ( DtTcpSocket * sock )

Remove the socket from the list, and delete it.

non virtual since called in DTOR
