DtJtidsLetRadioSignalInteraction Class Reference

Inheritance diagram for DtJtidsLetRadioSignalInteraction:

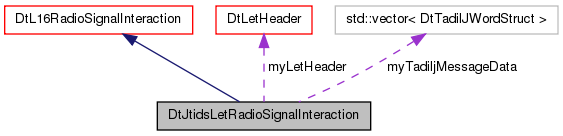

Collaboration diagram for DtJtidsLetRadioSignalInteraction:

List of all members.

Public Member Functions
	DtJtidsLetRadioSignalInteraction ()
	Default constructor.
virtual	~DtJtidsLetRadioSignalInteraction ()
	Destructor.
	DtJtidsLetRadioSignalInteraction (const DtJtidsLetRadioSignalInteraction &orig)
	Copy constructor.
DtJtidsLetRadioSignalInteraction &	operator= (const DtJtidsLetRadioSignalInteraction &orig)
	Assignment operator.
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to a stream.
virtual DtU32	numTadilJWords () const
	Return the number of J-Words in the message.
virtual const DtLetHeader &	letHeader () const
	Set/Get the LET header.
virtual void	setLetHeader (const DtLetHeader &data)
	Set/Get the LET header.
virtual const DtLetHeaderStruct &	letHeaderRawData () const
	Set/Get the LET header.
virtual void	setLetHeaderRawData (const DtLetHeaderStruct &data)
	Set/Get the LET header.
virtual const DtTadilJWordStruct *	tadilJWord (DtU32 index) const
	Set/Get a J-Word in the TADIL-J message.
virtual void	setTadilJWord (DtU32 index, const DtTadilJWordStruct &data)
	Set/Get a J-Word in the TADIL-J message.
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtSignalInteraction.
static void	addCallback (DtExerciseConn *conn, DtJtidsLetRadioSignalInteractionCb cb, void *usr)
static void	removeCallback (DtExerciseConn *conn, DtJtidsLetRadioSignalInteractionCb cb, void *usr)
Protected Member Functions
virtual char *	interactionClassToUse (DtExerciseConn *exConn) const
	Virtual function override.
virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Virtual function override.
virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Virtual function override.
Protected Attributes
DtLetHeader	myLetHeader
	The LET header.
std::vector< DtTadilJWordStruct >	myTadiljMessageData
	The TADILJ message.

---

Constructor & Destructor Documentation

DtJtidsLetRadioSignalInteraction::DtJtidsLetRadioSignalInteraction

(

)

Default constructor.

virtual DtJtidsLetRadioSignalInteraction::~DtJtidsLetRadioSignalInteraction

(

)

[virtual]

Destructor.

DtJtidsLetRadioSignalInteraction::DtJtidsLetRadioSignalInteraction

(

const DtJtidsLetRadioSignalInteraction &

orig

)

Copy constructor.

---

Member Function Documentation

static void DtJtidsLetRadioSignalInteraction::addCallback	(	DtExerciseConn *	conn,
		DtJtidsLetRadioSignalInteractionCb	cb,
		void *	usr
	)		[static]

static DtInteraction* DtJtidsLetRadioSignalInteraction::create

(

)

[static]

Create a DtSignalInteraction.

Caller is responsible for deletion.

Reimplemented from DtL16RadioSignalInteraction.

virtual DtInteractionDecoder* DtJtidsLetRadioSignalInteraction::createDecoder

(

DtExerciseConn *

exConn

)

const [protected, virtual]

Virtual function override.

Creates and returns a decoder to be used by setFromPhvps to decode a ParameterHandleValuePairSet into this interaction. Implementing this function is required, unless you would like to rely on the default behavior - which is to obtain a new instance of the right decoder from the FOM Mapper. If you choose this option, you must configure the FOM Mapper so that it can correctly provide this object.

Reimplemented from DtL16RadioSignalInteraction.

virtual DtInteractionEncoder* DtJtidsLetRadioSignalInteraction::createEncoder

(

DtExerciseConn *

exConn

)

const [protected, virtual]

Virtual function override.

Creates and returns an encoder to be used by phvps to encode the data in this interaction into a ParameterHandleValuePairSet. Implementing this function is required, unless you would like to rely on the default behavior - which is to obtain a new instance of the right encoder from the FOM Mapper. If you choose this option, you must configure the FOM Mapper so that it can correctly provide this object.

Reimplemented from DtL16RadioSignalInteraction.

virtual char* DtJtidsLetRadioSignalInteraction::interactionClassToUse

(

DtExerciseConn *

exConn

)

const [protected, virtual]

Virtual function override.

Returns the name of the FOM class to use to represent this interaction when sending. It is called from within setExConn, when that function is called by DtExerciseConn::send. Implementing this function is required unless you would like to rely on the default behavior - which is to obtain the class to use from the FOM Mapper. If you choose this option, you must configure the FomMapper so that it can correctly provide this information.

Reimplemented from DtL16RadioSignalInteraction.

virtual const DtLetHeader& DtJtidsLetRadioSignalInteraction::letHeader

(

)

const [virtual]

Set/Get the LET header.

virtual const DtLetHeaderStruct& DtJtidsLetRadioSignalInteraction::letHeaderRawData

(

)

const [virtual]

Set/Get the LET header.

virtual const char* DtJtidsLetRadioSignalInteraction::name

(

)

const [virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Reimplemented from DtL16RadioSignalInteraction.

virtual DtU32 DtJtidsLetRadioSignalInteraction::numTadilJWords

(

)

const [virtual]

Return the number of J-Words in the message.

DtJtidsLetRadioSignalInteraction& DtJtidsLetRadioSignalInteraction::operator=

(

const DtJtidsLetRadioSignalInteraction &

orig

)

Assignment operator.

virtual void DtJtidsLetRadioSignalInteraction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to a stream.

Reimplemented from DtL16RadioSignalInteraction.

static void DtJtidsLetRadioSignalInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtJtidsLetRadioSignalInteractionCb	cb,
		void *	usr
	)		[static]

virtual void DtJtidsLetRadioSignalInteraction::setLetHeader

(

const DtLetHeader &

data

)

[virtual]

Set/Get the LET header.

virtual void DtJtidsLetRadioSignalInteraction::setLetHeaderRawData

(

const DtLetHeaderStruct &

data

)

[virtual]

Set/Get the LET header.

virtual void DtJtidsLetRadioSignalInteraction::setTadilJWord	(	DtU32	index,
		const DtTadilJWordStruct &	data
	)		[virtual]

Set/Get a J-Word in the TADIL-J message.

virtual const DtTadilJWordStruct* DtJtidsLetRadioSignalInteraction::tadilJWord

(

DtU32

index

)

const [virtual]

Set/Get a J-Word in the TADIL-J message.

---

Member Data Documentation

DtLetHeader DtJtidsLetRadioSignalInteraction::myLetHeader [protected]

The LET header.

std::vector<DtTadilJWordStruct> DtJtidsLetRadioSignalInteraction::myTadiljMessageData [protected]

The TADILJ message.

---

The documentation for this class was generated from the following file:

• hJtidsLetRadSigInter.h
