DtJtidsMessageRadioSignalInteraction Class Reference

Inheritance diagram for DtJtidsMessageRadioSignalInteraction:

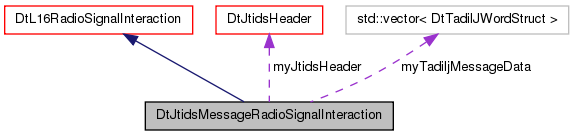

Collaboration diagram for DtJtidsMessageRadioSignalInteraction:

List of all members.

Public Member Functions
	DtJtidsMessageRadioSignalInteraction ()
	Default constructor.
virtual	~DtJtidsMessageRadioSignalInteraction ()
	Destructor.
	DtJtidsMessageRadioSignalInteraction (const DtJtidsMessageRadioSignalInteraction &orig)
	Copy constructor.
DtJtidsMessageRadioSignalInteraction &	operator= (const DtJtidsMessageRadioSignalInteraction &orig)
	Assignment operator.
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to a stream.
virtual DtU32	numTadilJWords () const
	Return the number of J-Words in the message.
virtual const DtJtidsHeader &	jtidsHeader () const
	Set/Get the JTIDS header.
virtual void	setJtidsHeader (const DtJtidsHeader &data)
	Set/Get the JTIDS header.
virtual const DtJtidsHeaderStruct &	jtidsHeaderRawData () const
	Set/Get the JTIDS header.
virtual void	setJtidsHeaderRawData (const DtJtidsHeaderStruct &data)
	Set/Get the JTIDS header.
virtual const DtTadilJWordStruct *	tadilJWord (DtU32 index) const
	Set/Get a J-Word in the TADIL-J message.
virtual void	setTadilJWord (DtU32 index, const DtTadilJWordStruct &data)
	Set/Get a J-Word in the TADIL-J message.
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtSignalInteraction.
static void	addCallback (DtExerciseConn *conn, DtJtidsMessageRadioSignalInteractionCb cb, void *usr)
static void	removeCallback (DtExerciseConn *conn, DtJtidsMessageRadioSignalInteractionCb cb, void *usr)
Protected Member Functions
virtual char *	interactionClassToUse (DtExerciseConn *exConn) const
	Virtual function override.
virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Virtual function override.
virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Virtual function override.
Protected Attributes
DtJtidsHeader	myJtidsHeader
	The JTIDS header.
std::vector< DtTadilJWordStruct >	myTadiljMessageData
	The TADILJ message.

---

Constructor & Destructor Documentation

DtJtidsMessageRadioSignalInteraction::DtJtidsMessageRadioSignalInteraction

(

)

Default constructor.

virtual DtJtidsMessageRadioSignalInteraction::~DtJtidsMessageRadioSignalInteraction

(

)

[virtual]

Destructor.

DtJtidsMessageRadioSignalInteraction::DtJtidsMessageRadioSignalInteraction

(

const DtJtidsMessageRadioSignalInteraction &

orig

)

Copy constructor.

---

Member Function Documentation

static void DtJtidsMessageRadioSignalInteraction::addCallback	(	DtExerciseConn *	conn,
		DtJtidsMessageRadioSignalInteractionCb	cb,
		void *	usr
	)		[static]

static DtInteraction* DtJtidsMessageRadioSignalInteraction::create

(

)

[static]

Create a DtSignalInteraction.

Caller is responsible for deletion.

Reimplemented from DtL16RadioSignalInteraction.

virtual DtInteractionDecoder* DtJtidsMessageRadioSignalInteraction::createDecoder

(

DtExerciseConn *

exConn

)

const [protected, virtual]

Virtual function override.

Creates and returns a decoder to be used by setFromPhvps to decode a ParameterHandleValuePairSet into this interaction. Implementing this function is required, unless you would like to rely on the default behavior - which is to obtain a new instance of the right decoder from the FOM Mapper. If you choose this option, you must configure the FOM Mapper so that it can correctly provide this object.

Reimplemented from DtL16RadioSignalInteraction.

virtual DtInteractionEncoder* DtJtidsMessageRadioSignalInteraction::createEncoder

(

DtExerciseConn *

exConn

)

const [protected, virtual]

Virtual function override.

Creates and returns an encoder to be used by phvps to encode the data in this interaction into a ParameterHandleValuePairSet. Implementing this function is required, unless you would like to rely on the default behavior - which is to obtain a new instance of the right encoder from the FOM Mapper. If you choose this option, you must configure the FOM Mapper so that it can correctly provide this object.

Reimplemented from DtL16RadioSignalInteraction.

virtual char* DtJtidsMessageRadioSignalInteraction::interactionClassToUse

(

DtExerciseConn *

exConn

)

const [protected, virtual]

Virtual function override.

Returns the name of the FOM class to use to represent this interaction when sending. It is called from within setExConn, when that function is called by DtExerciseConn::send. Implementing this function is required unless you would like to rely on the default behavior - which is to obtain the class to use from the FOM Mapper. If you choose this option, you must configure the FomMapper so that it can correctly provide this information.

Reimplemented from DtL16RadioSignalInteraction.

virtual const DtJtidsHeader& DtJtidsMessageRadioSignalInteraction::jtidsHeader

(

)

const [virtual]

Set/Get the JTIDS header.

virtual const DtJtidsHeaderStruct& DtJtidsMessageRadioSignalInteraction::jtidsHeaderRawData

(

)

const [virtual]

Set/Get the JTIDS header.

virtual const char* DtJtidsMessageRadioSignalInteraction::name

(

)

const [virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Reimplemented from DtL16RadioSignalInteraction.

virtual DtU32 DtJtidsMessageRadioSignalInteraction::numTadilJWords

(

)

const [virtual]

Return the number of J-Words in the message.

DtJtidsMessageRadioSignalInteraction& DtJtidsMessageRadioSignalInteraction::operator=

(

const DtJtidsMessageRadioSignalInteraction &

orig

)

Assignment operator.

virtual void DtJtidsMessageRadioSignalInteraction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to a stream.

Reimplemented from DtL16RadioSignalInteraction.

static void DtJtidsMessageRadioSignalInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtJtidsMessageRadioSignalInteractionCb	cb,
		void *	usr
	)		[static]

virtual void DtJtidsMessageRadioSignalInteraction::setJtidsHeader

(

const DtJtidsHeader &

data

)

[virtual]

Set/Get the JTIDS header.

virtual void DtJtidsMessageRadioSignalInteraction::setJtidsHeaderRawData

(

const DtJtidsHeaderStruct &

data

)

[virtual]

Set/Get the JTIDS header.

virtual void DtJtidsMessageRadioSignalInteraction::setTadilJWord	(	DtU32	index,
		const DtTadilJWordStruct &	data
	)		[virtual]

Set/Get a J-Word in the TADIL-J message.

virtual const DtTadilJWordStruct* DtJtidsMessageRadioSignalInteraction::tadilJWord

(

DtU32

index

)

const [virtual]

Set/Get a J-Word in the TADIL-J message.

---

Member Data Documentation

DtJtidsHeader DtJtidsMessageRadioSignalInteraction::myJtidsHeader [protected]

The JTIDS header.

std::vector<DtTadilJWordStruct> DtJtidsMessageRadioSignalInteraction::myTadiljMessageData [protected]

The TADILJ message.

---

The documentation for this class was generated from the following file:

• hJtidsMsgRadSigInter.h
