DtDesignatorPublisher Class Reference

Inheritance diagram for DtDesignatorPublisher:

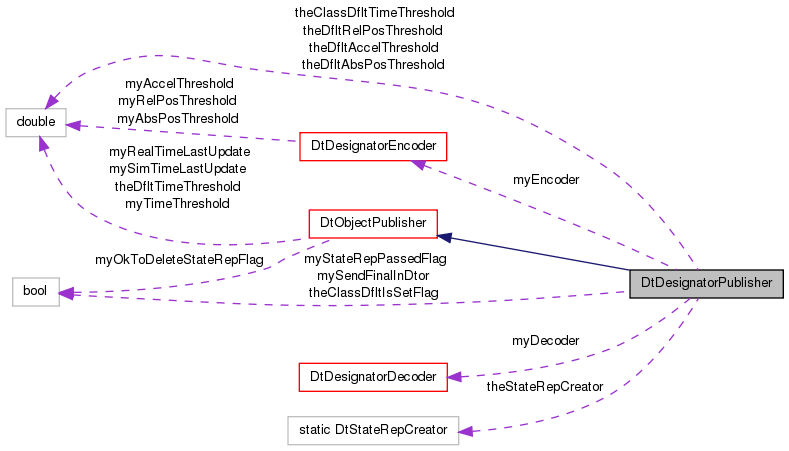

Collaboration diagram for DtDesignatorPublisher:

Public Types
typedef DtDesignatorRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtDesignatorRepositories.

Public Member Functions
	DtDesignatorPublisher (DtDesignatorRepository *stateRepToUse, DtExerciseConn *conn, const DtObjectId &entityId=DtObjectId::defaultId())
	constructor
	DtDesignatorPublisher (DtExerciseConn *conn, const DtObjectId &entityId=DtObjectId::defaultId())
	constructor
virtual	~DtDesignatorPublisher ()
	destructor
virtual void	tick ()
	This function should be called once per frame for each designator object.
virtual DtDesignatorRepository *	designatorStateRep ()
	Returns a pointer to the DesignatorRepository - through which you can set or inspect current state information.
virtual DtDesignatorRepository *	dsr ()
	Synonym for designatorStateRep().
virtual DtDesignatorDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode PDUs that we send back into the asSeenByRemote ESR.
virtual DtDesignatorEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an entity state PDU.
virtual const DtObjectId &	id () const
	Get the designator's identifier.
virtual const DtObjectId &	localId () const
	Get the designator's localId - same as id for DIS.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the global object designator - same as id for DIS.
virtual void	sendFinalPduOnDestruction (bool onOff)
	Set flag indicating whether to send a final PDU with the "FinalPdu" appearance bit set, from within the DtDesignatorPublisher destructor.
virtual void	forceUpdate ()
	Force a state update to be sent during the next call to tick, even if nothing would normally cause a send.
virtual void	setRelPosThreshold (double val)
	Set/Query the value of the "Relative Position" Update Threshold.
virtual double	relPosThreshold () const
virtual void	setAbsPosThreshold (double val)
	Set/Query the value of the "Relative Position" Update Threshold.
virtual double	absPosThreshold () const
virtual void	setAccelThreshold (double val)
	Set/Query the value of the "Relative Position" Update Threshold.
virtual double	accelThreshold () const
Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn *conn, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, bool okToDeleteStateRep=true)
	Constructor takes an DtExerciseConn which must have a lifetime greater than the ObjectPubliser.
virtual	~DtObjectPublisher ()
	Destructor.
virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtStateRepository *	sr ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection.
virtual void	setTimeThreshold (DtTime time)
	Set the heartbeat rate for this object.
virtual DtTime	timeThreshold () const
	The heartbeat rate for this object.
virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message.
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.

Static Public Member Functions
static void	setDfltRelPosThreshold (double val)
	Get/Set default "Relative Position" threshold.
static double	dfltRelPosThreshold ()
static void	setDfltAbsPosThreshold (double val)
	Get/Set default "Absolute Position" threshold.
static double	dfltAbsPosThreshold ()
static void	setDfltAccelThreshold (double val)
	Get/Set default "Acceleration" threshold.
static double	dfltAccelThreshold ()
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
static void	setClassDfltTimeThreshold (DtTime threshold)
Static Public Member Functions inherited from DtObjectPublisher
static void	setDfltTimeThreshold (DtTime time)
	Set the default heartbeat rate.
static DtTime	dfltTimeThreshold ()
	The default heartbeat rate, see setDfltTimeThreshold().

Protected Member Functions
void	init (const DtObjectId &)
	Not virtual since called from constructor.
void	sendFinalPdu ()
	Not virtual since called from destructor.
	DtDesignatorPublisher (const DtDesignatorPublisher &)
	copy constructor – Not Implemented
DtDesignatorPublisher &	operator= (const DtDesignatorPublisher &)
	assignment operator – Not Implemented
Protected Member Functions inherited from DtObjectPublisher
void	send (DtPdu *pdu) const
	Puts the PDU on the network and updates timestamps.

Protected Attributes
DtDesignatorDecoder *	myDecoder
DtDesignatorEncoder *	myEncoder
bool	mySendFinalInDtor
bool	myStateRepPassedFlag
Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn
DtStateRepository *	myStateRep
DtStateRepository *	myAsSeenByRemote
bool	myOkToDeleteStateRepFlag
DtTime	myTimeThreshold
DtTime	mySimTimeLastUpdate
	Set in const send() method.
DtTime	myRealTimeLastUpdate
	Set in const send() method.

Static Protected Attributes
static double	theDfltRelPosThreshold
static double	theDfltAbsPosThreshold
static double	theDfltAccelThreshold
static DtStateRepCreator	theStateRepCreator
static DtTime	theClassDfltTimeThreshold
static bool	theClassDfltIsSetFlag
Static Protected Attributes inherited from DtObjectPublisher
static DtTime	theDfltTimeThreshold

Member Typedef Documentation

typedef DtDesignatorRepository*(* DtDesignatorPublisher::DtStateRepCreator)()

Function prototype for functions that create DtDesignatorRepositories.

Constructor & Destructor Documentation

DtDesignatorPublisher::DtDesignatorPublisher	(	DtDesignatorRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const DtObjectId &	entityId = DtObjectId::defaultId()
	)

constructor

DtDesignatorPublisher::DtDesignatorPublisher	(	DtExerciseConn *	conn,
		const DtObjectId &	entityId = DtObjectId::defaultId()
	)

constructor

virtual DtDesignatorPublisher::~DtDesignatorPublisher ( )

virtual

destructor

DtDesignatorPublisher::DtDesignatorPublisher ( const DtDesignatorPublisher &  )

protected

copy constructor – Not Implemented

Member Function Documentation

virtual double DtDesignatorPublisher::absPosThreshold ( ) const

virtual

virtual double DtDesignatorPublisher::accelThreshold ( ) const

virtual

virtual DtDesignatorDecoder* DtDesignatorPublisher::decoder ( )

inlinevirtual

Returns a pointer to the Decoder being used to decode PDUs that we send back into the asSeenByRemote ESR.

DtDesignatorRepository * DtDesignatorPublisher::designatorStateRep ( )

inlinevirtual

Returns a pointer to the DesignatorRepository - through which you can set or inspect current state information.

References dsr().

double DtDesignatorPublisher::dfltAbsPosThreshold ( )

inlinestatic

References theDfltAbsPosThreshold.

double DtDesignatorPublisher::dfltAccelThreshold ( )

inlinestatic

References theDfltAccelThreshold.

double DtDesignatorPublisher::dfltRelPosThreshold ( )

inlinestatic

References theDfltRelPosThreshold.

DtDesignatorRepository * DtDesignatorPublisher::dsr ( )

inlinevirtual

Synonym for designatorStateRep().

References DtObjectPublisher::myStateRep.

Referenced by designatorStateRep().

virtual DtDesignatorEncoder* DtDesignatorPublisher::encoder ( )

inlinevirtual

Returns a pointer to the Encoder being used to encode current state into an entity state PDU.

void DtDesignatorPublisher::forceUpdate ( )

inlinevirtual

Force a state update to be sent during the next call to tick, even if nothing would normally cause a send.

Implements DtObjectPublisher.

References myEncoder, and DtStateEncoder::setSendNeeded().

virtual const DtGlobalObjectDesignator& DtDesignatorPublisher::globalId ( ) const

inlinevirtual

Get the global object designator - same as id for DIS.

Implements DtObjectPublisher.

References DtObjectPublisher::id().

virtual const DtObjectId& DtDesignatorPublisher::id ( ) const

virtual

Get the designator's identifier.

Implements DtObjectPublisher.

void DtDesignatorPublisher::init ( const DtObjectId &  )

protected

Not virtual since called from constructor.

virtual const DtObjectId& DtDesignatorPublisher::localId ( ) const

inlinevirtual

Get the designator's localId - same as id for DIS.

Implements DtObjectPublisher.

References DtObjectPublisher::id().

DtDesignatorPublisher& DtDesignatorPublisher::operator= ( const DtDesignatorPublisher &  )

protected

assignment operator – Not Implemented

virtual double DtDesignatorPublisher::relPosThreshold ( ) const

virtual

void DtDesignatorPublisher::sendFinalPdu ( )

protected

Not virtual since called from destructor.

void DtDesignatorPublisher::sendFinalPduOnDestruction ( bool  onOff )

inlinevirtual

Set flag indicating whether to send a final PDU with the "FinalPdu" appearance bit set, from within the DtDesignatorPublisher destructor.

References mySendFinalInDtor.

virtual void DtDesignatorPublisher::setAbsPosThreshold ( double  val )

virtual

Set/Query the value of the "Relative Position" Update Threshold.

virtual void DtDesignatorPublisher::setAccelThreshold ( double  val )

virtual

Set/Query the value of the "Relative Position" Update Threshold.

static void DtDesignatorPublisher::setClassDfltTimeThreshold ( DtTime  threshold )

static

void DtDesignatorPublisher::setDfltAbsPosThreshold ( double  val )

inlinestatic

Get/Set default "Absolute Position" threshold.

References theDfltAbsPosThreshold.

void DtDesignatorPublisher::setDfltAccelThreshold ( double  val )

inlinestatic

Get/Set default "Acceleration" threshold.

References theDfltAccelThreshold.

void DtDesignatorPublisher::setDfltRelPosThreshold ( double  val )

inlinestatic

Get/Set default "Relative Position" threshold.

References theDfltRelPosThreshold.

virtual void DtDesignatorPublisher::setRelPosThreshold ( double  val )

virtual

Set/Query the value of the "Relative Position" Update Threshold.

static void DtDesignatorPublisher::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

static DtStateRepCreator DtDesignatorPublisher::stateRepCreator ( void  )

static

virtual void DtDesignatorPublisher::tick ( )

virtual

This function should be called once per frame for each designator object.

It determines if any data needs to be sent to the other exercise participants, and if so then it sends the data.

Implements DtObjectPublisher.

Member Data Documentation

DtDesignatorDecoder* DtDesignatorPublisher::myDecoder

protected

DtDesignatorEncoder* DtDesignatorPublisher::myEncoder

protected

Referenced by forceUpdate().

bool DtDesignatorPublisher::mySendFinalInDtor

protected

Referenced by sendFinalPduOnDestruction().

bool DtDesignatorPublisher::myStateRepPassedFlag

protected

bool DtDesignatorPublisher::theClassDfltIsSetFlag

staticprotected

DtTime DtDesignatorPublisher::theClassDfltTimeThreshold

staticprotected

double DtDesignatorPublisher::theDfltAbsPosThreshold

staticprotected

Referenced by dfltAbsPosThreshold(), and setDfltAbsPosThreshold().

double DtDesignatorPublisher::theDfltAccelThreshold

staticprotected

Referenced by dfltAccelThreshold(), and setDfltAccelThreshold().

double DtDesignatorPublisher::theDfltRelPosThreshold

staticprotected

Referenced by dfltRelPosThreshold(), and setDfltRelPosThreshold().

DtStateRepCreator DtDesignatorPublisher::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• dDesignatrPub.h
