DtDetonationPdu Class Reference

DtDetonationPdu is used to represent the impact or detonation of a munition. More...

Inheritance diagram for DtDetonationPdu:

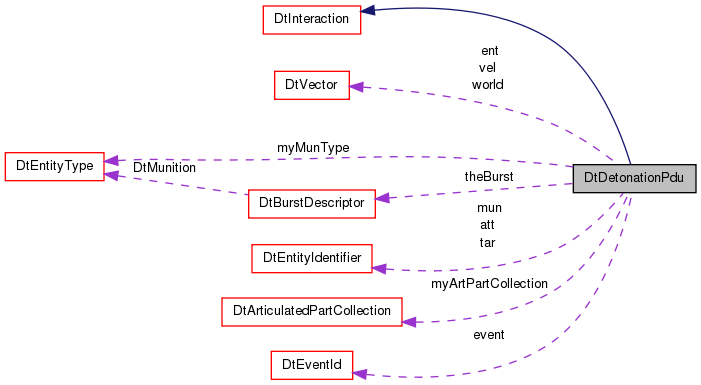

Collaboration diagram for DtDetonationPdu:

Public Types
enum	{ PduStaticSize = 104 }

Public Member Functions
	DtDetonationPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtDetonationPdu (const DtNetDetonationPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtDetonationPdu (const DtEntityIdentifier &attacker, const DtEntityIdentifier &target, const DtEntityIdentifier &munition, const DtEventID &eventId, const DtVector &linVelocity, const DtVector &location, const DtBurstDescriptor &burst, const DtVector &entLocation, DtDetonationResult result, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtDetonationPdu (const DtFireInteraction &fire, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Fills in common fields with data from Fire Interaction.
const DtObjectId &	attackerId () const
void	setAttackerId (const DtObjectId &id)
const DtObjectId &	targetId () const
void	setTargetId (const DtObjectId &id)
const DtObjectId &	munitionId () const
void	setMunitionId (const DtObjectId &id)
const DtEventID &	eventId () const
void	setEventId (const DtEventID &id)
const DtVector &	velocity () const
void	setVelocity (const DtVector &velocity)
const DtVector &	worldLocation () const
void	setWorldLocation (const DtVector &location)
const DtVector &	entityLocation () const
void	setEntityLocation (const DtVector &location)
DtDetonationResult	result () const
void	setResult (DtDetonationResult result)
DtDetonatorFuze	fuseType () const
void	setFuseType (DtDetonatorFuze fuse)
const DtEntityType &	munitionType () const
void	setMunitionType (const DtEntityType &munType)
int	quantity () const
void	setQuantity (int quant)
int	rate () const
void	setRate (int rate)
DtWarheadType	warheadType () const
void	setWarheadType (DtWarheadType type)
const DtBurstDescriptor &	burst () const
	NOT USED IN HLA.
void	setBurst (const DtBurstDescriptor &burst)
void	setArticulatedParts (const DtArticulatedPartCollection &apList)
const DtArticulatedPartCollection &	articulatedParts () const
virtual void	printData () const
	Print the PDU's data (not including header).
virtual void	printDataToStream (std::ostream &stream) const
virtual void	printDataToString (DtString &str) const
Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor
virtual	~DtInteraction ()
	destructor
	DtInteraction (const DtInteraction &orig)
	copy constructor
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
static void	addCallback (DtExerciseConn *conn, DtDetonationInteractionCb cb, void *usr)
static void	removeCallback (DtExerciseConn *conn, DtDetonationInteractionCb cb, void *usr)

Protected Member Functions
DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class.

Protected Attributes
DtObjectId	att
DtObjectId	tar
DtObjectId	mun
DtEventID	event
DtVector	vel
DtVector	world
DtVector	ent
DtBurstDescriptor	theBurst
DtEntityType	myMunType
DtArticulatedPartCollection	myArtPartCollection

Detailed Description

DtDetonationPdu is used to represent the impact or detonation of a munition.

Member Enumeration Documentation

anonymous enum

Enumerator:

PduStaticSize

Constructor & Destructor Documentation

DtDetonationPdu::DtDetonationPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

DtDetonationPdu::DtDetonationPdu	(	const DtNetDetonationPdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

DtDetonationPdu::DtDetonationPdu	(	const DtEntityIdentifier &	attacker,
		const DtEntityIdentifier &	target,
		const DtEntityIdentifier &	munition,
		const DtEventID &	eventId,
		const DtVector &	linVelocity,
		const DtVector &	location,
		const DtBurstDescriptor &	burst,
		const DtVector &	entLocation,
		DtDetonationResult	result,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

DtDetonationPdu::DtDetonationPdu	(	const DtFireInteraction &	fire,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

Fills in common fields with data from Fire Interaction.

Member Function Documentation

static void DtDetonationPdu::addCallback ( DtExerciseConn *  conn, DtDetonationInteractionCb  cb, void *  usr  )

static

const DtArticulatedPartCollection& DtDetonationPdu::articulatedParts

(

)

const

const DtObjectId& DtDetonationPdu::attackerId

(

)

const

const DtBurstDescriptor& DtDetonationPdu::burst

(

)

const

NOT USED IN HLA.

static DtPdu* DtDetonationPdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER  )

static

const DtVector& DtDetonationPdu::entityLocation

(

)

const

const DtEventID& DtDetonationPdu::eventId

(

)

const

DtDetonatorFuze DtDetonationPdu::fuseType

(

)

const

DtPduKind DtDetonationPdu::internalGetPduKind ( ) const

inlineprotectedvirtual

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

References DtDetonationPduKind.

const DtObjectId& DtDetonationPdu::munitionId

(

)

const

const DtEntityType& DtDetonationPdu::munitionType

(

)

const

virtual void DtDetonationPdu::printData ( ) const

virtual

Print the PDU's data (not including header).

Base DtPdu version just prints hex. Use the printDataToString to put the data into a DtString instead of simply sending the output to stdout. printData() calls printDataToStream(DtInfo).

Reimplemented from DtPdu.

virtual void DtDetonationPdu::printDataToStream ( std::ostream &  stream ) const

virtual

Reimplemented from DtPdu.

virtual void DtDetonationPdu::printDataToString ( DtString &  str ) const

virtual

Reimplemented from DtPdu.

int DtDetonationPdu::quantity

(

)

const

int DtDetonationPdu::rate

(

)

const

static void DtDetonationPdu::removeCallback ( DtExerciseConn *  conn, DtDetonationInteractionCb  cb, void *  usr  )

static

DtDetonationResult DtDetonationPdu::result

(

)

const

void DtDetonationPdu::setArticulatedParts

(

const DtArticulatedPartCollection &

apList

)

void DtDetonationPdu::setAttackerId

(

const DtObjectId &

id

)

void DtDetonationPdu::setBurst

(

const DtBurstDescriptor &

burst

)

void DtDetonationPdu::setEntityLocation

(

const DtVector &

location

)

void DtDetonationPdu::setEventId

(

const DtEventID &

id

)

void DtDetonationPdu::setFuseType

(

DtDetonatorFuze

fuse

)

void DtDetonationPdu::setMunitionId

(

const DtObjectId &

id

)

void DtDetonationPdu::setMunitionType

(

const DtEntityType &

munType

)

void DtDetonationPdu::setQuantity

(

int

quant

)

void DtDetonationPdu::setRate

(

int

rate

)

void DtDetonationPdu::setResult

(

DtDetonationResult

result

)

void DtDetonationPdu::setTargetId

(

const DtObjectId &

id

)

void DtDetonationPdu::setVelocity

(

const DtVector &

velocity

)

void DtDetonationPdu::setWarheadType

(

DtWarheadType

type

)

void DtDetonationPdu::setWorldLocation

(

const DtVector &

location

)

const DtObjectId& DtDetonationPdu::targetId

(

)

const

const DtVector& DtDetonationPdu::velocity

(

)

const

DtWarheadType DtDetonationPdu::warheadType

(

)

const

const DtVector& DtDetonationPdu::worldLocation

(

)

const

Member Data Documentation

DtObjectId DtDetonationPdu::att

protected

DtVector DtDetonationPdu::ent

protected

DtEventID DtDetonationPdu::event

protected

DtObjectId DtDetonationPdu::mun

protected

DtArticulatedPartCollection DtDetonationPdu::myArtPartCollection

mutableprotected

DtEntityType DtDetonationPdu::myMunType

protected

DtObjectId DtDetonationPdu::tar

protected

DtBurstDescriptor DtDetonationPdu::theBurst

protected

DtVector DtDetonationPdu::vel

protected

DtVector DtDetonationPdu::world

protected

---

The documentation for this class was generated from the following file:

• detonatePdu.h
