DtEntityPublisher Class Reference

Instances of DtEntityPublisher are used for local or source simulations of entities, (i.e. More...

Inheritance diagram for DtEntityPublisher:

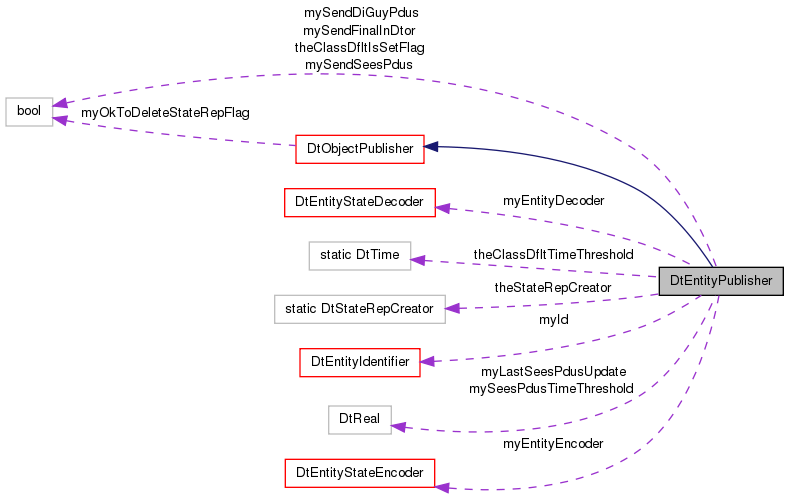

Collaboration diagram for DtEntityPublisher:

Public Types
typedef DtEntityStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEntityStateRepositories.

Public Member Functions
	DtEntityPublisher (DtEntityStateRepository *stateRepToUse, DtExerciseConn *conn, const DtObjectId &id=DtObjectId::defaultId())
	Constructor.
	DtEntityPublisher (DtExerciseConn *conn, const DtObjectId &id=DtObjectId::defaultId())
	Constructor.
	DtEntityPublisher (const DtEntityType &type, DtExerciseConn *conn, const DtObjectId &id=DtObjectId::defaultId())
	Constructor.
	DtEntityPublisher (const DtEntityType &type, DtExerciseConn *conn, DtDeadReckonTypes algorithm, DtForceType forceId, const DtEntityType &guise=guiseSameAsType(), const DtObjectId &id=DtObjectId::defaultId())
	Constructor.
virtual	~DtEntityPublisher ()
	Destructors.
virtual void	tick ()
	This function should be called once per frame for each entity.
virtual DtEntityStateRepository *	entityStateRep ()
	Returns a pointer to the EntityStateRepository - through which you can set or inspect current state information.
virtual DtEntityStateRepository *	esr ()
	Synonym for entityStateRep().
virtual DtEntityStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode PDUs that we send back into the asSeenByRemote ESR.
virtual DtEntityStateEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an entity state PDU.
virtual const DtObjectId &	id () const
	Get the entity's identifier.
virtual const DtObjectId &	localId () const
	Get the entity's localId - same as id for DIS.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the global object designator - same as id for DIS.
virtual void	sendFinalPduOnDestruction (bool on)
	Set flag indicating whether to send a final PDU with the "FinalPdu" appearance bit set, from within the DtEntityPublisher destructor.
virtual void	forceUpdate ()
	Force a state update to be sent during the next call to tick, even if nothing would normally cause a send.
virtual void	setSendDiGuyPdus (bool yesNo)
	Tell the publisher to send DI Guy PDU's.
virtual bool	sendDiGuyPdus () const
	Determine whether this publisher will send DI Guy PDU's.
virtual void	setSendSeesPdus (bool yesNo)
	Tell the publisher to send SEES PDU's.
virtual bool	sendSeesPdus () const
	Determine whether this publisher will send SEES PDU's.
virtual void	setSeesTimeThreshold (DtTime time)
	Set the SEES time threshold for sending a PDU.
virtual DtTime	seesTimeThreshold () const
	Return the SEES time threshold.
Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn *conn, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, bool okToDeleteStateRep=true)
	Constructor takes an DtExerciseConn which must have a lifetime greater than the ObjectPubliser.
virtual	~DtObjectPublisher ()
	Destructor.
virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtStateRepository *	sr ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection.
virtual void	setTimeThreshold (DtTime time)
	Set the heartbeat rate for this object.
virtual DtTime	timeThreshold () const
	The heartbeat rate for this object.
virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message.
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.

Static Public Member Functions
static const DtEntityType &	guiseSameAsType ()
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
static void	setClassDfltTimeThreshold (DtTime threshold)
static void	setDfltRotationThreshold (double r)
static double	dfltRotationThreshold ()
static void	setDfltTranslationThreshold (double t)
static double	dfltTranslationThreshold ()
Static Public Member Functions inherited from DtObjectPublisher
static void	setDfltTimeThreshold (DtTime time)
	Set the default heartbeat rate.
static DtTime	dfltTimeThreshold ()
	The default heartbeat rate, see setDfltTimeThreshold().

Protected Member Functions
void	sendFinalPdu ()
	Not virtual since called from destructor.
virtual void	createAndSendDiGuyPdus ()
	Send DI Guy PDU's (if needed).
virtual void	createAndSendSeesPdu ()
	Send SEES PDU.
virtual bool	sendSeesNeeded () const
void	init (const DtObjectId &vehId)
	Not virtual since called from constructor.
Protected Member Functions inherited from DtObjectPublisher
void	send (DtPdu *pdu) const
	Puts the PDU on the network and updates timestamps.

Protected Attributes
DtObjectId	myId
DtEntityStateDecoder *	myEntityDecoder
DtEntityStateEncoder *	myEntityEncoder
bool	mySendFinalInDtor
bool	mySendDiGuyPdus
bool	mySendSeesPdus
DtTime	mySeesPdusTimeThreshold
DtTime	myLastSeesPdusUpdate
Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn
DtStateRepository *	myStateRep
DtStateRepository *	myAsSeenByRemote
bool	myOkToDeleteStateRepFlag
DtTime	myTimeThreshold
DtTime	mySimTimeLastUpdate
	Set in const send() method.
DtTime	myRealTimeLastUpdate
	Set in const send() method.

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
static DtTime	theClassDfltTimeThreshold
static bool	theClassDfltIsSetFlag
Static Protected Attributes inherited from DtObjectPublisher
static DtTime	theDfltTimeThreshold

Private Member Functions
	DtEntityPublisher (const DtEntityPublisher &orig)
	copy constructor - Not Implemented
DtEntityPublisher &	operator= (const DtEntityPublisher &orig)
	assignment operator - Not Implemented

Detailed Description

Instances of DtEntityPublisher are used for local or source simulations of entities, (i.e.

these entities are not dependent on data being produced elsewhere on the network for their existence). These entities send data to the network.

Member Typedef Documentation

typedef DtEntityStateRepository*(* DtEntityPublisher::DtStateRepCreator)()

Function prototype for functions that create DtEntityStateRepositories.

Constructor & Destructor Documentation

DtEntityPublisher::DtEntityPublisher	(	DtEntityStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

Constructor.

DtObjectId::defaultId() returns a special DtObjectId that is a signal to the DtEntityPublisher constructor that it should obtain its own ObjectId.

DtEntityType::defaultType() returns a special DtEntityType that indicates to the DtEntityPublisher constructor that the entity type should also be used as the guise.

DtEntityPublisher::DtEntityPublisher	(	DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

Constructor.

DtObjectId::defaultId() returns a special DtObjectId that is a signal to the DtEntityPublisher constructor that it should obtain its own ObjectId.

DtEntityType::defaultType() returns a special DtEntityType that indicates to the DtEntityPublisher constructor that the entity type should also be used as the guise.

DtEntityPublisher::DtEntityPublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

Constructor.

DtObjectId::defaultId() returns a special DtObjectId that is a signal to the DtEntityPublisher constructor that it should obtain its own ObjectId.

DtEntityType::defaultType() returns a special DtEntityType that indicates to the DtEntityPublisher constructor that the entity type should also be used as the guise.

DtEntityPublisher::DtEntityPublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		DtDeadReckonTypes	algorithm,
		DtForceType	forceId,
		const DtEntityType &	guise = guiseSameAsType(),
		const DtObjectId &	id = DtObjectId::defaultId()
	)

Constructor.

DtObjectId::defaultId() returns a special DtObjectId that is a signal to the DtEntityPublisher constructor that it should obtain its own ObjectId.

DtEntityType::defaultType() returns a special DtEntityType that indicates to the DtEntityPublisher constructor that the entity type should also be used as the guise.

virtual DtEntityPublisher::~DtEntityPublisher ( )

virtual

Destructors.

DtEntityPublisher::DtEntityPublisher ( const DtEntityPublisher &  orig )

private

copy constructor - Not Implemented

Member Function Documentation

virtual void DtEntityPublisher::createAndSendDiGuyPdus ( )

protectedvirtual

Send DI Guy PDU's (if needed).

virtual void DtEntityPublisher::createAndSendSeesPdu ( )

protectedvirtual

Send SEES PDU.

DtEntityStateDecoder * DtEntityPublisher::decoder ( )

inlinevirtual

Returns a pointer to the Decoder being used to decode PDUs that we send back into the asSeenByRemote ESR.

References myEntityDecoder.

double DtEntityPublisher::dfltRotationThreshold ( )

inlinestatic

Deprecated:

Please use the DtThresholder static member functions instead.

double DtEntityPublisher::dfltTranslationThreshold ( )

inlinestatic

Deprecated:

Please use the DtThresholder static member functions instead.

DtEntityStateEncoder * DtEntityPublisher::encoder ( )

inlinevirtual

Returns a pointer to the Encoder being used to encode current state into an entity state PDU.

References myEntityEncoder.

DtEntityStateRepository * DtEntityPublisher::entityStateRep ( )

inlinevirtual

Returns a pointer to the EntityStateRepository - through which you can set or inspect current state information.

References esr().

DtEntityStateRepository * DtEntityPublisher::esr ( )

inlinevirtual

Synonym for entityStateRep().

References DtObjectPublisher::stateRep().

Referenced by entityStateRep().

virtual void DtEntityPublisher::forceUpdate ( )

virtual

Force a state update to be sent during the next call to tick, even if nothing would normally cause a send.

Implements DtObjectPublisher.

virtual const DtGlobalObjectDesignator& DtEntityPublisher::globalId ( ) const

virtual

Get the global object designator - same as id for DIS.

Implements DtObjectPublisher.

static const DtEntityType& DtEntityPublisher::guiseSameAsType ( )

static

const DtObjectId & DtEntityPublisher::id ( ) const

inlinevirtual

Get the entity's identifier.

Implements DtObjectPublisher.

References myId.

Referenced by localId().

void DtEntityPublisher::init ( const DtObjectId &  vehId )

protected

Not virtual since called from constructor.

const DtObjectId & DtEntityPublisher::localId ( ) const

inlinevirtual

Get the entity's localId - same as id for DIS.

Implements DtObjectPublisher.

References id().

DtEntityPublisher& DtEntityPublisher::operator= ( const DtEntityPublisher &  orig )

private

assignment operator - Not Implemented

virtual DtTime DtEntityPublisher::seesTimeThreshold ( ) const

virtual

Return the SEES time threshold.

virtual bool DtEntityPublisher::sendDiGuyPdus ( ) const

virtual

Determine whether this publisher will send DI Guy PDU's.

void DtEntityPublisher::sendFinalPdu ( )

protected

Not virtual since called from destructor.

void DtEntityPublisher::sendFinalPduOnDestruction ( bool  on )

inlinevirtual

Set flag indicating whether to send a final PDU with the "FinalPdu" appearance bit set, from within the DtEntityPublisher destructor.

References mySendFinalInDtor.

virtual bool DtEntityPublisher::sendSeesNeeded ( ) const

protectedvirtual

virtual bool DtEntityPublisher::sendSeesPdus ( ) const

virtual

Determine whether this publisher will send SEES PDU's.

static void DtEntityPublisher::setClassDfltTimeThreshold ( DtTime  threshold )

static

void DtEntityPublisher::setDfltRotationThreshold ( double  r )

inlinestatic

Deprecated:

Please use the DtThresholder static member functions instead.

void DtEntityPublisher::setDfltTranslationThreshold ( double  t )

inlinestatic

Deprecated:

Please use the DtThresholder static member functions instead.

virtual void DtEntityPublisher::setSeesTimeThreshold ( DtTime  time )

virtual

Set the SEES time threshold for sending a PDU.

virtual void DtEntityPublisher::setSendDiGuyPdus ( bool  yesNo )

virtual

Tell the publisher to send DI Guy PDU's.

virtual void DtEntityPublisher::setSendSeesPdus ( bool  yesNo )

virtual

Tell the publisher to send SEES PDU's.

static void DtEntityPublisher::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

static DtStateRepCreator DtEntityPublisher::stateRepCreator ( void  )

static

virtual void DtEntityPublisher::tick ( )

virtual

This function should be called once per frame for each entity.

It determines if any data needs to be sent to the other exercise participants, and sends that data.

Implements DtObjectPublisher.

Member Data Documentation

DtEntityStateDecoder* DtEntityPublisher::myEntityDecoder

protected

Referenced by decoder().

DtEntityStateEncoder* DtEntityPublisher::myEntityEncoder

protected

Referenced by encoder().

DtObjectId DtEntityPublisher::myId

protected

Referenced by id().

DtTime DtEntityPublisher::myLastSeesPdusUpdate

protected

DtTime DtEntityPublisher::mySeesPdusTimeThreshold

protected

bool DtEntityPublisher::mySendDiGuyPdus

protected

bool DtEntityPublisher::mySendFinalInDtor

protected

Referenced by sendFinalPduOnDestruction().

bool DtEntityPublisher::mySendSeesPdus

protected

bool DtEntityPublisher::theClassDfltIsSetFlag

staticprotected

DtTime DtEntityPublisher::theClassDfltTimeThreshold

staticprotected

DtStateRepCreator DtEntityPublisher::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• dEntityPub.h
