Instances of DtFireInteraction are used to represent the firing of a weapon. More...

Inheritance diagram for DtFirePdu:

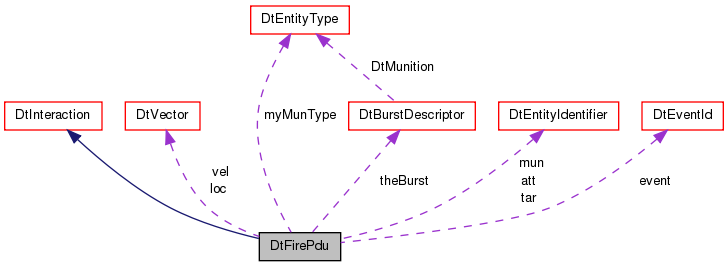

Collaboration diagram for DtFirePdu:

Public Types
enum	{ PduStaticSize = 96 }

Public Member Functions
	DtFirePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtFirePdu (const DtNetFirePdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtFirePdu (const DtEntityIdentifier &attacker, const DtEntityIdentifier &target, const DtEntityIdentifier &munition, const DtEventID &eventId, const DtVector &location, const DtBurstDescriptor &burst, const DtVector &linVelocity, const double range, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
virtual const DtObjectId &	attackerId () const
virtual void	setAttackerId (const DtObjectId &id)
virtual const DtObjectId &	targetId () const
virtual void	setTargetId (const DtObjectId &id)
virtual const DtObjectId &	munitionId () const
virtual void	setMunitionId (const DtObjectId &id)
virtual const DtEventID &	eventId () const
virtual void	setEventId (const DtEventID &id)
virtual unsigned long	fireMissionIndex () const
virtual void	setFireMissionIndex (unsigned long i)
virtual const DtVector &	location () const
virtual void	setLocation (const DtVector &location)
virtual const DtVector &	velocity () const
virtual void	setVelocity (const DtVector &velocity)
virtual double	range () const
virtual void	setRange (double range)
virtual DtDetonatorFuze	fuseType () const
virtual void	setFuseType (DtDetonatorFuze f)
virtual const DtEntityType &	munitionType () const
virtual void	setMunitionType (const DtEntityType &t)
virtual int	quantity () const
virtual void	setQuantity (int q)
virtual int	rate () const
virtual void	setRate (int r)
virtual DtWarheadType	warheadType () const
virtual void	setWarheadType (DtWarheadType t)
virtual const DtBurstDescriptor &	burst () const
	NOT USED IN HLA.
virtual void	setBurst (const DtBurstDescriptor &burst)
virtual void	printData () const
	Print the PDU's data (not including header).
virtual void	printDataToStream (std::ostream &stream) const
virtual void	printDataToString (DtString &str) const
Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor
virtual	~DtInteraction ()
	destructor
	DtInteraction (const DtInteraction &orig)
	copy constructor
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
static void	addCallback (DtExerciseConn conn, DtFireInteractionCb cb, void usr)
static void	removeCallback (DtExerciseConn conn, DtFireInteractionCb cb, void usr)

Protected Member Functions
DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class.

Protected Attributes
DtObjectId	att
DtObjectId	tar
DtObjectId	mun
DtEventID	event
DtVector	loc
DtVector	vel
DtBurstDescriptor	theBurst
DtEntityType	myMunType

Detailed Description

Instances of DtFireInteraction are used to represent the firing of a weapon.

Examples

Talk
Listen

Member Enumeration Documentation

anonymous enum

Enumerator:

PduStaticSize

Constructor & Destructor Documentation

DtFirePdu::DtFirePdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

DtFirePdu::DtFirePdu	(	const DtNetFirePdu *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

DtFirePdu::DtFirePdu	(	const DtEntityIdentifier &	attacker,
		const DtEntityIdentifier &	target,
		const DtEntityIdentifier &	munition,
		const DtEventID &	eventId,
		const DtVector &	location,
		const DtBurstDescriptor &	burst,
		const DtVector &	linVelocity,
		const double	range,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

Member Function Documentation

static void DtFirePdu::addCallback	(	DtExerciseConn *	conn,
		DtFireInteractionCb	cb,
		void *	usr
	)

static

virtual const DtObjectId& DtFirePdu::attackerId ( ) const

virtual

virtual const DtBurstDescriptor& DtFirePdu::burst ( ) const

virtual

NOT USED IN HLA.

static DtPdu* DtFirePdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

static

virtual const DtEventID& DtFirePdu::eventId ( ) const

virtual

virtual unsigned long DtFirePdu::fireMissionIndex ( ) const

virtual

virtual DtDetonatorFuze DtFirePdu::fuseType ( ) const

virtual

DtPduKind DtFirePdu::internalGetPduKind ( ) const

inlineprotectedvirtual

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

References DtFirePduKind.

virtual const DtVector& DtFirePdu::location ( ) const

virtual

virtual const DtObjectId& DtFirePdu::munitionId ( ) const

virtual

virtual const DtEntityType& DtFirePdu::munitionType ( ) const

virtual

virtual void DtFirePdu::printData ( ) const

virtual

Print the PDU's data (not including header).

Base DtPdu version just prints hex. Use the printDataToString to put the data into a DtString instead of simply sending the output to stdout. printData() calls printDataToStream(DtInfo).

Reimplemented from DtPdu.

virtual void DtFirePdu::printDataToStream ( std::ostream & stream ) const

virtual

Reimplemented from DtPdu.

virtual void DtFirePdu::printDataToString ( DtString & str ) const

virtual

Reimplemented from DtPdu.

virtual int DtFirePdu::quantity ( ) const

virtual

virtual double DtFirePdu::range ( ) const

virtual

virtual int DtFirePdu::rate ( ) const

virtual

static void DtFirePdu::removeCallback	(	DtExerciseConn *	conn,
		DtFireInteractionCb	cb,
		void *	usr
	)

static

virtual void DtFirePdu::setAttackerId ( const DtObjectId & id )

virtual

virtual void DtFirePdu::setBurst ( const DtBurstDescriptor & burst )

virtual

virtual void DtFirePdu::setEventId ( const DtEventID & id )

virtual

virtual void DtFirePdu::setFireMissionIndex ( unsigned long i )

virtual

virtual void DtFirePdu::setFuseType ( DtDetonatorFuze f )

virtual

virtual void DtFirePdu::setLocation ( const DtVector & location )

virtual

virtual void DtFirePdu::setMunitionId ( const DtObjectId & id )

virtual

virtual void DtFirePdu::setMunitionType ( const DtEntityType & t )

virtual

virtual void DtFirePdu::setQuantity ( int q )

virtual

virtual void DtFirePdu::setRange ( double range )

virtual

virtual void DtFirePdu::setRate ( int r )

virtual

virtual void DtFirePdu::setTargetId ( const DtObjectId & id )

virtual

virtual void DtFirePdu::setVelocity ( const DtVector & velocity )

virtual

virtual void DtFirePdu::setWarheadType ( DtWarheadType t )

virtual

virtual const DtObjectId& DtFirePdu::targetId ( ) const

virtual

virtual const DtVector& DtFirePdu::velocity ( ) const

virtual

virtual DtWarheadType DtFirePdu::warheadType ( ) const

virtual

Member Data Documentation

DtObjectId DtFirePdu::att

protected

DtEventID DtFirePdu::event

protected

DtVector DtFirePdu::loc

protected

DtObjectId DtFirePdu::mun

protected

DtEntityType DtFirePdu::myMunType

protected

DtObjectId DtFirePdu::tar

protected

DtBurstDescriptor DtFirePdu::theBurst

protected

DtVector DtFirePdu::vel

protected

The documentation for this class was generated from the following file:

firePdu.h
