Instances of DtMinefieldQueryPdu are used to communicate minefield state information. More...

Inheritance diagram for DtMinefieldQueryPdu:

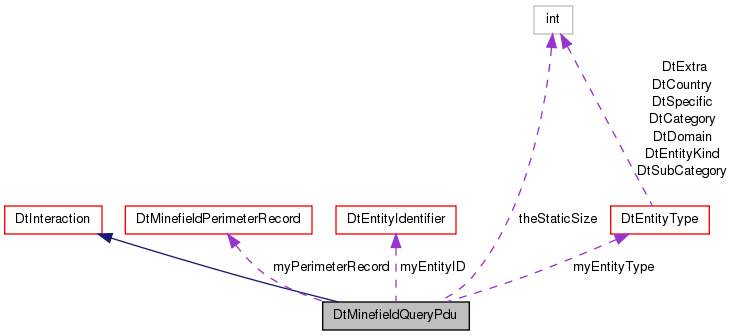

Collaboration diagram for DtMinefieldQueryPdu:

Public Member Functions
	DtMinefieldQueryPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors.
	DtMinefieldQueryPdu (const DtNetMinefieldQueryPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtMinefieldQueryPdu (const DtMinefieldQueryPdu &orig)
virtual	~DtMinefieldQueryPdu ()
	destructor
DtMinefieldQueryPdu &	operator= (const DtMinefieldQueryPdu &orig)
	Assignment operator.
virtual void	setMinefieldID (const DtEntityIdentifier &id)
	Set/Get minefield ID.
virtual const DtEntityIdentifier &	minefieldID () const
virtual void	setRequestingEntityID (const DtEntityIdentifier &id)
	Set/Get requesting entity ID.
virtual const DtEntityIdentifier &	requestingEntityID () const
virtual void	setRequestID (DtU8 id)
	Set/Get request ID.
virtual DtU8	requestID () const
virtual bool	setNumPerimeterPoints (DtU8 num)
	Set/Get the number of perimeter points.
virtual DtU8	numPerimeterPoints () const
virtual bool	setNumSensorTypes (DtU8 num)
	Set/Get the number of sensor types.
virtual DtU8	numSensorTypes () const
virtual void	setDataFilter (DtU32 value)
	Set/Get the data filter (as a 32-bit integer).
virtual DtU32	dataFilter () const
virtual void	setDataFilterField (DtMinefieldDataFilterField field, bool value)
	Set/Get data filter attributes.
virtual bool	getDataFilterField (DtMinefieldDataFilterField field)
virtual void	setRequestedMineType (const DtEntityType &type)
	Set/Get requested mine type.
virtual const DtEntityType &	requestedMineType () const
virtual bool	setPerimeterPoint (int index, const DtMinefieldPerimeterRecord &init)
	Set/Get a perimeter point coordinate record.
virtual bool	getPerimeterPoint (int index, DtMinefieldPerimeterRecord &record) const
virtual bool	getSensorTypeCategory (int index, DtSensorTypeCategory &value)
	Get the sensor type category for a record.
virtual bool	setSensorTypeSubcategory (int index, DtOpticalSensorTypeSubcategory value)
	Set a sensor type subcategory for a record.
virtual bool	setSensorTypeSubcategory (int index, DtFLIR_SensorTypeSubcategory value)
virtual bool	setSensorTypeSubcategory (int index, DtRADAR_SensorTypeSubcategory value)
virtual bool	setSensorTypeSubcategory (int index, DtMagneticSensorTypeSubcategory value)
virtual bool	setSensorTypeSubcategory (int index, DtLaserSensorTypeSubcategory value)
virtual bool	setSensorTypeSubcategory (int index, DtSONARSensorTypeSubcategory value)
virtual bool	setSensorTypeSubcategory (int index, DtPhysicalSensorTypeSubcategory value)
virtual bool	setSensorTypeSubcategory (int index, DtMultispectralSensorTypeSubcategory value)
virtual bool	getSensorTypeSubcategory (int index, DtOpticalSensorTypeSubcategory &value)
	Get a sensor type subcategory for a record.
virtual bool	getSensorTypeSubcategory (int index, DtFLIR_SensorTypeSubcategory &value)
virtual bool	getSensorTypeSubcategory (int index, DtRADAR_SensorTypeSubcategory &value)
virtual bool	getSensorTypeSubcategory (int index, DtMagneticSensorTypeSubcategory &value)
virtual bool	getSensorTypeSubcategory (int index, DtLaserSensorTypeSubcategory &value)
virtual bool	getSensorTypeSubcategory (int index, DtSONARSensorTypeSubcategory &value)
virtual bool	getSensorTypeSubcategory (int index, DtPhysicalSensorTypeSubcategory &value)
virtual bool	getSensorTypeSubcategory (int index, DtMultispectralSensorTypeSubcategory &value)
virtual void	printData () const
	Print the data contained by this PDU.
virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream.
Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor
virtual	~DtInteraction ()
	destructor
	DtInteraction (const DtInteraction &orig)
	copy constructor
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Create a DtMinefieldQueryPdu.
static void	addCallback (DtExerciseConn conn, DtMinefieldQueryPduCb cb, void usr)
	Add (register)/Remove (deregister) function to be called when pdu is received.
static void	removeCallback (DtExerciseConn conn, DtMinefieldQueryPduCb cb, void usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind.
virtual DtNetMinefieldQueryPdu *	netPduStruct () const
	Casts the netPdu element to our network struct.
DtMinefieldQueryPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.
virtual char *	var () const
	Returns a pointer to the first byte of variable length data.
virtual int	perimeterPointRecordOffset (int recordIndex) const
	Returns a buffer offset to a perimeter point record.
virtual int	sensorTypeRecordOffset (int recordIndex) const
	Returns a buffer offset to a sensor type record.
virtual void	setSensorType (int index, DtU16 value)
	Set/Get the sensor type. (As a 16-bit integer.)
virtual DtU16	sensorType (int index) const

Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns.
DtEntityType	myEntityType
DtMinefieldPerimeterRecord	myPerimeterRecord

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero parameter records.

Detailed Description

Instances of DtMinefieldQueryPdu are used to communicate minefield state information.

Constructor & Destructor Documentation

DtMinefieldQueryPdu::DtMinefieldQueryPdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

Constructors.

DtMinefieldQueryPdu::DtMinefieldQueryPdu	(	const DtNetMinefieldQueryPdu *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

DtMinefieldQueryPdu::DtMinefieldQueryPdu ( const DtMinefieldQueryPdu & orig )

virtual DtMinefieldQueryPdu::~DtMinefieldQueryPdu ( )

virtual

destructor

Member Function Documentation

static void DtMinefieldQueryPdu::addCallback	(	DtExerciseConn *	conn,
		DtMinefieldQueryPduCb	cb,
		void *	usr
	)

static

Add (register)/Remove (deregister) function to be called when pdu is received.

static DtPdu* DtMinefieldQueryPdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

static

Create a DtMinefieldQueryPdu.

Caller is responsible for deletion.

virtual DtU32 DtMinefieldQueryPdu::dataFilter ( ) const

virtual

virtual bool DtMinefieldQueryPdu::getDataFilterField ( DtMinefieldDataFilterField field )

virtual

virtual bool DtMinefieldQueryPdu::getPerimeterPoint	(	int	index,
		DtMinefieldPerimeterRecord &	record
	)		const

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeCategory	(	int	index,
		DtSensorTypeCategory &	value
	)

virtual

Get the sensor type category for a record.

Returns false if the index is out of range. The category is set by setSensorTypeRecord.

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtOpticalSensorTypeSubcategory &	value
	)

virtual

Get a sensor type subcategory for a record.

false is returned if the index is out of range or if the category of the record does not match the category indicated by the type of the enumeration in the argument list.

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtFLIR_SensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtRADAR_SensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtMagneticSensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtLaserSensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtSONARSensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtPhysicalSensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtMultispectralSensorTypeSubcategory &	value
	)

virtual

virtual DtPduKind DtMinefieldQueryPdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual const DtEntityIdentifier& DtMinefieldQueryPdu::minefieldID ( ) const

virtual

virtual DtNetMinefieldQueryPdu* DtMinefieldQueryPdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

virtual DtU8 DtMinefieldQueryPdu::numPerimeterPoints ( ) const

virtual

virtual DtU8 DtMinefieldQueryPdu::numSensorTypes ( ) const

virtual

DtMinefieldQueryPdu& DtMinefieldQueryPdu::operator= ( const DtMinefieldQueryPdu & orig )

Assignment operator.

virtual int DtMinefieldQueryPdu::perimeterPointRecordOffset ( int recordIndex ) const

protectedvirtual

Returns a buffer offset to a perimeter point record.

virtual void DtMinefieldQueryPdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtMinefieldQueryPdu::printDataToStream ( std::ostream & stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

static void DtMinefieldQueryPdu::removeCallback	(	DtExerciseConn *	conn,
		DtMinefieldQueryPduCb	cb,
		void *	usr
	)

static

virtual const DtEntityType& DtMinefieldQueryPdu::requestedMineType ( ) const

virtual

virtual DtU8 DtMinefieldQueryPdu::requestID ( ) const

virtual

virtual const DtEntityIdentifier& DtMinefieldQueryPdu::requestingEntityID ( ) const

virtual

DtMinefieldQueryPdu* DtMinefieldQueryPdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non-virtual, since you can't override based on return type.

virtual DtU16 DtMinefieldQueryPdu::sensorType ( int index ) const

protectedvirtual

virtual int DtMinefieldQueryPdu::sensorTypeRecordOffset ( int recordIndex ) const

protectedvirtual

Returns a buffer offset to a sensor type record.

virtual void DtMinefieldQueryPdu::setDataFilter ( DtU32 value )

virtual

Set/Get the data filter (as a 32-bit integer).

virtual void DtMinefieldQueryPdu::setDataFilterField	(	DtMinefieldDataFilterField	field,
		bool	value
	)

virtual

Set/Get data filter attributes.

(true indicates that the data for that field is requested, false indicates that the data for that field is not requested.)

virtual void DtMinefieldQueryPdu::setMinefieldID ( const DtEntityIdentifier & id )

virtual

Set/Get minefield ID.

virtual bool DtMinefieldQueryPdu::setNumPerimeterPoints ( DtU8 num )

virtual

Set/Get the number of perimeter points.

virtual bool DtMinefieldQueryPdu::setNumSensorTypes ( DtU8 num )

virtual

Set/Get the number of sensor types.

virtual bool DtMinefieldQueryPdu::setPerimeterPoint	(	int	index,
		const DtMinefieldPerimeterRecord &	init
	)

virtual

Set/Get a perimeter point coordinate record.

Returns false if the index is out of range.

virtual void DtMinefieldQueryPdu::setRequestedMineType ( const DtEntityType & type )

virtual

Set/Get requested mine type.

virtual void DtMinefieldQueryPdu::setRequestID ( DtU8 id )

virtual

Set/Get request ID.

virtual void DtMinefieldQueryPdu::setRequestingEntityID ( const DtEntityIdentifier & id )

virtual

Set/Get requesting entity ID.

virtual void DtMinefieldQueryPdu::setSensorType	(	int	index,
		DtU16	value
	)

protectedvirtual

Set/Get the sensor type. (As a 16-bit integer.)

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtOpticalSensorTypeSubcategory	value
	)

virtual

Set a sensor type subcategory for a record.

The correct category is automatically set by this function according to type of the enumeration in the argument list. false is returned if the index is out of range.

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtFLIR_SensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtRADAR_SensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtMagneticSensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtLaserSensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtSONARSensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtPhysicalSensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtMultispectralSensorTypeSubcategory	value
	)

virtual

virtual char* DtMinefieldQueryPdu::var ( ) const

protectedvirtual

Returns a pointer to the first byte of variable length data.

Member Data Documentation

DtEntityIdentifier DtMinefieldQueryPdu::myEntityID

protected

Temporary objects for reference returns.

DtEntityType DtMinefieldQueryPdu::myEntityType

protected

DtMinefieldPerimeterRecord DtMinefieldQueryPdu::myPerimeterRecord

protected

const int DtMinefieldQueryPdu::theStaticSize

staticprotected

Size of PDU with zero parameter records.

The documentation for this class was generated from the following file:

mineQueryPdu.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
