DtReflectedGriddedData Class Reference

Instances of DtReflectedGriddedData represent Gridded Data objects simulated by remote applications. More...

Inheritance diagram for DtReflectedGriddedData:

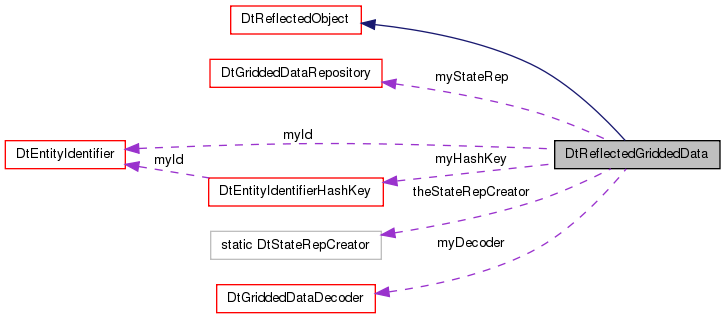

Collaboration diagram for DtReflectedGriddedData:

Public Types
typedef DtGriddedDataRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtGriddedDataRepositories.

Public Member Functions
	DtReflectedGriddedData (DtExerciseConn *conn, const DtEntityIdentifier &id, const DtEntityType &type)
	constructor
virtual	~DtReflectedGriddedData ()
	destructor
virtual DtGriddedDataRepository *	griddedDataStateRep () const
	Returns ptr to griddedDataStateRepository – through which you can inspect current state info.
virtual DtGriddedDataRepository *	gdsr () const
	Synonym for griddedDataStateRep.
virtual DtStateRepository *	stateRep () const
	Implementation for abstract base class. Calls gdsr().
virtual DtGriddedDataDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our GDSR.
virtual const DtEntityIdentifier &	entityId () const
	Returns the entity identifier.
virtual const DtObjectId &	id () const
	Get the gridded data's id. (For DIS, DtObjectId is DtEntityIdentifier).
virtual const DtObjectId &	localId () const
	Get the gridded data's local id. For DIS - same as id().
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the gridded data's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.
virtual void	processStateMessage (const DtStateMsg &msg)
	Process an environment process state PDU.
virtual DtReflectedGriddedData *	next () const
	Get the next and previous elements in the reflected environment process list.
virtual DtReflectedGriddedData *	prev () const
virtual DtReflectedGriddedData *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list.
virtual DtReflectedGriddedData *	wrapPrev () const
virtual void	addPostUpdateCallback (DtGriddedDataCallbackFunction cb, void *userData)
	Environment Process callback registration/deregistration.
virtual void	removePostUpdateCallback (DtGriddedDataCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual void	processGriddedData (const DtGriddedDataPdu &pdu)
	Process an environmentalProcess PDU.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor.
virtual	~DtListedObj ()
	Destructor.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)

Protected Member Functions
	DtReflectedGriddedData (const DtReflectedGriddedData &orig)
	copy constructor – not implemented
DtReflectedGriddedData &	operator= (const DtReflectedGriddedData &orig)
	assignment operator – not implemented
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtEntityIdentifier	myId
DtGriddedDataRepository *	myStateRep
DtGriddedDataDecoder *	myDecoder
DtEntityIdentifierHashKey	myHashKey
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtReflectedGriddedData represent Gridded Data objects simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtGriddedDataRepository*(* DtReflectedGriddedData::DtStateRepCreator)()

Function prototype for functions that create DtGriddedDataRepositories.

Constructor & Destructor Documentation

DtReflectedGriddedData::DtReflectedGriddedData	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id,
		const DtEntityType &	type
	)

constructor

virtual DtReflectedGriddedData::~DtReflectedGriddedData ( )

virtual

destructor

DtReflectedGriddedData::DtReflectedGriddedData ( const DtReflectedGriddedData &  orig )

protected

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedGriddedData::addPostUpdateCallback ( DtGriddedDataCallbackFunction  cb, void *  userData  )

virtual

Environment Process callback registration/deregistration.

virtual DtGriddedDataDecoder* DtReflectedGriddedData::decoder ( )

virtual

Returns a pointer to the Decoder being used to decode state messages into our GDSR.

virtual const DtEntityIdentifier& DtReflectedGriddedData::entityId ( ) const

virtual

Returns the entity identifier.

virtual DtGriddedDataRepository* DtReflectedGriddedData::gdsr ( ) const

virtual

Synonym for griddedDataStateRep.

virtual const DtGlobalObjectDesignator& DtReflectedGriddedData::globalId ( ) const

virtual

Get the gridded data's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual DtGriddedDataRepository* DtReflectedGriddedData::griddedDataStateRep ( ) const

virtual

Returns ptr to griddedDataStateRepository – through which you can inspect current state info.

virtual const DtBaseHashKey& DtReflectedGriddedData::hashKey ( ) const

virtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedGriddedData::id ( ) const

virtual

Get the gridded data's id. (For DIS, DtObjectId is DtEntityIdentifier).

virtual DtString DtReflectedGriddedData::idString ( ) const

virtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedGriddedData::localId ( ) const

virtual

Get the gridded data's local id. For DIS - same as id().

virtual DtReflectedGriddedData* DtReflectedGriddedData::next ( ) const

virtual

Get the next and previous elements in the reflected environment process list.

Reimplemented from DtListedObj.

DtReflectedGriddedData& DtReflectedGriddedData::operator= ( const DtReflectedGriddedData &  orig )

protected

assignment operator – not implemented

virtual DtReflectedGriddedData* DtReflectedGriddedData::prev ( ) const

virtual

Reimplemented from DtListedObj.

virtual void DtReflectedGriddedData::processGriddedData ( const DtGriddedDataPdu &  pdu )

virtual

Process an environmentalProcess PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedGriddedData::processStateMessage ( const DtStateMsg &  msg )

virtual

Process an environment process state PDU.

Calls processGriddedData().

Reimplemented from DtReflectedObject.

virtual void DtReflectedGriddedData::removePostUpdateCallback ( DtGriddedDataCallbackFunction  cb, void *  userData  )

virtual

static void DtReflectedGriddedData::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedGriddedData::stateRep ( ) const

virtual

Implementation for abstract base class. Calls gdsr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedGriddedData::stateRepCreator ( void  )

static

virtual DtReflectedGriddedData* DtReflectedGriddedData::wrapNext ( ) const

virtual

Get the next and previous elements, wrap at the ends of the list.

Reimplemented from DtListedObj.

virtual DtReflectedGriddedData* DtReflectedGriddedData::wrapPrev ( ) const

virtual

Reimplemented from DtListedObj.

Member Data Documentation

DtGriddedDataDecoder* DtReflectedGriddedData::myDecoder

protected

DtEntityIdentifierHashKey DtReflectedGriddedData::myHashKey

protected

DtEntityIdentifier DtReflectedGriddedData::myId

protected

DtGriddedDataRepository* DtReflectedGriddedData::myStateRep

protected

DtStateRepCreator DtReflectedGriddedData::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• dRefGridData.h
