DtEnvironmentalCombicStateRecord Class Reference

DtEnvironmentalCombicStateRecord implements the Environmental state record type "COMBIC State." See Enumerated Bit Values document, section 12.3.5.1. More...

Inheritance diagram for DtEnvironmentalCombicStateRecord:

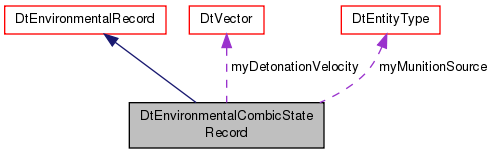

Collaboration diagram for DtEnvironmentalCombicStateRecord:

Public Member Functions
	DtEnvironmentalCombicStateRecord ()
	Constructor.
	DtEnvironmentalCombicStateRecord (const DtEnvironmentalCombicStateRecord &orig)
	Copy Constructor.
const DtEnvironmentalCombicStateRecord &	operator= (const DtEnvironmentalCombicStateRecord &orig)
	Assignment Operator.
virtual	~DtEnvironmentalCombicStateRecord ()
	Destructor.
virtual DtEnvironmentalRecord *	clone () const
	Clone.
virtual void	setTimeSinceCreation (DtU32 timeSinceCreation)
	Set/ get time since creation.
virtual DtU32	timeSinceCreation () const
virtual void	setMunitionSource (const DtEntityType &munitionSource)
	Set/ get munition source type.
virtual const DtEntityType &	munitionSource () const
virtual void	setNumberOfSources (DtInt32 numberOfSources)
	Set/ get number of sources.
virtual DtInt32	numberOfSources () const
virtual void	setGeometryIndex (DtU16 geometryIndex)
	Set/ get index of geometry record associated with this state record.
virtual DtU16	geometryIndex () const
virtual void	setSourceType (DtU32 sourceType)
	Set/ get source type.
virtual DtU32	sourceType () const
virtual void	setBarrageRate (DtFloat32 barrageRate)
	Set/ get barrage rate.
virtual DtFloat32	barrageRate () const
virtual void	setBarrageDuration (DtFloat32 barrageDuration)
	Set/get barrage duration.
virtual DtFloat32	barrageDuration () const
virtual void	setBarrageCrosswindLength (DtFloat32 barrageCrosswindLength)
	Set/get barrage crosswind length.
virtual DtFloat32	barrageCrosswindLength () const
virtual void	setBarrageDownwindLength (DtFloat32 barrageDownwindLength)
	Set/get barrage downwind length.
virtual DtFloat32	barrageDownwindLength () const
virtual void	setDetonationVelocity (const DtVector &detonationVelocity)
	Set/ get detonation velocity.
virtual const DtVector &	detonationVelocity () const
virtual bool	createNetworkRepresentation ()
	This doesn't need to be called explicitly.
const DtNetCombicStateRecord *	combicNetRep () const
	returns the network representation of the environmental record
DtNetCombicStateRecord *	combicNetRep ()
virtual void	setFromNet (const DtNetEnvironmentalRecord &buffer)
	used by the PDU class to fill in the network representation
virtual int	netRepSize () const
	returns the size of the net representation, in bytes.
Public Member Functions inherited from DtEnvironmentalRecord
	DtEnvironmentalRecord ()
const DtEnvironmentalRecord &	operator= (const DtEnvironmentalRecord &orig)
virtual	~DtEnvironmentalRecord ()
virtual void	setType (DtU32 type)
virtual DtU32	type () const
virtual void	setLength (DtU16 length)
virtual DtU16	length () const
virtual void	setIndex (DtU8 index)
virtual DtU8	index () const
const DtNetEnvironmentalRecord *	netRep () const
	returns the network representation of the environmental record
DtNetEnvironmentalRecord *	netRep ()

Protected Member Functions
DtEnvironmentalCombicStateRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function.
Protected Member Functions inherited from DtEnvironmentalRecord
	DtEnvironmentalRecord (const DtEnvironmentalRecord &orig)
virtual bool	checkAndCreate ()
	Checks to see if we need a representation, and creates it if we do Returns false, if the create fails, true otherwise.

Protected Attributes
DtEntityType	myMunitionSource
DtVector	myDetonationVelocity
Protected Attributes inherited from DtEnvironmentalRecord
DtNetEnvironmentalRecord *	myNetRep

Detailed Description

DtEnvironmentalCombicStateRecord implements the Environmental state record type "COMBIC State." See Enumerated Bit Values document, section 12.3.5.1.

Constructor & Destructor Documentation

DtEnvironmentalCombicStateRecord::DtEnvironmentalCombicStateRecord

(

)

Constructor.

DtEnvironmentalCombicStateRecord::DtEnvironmentalCombicStateRecord

(

const DtEnvironmentalCombicStateRecord &

orig

)

Copy Constructor.

virtual DtEnvironmentalCombicStateRecord::~DtEnvironmentalCombicStateRecord ( )

virtual

Destructor.

Member Function Documentation

virtual DtFloat32 DtEnvironmentalCombicStateRecord::barrageCrosswindLength ( ) const

virtual

virtual DtFloat32 DtEnvironmentalCombicStateRecord::barrageDownwindLength ( ) const

virtual

virtual DtFloat32 DtEnvironmentalCombicStateRecord::barrageDuration ( ) const

virtual

virtual DtFloat32 DtEnvironmentalCombicStateRecord::barrageRate ( ) const

virtual

virtual DtEnvironmentalRecord* DtEnvironmentalCombicStateRecord::clone ( ) const

virtual

Clone.

Reimplemented from DtEnvironmentalRecord.

const DtNetCombicStateRecord* DtEnvironmentalCombicStateRecord::combicNetRep

(

)

const

returns the network representation of the environmental record

DtNetCombicStateRecord* DtEnvironmentalCombicStateRecord::combicNetRep

(

)

virtual bool DtEnvironmentalCombicStateRecord::createNetworkRepresentation ( )

virtual

This doesn't need to be called explicitly.

If any routine that needs the repository finds that it hasn't been created yet, it calls this method.

Reimplemented from DtEnvironmentalRecord.

virtual const DtVector& DtEnvironmentalCombicStateRecord::detonationVelocity ( ) const

virtual

virtual DtU16 DtEnvironmentalCombicStateRecord::geometryIndex ( ) const

virtual

virtual const DtEntityType& DtEnvironmentalCombicStateRecord::munitionSource ( ) const

virtual

virtual int DtEnvironmentalCombicStateRecord::netRepSize ( ) const

virtual

returns the size of the net representation, in bytes.

Reimplemented from DtEnvironmentalRecord.

virtual DtInt32 DtEnvironmentalCombicStateRecord::numberOfSources ( ) const

virtual

const DtEnvironmentalCombicStateRecord& DtEnvironmentalCombicStateRecord::operator=

(

const DtEnvironmentalCombicStateRecord &

orig

)

Assignment Operator.

DtEnvironmentalCombicStateRecord* DtEnvironmentalCombicStateRecord::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalCombicStateRecord::setBarrageCrosswindLength ( DtFloat32  barrageCrosswindLength )

virtual

Set/get barrage crosswind length.

virtual void DtEnvironmentalCombicStateRecord::setBarrageDownwindLength ( DtFloat32  barrageDownwindLength )

virtual

Set/get barrage downwind length.

virtual void DtEnvironmentalCombicStateRecord::setBarrageDuration ( DtFloat32  barrageDuration )

virtual

Set/get barrage duration.

virtual void DtEnvironmentalCombicStateRecord::setBarrageRate ( DtFloat32  barrageRate )

virtual

Set/ get barrage rate.

virtual void DtEnvironmentalCombicStateRecord::setDetonationVelocity ( const DtVector &  detonationVelocity )

virtual

Set/ get detonation velocity.

virtual void DtEnvironmentalCombicStateRecord::setFromNet ( const DtNetEnvironmentalRecord &  buffer )

virtual

used by the PDU class to fill in the network representation

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalCombicStateRecord::setGeometryIndex ( DtU16  geometryIndex )

virtual

Set/ get index of geometry record associated with this state record.

virtual void DtEnvironmentalCombicStateRecord::setMunitionSource ( const DtEntityType &  munitionSource )

virtual

Set/ get munition source type.

virtual void DtEnvironmentalCombicStateRecord::setNumberOfSources ( DtInt32  numberOfSources )

virtual

Set/ get number of sources.

virtual void DtEnvironmentalCombicStateRecord::setSourceType ( DtU32  sourceType )

virtual

Set/ get source type.

virtual void DtEnvironmentalCombicStateRecord::setTimeSinceCreation ( DtU32  timeSinceCreation )

virtual

Set/ get time since creation.

virtual DtU32 DtEnvironmentalCombicStateRecord::sourceType ( ) const

virtual

virtual DtU32 DtEnvironmentalCombicStateRecord::timeSinceCreation ( ) const

virtual

Member Data Documentation

DtVector DtEnvironmentalCombicStateRecord::myDetonationVelocity

protected

DtEntityType DtEnvironmentalCombicStateRecord::myMunitionSource

protected

---

The documentation for this class was generated from the following file:

• envCombic.h
