DtEnvironmentalProcessPdu Class Reference

Instances of DtEnvironmentalProcessPdu are used to send information about environmental effects and processes. More...

Inheritance diagram for DtEnvironmentalProcessPdu:

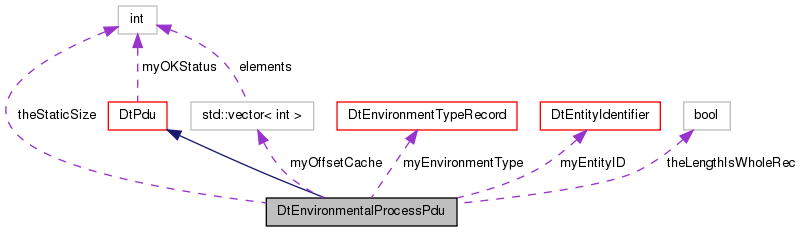

Collaboration diagram for DtEnvironmentalProcessPdu:

Public Member Functions
	DtEnvironmentalProcessPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors.
	DtEnvironmentalProcessPdu (const DtNetEnvironmentalProcessPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtEnvironmentalProcessPdu (const DtEnvironmentalProcessPdu &orig)
virtual	~DtEnvironmentalProcessPdu ()
	destructor
DtEnvironmentalProcessPdu &	operator= (const DtEnvironmentalProcessPdu &orig)
	Assignment operator.
virtual void	setEnvironmentalProcessID (const DtEntityIdentifier &entity)
	Set/Get originating environmental process ID.
virtual const DtEntityIdentifier &	environmentalProcessID () const
virtual void	setEnvironmentType (const DtEnvironmentTypeRecord &type)
	Set/Get environment type.
virtual const DtEnvironmentTypeRecord &	environmentType () const
virtual void	setModelType (DtEnvironmentalModelType value)
	Set/Get the model type.
virtual DtEnvironmentalModelType	modelType () const
virtual void	setEnvironmentalStatus (DtU8 value)
	Set/Get the environmental status (as an 8-bit value).
virtual DtU8	environmentalStatus () const
virtual void	setEnvironmentalStatusBit (DtEnvironmentalStatusBit bit, bool value)
	Set/Get an environmental status bit.
virtual bool	environmentalStatusBit (DtEnvironmentalStatusBit bit) const
virtual bool	setNumberOfEnvironmentalRecords (DtU16 newNumberOfRecords)
	Set/Get number of environment records.
virtual DtU16	numberOfEnvironmentalRecords () const
virtual void	setSequenceNumber (DtU16 value)
	Set/Get sequence number.
virtual DtU16	sequenceNumber () const
virtual bool	setRecordBitSize (int recordIndex, int newRecordBitSize)
	Set the size of an environmental record (in bits).
virtual DtNetEnvironmentalRecord *	recordPointer (int recordIndex) const
	Get a pointer to an environmental record.
virtual void	printData () const
	Print the data contained by this PDU.
virtual void	printDataToStream (std::ostream &stream) const
virtual int	numberOfGeometryRecords () const
	New accessors and mutators based on assumptions about what types of environment records we'll have.
virtual DtEnvironmentalRecordType	geometryRecordType (int index) const
	This returns the type of the geometry record with the index specified.
virtual DtEnvironmentalRecordType	stateRecordType (int index) const
	This returns the type of the state record associated with the geometry record with the index specified.
virtual bool	getGeometryRecord (int index, DtEnvironmentalGeometryRecord &geometryRecord) const
	This returns a reference to the nth geometry record.
virtual bool	getStateRecord (int index, DtEnvironmentalRecord &stateRecord) const
	This returns a reference to the state record associated with the nth geometry record.
virtual void	setEnvironmentalRecord (int index, const DtEnvironmentalRecord &envRecord)
	This sets the index'th record to the values in the envRecord supplied.
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Create a DtEnvironmentalProcessPdu.
static void	addCallback (DtExerciseConn *conn, DtEnvironmentalProcessPduCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when pdu is received.
static void	removeCallback (DtExerciseConn *conn, DtEnvironmentalProcessPduCb cb, void *usr)
static void	setLengthIsWholeEnvRec (bool lengthMode)
	Methods to set the static variable theLengthIsWholeRec.
static bool	lengthIsWholeEnvRec ()

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind.
DtNetEnvironmentalProcessPdu *	netPduStruct () const
	Casts the netPdu element to our network struct.
DtEnvironmentalProcessPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.
virtual char *	var () const
	Returns a pointer to the first byte of variable length data.
virtual int	recordOffset (int recordIndex) const
	Returns an offset in bytes from the beginning of the variable length data region to the beginning of a particular record.
virtual void	invalidateCache ()
void	verifyRecDataSize ()
	Checks the size of the stated length of all environment records, and compares it with the actual length of the PDU, to check for the incorrect lengths of records.
Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor.
virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus.
virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed.
virtual void	initPdu (const void *initial, DtBufferPtr buffer)
	Called by from-net-rep ctor. Initializes DtBaseMsg.
virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily.
virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size.
virtual void	clearData ()
	zeros out all bytes after the PDU header.
virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu.
Protected Member Functions inherited from DtBaseMsg
	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called.
void	initMsg (int size, DtBufferPtr bufferPtr)
void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)
virtual void	changeSize (int size)
	Changes the size of the message.
virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep.
virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address.
virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep.
virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address.
virtual void	clearAll ()
	Zeros out all bytes in the network representation.
virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes.

Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns.
DtEnvironmentTypeRecord	myEnvironmentType
std::vector< int >	myOffsetCache
Protected Attributes inherited from DtPdu
int	myOKStatus
Protected Attributes inherited from DtBaseMsg
void *	myNetMsg
void *	myInternalBuff
int	myIntBuffSize
int	myMsgSize

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero data bytes.
static bool	theLengthIsWholeRec

Detailed Description

Instances of DtEnvironmentalProcessPdu are used to send information about environmental effects and processes.

Constructor & Destructor Documentation

DtEnvironmentalProcessPdu::DtEnvironmentalProcessPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtEnvironmentalProcessPdu::DtEnvironmentalProcessPdu	(	const DtNetEnvironmentalProcessPdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

DtEnvironmentalProcessPdu::DtEnvironmentalProcessPdu

(

const DtEnvironmentalProcessPdu &

orig

)

virtual DtEnvironmentalProcessPdu::~DtEnvironmentalProcessPdu ( )

virtual

destructor

Member Function Documentation

static void DtEnvironmentalProcessPdu::addCallback ( DtExerciseConn *  conn, DtEnvironmentalProcessPduCb  cb, void *  usr  )

static

Add (register)/Remove (deregister) function to be called when pdu is received.

static DtPdu* DtEnvironmentalProcessPdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER  )

static

Create a DtEnvironmentalProcessPdu.

Caller is responsible for deletion.

virtual const DtEntityIdentifier& DtEnvironmentalProcessPdu::environmentalProcessID ( ) const

virtual

virtual DtU8 DtEnvironmentalProcessPdu::environmentalStatus ( ) const

virtual

virtual bool DtEnvironmentalProcessPdu::environmentalStatusBit ( DtEnvironmentalStatusBit  bit ) const

virtual

virtual const DtEnvironmentTypeRecord& DtEnvironmentalProcessPdu::environmentType ( ) const

virtual

virtual DtEnvironmentalRecordType DtEnvironmentalProcessPdu::geometryRecordType ( int  index ) const

virtual

This returns the type of the geometry record with the index specified.

virtual bool DtEnvironmentalProcessPdu::getGeometryRecord ( int  index, DtEnvironmentalGeometryRecord &  geometryRecord  ) const

virtual

This returns a reference to the nth geometry record.

The user must supply a DtEnvironmentalRecord of the correct type (use geometryRecordType() first(!)) because it is that class that knows how to convert the network representation in the PDU into the DtEnvironmentalRecord (host) representation,

virtual bool DtEnvironmentalProcessPdu::getStateRecord ( int  index, DtEnvironmentalRecord &  stateRecord  ) const

virtual

This returns a reference to the state record associated with the nth geometry record.

The user must supply a DtEnvironmentalRecord of the correct type (use stateRecordType() first(!)) because it is that class that knows how to convert the network representation in the PDU into the DtEnvironmentalRecord (host) representation,

virtual DtPduKind DtEnvironmentalProcessPdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual void DtEnvironmentalProcessPdu::invalidateCache ( )

protectedvirtual

static bool DtEnvironmentalProcessPdu::lengthIsWholeEnvRec ( )

static

virtual DtEnvironmentalModelType DtEnvironmentalProcessPdu::modelType ( ) const

virtual

DtNetEnvironmentalProcessPdu* DtEnvironmentalProcessPdu::netPduStruct ( ) const

protected

Casts the netPdu element to our network struct.

Non-virtual since you can't override based on return type.

virtual DtU16 DtEnvironmentalProcessPdu::numberOfEnvironmentalRecords ( ) const

virtual

virtual int DtEnvironmentalProcessPdu::numberOfGeometryRecords ( ) const

virtual

New accessors and mutators based on assumptions about what types of environment records we'll have.

The enumeration document establishes the convention that geometry types use the high order 2 bytes of the type field, while state types use the lower two. Assuming that convention is followed, this returns the number of geometry records in the PDU

DtEnvironmentalProcessPdu& DtEnvironmentalProcessPdu::operator=

(

const DtEnvironmentalProcessPdu &

orig

)

Assignment operator.

virtual void DtEnvironmentalProcessPdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtEnvironmentalProcessPdu::printDataToStream ( std::ostream &  stream ) const

virtual

Reimplemented from DtPdu.

virtual int DtEnvironmentalProcessPdu::recordOffset ( int  recordIndex ) const

protectedvirtual

Returns an offset in bytes from the beginning of the variable length data region to the beginning of a particular record.

virtual DtNetEnvironmentalRecord* DtEnvironmentalProcessPdu::recordPointer ( int  recordIndex ) const

virtual

Get a pointer to an environmental record.

Returns false if the record index is out of range.

static void DtEnvironmentalProcessPdu::removeCallback ( DtExerciseConn *  conn, DtEnvironmentalProcessPduCb  cb, void *  usr  )

static

DtEnvironmentalProcessPdu* DtEnvironmentalProcessPdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non virtual since you can't override based on return type.

virtual DtU16 DtEnvironmentalProcessPdu::sequenceNumber ( ) const

virtual

virtual void DtEnvironmentalProcessPdu::setEnvironmentalProcessID ( const DtEntityIdentifier &  entity )

virtual

Set/Get originating environmental process ID.

virtual void DtEnvironmentalProcessPdu::setEnvironmentalRecord ( int  index, const DtEnvironmentalRecord &  envRecord  )

virtual

This sets the index'th record to the values in the envRecord supplied.

virtual void DtEnvironmentalProcessPdu::setEnvironmentalStatus ( DtU8  value )

virtual

Set/Get the environmental status (as an 8-bit value).

virtual void DtEnvironmentalProcessPdu::setEnvironmentalStatusBit ( DtEnvironmentalStatusBit  bit, bool  value  )

virtual

Set/Get an environmental status bit.

virtual void DtEnvironmentalProcessPdu::setEnvironmentType ( const DtEnvironmentTypeRecord &  type )

virtual

Set/Get environment type.

static void DtEnvironmentalProcessPdu::setLengthIsWholeEnvRec ( bool  lengthMode )

static

Methods to set the static variable theLengthIsWholeRec.

If theLengthIsWholeRec = false, then DtNetEnviornmentalRecord.myLength will contain the length (in bits) of the entire DtNetEnvironmentalRecord. If theLengthIsWholeRec = true, the DtNetEnvironmentalRecord.myLength will contain the length (in bits) of the VariantData part of DtNetEnvironmentalRecord.

theLengthIsWholeRec = false by default

virtual void DtEnvironmentalProcessPdu::setModelType ( DtEnvironmentalModelType  value )

virtual

Set/Get the model type.

virtual bool DtEnvironmentalProcessPdu::setNumberOfEnvironmentalRecords ( DtU16  newNumberOfRecords )

virtual

Set/Get number of environment records.

virtual bool DtEnvironmentalProcessPdu::setRecordBitSize ( int  recordIndex, int  newRecordBitSize  )

virtual

Set the size of an environmental record (in bits).

Returns false if the size is invalid.

virtual void DtEnvironmentalProcessPdu::setSequenceNumber ( DtU16  value )

virtual

Set/Get sequence number.

virtual DtEnvironmentalRecordType DtEnvironmentalProcessPdu::stateRecordType ( int  index ) const

virtual

This returns the type of the state record associated with the geometry record with the index specified.

0 is returned if there is no state record associated with the index'th geometry record.

virtual char* DtEnvironmentalProcessPdu::var ( ) const

protectedvirtual

Returns a pointer to the first byte of variable length data.

void DtEnvironmentalProcessPdu::verifyRecDataSize ( )

protected

Checks the size of the stated length of all environment records, and compares it with the actual length of the PDU, to check for the incorrect lengths of records.

It will set the static of the PDU to "Not OK" if a mismatch is detected. This method is not virtual as it is called from the constructor.

Member Data Documentation

DtEntityIdentifier DtEnvironmentalProcessPdu::myEntityID

protected

Temporary objects for reference returns.

DtEnvironmentTypeRecord DtEnvironmentalProcessPdu::myEnvironmentType

protected

std::vector<int> DtEnvironmentalProcessPdu::myOffsetCache

mutableprotected

bool DtEnvironmentalProcessPdu::theLengthIsWholeRec

staticprotected

const int DtEnvironmentalProcessPdu::theStaticSize

staticprotected

Size of PDU with zero data bytes.

---

The documentation for this class was generated from the following file:

• envProcPdu.h
