DtHlaObjectManager Class Reference

class DtHlaObjectManager: More...

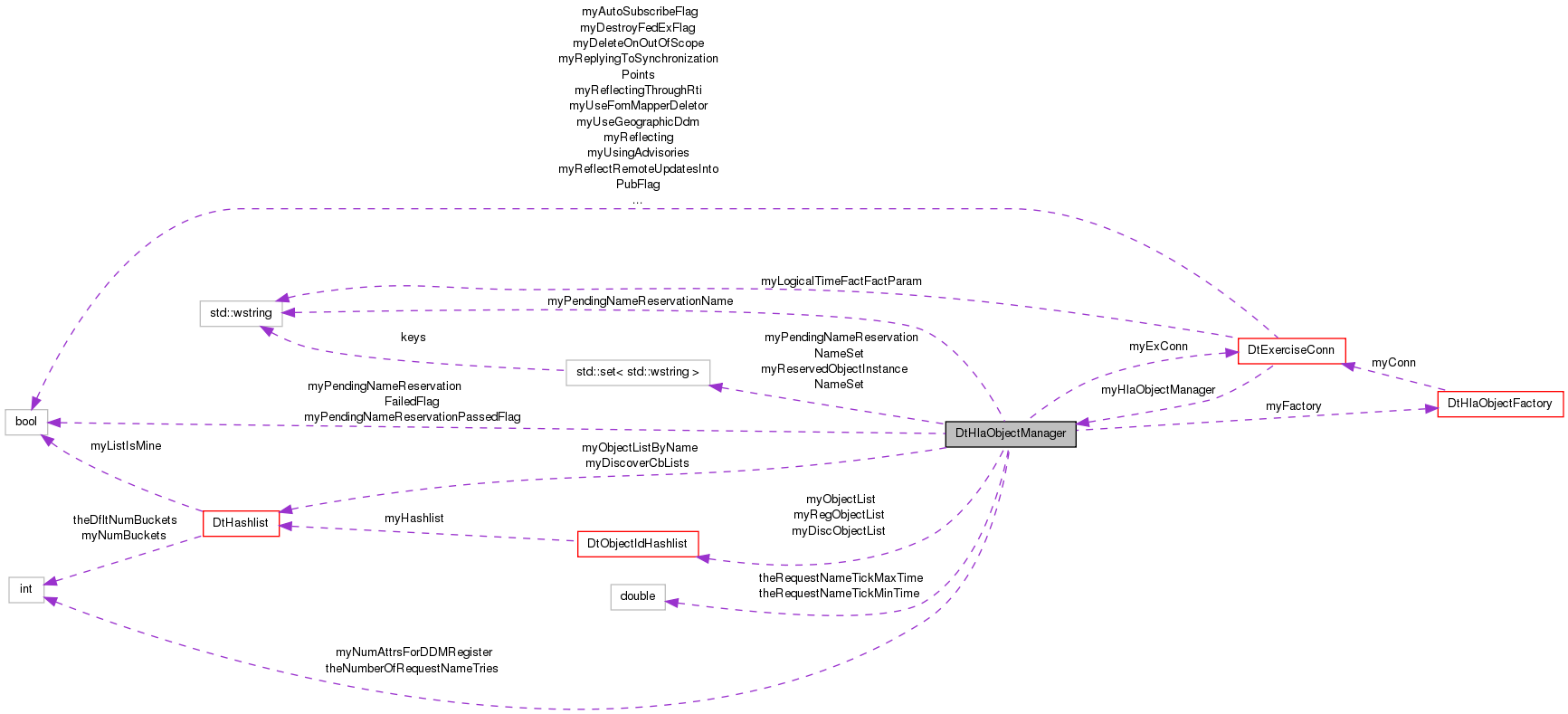

Collaboration diagram for DtHlaObjectManager:

Public Member Functions
	DtHlaObjectManager (DtHlaObjectFactory *factory, DtExerciseConn *conn)
	Constructor.
virtual	~DtHlaObjectManager ()
	Destructor.
virtual const DtList &	allHlaObjects () const
	Get the list of all HLA objects known to the federate.
virtual const DtList &	registeredObjects () const
	Get the list of all HLA objects registered by the federate.
virtual const DtList &	discoveredObjects () const
	Get the list of all HLA objects discovered by the federate.
virtual DtHlaObject *	hlaObject (RTI::ObjectInstanceHandle id) const
	Get the HLA object based on its identifier.
virtual DtHlaObject *	hlaObject (const char *name) const
	Get the HLA object based on its name.
virtual void	addDiscoverObjectCallback (RTI::ObjectClassHandle handle, DtDiscoverObjectCb cb, void *usr)
	Add/remove a callback to be called when an object which meets the federate's subscription criteria is discovered.
virtual void	removeDiscoverObjectCallback (RTI::ObjectClassHandle handle, DtDiscoverObjectCb cb, void *usr)
virtual void	addRemoveObjectCallback (RTI::ObjectInstanceHandle id, DtRemoveObjectCb cb, void *usr)
	Add/remove a callback to be called when an object has been removed from the federation or no longer meets the interest criteria of the federate.
virtual void	removeRemoveObjectCallback (RTI::ObjectInstanceHandle id, DtRemoveObjectCb cb, void *usr)
virtual const DtHlaObject *	processDiscoverObject (RTI::ObjectInstanceHandle id, RTI::ObjectClassHandle handle, const std::wstring &name)
	Process the discovery of an object.
virtual const DtHlaObject *	processDiscoverObject (DtHlaObject *hlaObj)
	Same as above, but takes an existing DtHlaObject.
virtual void	processRemoveObject (RTI::ObjectInstanceHandle id)
	Process the removal of an object.
virtual void	processRemoveObject (DtHlaObject *obj)
	Same as above, but takes an existing DtHlaObject.
virtual void	processReflectAttributeValues (const DtStateMsg &msg)
	Process an update message.
virtual void	processProvideUpdate (RTI::ObjectInstanceHandle id, const RTI::AttributeHandleSet &theAttributes)
	Process RTI's provideUpdate service.
virtual void	processLocalUpdateRequest (RTI::ObjectClassHandle hand, const RTI::AttributeHandleSet &set)
	When we are reflecting local data, this function is called to let the object manager know that we have locally requested updates for a class/set of attributes.
virtual void	localSubscriptionChanged (RTI::ObjectClassHandle handle)
	Called when the local subscription information changes.
virtual void	publicationChanged (RTI::ObjectClassHandle handle)
	Called when the local publication information changes.
virtual void	processAttributeAcquisition (RTI::ObjectInstanceHandle id, const RTI::AttributeHandleSet &attrs)
	Process RTI's attributeOwnershipAcquisitionNotification service.
virtual void	processAttributeDivestiture (RTI::ObjectInstanceHandle id, const RTI::AttributeHandleSet &attrs)
	Process RTI's attributeOwnershipDivestitureNotification service.
virtual void	processRequestAssumption (RTI::ObjectInstanceHandle id, const RTI::AttributeHandleSet &attrs, const RTI::VariableLengthData &tag)
	Process RTI's requestAttributeOwnershipAssumption service.
virtual void	processRequestRelease (RTI::ObjectInstanceHandle id, const RTI::AttributeHandleSet &attrs, const RTI::VariableLengthData &tag)
	Process RTI's requestAttributeOwnershipRelease service.
virtual void	processConfirmAcquisitionCancellation (RTI::ObjectInstanceHandle id, const RTI::AttributeHandleSet &attrs)
	Process RTI's conformAttributeOwnershipAcquisitionCancellation service.
virtual DtHlaObject *	registerHlaObject (RTI::ObjectClassHandle classHand, const char *name, const DtDDMRegionSet *regionSet=0)
	Use this function instead of the RTI's version to create a new HLA object.
virtual void	registerHlaObjectWithRegion (RTI::ObjectClassHandle classHand, const char *name, const DtDDMRegionSet &regionSet, RTI::ObjectInstanceHandle &id)
virtual void	deleteHlaObject (RTI::ObjectInstanceHandle objHand)
	Use this function instead of the RTI's version to delete an HLA object.
virtual void	reserveName (const std::wstring &theName, bool pushRti)
	By calling setRegionsForRegister, you are telling VR-Link that until you call setRegionsForRegister again (or call setNoRegionsForRegister), VR-Link should use the DDM version of registerObjectInstance whenever it registers an object for you.
virtual bool	isNameReserved (const std::wstring &theName) const
	returns true if theName has been reserved.

Static Public Member Functions
static double	requestNameTickMinTime ()
	Sets/Gets the time in seconds to call evoke callbacks for each try after a name reservation request.
static void	setRequestNameTickMinTime (double time)
static double	requestNameTickMaxTime ()
static void	setRequestNameTickMaxTime (double time)
static int	numberOfRequestNameTries ()
	Set/Get the number of times to tick the RTI after a name reservation request.
static void	setNumberOfRequestNameTries (int tries)

Protected Member Functions
	DtHlaObjectManager (const DtHlaObjectManager &orig)
	Note: The copy constructor and assignment operator are protected because there should only be one object manager per exercise connection.
DtHlaObjectManager &	operator= (const DtHlaObjectManager &orig)
	assignment operator – Not Implemented
virtual void	objectProcessRemoveObject (DtHlaObject *hlaObj)
	Call DtHlaObject::processRemoveObject().
virtual void	objectProcessReflect (DtHlaObject *hlaObj, const DtStateMsg &msg)
	Call DtHlaObject::callReflect().
virtual DtHlaObject *	addKnownObject (RTI::ObjectInstanceHandle id, RTI::ObjectClassHandle hand, const std::wstring &name, bool reflecting)
	Call whenever a new object has been registered or discovered.
virtual void	removeKnownObject (DtHlaObject *hlaObj)
	Call whenever an object is to be deleted, either by delete, or remove.
virtual void	removeAllObjects ()
	Called by destructor to remove and delete all DtHlaObjects.
virtual DtList *	discoverCbList (RTI::ObjectClassHandle handle)
	Returns the list of discover callbacks registered for a particular object class.
virtual void	reservedNameSuceeded (const std::wstring &theName)
	Adds a new name to the reserved object Name list.
virtual void	reservedNameFailed (const std::wstring &theName)
	Called when a name request Failed.

Static Protected Member Functions
static void	nameReservationSuceededCb (const std::wstring &theName, void *theUserData)
	Called by the FederateAmbassador anytime a name reservation succeeds or fails.
static void	nameReservationFailedCb (const std::wstring &theName, void *theUserData)

Protected Attributes
DtHashlist	myDiscoverCbLists
	DtHashlist that maps object class handles (DtIntHashKeys) to pointers to DtLists of callback functions.
DtHlaObjectFactory *	myFactory
DtObjectIdHashlist	myObjectList
	List of all known DtHlaObjects (by id).
DtHashlist	myObjectListByName
	List of all known DtHlaObjects (by String).
DtObjectIdHashlist	myRegObjectList
	List of all DtHlaObjects that we've registered locally.
DtObjectIdHashlist	myDiscObjectList
	List of all DtHlaObjects that we've discovered, possibly including local objects that we are also reflecting.
DtExerciseConn *	myExConn
std::set< std::wstring >	myReservedObjectInstanceNameSet
	A Set of all known successfully reserved object names.
bool	myPendingNameReservationPassedFlag
	booleans set to true if the pending reserved name passes, or fails respectively.
bool	myPendingNameReservationFailedFlag
std::wstring	myPendingNameReservationName
std::set< std::wstring >	myPendingNameReservationNameSet
int	myNumAttrsForDDMRegister

Static Protected Attributes
static double	theRequestNameTickMinTime
static double	theRequestNameTickMaxTime
static int	theNumberOfRequestNameTries

Detailed Description

class DtHlaObjectManager:

Instances of DtHlaObjectManager are used to manage the set of HLA objects known to the federate.

Constructor & Destructor Documentation

DtHlaObjectManager::DtHlaObjectManager	(	DtHlaObjectFactory *	factory,
		DtExerciseConn *	conn
	)

Constructor.

virtual DtHlaObjectManager::~DtHlaObjectManager ( )

virtual

Destructor.

DtHlaObjectManager::DtHlaObjectManager ( const DtHlaObjectManager &  orig )

protected

Note: The copy constructor and assignment operator are protected because there should only be one object manager per exercise connection.

These should not be called. copy constructor – Not Implemented

Member Function Documentation

virtual void DtHlaObjectManager::addDiscoverObjectCallback ( RTI::ObjectClassHandle  handle, DtDiscoverObjectCb  cb, void *  usr  )

virtual

Add/remove a callback to be called when an object which meets the federate's subscription criteria is discovered.

virtual DtHlaObject* DtHlaObjectManager::addKnownObject ( RTI::ObjectInstanceHandle  id, RTI::ObjectClassHandle  hand, const std::wstring &  name, bool  reflecting  )

protectedvirtual

Call whenever a new object has been registered or discovered.

It creates a DtHlaObject, adds it to the set of managed objects, and returns it.

virtual void DtHlaObjectManager::addRemoveObjectCallback ( RTI::ObjectInstanceHandle  id, DtRemoveObjectCb  cb, void *  usr  )

virtual

Add/remove a callback to be called when an object has been removed from the federation or no longer meets the interest criteria of the federate.

const DtList & DtHlaObjectManager::allHlaObjects ( ) const

inlinevirtual

Get the list of all HLA objects known to the federate.

References DtObjectIdHashlist::list(), and myObjectList.

virtual void DtHlaObjectManager::deleteHlaObject ( RTI::ObjectInstanceHandle  objHand )

virtual

Use this function instead of the RTI's version to delete an HLA object.

This function calls RTI's deleteObjectInstance. You should have ownership of the priviledgeToDelete for this object before calling.

virtual DtList* DtHlaObjectManager::discoverCbList ( RTI::ObjectClassHandle  handle )

protectedvirtual

Returns the list of discover callbacks registered for a particular object class.

const DtList & DtHlaObjectManager::discoveredObjects ( ) const

inlinevirtual

Get the list of all HLA objects discovered by the federate.

References DtObjectIdHashlist::list(), and myDiscObjectList.

virtual DtHlaObject* DtHlaObjectManager::hlaObject ( RTI::ObjectInstanceHandle  id ) const

virtual

Get the HLA object based on its identifier.

virtual DtHlaObject* DtHlaObjectManager::hlaObject ( const char *  name ) const

virtual

Get the HLA object based on its name.

virtual bool DtHlaObjectManager::isNameReserved ( const std::wstring &  theName ) const

virtual

returns true if theName has been reserved.

There is no promise that the name is not already used.

virtual void DtHlaObjectManager::localSubscriptionChanged ( RTI::ObjectClassHandle  handle )

virtual

Called when the local subscription information changes.

As a result, we call localSubscriptionChanged for all DtHlaObjects that may be affected.

static void DtHlaObjectManager::nameReservationFailedCb ( const std::wstring &  theName, void *  theUserData  )

staticprotected

static void DtHlaObjectManager::nameReservationSuceededCb ( const std::wstring &  theName, void *  theUserData  )

staticprotected

Called by the FederateAmbassador anytime a name reservation succeeds or fails.

static int DtHlaObjectManager::numberOfRequestNameTries ( )

static

Set/Get the number of times to tick the RTI after a name reservation request.

virtual void DtHlaObjectManager::objectProcessReflect ( DtHlaObject *  hlaObj, const DtStateMsg &  msg  )

protectedvirtual

Call DtHlaObject::callReflect().

Provides friendship towards DtHlaObject to derived classes.

virtual void DtHlaObjectManager::objectProcessRemoveObject ( DtHlaObject *  hlaObj )

protectedvirtual

Call DtHlaObject::processRemoveObject().

Provides friendship towards DtHlaObject to derived classes.

DtHlaObjectManager& DtHlaObjectManager::operator= ( const DtHlaObjectManager &  orig )

protected

assignment operator – Not Implemented

virtual void DtHlaObjectManager::processAttributeAcquisition ( RTI::ObjectInstanceHandle  id, const RTI::AttributeHandleSet &  attrs  )

virtual

Process RTI's attributeOwnershipAcquisitionNotification service.

virtual void DtHlaObjectManager::processAttributeDivestiture ( RTI::ObjectInstanceHandle  id, const RTI::AttributeHandleSet &  attrs  )

virtual

Process RTI's attributeOwnershipDivestitureNotification service.

virtual void DtHlaObjectManager::processConfirmAcquisitionCancellation ( RTI::ObjectInstanceHandle  id, const RTI::AttributeHandleSet &  attrs  )

virtual

Process RTI's conformAttributeOwnershipAcquisitionCancellation service.

virtual const DtHlaObject* DtHlaObjectManager::processDiscoverObject ( RTI::ObjectInstanceHandle  id, RTI::ObjectClassHandle  handle, const std::wstring &  name  )

virtual

Process the discovery of an object.

Creates the object, sets it up for reflecting, and calls discover callbacks. Called on real discovers. Returns the added instance.

virtual const DtHlaObject* DtHlaObjectManager::processDiscoverObject ( DtHlaObject *  hlaObj )

virtual

Same as above, but takes an existing DtHlaObject.

Called on real discovers and when discovering objects that we register locally, if reflecting is on. returns the instance.

virtual void DtHlaObjectManager::processLocalUpdateRequest ( RTI::ObjectClassHandle  hand, const RTI::AttributeHandleSet &  set  )

virtual

When we are reflecting local data, this function is called to let the object manager know that we have locally requested updates for a class/set of attributes.

As a result, we will call processProvideUpdate for all relevant objects.

virtual void DtHlaObjectManager::processProvideUpdate ( RTI::ObjectInstanceHandle  id, const RTI::AttributeHandleSet &  theAttributes  )

virtual

Process RTI's provideUpdate service.

virtual void DtHlaObjectManager::processReflectAttributeValues ( const DtStateMsg &  msg )

virtual

Process an update message.

virtual void DtHlaObjectManager::processRemoveObject ( RTI::ObjectInstanceHandle  id )

virtual

Process the removal of an object.

Cleans up the object from reflecting. Called on real removals.

virtual void DtHlaObjectManager::processRemoveObject ( DtHlaObject *  obj )

virtual

Same as above, but takes an existing DtHlaObject.

Called on real removals, and on removals from the discovered list of objects that we are deleting locally, if reflecting is on.

virtual void DtHlaObjectManager::processRequestAssumption ( RTI::ObjectInstanceHandle  id, const RTI::AttributeHandleSet &  attrs, const RTI::VariableLengthData &  tag  )

virtual

Process RTI's requestAttributeOwnershipAssumption service.

virtual void DtHlaObjectManager::processRequestRelease ( RTI::ObjectInstanceHandle  id, const RTI::AttributeHandleSet &  attrs, const RTI::VariableLengthData &  tag  )

virtual

Process RTI's requestAttributeOwnershipRelease service.

virtual void DtHlaObjectManager::publicationChanged ( RTI::ObjectClassHandle  handle )

virtual

Called when the local publication information changes.

As a result, we call publicationChanged for all DtHlaObjects that may be affected.

const DtList & DtHlaObjectManager::registeredObjects ( ) const

inlinevirtual

Get the list of all HLA objects registered by the federate.

References DtObjectIdHashlist::list(), and myRegObjectList.

virtual DtHlaObject* DtHlaObjectManager::registerHlaObject ( RTI::ObjectClassHandle  classHand, const char *  name, const DtDDMRegionSet *  regionSet = 0  )

virtual

Use this function instead of the RTI's version to create a new HLA object.

This function calls RTI's registerObjectInstance.

virtual void DtHlaObjectManager::registerHlaObjectWithRegion ( RTI::ObjectClassHandle  classHand, const char *  name, const DtDDMRegionSet &  regionSet, RTI::ObjectInstanceHandle &  id  )

virtual

virtual void DtHlaObjectManager::removeAllObjects ( )

protectedvirtual

Called by destructor to remove and delete all DtHlaObjects.

virtual void DtHlaObjectManager::removeDiscoverObjectCallback ( RTI::ObjectClassHandle  handle, DtDiscoverObjectCb  cb, void *  usr  )

virtual

virtual void DtHlaObjectManager::removeKnownObject ( DtHlaObject *  hlaObj )

protectedvirtual

Call whenever an object is to be deleted, either by delete, or remove.

It removes hlaObj from the set of managed objects, and deletes it.

virtual void DtHlaObjectManager::removeRemoveObjectCallback ( RTI::ObjectInstanceHandle  id, DtRemoveObjectCb  cb, void *  usr  )

virtual

static double DtHlaObjectManager::requestNameTickMaxTime ( )

static

static double DtHlaObjectManager::requestNameTickMinTime ( )

static

Sets/Gets the time in seconds to call evoke callbacks for each try after a name reservation request.

virtual void DtHlaObjectManager::reservedNameFailed ( const std::wstring &  theName )

protectedvirtual

Called when a name request Failed.

virtual void DtHlaObjectManager::reservedNameSuceeded ( const std::wstring &  theName )

protectedvirtual

Adds a new name to the reserved object Name list.

This method is called by the RTI to indicate a name request succeeded.

virtual void DtHlaObjectManager::reserveName ( const std::wstring &  theName, bool  pushRti  )

virtual

By calling setRegionsForRegister, you are telling VR-Link that until you call setRegionsForRegister again (or call setNoRegionsForRegister), VR-Link should use the DDM version of registerObjectInstance whenever it registers an object for you.

The specified arguments will be passed to the RTI. (VR-Link typically registers an object from within a DtObjectPublisher constructor). In order to restore VR-Link back to the default state, when registers are done with the non-DDM version of registerObjectInstance, call setNoRegionsForRegister. attrs is an array of numAttrs attribute handles, regions is an array of numAttrs pointers to RTI::regions. The lifetime of the arrays must extend through the time that the register occurs. Deletion of the arrays is the caller's responsibility. request a name be reserved by the RTI. If pushRti is true, evokeCallbacks will be called to drain any waiting RTI Events. The goal is to try to make the name reservation right away.

static void DtHlaObjectManager::setNumberOfRequestNameTries ( int  tries )

static

static void DtHlaObjectManager::setRequestNameTickMaxTime ( double  time )

static

static void DtHlaObjectManager::setRequestNameTickMinTime ( double  time )

static

Member Data Documentation

DtObjectIdHashlist DtHlaObjectManager::myDiscObjectList

protected

List of all DtHlaObjects that we've discovered, possibly including local objects that we are also reflecting.

Referenced by discoveredObjects().

DtHashlist DtHlaObjectManager::myDiscoverCbLists

protected

DtHashlist that maps object class handles (DtIntHashKeys) to pointers to DtLists of callback functions.

DtExerciseConn* DtHlaObjectManager::myExConn

protected

DtHlaObjectFactory* DtHlaObjectManager::myFactory

protected

int DtHlaObjectManager::myNumAttrsForDDMRegister

protected

DtObjectIdHashlist DtHlaObjectManager::myObjectList

protected

List of all known DtHlaObjects (by id).

Referenced by allHlaObjects().

DtHashlist DtHlaObjectManager::myObjectListByName

protected

List of all known DtHlaObjects (by String).

bool DtHlaObjectManager::myPendingNameReservationFailedFlag

protected

std::wstring DtHlaObjectManager::myPendingNameReservationName

protected

std::set<std::wstring> DtHlaObjectManager::myPendingNameReservationNameSet

protected

bool DtHlaObjectManager::myPendingNameReservationPassedFlag

protected

booleans set to true if the pending reserved name passes, or fails respectively.

DtObjectIdHashlist DtHlaObjectManager::myRegObjectList

protected

List of all DtHlaObjects that we've registered locally.

Referenced by registeredObjects().

std::set<std::wstring> DtHlaObjectManager::myReservedObjectInstanceNameSet

protected

A Set of all known successfully reserved object names.

int DtHlaObjectManager::theNumberOfRequestNameTries

staticprotected

double DtHlaObjectManager::theRequestNameTickMaxTime

staticprotected

double DtHlaObjectManager::theRequestNameTickMinTime

staticprotected

---

The documentation for this class was generated from the following file:

• hlaObjMgr.h
