DtHlaObject Class Reference

Instances of DtHlaObject are used to represent HLA objects which are communicated across the network. More...

Inheritance diagram for DtHlaObject:

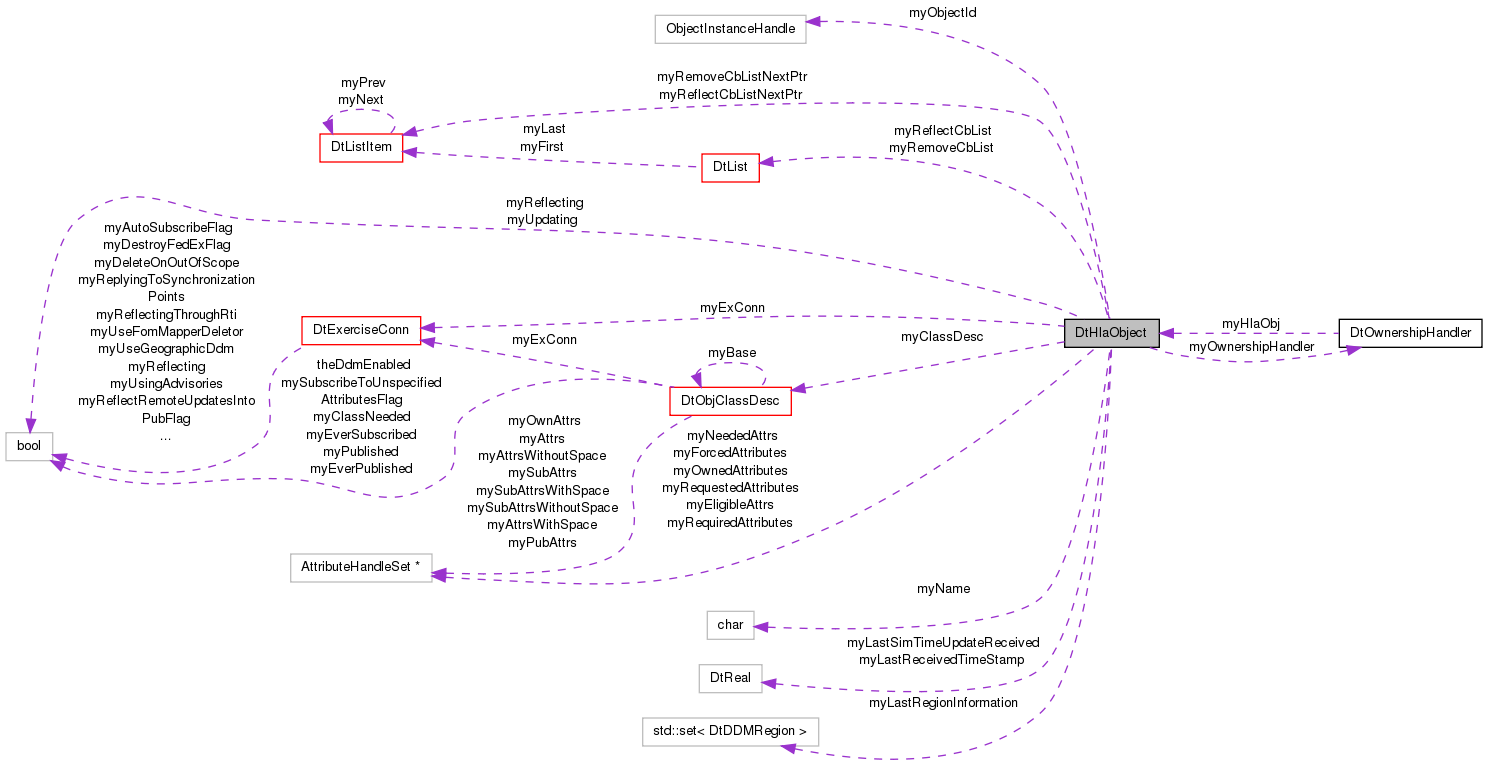

Collaboration diagram for DtHlaObject:

Public Member Functions
	DtHlaObject (DtExerciseConn *conn, RTI::ObjectInstanceHandle id, const char *name, DtObjClassDesc &classDesc, bool reflecting=false)
	Constructor - used to construct a DtHlaObject to represent an object that we discover through an RTI callback.
	DtHlaObject (DtExerciseConn *conn, const char *name, DtObjClassDesc &classDesc, bool reflecting=false)
	Constructor - used to construct a DtHlaObject to represent an object that will be registered locally.
virtual	~DtHlaObject ()
	Destructor.
virtual const RTI::ObjectInstanceHandle &	objectId () const
	Get the object's handle.
virtual const RTI::AttributeHandleSet &	attrHandleSet ()
	Get the set of attributes associated with this object's FOM class.
virtual const RTI::AttributeHandleSet &	requestedAttributes ()
	Returns the union of all sets of attributes requested since the last call to clearRequestedAttributes.
virtual RTI::ObjectClassHandle	objectClassHandle () const
	Get the object's class handle.
virtual const char *	name () const
	Get the object's name.
int	numAttributes () const
	Get the number of attributes associated with this object's FOM class.
virtual DtExerciseConn *	exerciseConn () const
	Get the exercise connection for this object.
virtual DtObjClassDesc &	classDesc () const
	Get the class descriptor for the object's class.
virtual void	setupUpdating ()
	Local Object specific functions.
virtual void	update ()
	Generate and send any necessary attribute updates through the RTI.
virtual void	generateUpdate (const RTI::AttributeHandleSet &eligibileAttrs, const RTI::AttributeHandleSet &requiredAttrs, DtStateMsg *msg)
	Called by update to actually generate an outgoing message.
virtual void	cleanupFromUpdating ()
	Do the deinitialization required to stop updating attributes of this object.
virtual void	processProvideUpdate (const RTI::AttributeHandleSet &set)
	Set yourself up so that on the next tick, you send an update for the appropriate attributes.
virtual void	clearRequestedAttributes ()
	Clears the set of requested attributes.
virtual const RTI::AttributeHandleSet &	ownedAttributes ()
	Returns the set of attributes of this object that are owned by the local federate.
virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time update is called, even if they would not otherwise need to be sent.
virtual void	forceUpdate (const RTI::AttributeHandleSet &set)
virtual void	clearForcedAttributes ()
	Clear (empty) the set of forced attributes.
virtual const RTI::AttributeHandleSet &	attributesNeededByFederation ()
	Returns the set of attributes that are currently needed by the federation, i.e.
virtual const RTI::AttributeHandleSet &	eligibleAttributes ()
	Returns the set of attributes that eligible for sending.
virtual const RTI::AttributeHandleSet &	requiredAttributes ()
	Returns the set of attributes that should be included in the next update regardless of whether their update conditions have been met.
bool	classNeededByFederation ()
	Returns true if the class is needed by the federation, i.e.
void	setupClassForUpdating ()
	If the class has never been published, publish it with all attributes using DtObjClassDesc::publish.
virtual void	setupReflecting ()
	Remote Object specific functions.
virtual void	callReflect (const DtStateMsg &msg)
	Calls reflect, and any postReflect callbacks.
virtual void	callReflectLocal (const DtStateMsg &msg)
	Calls reflectLocal, and any postReflect callbacks.
virtual void	reflectLocal (const DtStateMsg &msg)=0
	Called by callReflectLocal to handle the reflection of updates that we are sending locally.
virtual void	cleanupFromReflecting ()
	Do the deinitialization required to stop handling reflection of object.
virtual void	requestUpdate (RTI::AttributeHandleSet *attrs=0)
	Request an update for the object for the set of attributes indicated by attrs (or all subscribed attributes if attrs is NULL).
virtual void	addRemoveObjectCb (DtRemoveObjectCb cb, void *usr)
	Add (register) function to be called when object is about to be removed.
virtual void	removeRemoveObjectCb (DtRemoveObjectCb cb, void *usr)
	Remove (deregister) function to be called when object is about to be removed.
virtual void	addPostReflectCb (DtObjectReflectAttributeValuesCb cb, void *usr)
	Add (register) function to be called after each reflectAttrValues.
virtual void	removePostReflectCb (DtObjectReflectAttributeValuesCb cb, void *usr)
	Remove (deregister) function to be called after each reflectAttrValues.
virtual void	processRemoveObject ()
	Process notification of removal of the object from the network.
virtual DtOwnershipHandler *	setOwnershipHandler (DtOwnershipHandler *handler)
	Ownership-Management-related functions.
virtual void	unconditionalDivest (const RTI::AttributeHandleSet &attrs)
	Unconditionally divest ownership of attrs.
virtual void	negotiatedDivest (const RTI::AttributeHandleSet &attrs)
	Try to divest ownership of attrs.
virtual void	cancelNegotiatedDivest (const RTI::AttributeHandleSet &attrs)
	Cancel a negotiated divestiture of attributes.
virtual void	acquireAttributes (const RTI::AttributeHandleSet &attrs, bool ifAvailable=false)
	Attempt to acquire ownership of attributes.
virtual void	cancelAcquireAttributes (const RTI::AttributeHandleSet &attrs)
	Cancel the request to acquire ownership of attrs.
virtual DtTime	lastSimTimeUpdateReceived () const
	Returns the value of VR-Link simulation time at the time the last attribute update was received for this object.
virtual DtTime	lastReceivedTimeStamp () const
virtual void	printMsg (const DtStateMsg &msg, bool fullReport=false) const
	Prints contents of a state msg.
virtual void	localSubscriptionChanged ()
	Called when local object class subscriptions change.
virtual void	publicationChanged ()
	Called when there is a change in the publication status of this object's object class.
virtual const std::set < DtDDMRegion > &	lastRegionInformation () const
	Obtain the region handle set of the last update.
virtual void	processRequestAssumption (const RTI::AttributeHandleSet &attrs, const RTI::VariableLengthData &tag)
	Process RTI's requestAttributeOwnershipAssumption service.
virtual void	processRequestRelease (const RTI::AttributeHandleSet &attrs, const RTI::VariableLengthData &tag)
	Process RTI's requestAttributeOwnershipRelease service.
virtual void	processAttributeAcquisition (const RTI::AttributeHandleSet &attrs)
	Handle an invocation of the attributeOwnershipAcquisitionNotification service.
virtual void	processAttributeDivestiture (const RTI::AttributeHandleSet &attrs)
	Handle an invocation of the attributeOwnershipDivestitureNotification service.
virtual void	processConfirmAcquisitionCancellation (const RTI::AttributeHandleSet &attrs)
	Process RTI's conformAttributeOwnershipAcquisitionCancellation service.

Static Public Member Functions
static void	ownerAcquisitionIfAvailableCb (void *usr)
	The following four static fns are for use within ownership msg callbacks.
static void	ownerAcquisitionCb (void *usr)
static void	negotiatedDivestitureCb (void *usr)
static void	unconditionalDivestitureCb (void *usr)

Protected Member Functions
	DtHlaObject ()
	Default constructor: not implemented; do not call.
	DtHlaObject (const DtHlaObject &src)
	Copy constructor: not implemented; do not call.
DtHlaObject &	operator= (const DtHlaObject &src)
	Assignment operator: not implemented; do not call.
virtual void	setLastSimTimeUpdateReceived (DtTime tm)
	Set the time an update was last received or sent.
virtual void	setLastReceivedTimeStamp (DtTime tm)
virtual void	reflect (const DtStateMsg &msg)=0
	Handle reflection of object (receipt of state message) from the network.
void	wipeRemoveList ()
	Remove all callbacks from the remove callback list.
virtual void	clearRemoveList ()
	Virtual version of above.
void	wipeReflectList ()
	Remove all callbacks from the reflect callback list.
virtual void	applyPostReflectCallbacks (const DtStateMsg &msg)
	Apply callbacks after a state msg is reflected.
virtual void	loseOwnership (const RTI::AttributeHandleSet &attrs)
	Gets called whenever we lose ownership of a set of attributes.
virtual void	gainOwnership (const RTI::AttributeHandleSet &attrs)
	Gets called whenever we gain ownership of a set of attributes.
virtual void	processUpdatesOff (const RTI::AttributeHandleSet &set)
	Callback for handling turnUpdatesOffForObjectInstance RTI call.
void	processUpdatesOn (const RTI::AttributeHandleSet &set)
	Callback for handling turnUpdatesOnForObjectInstance RTI call.
void	dumpRtiException (const char *functionName, const RTI::Exception *exc) const
	Returns true if the object has been registered with, or discovered via the RTI.
virtual void	computeEligible ()
	Recomputes the set of attrs that are eligible for sending.
virtual void	justRegistered ()
	Called by DtHlaObjectManager right after a DtHlaObject is created, if it was created to represent a newly registered object.
virtual void	setRegionInformation (const std::set< DtDDMRegion > &regions)
	Set the Region set that the last update was sent with.

Static Protected Member Functions
static void	reflectAttributeValuesCb (const DtStateMsg &stateMsg, void *hlaObj)
	Callback for handling state messages for the HLA object.
static void	updatesOnCb (RTI::ObjectInstanceHandle handle, const RTI::AttributeHandleSet &attributeSet, void *usr)
	Callback for handling turnUpdatesOnForObjectInstance RTI call.
static void	updatesOffCb (RTI::ObjectInstanceHandle handle, const RTI::AttributeHandleSet &attributeSet, void *usr)
	Callback for handling turnUpdatesOffForObjectInstance RTI call.

Protected Attributes
char *	myName
DtExerciseConn *	myExConn
bool	myReflecting
bool	myUpdating
DtList	myRemoveCbList
DtList	myReflectCbList
DtListItem *	myRemoveCbListNextPtr
DtListItem *	myReflectCbListNextPtr
DtTime	myLastSimTimeUpdateReceived
DtTime	myLastReceivedTimeStamp
DtObjClassDesc &	myClassDesc
std::set< DtDDMRegion >	myLastRegionInformation
	Contains the region information of the last update that contained it.
RTI::ObjectInstanceHandle	myObjectId
RTI::AttributeHandleSet *	myEligibleAttrs
	Attributes that are eligible to be sent from within update() - passed to generateUpdate.
RTI::AttributeHandleSet *	myNeededAttrs
	Set of owned attributes for which we have received a turnUpdatesOn more recently than a turnUpdatesOff.
RTI::AttributeHandleSet *	myOwnedAttributes
	Set of attributes owned by the local federate.
RTI::AttributeHandleSet *	myRequestedAttributes
	Requested by other federates.
RTI::AttributeHandleSet *	myForcedAttributes
	Requested by a call to setForcedUpdate.
RTI::AttributeHandleSet *	myRequiredAttributes
	Union of forced and requested - not computed until needed.
DtOwnershipHandler *	myOwnershipHandler

Friends
class	DtHlaObjectManager

Detailed Description

Instances of DtHlaObject are used to represent HLA objects which are communicated across the network.

There should be one DtHlaObject instance for each "known" object in the federation execution. To enforce this restriction, only the DtHlaObjectManager can create DtHlaObjects. DtHlaObject keeps track of which attributes are locally owned. It also defines the interface for the virtual functions reflect, and generateUpdate which are using when receiving or sending updates through the RTI respectively. DtHlaObject is used by DtObjectPublisher and DtReflectedObject, so many applications will not need to deal directly with DtHlaObjects.

Constructor & Destructor Documentation

DtHlaObject::DtHlaObject	(	DtExerciseConn *	conn,
		RTI::ObjectInstanceHandle	id,
		const char *	name,
		DtObjClassDesc &	classDesc,
		bool	reflecting = false
	)

Constructor - used to construct a DtHlaObject to represent an object that we discover through an RTI callback.

The RTI provides us with the handle, name and class. Object is not ready to use until setupReflecting is called.

DtHlaObject::DtHlaObject	(	DtExerciseConn *	conn,
		const char *	name,
		DtObjClassDesc &	classDesc,
		bool	reflecting = false
	)

Constructor - used to construct a DtHlaObject to represent an object that will be registered locally.

We provide a name and class, and the RTI chooses a handle after the register call. Object is not ready to use until setupUpdating is called.

virtual DtHlaObject::~DtHlaObject ( )

virtual

Destructor.

Make sure to call cleanupFromUpdating and/or cleanupFromReflecting before deleting the object.

DtHlaObject::DtHlaObject ( )

protected

Default constructor: not implemented; do not call.

DtHlaObject::DtHlaObject ( const DtHlaObject &  src )

protected

Copy constructor: not implemented; do not call.

Member Function Documentation

virtual void DtHlaObject::acquireAttributes ( const RTI::AttributeHandleSet &  attrs, bool  ifAvailable = false  )

virtual

Attempt to acquire ownership of attributes.

If ifAvailable is true, use the RTI's "IfAvailable" version of attributeOwnershipAcquisition. You have not actually gained ownership of the attributes until you receive an attributeOwnershipAcquisitionNotification callback from the RTI. Caller needs to handle RTI-generated exceptions.

virtual void DtHlaObject::addPostReflectCb ( DtObjectReflectAttributeValuesCb  cb, void *  usr  )

virtual

Add (register) function to be called after each reflectAttrValues.

virtual void DtHlaObject::addRemoveObjectCb ( DtRemoveObjectCb  cb, void *  usr  )

virtual

Add (register) function to be called when object is about to be removed.

virtual void DtHlaObject::applyPostReflectCallbacks ( const DtStateMsg &  msg )

protectedvirtual

Apply callbacks after a state msg is reflected.

const RTI::AttributeHandleSet & DtHlaObject::attrHandleSet ( )

inlinevirtual

Get the set of attributes associated with this object's FOM class.

References DtObjClassDesc::attrHandleSet(), and myClassDesc.

virtual const RTI::AttributeHandleSet& DtHlaObject::attributesNeededByFederation ( )

virtual

Returns the set of attributes that are currently needed by the federation, i.e.

those that have been specified in startUpdates calls more recently than in stopUpdates calls. This set may contain attributes that are not locally owned.

virtual void DtHlaObject::callReflect ( const DtStateMsg &  msg )

virtual

Calls reflect, and any postReflect callbacks.

Override reflect rather than this function to change the way an HLA object reflects a stateMsg. This function is called when we receive an update from the RTI.

virtual void DtHlaObject::callReflectLocal ( const DtStateMsg &  msg )

virtual

Calls reflectLocal, and any postReflect callbacks.

Override reflectLocal rather than this function to change the way an HLA object reflects a stateMsg that we generate locally. This function is called from within update() when the exercise connection's reflecting flag is set.

virtual void DtHlaObject::cancelAcquireAttributes ( const RTI::AttributeHandleSet &  attrs )

virtual

Cancel the request to acquire ownership of attrs.

If the cancel goes through, you will receive a confirmAttributeOwnershipAcquisitionCancellation RTI callback. Caller must handle RTI-generated exceptions.

virtual void DtHlaObject::cancelNegotiatedDivest ( const RTI::AttributeHandleSet &  attrs )

virtual

Cancel a negotiated divestiture of attributes.

Caller needs to handle RTI-generated exceptions.

DtObjClassDesc & DtHlaObject::classDesc ( ) const

inlinevirtual

Get the class descriptor for the object's class.

References myClassDesc.

bool DtHlaObject::classNeededByFederation

(

)

Returns true if the class is needed by the federation, i.e.

we've received a startRegistration or startUpdates service call from the RTI for the object's class.

virtual void DtHlaObject::cleanupFromReflecting ( )

virtual

Do the deinitialization required to stop handling reflection of object.

Call before deleting a DtHlaObject.

virtual void DtHlaObject::cleanupFromUpdating ( )

virtual

Do the deinitialization required to stop updating attributes of this object.

virtual void DtHlaObject::clearForcedAttributes ( )

virtual

Clear (empty) the set of forced attributes.

virtual void DtHlaObject::clearRemoveList ( )

protectedvirtual

Virtual version of above.

virtual void DtHlaObject::clearRequestedAttributes ( )

virtual

Clears the set of requested attributes.

Should be called after request has been serviced.

virtual void DtHlaObject::computeEligible ( )

protectedvirtual

Recomputes the set of attrs that are eligible for sending.

Called any time we lose or gain ownership of attributes, when we get update on/off advisories, and when local subscription changes.

void DtHlaObject::dumpRtiException ( const char *  functionName, const RTI::Exception *  exc  ) const

protected

Returns true if the object has been registered with, or discovered via the RTI.

Should always return true once the DtHlaObject has been set up for receiving or updating. Print message to explain the RTI Exception. Both functionName and the exception can be Null.

virtual const RTI::AttributeHandleSet& DtHlaObject::eligibleAttributes ( )

virtual

Returns the set of attributes that eligible for sending.

That is, the intersection of owned attributes and attributes needed by federation.

DtExerciseConn * DtHlaObject::exerciseConn ( ) const

inlinevirtual

Get the exercise connection for this object.

References myExConn.

virtual void DtHlaObject::forceUpdate ( )

virtual

Specify a set of attributes that should be included in the ahvps the next time update is called, even if they would not otherwise need to be sent.

The call with no arguments, indicates the set of all of the object's published attributes. Multiple calls are cumulative, until the set is cleared with clearForcedAttributes, which should happen within update.

virtual void DtHlaObject::forceUpdate ( const RTI::AttributeHandleSet &  set )

virtual

virtual void DtHlaObject::gainOwnership ( const RTI::AttributeHandleSet &  attrs )

protectedvirtual

Gets called whenever we gain ownership of a set of attributes.

virtual void DtHlaObject::generateUpdate ( const RTI::AttributeHandleSet &  eligibileAttrs, const RTI::AttributeHandleSet &  requiredAttrs, DtStateMsg *  msg  )

virtual

Called by update to actually generate an outgoing message.

Derived class implementations should keep track of which attributes are updated when, should check update conditions, and add values to stateMsg for only those attributes that currently need to be sent. eligibleAttrs is the set of owned attributes to which remote federates have subscribed. requiredAttrs is the set of attributes that have been requested or forced by application code since the attribute was last sent. stateMsg is the message to fill out. Default implementation is null, but the function is not pure virtual since some subclasses might want to override update rather than overriding generateUpdate.

Reimplemented in DtHlaObjectWithStateRep.

virtual void DtHlaObject::justRegistered ( )

protectedvirtual

Called by DtHlaObjectManager right after a DtHlaObject is created, if it was created to represent a newly registered object.

Implementation gains ownership of all published attributes.

DtTime DtHlaObject::lastReceivedTimeStamp ( ) const

inlinevirtual

References myLastReceivedTimeStamp.

virtual const std::set<DtDDMRegion>& DtHlaObject::lastRegionInformation ( ) const

virtual

Obtain the region handle set of the last update.

DtTime DtHlaObject::lastSimTimeUpdateReceived ( ) const

inlinevirtual

Returns the value of VR-Link simulation time at the time the last attribute update was received for this object.

References myLastSimTimeUpdateReceived.

virtual void DtHlaObject::localSubscriptionChanged ( )

virtual

Called when local object class subscriptions change.

As a result, we update the set of eligible attributes to include remotely subscribed attributes, plus locally subscribed attributes.

virtual void DtHlaObject::loseOwnership ( const RTI::AttributeHandleSet &  attrs )

protectedvirtual

Gets called whenever we lose ownership of a set of attributes.

const char * DtHlaObject::name ( ) const

inlinevirtual

Get the object's name.

References myName.

virtual void DtHlaObject::negotiatedDivest ( const RTI::AttributeHandleSet &  attrs )

virtual

Try to divest ownership of attrs.

Divesting is not complete (i.e. you still own the attributes) until you receive an attributeOwnershipDivestitureNotification callback from the RTI. Elements of attrs that are not currently owned are ignored. Caller needs to handle other RTI-generated exceptions.

static void DtHlaObject::negotiatedDivestitureCb ( void *  usr )

static

int DtHlaObject::numAttributes ( ) const

inline

Get the number of attributes associated with this object's FOM class.

Non Virtual – called from Ctor

References myClassDesc, and DtObjClassDesc::numAttributes().

RTI::ObjectClassHandle DtHlaObject::objectClassHandle ( ) const

inlinevirtual

Get the object's class handle.

References DtObjClassDesc::handle(), and myClassDesc.

const RTI::ObjectInstanceHandle & DtHlaObject::objectId ( ) const

inlinevirtual

Get the object's handle.

DtHlaObject& DtHlaObject::operator= ( const DtHlaObject &  src )

protected

Assignment operator: not implemented; do not call.

const RTI::AttributeHandleSet & DtHlaObject::ownedAttributes ( )

inlinevirtual

Returns the set of attributes of this object that are owned by the local federate.

References myOwnedAttributes.

static void DtHlaObject::ownerAcquisitionCb ( void *  usr )

static

static void DtHlaObject::ownerAcquisitionIfAvailableCb ( void *  usr )

static

The following four static fns are for use within ownership msg callbacks.

virtual void DtHlaObject::printMsg ( const DtStateMsg &  msg, bool  fullReport = false  ) const

virtual

Prints contents of a state msg.

Base class prints only header info. If fullReport set to true, printMsg requests a full status print out for objects with a state repository.

Reimplemented in DtHlaObjectWithStateRep.

virtual void DtHlaObject::processAttributeAcquisition ( const RTI::AttributeHandleSet &  attrs )

virtual

Handle an invocation of the attributeOwnershipAcquisitionNotification service.

virtual void DtHlaObject::processAttributeDivestiture ( const RTI::AttributeHandleSet &  attrs )

virtual

Handle an invocation of the attributeOwnershipDivestitureNotification service.

virtual void DtHlaObject::processConfirmAcquisitionCancellation ( const RTI::AttributeHandleSet &  attrs )

virtual

Process RTI's conformAttributeOwnershipAcquisitionCancellation service.

virtual void DtHlaObject::processProvideUpdate ( const RTI::AttributeHandleSet &  set )

virtual

Set yourself up so that on the next tick, you send an update for the appropriate attributes.

(Can't send them within this function since this is called from within an RTI service).

virtual void DtHlaObject::processRemoveObject ( )

virtual

Process notification of removal of the object from the network.

Call back all the remove object callbacks.

virtual void DtHlaObject::processRequestAssumption ( const RTI::AttributeHandleSet &  attrs, const RTI::VariableLengthData &  tag  )

virtual

Process RTI's requestAttributeOwnershipAssumption service.

virtual void DtHlaObject::processRequestRelease ( const RTI::AttributeHandleSet &  attrs, const RTI::VariableLengthData &  tag  )

virtual

Process RTI's requestAttributeOwnershipRelease service.

virtual void DtHlaObject::processUpdatesOff ( const RTI::AttributeHandleSet &  set )

protectedvirtual

Callback for handling turnUpdatesOffForObjectInstance RTI call.

void DtHlaObject::processUpdatesOn ( const RTI::AttributeHandleSet &  set )

protected

Callback for handling turnUpdatesOnForObjectInstance RTI call.

Non Virtual –called from CTOR

virtual void DtHlaObject::publicationChanged ( )

virtual

Called when there is a change in the publication status of this object's object class.

virtual void DtHlaObject::reflect ( const DtStateMsg &  msg )

protectedpure virtual

Handle reflection of object (receipt of state message) from the network.

called by callReflect. Override this function rather than callReflect to change the way an HLA object reflects a stateMsg.

Implemented in DtHlaObjectWithStateRep, and DtUnknownHlaObject.

static void DtHlaObject::reflectAttributeValuesCb ( const DtStateMsg &  stateMsg, void *  hlaObj  )

staticprotected

Callback for handling state messages for the HLA object.

Casts hlaObj to DtHlaObject* and calls reflect().

virtual void DtHlaObject::reflectLocal ( const DtStateMsg &  msg )

pure virtual

Called by callReflectLocal to handle the reflection of updates that we are sending locally.

Used when the exercise connection's reflecting flag is set.

Implemented in DtHlaObjectWithStateRep.

virtual void DtHlaObject::removePostReflectCb ( DtObjectReflectAttributeValuesCb  cb, void *  usr  )

virtual

Remove (deregister) function to be called after each reflectAttrValues.

virtual void DtHlaObject::removeRemoveObjectCb ( DtRemoveObjectCb  cb, void *  usr  )

virtual

Remove (deregister) function to be called when object is about to be removed.

const RTI::AttributeHandleSet & DtHlaObject::requestedAttributes ( )

inlinevirtual

Returns the union of all sets of attributes requested since the last call to clearRequestedAttributes.

References myRequestedAttributes.

virtual void DtHlaObject::requestUpdate ( RTI::AttributeHandleSet *  attrs = 0 )

virtual

Request an update for the object for the set of attributes indicated by attrs (or all subscribed attributes if attrs is NULL).

virtual const RTI::AttributeHandleSet& DtHlaObject::requiredAttributes ( )

virtual

Returns the set of attributes that should be included in the next update regardless of whether their update conditions have been met.

void DtHlaObject::setLastReceivedTimeStamp ( DtTime  tm )

inlineprotectedvirtual

References myLastReceivedTimeStamp.

void DtHlaObject::setLastSimTimeUpdateReceived ( DtTime  tm )

inlineprotectedvirtual

Set the time an update was last received or sent.

References myLastSimTimeUpdateReceived.

virtual DtOwnershipHandler* DtHlaObject::setOwnershipHandler ( DtOwnershipHandler *  handler )

virtual

Ownership-Management-related functions.

Sets the current ownership handler to handler. A DtOwnershipHandler is an object that encapsulates callback function for a variety of ownership-management-related functions. Returns previous handler.

virtual void DtHlaObject::setRegionInformation ( const std::set< DtDDMRegion > &  regions )

protectedvirtual

Set the Region set that the last update was sent with.

void DtHlaObject::setupClassForUpdating

(

)

If the class has never been published, publish it with all attributes using DtObjClassDesc::publish.

Non Virtual – called from CTOR

virtual void DtHlaObject::setupReflecting ( )

virtual

Remote Object specific functions.

Do the initialization required to handle reflection of object.

virtual void DtHlaObject::setupUpdating ( )

virtual

Local Object specific functions.

Do the initialization required to begin updating attributes of this object. Calls registerObject() if the object has not yet been registered or discovered (that is, we are creating a new object).

virtual void DtHlaObject::unconditionalDivest ( const RTI::AttributeHandleSet &  attrs )

virtual

Unconditionally divest ownership of attrs.

Elements of attrs that are not currently owned are ignored. Caller needs to handle other RTI- generated exceptions.

static void DtHlaObject::unconditionalDivestitureCb ( void *  usr )

static

virtual void DtHlaObject::update ( )

virtual

Generate and send any necessary attribute updates through the RTI.

Called by publisher's tick function. Default implementation is to call the (logically) pure virtual generateUpdate, and then send the generated message.

Reimplemented in DtUnknownHlaObject.

static void DtHlaObject::updatesOffCb ( RTI::ObjectInstanceHandle  handle, const RTI::AttributeHandleSet &  attributeSet, void *  usr  )

staticprotected

Callback for handling turnUpdatesOffForObjectInstance RTI call.

static void DtHlaObject::updatesOnCb ( RTI::ObjectInstanceHandle  handle, const RTI::AttributeHandleSet &  attributeSet, void *  usr  )

staticprotected

Callback for handling turnUpdatesOnForObjectInstance RTI call.

void DtHlaObject::wipeReflectList ( )

protected

Remove all callbacks from the reflect callback list.

Non-virtual since meant to be called from dtor.

void DtHlaObject::wipeRemoveList ( )

protected

Remove all callbacks from the remove callback list.

Non-virtual since meant to be called from dtor.

Friends And Related Function Documentation

friend class DtHlaObjectManager

friend

Member Data Documentation

DtObjClassDesc& DtHlaObject::myClassDesc

protected

Referenced by attrHandleSet(), classDesc(), numAttributes(), and objectClassHandle().

RTI::AttributeHandleSet* DtHlaObject::myEligibleAttrs

protected

Attributes that are eligible to be sent from within update() - passed to generateUpdate.

If we are reflecting local objects, then it's the union of needed attributes, locally subscribed attributes, and owned attributes. Otherwise, it's the union of owned attributes and needed attributes.

DtExerciseConn* DtHlaObject::myExConn

protected

Referenced by exerciseConn().

RTI::AttributeHandleSet* DtHlaObject::myForcedAttributes

protected

Requested by a call to setForcedUpdate.

DtTime DtHlaObject::myLastReceivedTimeStamp

protected

Referenced by lastReceivedTimeStamp(), and setLastReceivedTimeStamp().

std::set<DtDDMRegion> DtHlaObject::myLastRegionInformation

protected

Contains the region information of the last update that contained it.

DtTime DtHlaObject::myLastSimTimeUpdateReceived

protected

Referenced by lastSimTimeUpdateReceived(), and setLastSimTimeUpdateReceived().

char* DtHlaObject::myName

protected

Referenced by name().

RTI::AttributeHandleSet* DtHlaObject::myNeededAttrs

protected

Set of owned attributes for which we have received a turnUpdatesOn more recently than a turnUpdatesOff.

RTI::ObjectInstanceHandle DtHlaObject::myObjectId

protected

RTI::AttributeHandleSet* DtHlaObject::myOwnedAttributes

protected

Set of attributes owned by the local federate.

If we register the object, the owned set defaults to the published set.

Referenced by ownedAttributes().

DtOwnershipHandler* DtHlaObject::myOwnershipHandler

protected

DtList DtHlaObject::myReflectCbList

protected

DtListItem* DtHlaObject::myReflectCbListNextPtr

protected

bool DtHlaObject::myReflecting

protected

DtList DtHlaObject::myRemoveCbList

protected

DtListItem* DtHlaObject::myRemoveCbListNextPtr

protected

RTI::AttributeHandleSet* DtHlaObject::myRequestedAttributes

protected

Requested by other federates.

Referenced by requestedAttributes().

RTI::AttributeHandleSet* DtHlaObject::myRequiredAttributes

protected

Union of forced and requested - not computed until needed.

bool DtHlaObject::myUpdating

protected

---

The documentation for this class was generated from the following file:

• hlaObj.h
