DtAggregatePublisher Class Reference

Instances of DtAggregatePublisher are used to take care of the details associated with publishing the state of an aggregate. More...

Inheritance diagram for DtAggregatePublisher:

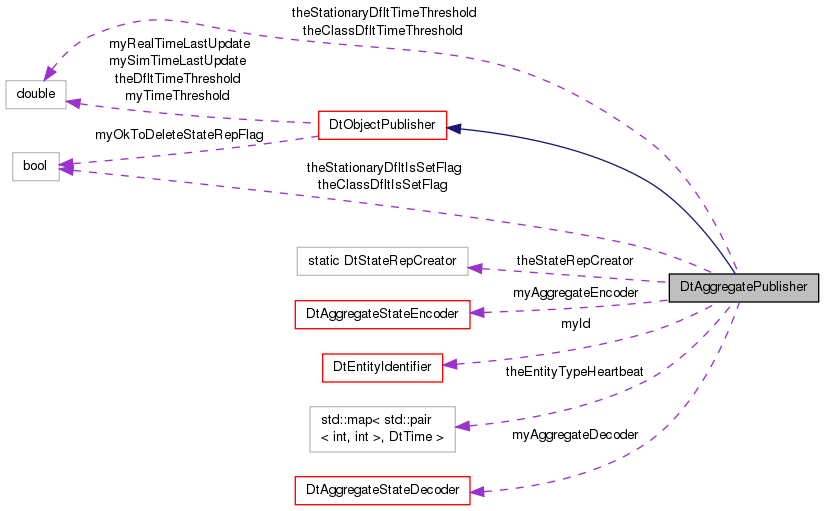

Collaboration diagram for DtAggregatePublisher:

Public Member Functions
	DtAggregatePublisher (DtAggregateStateRepository *stateRepToUse, DtExerciseConn *conn, const DtObjectId &id=DtObjectId::nullId())
	constructor
	DtAggregatePublisher (DtExerciseConn *conn, const DtObjectId &id=DtObjectId::nullId())
	constructor
	DtAggregatePublisher (const DtEntityType &type, DtExerciseConn *conn, const DtObjectId &id=DtObjectId::defaultId())
	constructor The default is = (-1,-1,-1)
	DtAggregatePublisher (const DtEntityType &type, DtExerciseConn *conn, DtDeadReckonTypes algorithm, DtForceType forceId, const DtObjectId &id=DtObjectId::defaultId())
	constructor The default is = (-1,-1,-1)
virtual	~DtAggregatePublisher ()
	destructor
virtual void	tick ()
	Tick the publisher.
virtual void	forceUpdate ()
	Cause the next tick call to send out the PDU even if its not needed.
virtual DtAggregateStateRepository *	aggregateStateRep ()
	Get the aggregate state repository for this aggregate publisher.
virtual DtAggregateStateRepository *	asr ()
	Get the aggregate state repository for this aggregate publisher.
virtual const DtObjectId &	id () const
	Get the entity's identifier.
virtual const DtObjectId &	localId () const
	Get the entity's localId - same as id for DIS.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the global object designator - same as id for DIS.
DtTime	entityTypeHeartbeat (int type, int domain)
	Return the heartbeat based on entity Type.
Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn *conn, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, bool okToDeleteStateRep=true)
	Constructor takes an DtExerciseConn which must have a lifetime greater than the ObjectPubliser.
virtual	~DtObjectPublisher ()
	Destructor.
virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtStateRepository *	sr ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection.
virtual void	setTimeThreshold (DtTime time)
	Set the heartbeat rate for this object.
virtual DtTime	timeThreshold () const
	The heartbeat rate for this object.
virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message.
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	setStateRepCreator (void)
static void	setClassDfltTimeThreshold (DtTime threshold)
static void	setStationaryDfltTimeThreshold (DtTime threshold)
static void	setEntityTypeDfltTimeThreshold (int type, int domain, DtTime threshold)
Static Public Member Functions inherited from DtObjectPublisher
static void	setDfltTimeThreshold (DtTime time)
	Set the default heartbeat rate.
static DtTime	dfltTimeThreshold ()
	The default heartbeat rate, see setDfltTimeThreshold().

Protected Member Functions
void	init (const DtEntityIdentifier &vehId)
	Not virtual since called from constructor.
	DtAggregatePublisher (const DtAggregatePublisher &orig)
	copy constructor – Not Implemented
DtAggregatePublisher &	operator= (const DtAggregatePublisher &orig)
	assignment operator – Not Implemented
Protected Member Functions inherited from DtObjectPublisher
void	send (DtPdu *pdu) const
	Puts the PDU on the network and updates timestamps.

Protected Attributes
DtObjectId	myId
DtAggregateStateDecoder *	myAggregateDecoder
DtAggregateStateEncoder *	myAggregateEncoder
Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn
DtStateRepository *	myStateRep
DtStateRepository *	myAsSeenByRemote
bool	myOkToDeleteStateRepFlag
DtTime	myTimeThreshold
DtTime	mySimTimeLastUpdate
	Set in const send() method.
DtTime	myRealTimeLastUpdate
	Set in const send() method.

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
static DtTime	theClassDfltTimeThreshold
static bool	theClassDfltIsSetFlag
static DtTime	theStationaryDfltTimeThreshold
static bool	theStationaryDfltIsSetFlag
static std::map< std::pair < int, int >, DtTime >	theEntityTypeHeartbeat
Static Protected Attributes inherited from DtObjectPublisher
static DtTime	theDfltTimeThreshold

Private Types
typedef DtAggregateStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtAggregateStateRepositories.

Detailed Description

Instances of DtAggregatePublisher are used to take care of the details associated with publishing the state of an aggregate.

Member Typedef Documentation

typedef DtAggregateStateRepository*(* DtAggregatePublisher::DtStateRepCreator)()

private

Function prototype for functions that create DtAggregateStateRepositories.

Constructor & Destructor Documentation

DtAggregatePublisher::DtAggregatePublisher	(	DtAggregateStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::nullId()
	)

constructor

DtAggregatePublisher::DtAggregatePublisher	(	DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::nullId()
	)

constructor

DtAggregatePublisher::DtAggregatePublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

constructor The default is = (-1,-1,-1)

DtAggregatePublisher::DtAggregatePublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		DtDeadReckonTypes	algorithm,
		DtForceType	forceId,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

constructor The default is = (-1,-1,-1)

virtual DtAggregatePublisher::~DtAggregatePublisher ( )

virtual

destructor

DtAggregatePublisher::DtAggregatePublisher ( const DtAggregatePublisher &  orig )

protected

copy constructor – Not Implemented

Member Function Documentation

virtual DtAggregateStateRepository* DtAggregatePublisher::aggregateStateRep ( )

virtual

Get the aggregate state repository for this aggregate publisher.

DtAggregateStateRepository * DtAggregatePublisher::asr ( )

inlinevirtual

Get the aggregate state repository for this aggregate publisher.

References DtObjectPublisher::myStateRep.

DtTime DtAggregatePublisher::entityTypeHeartbeat	(	int	type,
		int	domain
	)

Return the heartbeat based on entity Type.

virtual void DtAggregatePublisher::forceUpdate ( )

virtual

Cause the next tick call to send out the PDU even if its not needed.

Implements DtObjectPublisher.

virtual const DtGlobalObjectDesignator& DtAggregatePublisher::globalId ( ) const

virtual

Get the global object designator - same as id for DIS.

Implements DtObjectPublisher.

virtual const DtObjectId& DtAggregatePublisher::id ( ) const

virtual

Get the entity's identifier.

Implements DtObjectPublisher.

Referenced by localId().

void DtAggregatePublisher::init ( const DtEntityIdentifier &  vehId )

protected

Not virtual since called from constructor.

const DtObjectId & DtAggregatePublisher::localId ( ) const

inlinevirtual

Get the entity's localId - same as id for DIS.

Implements DtObjectPublisher.

References id().

DtAggregatePublisher& DtAggregatePublisher::operator= ( const DtAggregatePublisher &  orig )

protected

assignment operator – Not Implemented

static void DtAggregatePublisher::setClassDfltTimeThreshold ( DtTime  threshold )

static

static void DtAggregatePublisher::setEntityTypeDfltTimeThreshold ( int  type, int  domain, DtTime  threshold  )

static

static void DtAggregatePublisher::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

static DtStateRepCreator DtAggregatePublisher::setStateRepCreator ( void  )

static

static void DtAggregatePublisher::setStationaryDfltTimeThreshold ( DtTime  threshold )

static

virtual void DtAggregatePublisher::tick ( )

virtual

Tick the publisher.

Implements DtObjectPublisher.

Member Data Documentation

DtAggregateStateDecoder* DtAggregatePublisher::myAggregateDecoder

protected

DtAggregateStateEncoder* DtAggregatePublisher::myAggregateEncoder

protected

DtObjectId DtAggregatePublisher::myId

protected

bool DtAggregatePublisher::theClassDfltIsSetFlag

staticprotected

DtTime DtAggregatePublisher::theClassDfltTimeThreshold

staticprotected

std::map<std::pair<int,int>,DtTime> DtAggregatePublisher::theEntityTypeHeartbeat

staticprotected

DtStateRepCreator DtAggregatePublisher::theStateRepCreator

staticprotected

bool DtAggregatePublisher::theStationaryDfltIsSetFlag

staticprotected

DtTime DtAggregatePublisher::theStationaryDfltTimeThreshold

staticprotected

---

The documentation for this class was generated from the following file:

• aggregatePublisherDIS.h
