DtStateRepository Class Reference

DtStateRepository is an abstract base class for maintaining state for an object. More...

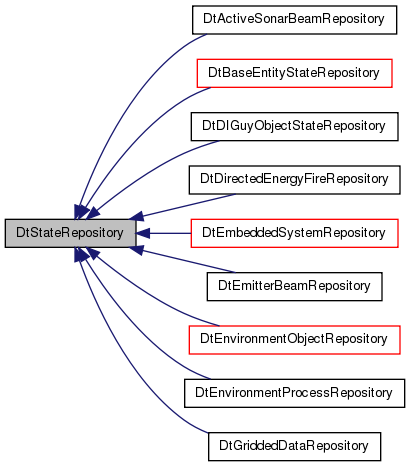

Inheritance diagram for DtStateRepository:

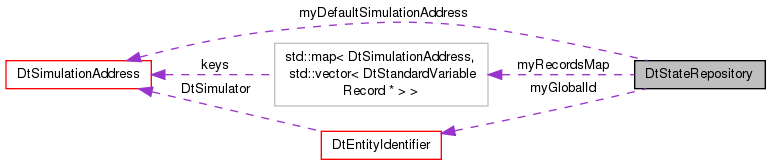

Collaboration diagram for DtStateRepository:

Public Member Functions
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy=false) const =0
	Return a copy/empty object of the same type as this.
virtual void	printData () const =0
	Print State Data to the DtInfo Stream.
virtual void	printDataToStream (std::ostream &stream) const
	Prints the State Data to the stream specified.
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	Get/Set records.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const

Protected Member Functions
	DtStateRepository ()
	Constructors are protected since this is an abstract base class.
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual unsigned int	numberOfAttributeRecords () const

Protected Attributes
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap

Detailed Description

DtStateRepository is an abstract base class for maintaining state for an object.

Instances of DtStateRepository subclasses are used to store state for specific object types, such as vehicles or lifeforms.

Constructor & Destructor Documentation

virtual DtStateRepository::~DtStateRepository ( )

virtual

destructor

DtStateRepository::DtStateRepository ( )

protected

Constructors are protected since this is an abstract base class.

default constructor

DtStateRepository::DtStateRepository ( const DtStateRepository &  orig )

protected

copy constructor

Member Function Documentation

virtual void DtStateRepository::addAttributeRecord ( DtStandardVariableRecord *  record )

virtual

Reimplemented in DtEmitterSystemRepository.

virtual const std::vector<DtStandardVariableRecord*> DtStateRepository::attributeRecords ( unsigned int  recordType = 0 ) const

virtual

Reimplemented in DtEmitterSystemRepository.

virtual void DtStateRepository::clearAttributeRecords ( )

virtual

Reimplemented in DtEmitterSystemRepository.

virtual DtStateRepository* DtStateRepository::clone ( bool  copy = false ) const

pure virtual

Return a copy/empty object of the same type as this.

Implemented in DtLinearObjectRepository, DtUnderwaterAcousticsStateRepository, DtEmitterBeamRepository, DtPointObjectRepository, DtIffStateRepository, DtEntityStateRepository, DtActiveSonarStateRepository, DtBaseEntityStateRepository, DtEmitterSystemRepository, DtAggregateStateRepository, DtArealObjectRepository, DtRadioTransmitterRepository, DtEnvironmentProcessRepository, DtEnvironmentObjectRepository, DtActiveSonarBeamRepository, DtDIGuyObjectStateRepository, DtDirectedEnergyFireRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtEmbeddedSystemRepository, DtGriddedDataRepository, DtDesignatorRepository, DtUnderwaterAcousticsEmissionRepository, and DtRadioReceiverRepository.

virtual void DtStateRepository::getAttributeRecords ( std::vector< DtStandardVariableRecord * > &  vec, unsigned int  recordType = 0  ) const

virtual

Reimplemented in DtEmitterSystemRepository.

virtual const DtGlobalObjectDesignator& DtStateRepository::globalId ( ) const

virtual

virtual unsigned int DtStateRepository::numberOfAttributeRecords ( ) const

protectedvirtual

DtStateRepository& DtStateRepository::operator=

(

const DtStateRepository &

orig

)

assignment operator

virtual void DtStateRepository::printData ( ) const

pure virtual

Print State Data to the DtInfo Stream.

Implemented in DtEntityStateRepository, DtBaseEntityStateRepository, DtRadioTransmitterRepository, DtAggregateStateRepository, DtEmitterBeamRepository, DtGriddedDataRepository, DtPointObjectRepository, DtLinearObjectRepository, DtDirectedEnergyFireRepository, DtArealObjectRepository, DtRadioReceiverRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtEnvironmentObjectRepository, DtEmbeddedSystemRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtDIGuyObjectStateRepository, DtEnvironmentProcessRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, and DtActiveSonarBeamRepository.

virtual void DtStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the State Data to the stream specified.

Reimplemented in DtEntityStateRepository, DtBaseEntityStateRepository, DtRadioTransmitterRepository, DtAggregateStateRepository, DtEmitterBeamRepository, DtGriddedDataRepository, DtPointObjectRepository, DtLinearObjectRepository, DtDirectedEnergyFireRepository, DtArealObjectRepository, DtRadioReceiverRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtEnvironmentObjectRepository, DtEmbeddedSystemRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtDIGuyObjectStateRepository, DtEnvironmentProcessRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, and DtActiveSonarBeamRepository.

virtual void DtStateRepository::setAttributeRecords ( const std::vector< DtStandardVariableRecord * > &  records )

virtual

Get/Set records.

Reimplemented in DtEmitterSystemRepository.

virtual void DtStateRepository::setAttributeRecords ( const std::vector< DtStandardVariableRecord * > &  records, const DtSimulationAddress &  address  )

virtual

virtual void DtStateRepository::setGlobalId ( const DtGlobalObjectDesignator &  id )

virtual

Get/Set global identifier, or name.

Set by VR-Link for reflected objects. Not necessary to set for local objects.

virtual void DtStateRepository::setSimAddr ( const DtSimulationAddress &  id )

virtual

Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)

virtual const DtSimulationAddress& DtStateRepository::simAddr ( ) const

virtual

Member Data Documentation

DtSimulationAddress DtStateRepository::myDefaultSimulationAddress

protected

DtGlobalObjectDesignator DtStateRepository::myGlobalId

protected

std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord* > > DtStateRepository::myRecordsMap

protected

---

The documentation for this class was generated from the following file:

• stateRepository.h
