DtLinearObjectRepository Class Reference

class DtLinearObjectRepository More...

Inheritance diagram for DtLinearObjectRepository:

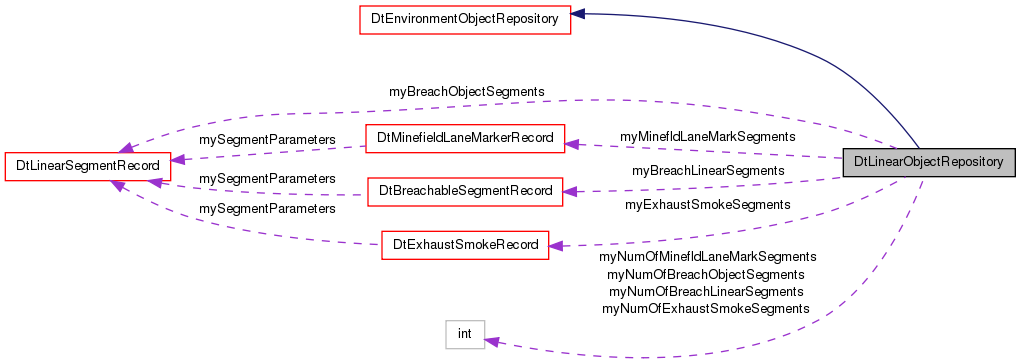

Collaboration diagram for DtLinearObjectRepository:

Public Member Functions
	DtLinearObjectRepository ()
virtual	~DtLinearObjectRepository ()
	DtLinearObjectRepository (const DtLinearObjectRepository &orig)
DtLinearObjectRepository &	operator= (const DtLinearObjectRepository &orig)
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual bool	setNumOfBreachLinearSegments (int newNumber)
	Set/Get the number of BreachableLinearObject Segment Records.
virtual int	numOfBreachLinearSegments () const
virtual bool	setBreachLinearSegment (int index, const DtBreachableSegmentRecord &record)
virtual bool	breachLinearSegment (int index, DtBreachableSegmentRecord &record) const
virtual bool	setNumOfBreachObjectSegments (int newNumber)
	Set/Get the number of BreachObject Segment Records.
virtual int	numOfBreachObjectSegments () const
virtual bool	setBreachObjectSegment (int index, const DtLinearSegmentRecord &record)
virtual bool	breachObjectSegment (int index, DtLinearSegmentRecord &record) const
virtual bool	setNumOfExhaustSmokeSegments (int newNumber)
	Set/Get the number of ExhaustSmokeObject Segment Records.
virtual int	numOfExhaustSmokeSegments () const
virtual bool	setExhaustSmokeSegment (int index, const DtExhaustSmokeRecord &record)
virtual bool	exhaustSmokeSegment (int index, DtExhaustSmokeRecord &record) const
virtual bool	setNumOfMinefldLaneMarkSegments (int newNumber)
	Set/Get the number of MinefieldLaneMarker Segment Records.
virtual int	numOfMinefldLaneMarkSegments () const
virtual bool	setMinefldLaneMarkSegment (int index, const DtMinefieldLaneMarkerRecord &record)
virtual bool	minefldLaneMarkSegment (int index, DtMinefieldLaneMarkerRecord &record) const
virtual void	printData () const
	Prints data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Prints data to the specified stream.
Public Member Functions inherited from DtEnvironmentObjectRepository
	DtEnvironmentObjectRepository ()
virtual	~DtEnvironmentObjectRepository ()
	DtEnvironmentObjectRepository (const DtEnvironmentObjectRepository &orig)
DtEnvironmentObjectRepository &	operator= (const DtEnvironmentObjectRepository &orig)
virtual void	setObjectId (const DtEntityIdentifier &identifier)
	Set/Get Environment Object ID.
virtual const DtEntityIdentifier &	objectId () const
virtual void	setReferencedObjectId (const DtGlobalObjectDesignator &rtiObject)
	Set/Get Referenced Object ID.
virtual const DtGlobalObjectDesignator &	referencedObjectId () const
virtual void	setForceId (const DtForceType value)
	Set/Get Force ID.
virtual DtForceType	forceId () const
virtual void	setObjectType (const DtSyntheticEnvironmentObjectType &type)
	Set/Get Object Type.
virtual const DtSyntheticEnvironmentObjectType &	objectType () const
Public Member Functions inherited from DtStateRepository
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	Get/Set records.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const

Static Public Member Functions
static DtLinearObjectRepository *	create ()

Protected Attributes
int	myNumOfBreachLinearSegments
DtBreachableSegmentRecord *	myBreachLinearSegments
int	myNumOfBreachObjectSegments
DtLinearSegmentRecord *	myBreachObjectSegments
int	myNumOfExhaustSmokeSegments
DtExhaustSmokeRecord *	myExhaustSmokeSegments
int	myNumOfMinefldLaneMarkSegments
DtMinefieldLaneMarkerRecord *	myMinefldLaneMarkSegments
Protected Attributes inherited from DtEnvironmentObjectRepository
DtEntityIdentifier	myObjectId
DtGlobalObjectDesignator	myReferencedObjId
DtForceType	myForceId
DtSyntheticEnvironmentObjectType	myObjectType
Protected Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap

Additional Inherited Members
Protected Member Functions inherited from DtStateRepository
	DtStateRepository ()
	Constructors are protected since this is an abstract base class.
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual unsigned int	numberOfAttributeRecords () const

Detailed Description

class DtLinearObjectRepository

Instances of DtLinearObjectRepository are used to maintain state information needed by linear object entities

The states of BreachableLinearObjects, BreachObjects, ExhaustSmokeObjects, and MinefieldLaneMarkerObjects are all maintained within this class. In order to publish a specific type of object, the object type needs to be set to that of the object to be published. That specific object will then be published and updated.

One Object Repository is used for all types of linear objects, since there is one PDU that is used for all types of linear object

The type of Linear Object published depends on the object type Object type: Exhaust Smoke – Domain = 0 (other), Kind = 5 (tactical smoke) Category = 1 Minefield Lane Marker – Domain = 1 (land), Kind = 6 (obstacle), Category = 1 Breach Object – Domain = 1 (land), Kind = 7 (obstacle breach), Category = 1 Breachable Linear Object – Couldn't figure out Object type... currently not implemented in the mapper Any object types not specified will be published as OtherLinearObjects

Constructor & Destructor Documentation

DtLinearObjectRepository::DtLinearObjectRepository

(

)

virtual DtLinearObjectRepository::~DtLinearObjectRepository ( )

virtual

DtLinearObjectRepository::DtLinearObjectRepository

(

const DtLinearObjectRepository &

orig

)

Member Function Documentation

virtual bool DtLinearObjectRepository::breachLinearSegment ( int  index, DtBreachableSegmentRecord &  record  ) const

virtual

virtual bool DtLinearObjectRepository::breachObjectSegment ( int  index, DtLinearSegmentRecord &  record  ) const

virtual

virtual DtStateRepository* DtLinearObjectRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEnvironmentObjectRepository.

static DtLinearObjectRepository* DtLinearObjectRepository::create ( )

static

Reimplemented from DtEnvironmentObjectRepository.

virtual bool DtLinearObjectRepository::exhaustSmokeSegment ( int  index, DtExhaustSmokeRecord &  record  ) const

virtual

virtual bool DtLinearObjectRepository::minefldLaneMarkSegment ( int  index, DtMinefieldLaneMarkerRecord &  record  ) const

virtual

virtual int DtLinearObjectRepository::numOfBreachLinearSegments ( ) const

virtual

virtual int DtLinearObjectRepository::numOfBreachObjectSegments ( ) const

virtual

virtual int DtLinearObjectRepository::numOfExhaustSmokeSegments ( ) const

virtual

virtual int DtLinearObjectRepository::numOfMinefldLaneMarkSegments ( ) const

virtual

DtLinearObjectRepository& DtLinearObjectRepository::operator=

(

const DtLinearObjectRepository &

orig

)

virtual void DtLinearObjectRepository::printData ( ) const

virtual

Prints data to DtInfo.

Reimplemented from DtEnvironmentObjectRepository.

virtual void DtLinearObjectRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Prints data to the specified stream.

Reimplemented from DtEnvironmentObjectRepository.

virtual bool DtLinearObjectRepository::setBreachLinearSegment ( int  index, const DtBreachableSegmentRecord &  record  )

virtual

virtual bool DtLinearObjectRepository::setBreachObjectSegment ( int  index, const DtLinearSegmentRecord &  record  )

virtual

virtual bool DtLinearObjectRepository::setExhaustSmokeSegment ( int  index, const DtExhaustSmokeRecord &  record  )

virtual

virtual bool DtLinearObjectRepository::setMinefldLaneMarkSegment ( int  index, const DtMinefieldLaneMarkerRecord &  record  )

virtual

virtual bool DtLinearObjectRepository::setNumOfBreachLinearSegments ( int  newNumber )

virtual

Set/Get the number of BreachableLinearObject Segment Records.

Set returns false if the requested number is too large. Changing this number will erase all previous data.

virtual bool DtLinearObjectRepository::setNumOfBreachObjectSegments ( int  newNumber )

virtual

Set/Get the number of BreachObject Segment Records.

Set returns false if the request number is too large. Changing this number will erase all previous data.

virtual bool DtLinearObjectRepository::setNumOfExhaustSmokeSegments ( int  newNumber )

virtual

Set/Get the number of ExhaustSmokeObject Segment Records.

Set returns false if the requested number is too large. Changing this number will erase all previous data.

virtual bool DtLinearObjectRepository::setNumOfMinefldLaneMarkSegments ( int  newNumber )

virtual

Set/Get the number of MinefieldLaneMarker Segment Records.

Set returns false if the request number is too large. Changing this number will erase all previous data.

Member Data Documentation

DtBreachableSegmentRecord* DtLinearObjectRepository::myBreachLinearSegments

protected

DtLinearSegmentRecord* DtLinearObjectRepository::myBreachObjectSegments

protected

DtExhaustSmokeRecord* DtLinearObjectRepository::myExhaustSmokeSegments

protected

DtMinefieldLaneMarkerRecord* DtLinearObjectRepository::myMinefldLaneMarkSegments

protected

int DtLinearObjectRepository::myNumOfBreachLinearSegments

protected

int DtLinearObjectRepository::myNumOfBreachObjectSegments

protected

int DtLinearObjectRepository::myNumOfExhaustSmokeSegments

protected

int DtLinearObjectRepository::myNumOfMinefldLaneMarkSegments

protected

---

The documentation for this class was generated from the following file:

• linearObjectRepository.h
