DtGriddedDataPublisher Class Reference

Inheritance diagram for DtGriddedDataPublisher:

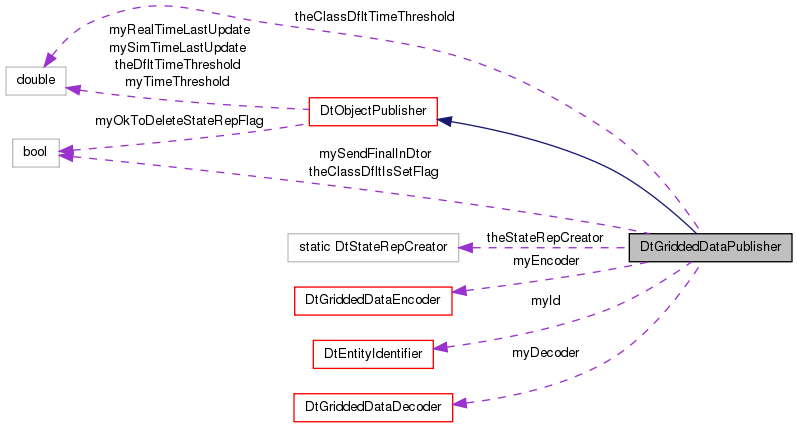

Collaboration diagram for DtGriddedDataPublisher:

Public Types
typedef DtGriddedDataRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtGriddedDataRepositories.

Public Member Functions
	DtGriddedDataPublisher (DtGriddedDataRepository *stateRepToUse, DtExerciseConn *conn, const DtObjectId &id=DtObjectId::defaultId())
	Constructor.
	DtGriddedDataPublisher (DtExerciseConn *conn, const DtObjectId &id=DtObjectId::defaultId())
	Constructor.
virtual	~DtGriddedDataPublisher ()
	destructor
virtual void	tick ()
	This function should be called once per frame for each gridded data object.
virtual DtGriddedDataRepository *	gridDataStateRep ()
	Returns a pointer to the GriddedDataRepository - through which you can set or inspect current state information.
virtual DtGriddedDataRepository *	gdsr ()
	Synonym for gridDataStateRep().
virtual DtGriddedDataDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode PDUs that we send back into the asSeenByRemote ESR.
virtual DtGriddedDataEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an entity state PDU.
virtual const DtObjectId &	id () const
	Get the gridded data's identifier.
virtual const DtObjectId &	localId () const
	Get the gridded data's localId - same as id for DIS.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the global object designator - same as id for DIS.
virtual void	sendFinalPduOnDestruction (bool onOff)
	Set flag indicating whether to send a final PDU with the "FinalPdu" appearance bit set, from within the DtGriddedDataPublisher destructor.
virtual void	forceUpdate ()
	Force a state update to be sent during the next call to tick, even if nothing would normally cause a send.
Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn *conn, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, bool okToDeleteStateRep=true)
	Constructor takes an DtExerciseConn which must have a lifetime greater than the ObjectPubliser.
virtual	~DtObjectPublisher ()
	Destructor.
virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtStateRepository *	sr ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection.
virtual void	setTimeThreshold (DtTime time)
	Set the heartbeat rate for this object.
virtual DtTime	timeThreshold () const
	The heartbeat rate for this object.
virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message.
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
static void	setClassDfltTimeThreshold (DtTime threshold)
Static Public Member Functions inherited from DtObjectPublisher
static void	setDfltTimeThreshold (DtTime time)
	Set the default heartbeat rate.
static DtTime	dfltTimeThreshold ()
	The default heartbeat rate, see setDfltTimeThreshold().

Protected Member Functions
void	sendFinalPdu ()
	Not virtual since called from destructor.
void	init (const DtEntityIdentifier &vehId)
	Not virtual since called from constructor.
	DtGriddedDataPublisher (const DtGriddedDataPublisher &orig)
	copy constructor – Not Implemented
DtGriddedDataPublisher &	operator= (const DtGriddedDataPublisher &orig)
	copy constructor – Not Implemented
Protected Member Functions inherited from DtObjectPublisher
void	send (DtPdu *pdu) const
	Puts the PDU on the network and updates timestamps.

Protected Attributes
DtObjectId	myId
DtGriddedDataDecoder *	myDecoder
DtGriddedDataEncoder *	myEncoder
bool	mySendFinalInDtor
Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn
DtStateRepository *	myStateRep
DtStateRepository *	myAsSeenByRemote
bool	myOkToDeleteStateRepFlag
DtTime	myTimeThreshold
DtTime	mySimTimeLastUpdate
	Set in const send() method.
DtTime	myRealTimeLastUpdate
	Set in const send() method.

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
static DtTime	theClassDfltTimeThreshold
static bool	theClassDfltIsSetFlag
Static Protected Attributes inherited from DtObjectPublisher
static DtTime	theDfltTimeThreshold

Member Typedef Documentation

typedef DtGriddedDataRepository*(* DtGriddedDataPublisher::DtStateRepCreator)()

Function prototype for functions that create DtGriddedDataRepositories.

Constructor & Destructor Documentation

DtGriddedDataPublisher::DtGriddedDataPublisher	(	DtGriddedDataRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

Constructor.

DtGriddedDataPublisher::DtGriddedDataPublisher	(	DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

Constructor.

virtual DtGriddedDataPublisher::~DtGriddedDataPublisher ( )

virtual

destructor

DtGriddedDataPublisher::DtGriddedDataPublisher ( const DtGriddedDataPublisher &  orig )

protected

copy constructor – Not Implemented

Member Function Documentation

DtGriddedDataDecoder * DtGriddedDataPublisher::decoder ( )

inlinevirtual

Returns a pointer to the Decoder being used to decode PDUs that we send back into the asSeenByRemote ESR.

References myDecoder.

DtGriddedDataEncoder * DtGriddedDataPublisher::encoder ( )

inlinevirtual

Returns a pointer to the Encoder being used to encode current state into an entity state PDU.

References myEncoder.

virtual void DtGriddedDataPublisher::forceUpdate ( )

virtual

Force a state update to be sent during the next call to tick, even if nothing would normally cause a send.

Implements DtObjectPublisher.

DtGriddedDataRepository * DtGriddedDataPublisher::gdsr ( )

inlinevirtual

Synonym for gridDataStateRep().

References DtObjectPublisher::myStateRep.

Referenced by gridDataStateRep().

virtual const DtGlobalObjectDesignator& DtGriddedDataPublisher::globalId ( ) const

virtual

Get the global object designator - same as id for DIS.

Implements DtObjectPublisher.

DtGriddedDataRepository * DtGriddedDataPublisher::gridDataStateRep ( )

inlinevirtual

Returns a pointer to the GriddedDataRepository - through which you can set or inspect current state information.

References gdsr().

const DtObjectId & DtGriddedDataPublisher::id ( ) const

inlinevirtual

Get the gridded data's identifier.

Implements DtObjectPublisher.

References myId.

Referenced by localId().

void DtGriddedDataPublisher::init ( const DtEntityIdentifier &  vehId )

protected

Not virtual since called from constructor.

const DtObjectId & DtGriddedDataPublisher::localId ( ) const

inlinevirtual

Get the gridded data's localId - same as id for DIS.

Implements DtObjectPublisher.

References id().

DtGriddedDataPublisher& DtGriddedDataPublisher::operator= ( const DtGriddedDataPublisher &  orig )

protected

copy constructor – Not Implemented

void DtGriddedDataPublisher::sendFinalPdu ( )

protected

Not virtual since called from destructor.

void DtGriddedDataPublisher::sendFinalPduOnDestruction ( bool  onOff )

inlinevirtual

Set flag indicating whether to send a final PDU with the "FinalPdu" appearance bit set, from within the DtGriddedDataPublisher destructor.

References mySendFinalInDtor.

static void DtGriddedDataPublisher::setClassDfltTimeThreshold ( DtTime  threshold )

static

static void DtGriddedDataPublisher::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

static DtStateRepCreator DtGriddedDataPublisher::stateRepCreator ( void  )

static

virtual void DtGriddedDataPublisher::tick ( )

virtual

This function should be called once per frame for each gridded data object.

It determines if any data needs to be sent to the other exercise participants, and sends that data.

Implements DtObjectPublisher.

Member Data Documentation

DtGriddedDataDecoder* DtGriddedDataPublisher::myDecoder

protected

Referenced by decoder().

DtGriddedDataEncoder* DtGriddedDataPublisher::myEncoder

protected

Referenced by encoder().

DtObjectId DtGriddedDataPublisher::myId

protected

Referenced by id().

bool DtGriddedDataPublisher::mySendFinalInDtor

protected

Referenced by sendFinalPduOnDestruction().

bool DtGriddedDataPublisher::theClassDfltIsSetFlag

staticprotected

DtTime DtGriddedDataPublisher::theClassDfltTimeThreshold

staticprotected

DtStateRepCreator DtGriddedDataPublisher::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• griddedDataPublisherDIS.h
