DtBaseEmbeddedSystemEncoder Class Reference

Instances of DtBaseEmbeddedSystemEncoder are used to encode a base embedded system state repository into a state message in an HLA environment. More...

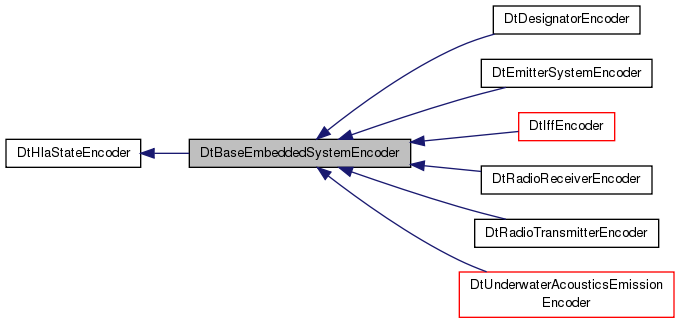

Inheritance diagram for DtBaseEmbeddedSystemEncoder:

Collaboration diagram for DtBaseEmbeddedSystemEncoder:

Public Member Functions
	DtBaseEmbeddedSystemEncoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	default constructor
virtual	~DtBaseEmbeddedSystemEncoder ()
	destructor
	DtBaseEmbeddedSystemEncoder (const DtBaseEmbeddedSystemEncoder &orig)
	copy constructor
DtBaseEmbeddedSystemEncoder &	operator= (const DtBaseEmbeddedSystemEncoder &orig)
	assignment operator
Public Member Functions inherited from DtHlaStateEncoder
	DtHlaStateEncoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	constructor
virtual	~DtHlaStateEncoder ()
	destructor
	DtHlaStateEncoder (const DtHlaStateEncoder &orig)
	copy constructor
DtHlaStateEncoder &	operator= (const DtHlaStateEncoder &orig)
	assignment operator
DtAttributeEncoder	addEncoder (RTI::AttributeHandle hand, DtAttributeEncoder func)
	Add/Remove an encoding function for the attribute specified by handle.
DtAttributeEncoder	removeEncoder (RTI::AttributeHandle hand)
DtAttributeEncoder	addEncoder (char *name, DtAttributeEncoder func, bool complain=true)
	Add/Remove an encoding function for the attribute specified by name.
DtAttributeEncoder	removeEncoder (char *name, bool complain=true)
DtAttributeChecker	addChecker (RTI::AttributeHandle hand, DtAttributeChecker func)
	Add/Remove a checker function for the attribute specified by handle.
DtAttributeChecker	removeChecker (RTI::AttributeHandle hand)
DtAttributeChecker	addChecker (char *name, DtAttributeChecker func, bool complain=true)
	Add/Remove a checker function for the attribute specified by name.
DtAttributeChecker	removeChecker (char *name, bool complain=true)
virtual DtAttributeEncoder	encoder (const RTI::AttributeHandle &handle)
	Get the attribute encoder for the specified handle.
virtual DtAttributeChecker	checker (const RTI::AttributeHandle &handle)
	Get the attribute checker for the specified handle.
virtual void	encode (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, const RTI::AttributeHandleSet &neededAttrs, const RTI::AttributeHandleSet &includeThese, DtStateMsg *msg)
	Encode necessary values from the state repository.
virtual RTI::ObjectClassHandle	objectClassHandle ()
	Get the object's class handle.
virtual DtHlaStateEncoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc.
virtual DtHlaStateEncoder *	clone () const
	Returns a new-ed clone of this object.

Static Public Member Functions
static DtHlaStateEncoder *	create (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	Create a DtBaseEntityEncoder. Caller is responsible for deletion.
Static Public Member Functions inherited from DtHlaStateEncoder
static bool	trueChecker (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	A checker function that always returns 1, meaning that the attribute for which it is being used will be deemed necessary to send on every tick.
static bool	falseChecker (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	A checker function that always returns 0, meaning that the attribute for which it is being used will never be deemed necessary to send.

Protected Member Functions
	DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER (RelativePosition)
	DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER (EntityID)
	for version <= 0.8
	DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER (HostObjectID)
	DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER (EntityIdentifier)
	for version > 0.8
	DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER (HostObjectIdentifier)
	DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER (RelativePosition)
	DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER (EntityID)
	for version <= 0.8
	DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER (HostObjectID)
	DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER (EntityIdentifier)
	for version > 0.8
	DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER (HostObjectIdentifier)

Additional Inherited Members
Public Types inherited from DtHlaStateEncoder
typedef void(*	DtAttributeEncoder )(const DtStateRepository &stateRep, RTI::AttributeHandleValuePairSet *avList, RTI::AttributeHandle handle)
	Attribute encoding function declaration.
typedef bool(*	DtAttributeChecker )(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	Attribute checking function declaration.
Protected Attributes inherited from DtHlaStateEncoder
DtExerciseConn *	myExConn
DtObjClassDesc *	myClassDesc
RTI::ObjectClassHandle	myHandle
std::map< RTI::AttributeHandle, DtAttributeEncoder >	myEncoderList
	myEncoderList and myCheckerList are arrays of classDesc->maxAttrHandle() items.
std::map< RTI::AttributeHandle, DtAttributeChecker >	myCheckerList
std::map< RTI::AttributeHandle, bool >	myReportedWarning
	myReportedWarning is an array for keeping track of which warnings have already been reported

Detailed Description

Instances of DtBaseEmbeddedSystemEncoder are used to encode a base embedded system state repository into a state message in an HLA environment.

Constructor & Destructor Documentation

DtBaseEmbeddedSystemEncoder::DtBaseEmbeddedSystemEncoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

default constructor

virtual DtBaseEmbeddedSystemEncoder::~DtBaseEmbeddedSystemEncoder ( )

virtual

destructor

DtBaseEmbeddedSystemEncoder::DtBaseEmbeddedSystemEncoder

(

const DtBaseEmbeddedSystemEncoder &

orig

)

copy constructor

Member Function Documentation

static DtHlaStateEncoder* DtBaseEmbeddedSystemEncoder::create ( DtExerciseConn *  exConn, DtObjClassDesc *  classDesc  )

static

Create a DtBaseEntityEncoder. Caller is responsible for deletion.

Reimplemented in DtIffEncoder, DtNatoIffEncoder, DtSovietIffEncoder, DtNatoIffTransponderEncoder, DtRRBIffEncoder, DtDesignatorEncoder, DtEmitterSystemEncoder, DtRadioReceiverEncoder, DtRadioTransmitterEncoder, DtAdditionalPassiveActivitiesEncoder, DtActiveSonarEncoder, DtPropulsionNoiseEncoder, and DtUnderwaterAcousticsEmissionEncoder.

DtBaseEmbeddedSystemEncoder::DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER ( RelativePosition  )

protected

DtBaseEmbeddedSystemEncoder::DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER ( EntityID  )

protected

for version <= 0.8

DtBaseEmbeddedSystemEncoder::DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER ( HostObjectID  )

protected

DtBaseEmbeddedSystemEncoder::DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER ( EntityIdentifier  )

protected

for version > 0.8

DtBaseEmbeddedSystemEncoder::DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER ( HostObjectIdentifier  )

protected

DtBaseEmbeddedSystemEncoder::DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER ( RelativePosition  )

protected

DtBaseEmbeddedSystemEncoder::DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER ( EntityID  )

protected

for version <= 0.8

DtBaseEmbeddedSystemEncoder::DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER ( HostObjectID  )

protected

DtBaseEmbeddedSystemEncoder::DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER ( EntityIdentifier  )

protected

for version > 0.8

DtBaseEmbeddedSystemEncoder::DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER ( HostObjectIdentifier  )

protected

DtBaseEmbeddedSystemEncoder& DtBaseEmbeddedSystemEncoder::operator=

(

const DtBaseEmbeddedSystemEncoder &

orig

)

assignment operator

---

The documentation for this class was generated from the following file:

• baseEmbeddedSystemEncoder.h
