DtHlaObjectWithStateRep Class Reference

class DtHlaObjectWithStateRep: More...

Inheritance diagram for DtHlaObjectWithStateRep:

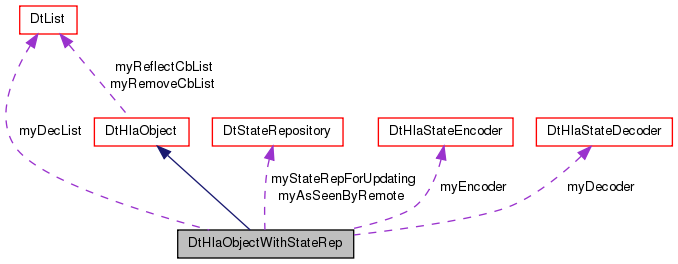

Collaboration diagram for DtHlaObjectWithStateRep:

Public Member Functions
	DtHlaObjectWithStateRep (DtExerciseConn *conn, RTI::ObjectHandle id, const char *name, DtObjClassDesc &classDesc, bool reflecting)
	constructor
	DtHlaObjectWithStateRep (DtExerciseConn *conn, const char *name, DtObjClassDesc &classDesc, bool reflecting)
	constructor
virtual	~DtHlaObjectWithStateRep ()
	destructor
virtual void	useTheseForUpdating (DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, DtHlaStateEncoder *encoder, DtHlaStateDecoder *decoder)
	Local Entity specific functions.
virtual void	generateUpdate (const RTI::AttributeHandleSet &eligibleAttrs, const RTI::AttributeHandleSet &requiredAttrs, DtStateMsg *stateMsg)
	Called by update() to actually generate an outgoing message.
virtual DtStateRepository *	stateRepForUpdating () const
	Returns current state repository used for updating.
virtual DtStateRepository *	stateRepForReflecting () const
	Returns current state repository used for reflecting.
virtual DtStateRepository *	asSeenByRemote () const
	Returns asSeenByRemote.
virtual void	useTheseForReflecting (DtStateRepository *stateRep, DtHlaStateDecoder *decoder)
	Remote Entity specific functions.
virtual void	stopUsingTheseForReflecting (DtStateRepository *stateRep, DtHlaStateDecoder *decoder)
	Remove a decoder/stateRep pair to use for decoding.
virtual void	reflect (const DtStateMsg &stateMsg)
	Receive representation (remote reflection) from the RTI, and update any state repositories that have been registered with us, to reflect this incoming data.
virtual void	reflectLocal (const DtStateMsg &stateMsg)
	When the DtExerciseConn's reflecting flag is on, this function is called when we send an update, so that the update can get reflected back into our "reflected" views of the object.
virtual void	printMsg (const DtStateMsg &msg, bool fullReport) const
	Prints contents of a state msg.
Public Member Functions inherited from DtHlaObject
	DtHlaObject (DtExerciseConn *conn, RTI::ObjectHandle id, const char *name, DtObjClassDesc &classDesc, bool reflecting=false)
	Constructor - used to construct a DtHlaObject to represent an object that we discover through an RTI callback.
	DtHlaObject (DtExerciseConn *conn, const char *name, DtObjClassDesc &classDesc, bool reflecting=false)
	Constructor - used to construct a DtHlaObject to represent an object that will be registered locally.
virtual	~DtHlaObject ()
	Destructor.
virtual const RTI::ObjectHandle &	objectId () const
	Get the object's handle.
virtual const RTI::AttributeHandleSet &	attrHandleSet ()
	Get the set of attributes associated with this object's FOM class.
virtual const RTI::AttributeHandleSet &	requestedAttributes ()
	Returns the union of all sets of attributes requested since the last call to clearRequestedAttributes.
virtual RTI::ObjectClassHandle	objectClassHandle () const
	Get the object's class handle.
virtual const char *	name () const
	Get the object's name.
int	numAttributes () const
	Get the number of attributes associated with this object's FOM class.
virtual DtExerciseConn *	exerciseConn () const
	Get the exercise connection for this object.
virtual DtObjClassDesc &	classDesc () const
	Get the class descriptor for the object's class.
virtual void	setupUpdating ()
	Local Object specific functions.
virtual void	update ()
	Generate and send any necessary attribute updates through the RTI.
virtual void	cleanupFromUpdating ()
	Do the deinitialization required to stop updating attributes of this object.
virtual void	processProvideUpdate (const RTI::AttributeHandleSet &set)
	Set yourself up so that on the next tick, you send an update for the appropriate attributes.
virtual void	clearRequestedAttributes ()
	Clears the set of requested attributes.
virtual const RTI::AttributeHandleSet &	ownedAttributes ()
	Returns the set of attributes of this object that are owned by the local federate.
virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time update is called, even if they would not otherwise need to be sent.
virtual void	forceUpdate (const RTI::AttributeHandleSet &set)
virtual void	clearForcedAttributes ()
	Clear (empty) the set of forced attributes.
virtual const RTI::AttributeHandleSet &	attributesNeededByFederation ()
	Returns the set of attributes that are currently needed by the federation, i.e.
virtual const RTI::AttributeHandleSet &	eligibleAttributes ()
	Returns the set of attributes that eligible for sending.
virtual const RTI::AttributeHandleSet &	requiredAttributes ()
	Returns the set of attributes that should be included in the next update regardless of whether their update conditions have been met.
bool	classNeededByFederation ()
	Returns true if the class is needed by the federation, i.e.
void	setupClassForUpdating ()
	If the class has never been published, publish it with all attributes using DtObjClassDesc::publish.
virtual void	setupReflecting ()
	Remote Object specific functions.
virtual void	callReflect (const DtStateMsg &msg)
	Calls reflect, and any postReflect callbacks.
virtual void	callReflectLocal (const DtStateMsg &msg)
	Calls reflectLocal, and any postReflect callbacks.
virtual void	cleanupFromReflecting ()
	Do the deinitialization required to stop handling reflection of object.
virtual void	requestUpdate (RTI::AttributeHandleSet *attrs=0)
	Request an update for the object for the set of attributes indicated by attrs (or all subscribed attributes if attrs is NULL).
virtual void	addRemoveObjectCb (DtRemoveObjectCb cb, void *usr)
	Add (register) function to be called when object is about to be removed.
virtual void	removeRemoveObjectCb (DtRemoveObjectCb cb, void *usr)
	Remove (deregister) function to be called when object is about to be removed.
virtual void	addPostReflectCb (DtObjectReflectAttributeValuesCb cb, void *usr)
	Add (register) function to be called after each reflectAttrValues.
virtual void	removePostReflectCb (DtObjectReflectAttributeValuesCb cb, void *usr)
	Remove (deregister) function to be called after each reflectAttrValues.
virtual void	processRemoveObject ()
	Process notification of removal of the object from the network.
virtual DtOwnershipHandler *	setOwnershipHandler (DtOwnershipHandler *handler)
	Ownership-Management-related functions.
virtual void	unconditionalDivest (const RTI::AttributeHandleSet &attrs)
	Unconditionally divest ownership of attrs.
virtual void	negotiatedDivest (const RTI::AttributeHandleSet &attrs)
	Try to divest ownership of attrs.
virtual void	cancelNegotiatedDivest (const RTI::AttributeHandleSet &attrs)
	Cancel a negotiated divestiture of attributes.
virtual void	acquireAttributes (const RTI::AttributeHandleSet &attrs, bool ifAvailable=false)
	Attempt to acquire ownership of attributes.
virtual void	cancelAcquireAttributes (const RTI::AttributeHandleSet &attrs)
	Cancel the request to acquire ownership of attrs.
virtual DtTime	lastSimTimeUpdateReceived () const
	Returns the value of VR-Link simulation time at the time the last attribute update was received for this object.
virtual DtTime	lastReceivedTimeStamp () const
virtual void	localSubscriptionChanged ()
	Called when local object class subscriptions change.
virtual void	publicationChanged ()
	Called when there is a change in the publication status of this object's object class.
virtual void	processRequestAssumption (const RTI::AttributeHandleSet &attrs, const char *tag)
	Process RTI's requestAttributeOwnershipAssumption service.
virtual void	processRequestRelease (const RTI::AttributeHandleSet &attrs, const char *tag)
	Process RTI's requestAttributeOwnershipRelease service.
virtual void	processAttributeAcquisition (const RTI::AttributeHandleSet &attrs)
	Handle an invocation of the attributeOwnershipAcquisitionNotification service.
virtual void	processAttributeDivestiture (const RTI::AttributeHandleSet &attrs)
	Handle an invocation of the attributeOwnershipDivestitureNotification service.
virtual void	processConfirmAcquisitionCancellation (const RTI::AttributeHandleSet &attrs)
	Process RTI's conformAttributeOwnershipAcquisitionCancellation service.

Static Public Member Functions
static DtHlaObject *	create (DtExerciseConn *conn, RTI::ObjectHandle id, const char *name, DtObjClassDesc &classDesc, bool reflecting)
	Creator function for this class.
Static Public Member Functions inherited from DtHlaObject
static void	ownerAcquisitionIfAvailableCb (void *usr)
	The following four static fns are for use within ownership msg callbacks.
static void	ownerAcquisitionCb (void *usr)
static void	negotiatedDivestitureCb (void *usr)
static void	unconditionalDivestitureCb (void *usr)

Protected Member Functions
	DtHlaObjectWithStateRep (const DtHlaObjectWithStateRep &orig)
	copy constructor - not implemented.
DtHlaObjectWithStateRep &	operator= (const DtHlaObjectWithStateRep &orig)
	assignment operator - not implemented.
Protected Member Functions inherited from DtHlaObject
	DtHlaObject ()
	Default constructor: not implemented; do not call.
	DtHlaObject (const DtHlaObject &src)
	Copy constructor: not implemented; do not call.
DtHlaObject &	operator= (const DtHlaObject &src)
	Assignment operator: not implemented; do not call.
virtual void	setLastSimTimeUpdateReceived (DtTime tm)
	Set the time an update was last received or sent.
virtual void	setLastReceivedTimeStamp (DtTime tm)
virtual void	copyToLocalAndRemote (const RTI::AttributeHandleValuePairSet &sourceList, const RTI::AttributeHandleSet &neededByRemote, const RTI::AttributeHandleSet &neededByLocal, RTI::AttributeHandleValuePairSet &toRemoteList, RTI::AttributeHandleValuePairSet &toLocalList)
	Copy attribute values from source into remote and local lists.
virtual void	clearUpdatedAttributes (const RTI::AttributeHandleValuePairSet &sourceList)
	Remove the attributes present in the given value set from the requested and forced handle sets.
void	wipeRemoveList ()
	Remove all callbacks from the remove callback list.
virtual void	clearRemoveList ()
	Virtual version of above.
void	wipeReflectList ()
	Remove all callbacks from the reflect callback list.
virtual void	applyPostReflectCallbacks (const DtStateMsg &msg)
	Apply callbacks after a state msg is reflected.
virtual void	loseOwnership (const RTI::AttributeHandleSet &attrs)
	Gets called whenever we lose ownership of a set of attributes.
virtual void	gainOwnership (const RTI::AttributeHandleSet &attrs)
	Gets called whenever we gain ownership of a set of attributes.
virtual void	processUpdatesOff (const RTI::AttributeHandleSet &set)
	Callback for handling turnUpdatesOffForObjectInstance RTI call.
void	processUpdatesOn (const RTI::AttributeHandleSet &set)
	Callback for handling turnUpdatesOnForObjectInstance RTI call.
virtual bool	known () const
	Returns true if the object has been registered with, or discovered via the RTI.
void	dumpRtiException (const char *functionName, const RTI::Exception *exc) const
	Print message to explain the RTI Exception.
virtual void	computeEligible ()
	Recomputes the set of attrs that are eligible for sending.
virtual void	justRegistered ()
	Called by DtHlaObjectManager right after a DtHlaObject is created, if it was created to represent a newly registered object.
virtual void	addHandlesToSet (RTI::AttributeHandleSet &destinationSet, const RTI::AttributeHandleSet &sourceSet)
	Add source attribute set to destination checking each handle for membership first.

Protected Attributes
DtHlaStateDecoder *	myDecoder
	These are all used for encoding only.
DtHlaStateEncoder *	myEncoder
DtStateRepository *	myStateRepForUpdating
DtStateRepository *	myAsSeenByRemote
DtList	myDecList
	List of decoder/stateRep pairs.
Protected Attributes inherited from DtHlaObject
char *	myName
DtExerciseConn *	myExConn
bool	myReflecting
bool	myUpdating
DtList	myRemoveCbList
DtList	myReflectCbList
DtListItem *	myRemoveCbListNextPtr
DtListItem *	myReflectCbListNextPtr
DtTime	myLastSimTimeUpdateReceived
DtTime	myLastReceivedTimeStamp
DtObjClassDesc &	myClassDesc
RTI::ObjectHandle	myObjectId
RTI::AttributeHandleSet *	myEligibleAttrs
	Attributes that are eligible to be sent from within update() - passed to generateUpdate.
RTI::AttributeHandleSet *	myNeededAttrs
	Set of owned attributes for which we have received a turnUpdatesOn more recently than a turnUpdatesOff.
RTI::AttributeHandleSet *	myOwnedAttributes
	Set of attributes owned by the local federate.
RTI::AttributeHandleSet *	myRequestedAttributes
	Requested by other federates.
RTI::AttributeHandleSet *	myForcedAttributes
	Requested by a call to setForcedUpdate.
RTI::AttributeHandleSet *	myRequiredAttributes
	Union of forced and requested - not computed until needed.
DtOwnershipHandler *	myOwnershipHandler

Additional Inherited Members
Static Protected Member Functions inherited from DtHlaObject
static void	reflectAttributeValuesCb (const DtStateMsg &stateMsg, void *hlaObj)
	Callback for handling state messages for the HLA object.
static void	updatesOnCb (RTI::ObjectHandle handle, const RTI::AttributeHandleSet &attributeSet, void *usr)
	Callback for handling turnUpdatesOnForObjectInstance RTI call.
static void	updatesOffCb (RTI::ObjectHandle handle, const RTI::AttributeHandleSet &attributeSet, void *usr)
	Callback for handling turnUpdatesOffForObjectInstance RTI call.

Detailed Description

class DtHlaObjectWithStateRep:

Instances of DtHlaObjectWithStateRep are used to represent an HLA object via a state representation.

Constructor & Destructor Documentation

DtHlaObjectWithStateRep::DtHlaObjectWithStateRep	(	DtExerciseConn *	conn,
		RTI::ObjectHandle	id,
		const char *	name,
		DtObjClassDesc &	classDesc,
		bool	reflecting
	)

constructor

Referenced by create().

DtHlaObjectWithStateRep::DtHlaObjectWithStateRep	(	DtExerciseConn *	conn,
		const char *	name,
		DtObjClassDesc &	classDesc,
		bool	reflecting
	)

constructor

virtual DtHlaObjectWithStateRep::~DtHlaObjectWithStateRep ( )

virtual

destructor

DtHlaObjectWithStateRep::DtHlaObjectWithStateRep ( const DtHlaObjectWithStateRep &  orig )

protected

copy constructor - not implemented.

Member Function Documentation

DtStateRepository * DtHlaObjectWithStateRep::asSeenByRemote ( ) const

inlinevirtual

Returns asSeenByRemote.

References myAsSeenByRemote.

DtHlaObject * DtHlaObjectWithStateRep::create ( DtExerciseConn *  conn, RTI::ObjectHandle  id, const char *  name, DtObjClassDesc &  classDesc, bool  reflecting  )

inlinestatic

Creator function for this class.

References DtHlaObjectWithStateRep().

virtual void DtHlaObjectWithStateRep::generateUpdate ( const RTI::AttributeHandleSet &  eligibleAttrs, const RTI::AttributeHandleSet &  requiredAttrs, DtStateMsg *  stateMsg  )

virtual

Called by update() to actually generate an outgoing message.

This class's implementation uses an encoder, and stateRepositories to perform this function. eligibleAttrs is the set of owned attributes to which remote federates have subscribed. requiredAttrs is the set of attributes that have been requested or forced by application code since the attribute was last sent. stateMsg is the message to fill out.

Reimplemented from DtHlaObject.

DtHlaObjectWithStateRep& DtHlaObjectWithStateRep::operator= ( const DtHlaObjectWithStateRep &  orig )

protected

assignment operator - not implemented.

virtual void DtHlaObjectWithStateRep::printMsg ( const DtStateMsg &  msg, bool  fullReport  ) const

virtual

Prints contents of a state msg.

Base class prints only header info. If fullReport set to true, printMsg requests a full status print out for objects with a state repository.

Reimplemented from DtHlaObject.

virtual void DtHlaObjectWithStateRep::reflect ( const DtStateMsg &  stateMsg )

virtual

Receive representation (remote reflection) from the RTI, and update any state repositories that have been registered with us, to reflect this incoming data.

If the exercise connection's reflecting flag is set, and its reflectRemoteUpdatesIntoPub flag is set, then we decode the message into myStateRepForUpdating in addition to any state repositories that have been registered with us for reflection.

Implements DtHlaObject.

virtual void DtHlaObjectWithStateRep::reflectLocal ( const DtStateMsg &  stateMsg )

virtual

When the DtExerciseConn's reflecting flag is on, this function is called when we send an update, so that the update can get reflected back into our "reflected" views of the object.

Implements DtHlaObject.

virtual DtStateRepository* DtHlaObjectWithStateRep::stateRepForReflecting ( ) const

virtual

Returns current state repository used for reflecting.

Returns the state repository containing the current reflected state of the entity. If there is more than one such state repository (e.g. you have multiple RELs in your application), the first one is returned.

DtStateRepository * DtHlaObjectWithStateRep::stateRepForUpdating ( ) const

inlinevirtual

Returns current state repository used for updating.

References myStateRepForUpdating.

virtual void DtHlaObjectWithStateRep::stopUsingTheseForReflecting ( DtStateRepository *  stateRep, DtHlaStateDecoder *  decoder  )

virtual

Remove a decoder/stateRep pair to use for decoding.

virtual void DtHlaObjectWithStateRep::useTheseForReflecting ( DtStateRepository *  stateRep, DtHlaStateDecoder *  decoder  )

virtual

Remote Entity specific functions.

Add a decoder/stateRep pair to use for decoding. Incoming HLA messages will be decoded into stateRep using decoder.

virtual void DtHlaObjectWithStateRep::useTheseForUpdating ( DtStateRepository *  stateRep, DtStateRepository *  asSeenByRemote, DtHlaStateEncoder *  encoder, DtHlaStateDecoder *  decoder  )

virtual

Local Entity specific functions.

Set the state repositories (local representation and remote reflection), and the encoder and decoder which are used to send and receive HLA state messages from/into the repository.

Member Data Documentation

DtStateRepository* DtHlaObjectWithStateRep::myAsSeenByRemote

protected

Referenced by asSeenByRemote().

DtList DtHlaObjectWithStateRep::myDecList

protected

List of decoder/stateRep pairs.

It is a list of pointers to DtHlaObjectView. They are used for decoding.

DtHlaStateDecoder* DtHlaObjectWithStateRep::myDecoder

protected

These are all used for encoding only.

DtHlaStateEncoder* DtHlaObjectWithStateRep::myEncoder

protected

DtStateRepository* DtHlaObjectWithStateRep::myStateRepForUpdating

protected

Referenced by stateRepForUpdating().

---

The documentation for this class was generated from the following file:

• hlaObjectWithStateRep.h
