DtFomMapper Class Reference

Instances of DtFomMapper are used to provide FOM agility in VR-Link by mapping VR-Link classes and functionality to FOM classes, attributes and parameters. More...

Inheritance diagram for DtFomMapper:

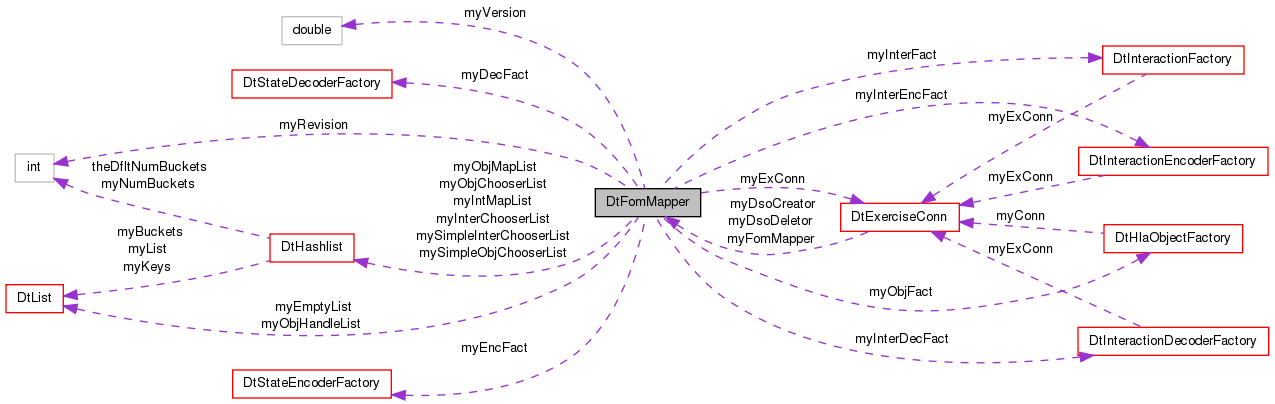

Collaboration diagram for DtFomMapper:

Public Types
typedef char *(*	DtInteractionClassChooser )(DtExerciseConn *exConn, const DtInteraction &inter)
	A function that chooses an interaction class from the FOM based on the contents of a derived DtInteraction object.
typedef char *(*	DtObjectClassChooser )(const char *vrlinkClassName, DtExerciseConn *conn, void *usr)
	A function that chooses an object class from the FOM based based on the name of a C++ class derived from DtObjectPublisher, and arbitrary user data (e.g.

Public Member Functions
	DtFomMapper ()
	Default constructor.
virtual	~DtFomMapper ()
	destructor
virtual DtStateDecoderFactory *	setStateDecoderFactory (DtStateDecoderFactory *fact)
	Set/Get the current factory that can be used to create DtHlaStateDecoders.
virtual DtStateDecoderFactory *	stateDecoderFactory ()
virtual DtStateEncoderFactory *	setStateEncoderFactory (DtStateEncoderFactory *fact)
	Set/Get the current factory that can be used to create DtHlaStateEncoders.
virtual DtStateEncoderFactory *	stateEncoderFactory ()
virtual DtInteractionDecoderFactory *	setInteractionDecoderFactory (DtInteractionDecoderFactory *fact)
	Set/Get the current factory that can be used to create DtInteractionDecoders.
virtual DtInteractionDecoderFactory *	interactionDecoderFactory ()
virtual DtInteractionEncoderFactory *	setInteractionEncoderFactory (DtInteractionEncoderFactory *fact)
	Set/Get the current factory that can be used to create DtInteractionEncoders.
virtual DtInteractionEncoderFactory *	interactionEncoderFactory ()
virtual DtHlaObjectFactory *	setHlaObjectFactory (DtHlaObjectFactory *fact)
	Set/Get the current factory that can be used to create DtHlaObjects.
virtual DtHlaObjectFactory *	hlaObjectFactory ()
virtual DtInteractionFactory *	setInteractionFactory (DtInteractionFactory *fact)
	Set/Get the current factory that can be used to create DtInteractions.
virtual DtInteractionFactory *	interactionFactory ()
virtual void	setObjectClassToChoose (const char *vrlinkClassName, const char *fomClassName)
	Tell the FOM Mapper how to choose a FOM object class to use for objects being published by a particular kind of object publisher.
virtual void	setObjectClassChooser (const char *vrlinkClassName, DtObjectClassChooser chooser)
virtual char *	chooseObjectClass (const char *vrlinkClassName, void *usr=NULL) const
	Chooses an object class to represent an object managed by the C++ class named vrlinkClassName (which should be a class derived from DtObjectPublisher).
virtual void	setInteractionClassToChoose (const char *vrlinkClassName, const char *fomClassName)
	Tell the FOM Mapper how to choose a FOM interaction class to use for a particular kind of derived DtInteraction.
virtual void	setInteractionClassChooser (const char *vrlinkClassName, DtInteractionClassChooser chooser)
virtual char *	chooseInteractionClass (const DtInteraction &inter) const
	Chooses a FOM interaction class to be by a particular derived DtInteraction class named vrlinkClassName.
virtual void	setInteractionClasses (const char *vrlinkClassName, const DtList &classes)
	Set/Get a list of names (char*) of FOM classes that can be decoded into the derived DtInteraction class whose name is name.
virtual DtList *	interactionClasses (const char *vrlinkClassName)
virtual void	setInteractionClass (const char *vrlinkClassName, const char *fomClassName)
	When there is only a single FOM class to be associated with a VR-Link interaction class, then there is no need to create a DtList.
virtual void	setObjectClassNames (const char *vrlinkClassName, const DtList &classes)
	Set/Get a list of names (char*) of FOM object classes that should be subscribed to by a particular subclass of VR-Link's DtReflectedObjectList.
virtual DtList *	objectClassNames (const char *vrlinkClassName)
virtual DtList *	objectClassHandles (const char *vrlinkClassName)
	Similar to objectClassNames, but returns a DtList of ObjectClassHandles instead.
virtual void	setObjectClass (const char *vrlinkClassName, const char *fomClassName)
	When there is only a single FOM class to be associated with a VR-Link DtReflectedObjectList class, then there is no need to create a DtList.
virtual void	init (DtExerciseConn *conn)=0
	Initialize the instance, once an exercise connection is available.
virtual void	setVersion (double vers)
	Returns the version number of the FOM, as passed to setVersion.
virtual double	version () const
virtual void	setRevision (int val)
	Sets the revision number of the FOM.
virtual int	revision () const
	Returns the revision number of the FOM.
virtual DtObjectClassChooser	objectClassChooser (const char *vrlinkClassName) const
	Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtObjectPublisher using setObjectClassChooser.
virtual DtInteractionClassChooser	interactionClassChooser (const char *vrlinkClassName) const
	Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtInteraction using setInteractionClassChooser.

Protected Member Functions
	DtFomMapper (const DtFomMapper &orig)
	copy constructor - not implemented.
DtFomMapper &	operator= (const DtFomMapper &orig)
	assignment operator - not implemented.

Protected Attributes
DtExerciseConn *	myExConn
DtStateDecoderFactory *	myDecFact
	Current factories and other objects.
DtStateEncoderFactory *	myEncFact
DtInteractionDecoderFactory *	myInterDecFact
DtInteractionEncoderFactory *	myInterEncFact
DtHlaObjectFactory *	myObjFact
DtInteractionFactory *	myInterFact
DtHashlist	myIntMapList
	Hash list that maps names of C++ classes derived from DtInteraction to lists of names of FOM classes.
DtHashlist	myObjMapList
	Hash list that maps names of C++ classes derived from DtReflectedObjectList to lists of names of FOM classes.
DtHashlist	myObjChooserList
	Hash list that maps names of C++ classes derived from DtObjectPublisher to DtObjectClassChoosers - functions that can choose an object class name from the FOM to use for the object.
DtHashlist	mySimpleObjChooserList
	Hash list that maps names of C++ classes derived from DtObjectPublisher to single FOM object class names.
DtHashlist	myInterChooserList
	Hash list that maps names of C++ classes derived from DtInteraction to DtInteractionClassChoosers - functions that can choose an interaction class name from the FOM to use for the interaction.
DtHashlist	mySimpleInterChooserList
	Hash list that maps names of C++ classes derived from DtInteraction to single FOM object class names.
DtList	myObjHandleList
	The object returned by objectClassHandles.
DtList	myEmptyList
	Just an empty list to return when no class list has been registered for a particular VR-Link class.
double	myVersion
int	myRevision

Detailed Description

Instances of DtFomMapper are used to provide FOM agility in VR-Link by mapping VR-Link classes and functionality to FOM classes, attributes and parameters.

DtFomMapper is an abstract class. Most FOM Mappers (including DtRprFomMapper) are derived from DtEmptyFomMapper, and not directly from DtFomMapper.

Member Typedef Documentation

typedef char*(* DtFomMapper::DtInteractionClassChooser)(DtExerciseConn *exConn, const DtInteraction &inter)

A function that chooses an interaction class from the FOM based on the contents of a derived DtInteraction object.

typedef char*(* DtFomMapper::DtObjectClassChooser)(const char *vrlinkClassName, DtExerciseConn *conn, void *usr)

A function that chooses an object class from the FOM based based on the name of a C++ class derived from DtObjectPublisher, and arbitrary user data (e.g.

entity type).

Constructor & Destructor Documentation

DtFomMapper::DtFomMapper

(

)

Default constructor.

Typically, most initialization takes place within init(), which is called by DtExerciseConn's constructor.

virtual DtFomMapper::~DtFomMapper ( )

virtual

destructor

DtFomMapper::DtFomMapper ( const DtFomMapper &  orig )

protected

copy constructor - not implemented.

Member Function Documentation

virtual char* DtFomMapper::chooseInteractionClass ( const DtInteraction &  inter ) const

virtual

Chooses a FOM interaction class to be by a particular derived DtInteraction class named vrlinkClassName.

virtual char* DtFomMapper::chooseObjectClass ( const char *  vrlinkClassName, void *  usr = NULL  ) const

virtual

Chooses an object class to represent an object managed by the C++ class named vrlinkClassName (which should be a class derived from DtObjectPublisher).

usr is additional user data that may be required to make the choice. It is passed as usr to a chooser function that has been registered with the FOM Mapper for this publisher type, if any.

virtual DtHlaObjectFactory* DtFomMapper::hlaObjectFactory ( )

virtual

virtual void DtFomMapper::init ( DtExerciseConn *  conn )

pure virtual

Initialize the instance, once an exercise connection is available.

Must be overridden in subclasses.

Implemented in DtRprFomMapper, MyFomMapper, and DtEmptyFomMapper.

virtual DtInteractionClassChooser DtFomMapper::interactionClassChooser ( const char *  vrlinkClassName ) const

virtual

Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtInteraction using setInteractionClassChooser.

virtual DtList* DtFomMapper::interactionClasses ( const char *  vrlinkClassName )

virtual

virtual DtInteractionDecoderFactory* DtFomMapper::interactionDecoderFactory ( )

virtual

virtual DtInteractionEncoderFactory* DtFomMapper::interactionEncoderFactory ( )

virtual

virtual DtInteractionFactory* DtFomMapper::interactionFactory ( )

virtual

virtual DtObjectClassChooser DtFomMapper::objectClassChooser ( const char *  vrlinkClassName ) const

virtual

Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtObjectPublisher using setObjectClassChooser.

virtual DtList* DtFomMapper::objectClassHandles ( const char *  vrlinkClassName )

virtual

Similar to objectClassNames, but returns a DtList of ObjectClassHandles instead.

The returned list is owned by the DtFomMapper, and should not be deleted. In addition, it is only valid until the next call to this function. If using HLA 1.3 the ObjectClassHandles are returned cast as void * in the list If using HLA 1516 the list contains pointers to a valid RTI::ObjectClassHandle

virtual DtList* DtFomMapper::objectClassNames ( const char *  vrlinkClassName )

virtual

DtFomMapper& DtFomMapper::operator= ( const DtFomMapper &  orig )

protected

assignment operator - not implemented.

virtual int DtFomMapper::revision ( ) const

virtual

Returns the revision number of the FOM.

virtual DtHlaObjectFactory* DtFomMapper::setHlaObjectFactory ( DtHlaObjectFactory *  fact )

virtual

Set/Get the current factory that can be used to create DtHlaObjects.

virtual void DtFomMapper::setInteractionClass ( const char *  vrlinkClassName, const char *  fomClassName  )

virtual

When there is only a single FOM class to be associated with a VR-Link interaction class, then there is no need to create a DtList.

Just use this:

virtual void DtFomMapper::setInteractionClassChooser ( const char *  vrlinkClassName, DtInteractionClassChooser  chooser  )

virtual

virtual void DtFomMapper::setInteractionClasses ( const char *  vrlinkClassName, const DtList &  classes  )

virtual

Set/Get a list of names (char*) of FOM classes that can be decoded into the derived DtInteraction class whose name is name.

These classes will be subscribed to, when you use a derived DtInteraction's addCallback function. The DtFomMapper copies the data in the list passed to setInteractionClasses, so the object can be deleted at the caller's leisure. The list returned by interactionClasses is owned by the DtFomMapper and shouldn't be deleted by the caller.

virtual void DtFomMapper::setInteractionClassToChoose ( const char *  vrlinkClassName, const char *  fomClassName  )

virtual

Tell the FOM Mapper how to choose a FOM interaction class to use for a particular kind of derived DtInteraction.

You can either associate a single FOM class name, or a FOM class choosing function with the name of a C++ class derived from DtInteraction.

virtual DtInteractionDecoderFactory* DtFomMapper::setInteractionDecoderFactory ( DtInteractionDecoderFactory *  fact )

virtual

Set/Get the current factory that can be used to create DtInteractionDecoders.

virtual DtInteractionEncoderFactory* DtFomMapper::setInteractionEncoderFactory ( DtInteractionEncoderFactory *  fact )

virtual

Set/Get the current factory that can be used to create DtInteractionEncoders.

virtual DtInteractionFactory* DtFomMapper::setInteractionFactory ( DtInteractionFactory *  fact )

virtual

Set/Get the current factory that can be used to create DtInteractions.

virtual void DtFomMapper::setObjectClass ( const char *  vrlinkClassName, const char *  fomClassName  )

virtual

When there is only a single FOM class to be associated with a VR-Link DtReflectedObjectList class, then there is no need to create a DtList.

Just use this:

virtual void DtFomMapper::setObjectClassChooser ( const char *  vrlinkClassName, DtObjectClassChooser  chooser  )

virtual

virtual void DtFomMapper::setObjectClassNames ( const char *  vrlinkClassName, const DtList &  classes  )

virtual

Set/Get a list of names (char*) of FOM object classes that should be subscribed to by a particular subclass of VR-Link's DtReflectedObjectList.

vrlinkClassName is the name of the DtReflectedObjectList subclass for which you are creating a mapping. The DtFomMapper copies the data in the list passed to setObjectClassNames, so the object can be deleted at the caller's leisure. The list returned by objectClassNames is owned by the DtFomMapper and shouldn't be deleted by the caller.

virtual void DtFomMapper::setObjectClassToChoose ( const char *  vrlinkClassName, const char *  fomClassName  )

virtual

Tell the FOM Mapper how to choose a FOM object class to use for objects being published by a particular kind of object publisher.

You can either associate a single FOM class name, or a FOM class choosing function with the name of a C++ class derived from DtObjectPublisher.

virtual void DtFomMapper::setRevision ( int  val )

virtual

Sets the revision number of the FOM.

virtual DtStateDecoderFactory* DtFomMapper::setStateDecoderFactory ( DtStateDecoderFactory *  fact )

virtual

Set/Get the current factory that can be used to create DtHlaStateDecoders.

virtual DtStateEncoderFactory* DtFomMapper::setStateEncoderFactory ( DtStateEncoderFactory *  fact )

virtual

Set/Get the current factory that can be used to create DtHlaStateEncoders.

virtual void DtFomMapper::setVersion ( double  vers )

virtual

Returns the version number of the FOM, as passed to setVersion.

virtual DtStateDecoderFactory* DtFomMapper::stateDecoderFactory ( )

virtual

virtual DtStateEncoderFactory* DtFomMapper::stateEncoderFactory ( )

virtual

virtual double DtFomMapper::version ( ) const

virtual

Member Data Documentation

DtStateDecoderFactory* DtFomMapper::myDecFact

protected

Current factories and other objects.

DtList DtFomMapper::myEmptyList

protected

Just an empty list to return when no class list has been registered for a particular VR-Link class.

DtStateEncoderFactory* DtFomMapper::myEncFact

protected

DtExerciseConn* DtFomMapper::myExConn

protected

DtHashlist DtFomMapper::myInterChooserList

protected

Hash list that maps names of C++ classes derived from DtInteraction to DtInteractionClassChoosers - functions that can choose an interaction class name from the FOM to use for the interaction.

DtInteractionDecoderFactory* DtFomMapper::myInterDecFact

protected

DtInteractionEncoderFactory* DtFomMapper::myInterEncFact

protected

DtInteractionFactory* DtFomMapper::myInterFact

protected

DtHashlist DtFomMapper::myIntMapList

protected

Hash list that maps names of C++ classes derived from DtInteraction to lists of names of FOM classes.

Hash keys are DtStringHashKeys. Data are DtLists of char*'s that indicate FOM class names.

DtHashlist DtFomMapper::myObjChooserList

protected

Hash list that maps names of C++ classes derived from DtObjectPublisher to DtObjectClassChoosers - functions that can choose an object class name from the FOM to use for the object.

DtHlaObjectFactory* DtFomMapper::myObjFact

protected

DtList DtFomMapper::myObjHandleList

protected

The object returned by objectClassHandles.

It is reused and overwritten each call.

DtHashlist DtFomMapper::myObjMapList

protected

Hash list that maps names of C++ classes derived from DtReflectedObjectList to lists of names of FOM classes.

Hash keys are DtStringHashKeys. Data are DtLists of char*s that indicate FOM class names.

int DtFomMapper::myRevision

protected

DtHashlist DtFomMapper::mySimpleInterChooserList

protected

Hash list that maps names of C++ classes derived from DtInteraction to single FOM object class names.

DtHashlist DtFomMapper::mySimpleObjChooserList

protected

Hash list that maps names of C++ classes derived from DtObjectPublisher to single FOM object class names.

double DtFomMapper::myVersion

protected

---

The documentation for this class was generated from the following file:

• fomMapper.h
