DtArealObjectRepository Class Reference

Instances of DtArealObjectRepository are used to maintain state information needed by areal object entities. More...

Inheritance diagram for DtArealObjectRepository:

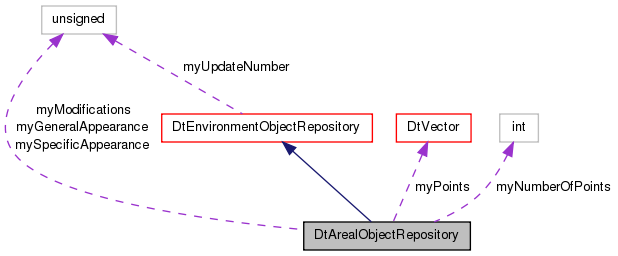

Collaboration diagram for DtArealObjectRepository:

Public Member Functions
	DtArealObjectRepository ()
	Default CTOR.
	DtArealObjectRepository (const DtArealObjectRepository &orig)
virtual	~DtArealObjectRepository ()
	Virtual DTOR.
DtArealObjectRepository &	operator= (const DtArealObjectRepository &orig)
	Assignment Operator.
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	setModifications (DtU8 mod)
	Set/Get Modifications.
virtual DtU8	modifications () const
virtual void	setGeneralAppearance (DtU16 appearance)
	Set/Get General Appearance.
virtual DtU16	generalAppearance () const
virtual void	setSpecificAppearance (DtU32 appearance)
	Set/Get Specific Appearance.
virtual DtU32	specificAppearance () const
virtual void	setGeneralAppearanceAttribute (DtAppearAttribute attr, DtAppearAttrVal val)
	Set/Get General Appearance Attribute.
virtual DtAppearAttrVal	generalAppearanceAttribute (DtAppearAttribute attr) const
virtual void	setSpecificAppearanceAttribute (DtAppearAttribute attr, DtAppearAttrVal val)
	Set/Get Specific Appearance Attribute.
virtual DtU32	specificAppearanceAttribute (DtAppearAttribute attr) const
virtual bool	setNumberOfPoints (int newNumberOfPoints)
	Set/Get the number of points.
virtual int	numberOfPoints () const
virtual bool	setPointLocation (int index, const DtVector &point)
	Set/Get a point location.
virtual bool	getPointLocation (int index, DtVector &point) const
virtual void	setPercentComplete (DtU32 percent)
	Set/Get Percent Complete.
virtual DtU32	percentComplete () const
virtual void	setDamagedAppearance (DtDamageState damage)
	Set/Get Damaged Appearance.
virtual DtDamageState	damagedAppearance () const
virtual void	setObjectPreDistributed (bool predistributed)
	Set/Get Object Predistributed.
virtual bool	objectPreDistributed () const
virtual void	setDeactivated (bool onOff)
	Set/Get Deactivated.
virtual bool	deactivated () const
virtual void	setSmoking (bool onOff)
	Set/Get Smoking.
virtual bool	smoking () const
virtual void	setFlaming (bool onOff)
	Set/Get Flaming.
virtual bool	flaming () const
virtual void	printData () const
	Prints data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Prints data to the specified stream.
Minefield Object Attributes
virtual void	setBreachedStatus (DtBreachStatus status)
	Set/Get Breached Status.
virtual DtBreachStatus	breachedStatus () const
	Set/Get Breached Status.
virtual void	setMineCount (DtU32 numMines)
	Set/Get Mine Count.
virtual DtU32	mineCount () const
	Set/Get Breached Status.
Public Member Functions inherited from DtEnvironmentObjectRepository
	DtEnvironmentObjectRepository ()
	CTOR.
	DtEnvironmentObjectRepository (const DtEnvironmentObjectRepository &orig)
	Copy CTOR.
virtual	~DtEnvironmentObjectRepository ()
	DTOR.
DtEnvironmentObjectRepository &	operator= (const DtEnvironmentObjectRepository &orig)
	Assignment operator.
virtual void	setObjectId (const DtEntityIdentifier &identifier)
	Set/Get Environment Object ID.
virtual const DtEntityIdentifier &	objectId () const
virtual void	setReferencedObjectId (const DtGlobalObjectDesignator &rtiObject)
	Set/Get Referenced Object ID.
virtual const DtGlobalObjectDesignator &	referencedObjectId () const
virtual void	setUpdateNumber (DtU16 num)
	Set/Get Update Number.
virtual DtU16	updateNumber () const
virtual void	setForceId (const DtForceType value)
	Set/Get Force ID.
virtual DtForceType	forceId () const
virtual void	setObjectType (const DtSyntheticEnvironmentObjectType &type)
	Set/Get Object Type.
virtual const DtSyntheticEnvironmentObjectType &	objectType () const
virtual void	setRequesterSimId (const DtSimulationAddress &addr)
	Set/Get Requester Simulation ID.
virtual const DtSimulationAddress	requesterSimId () const
virtual void	setReceivingSimId (const DtSimulationAddress &addr)
	Set/Get Receiving Simulation ID.
virtual const DtSimulationAddress	receivingSimId () const
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	The following functions are related to the extendability part of DIS 7.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const
virtual unsigned int	numberOfAttributeRecords () const

Static Public Member Functions
static DtArealObjectRepository *	create ()
	Static creation method.

Protected Attributes
DtU8	myModifications
DtU16	myGeneralAppearance
DtU32	mySpecificAppearance
int	myNumberOfPoints
DtVector *	myPoints
Protected Attributes inherited from DtEnvironmentObjectRepository
DtEntityIdentifier	myObjectId
DtGlobalObjectDesignator	myReferencedObjId
DtU16	myUpdateNumber
DtForceType	myForceId
DtSyntheticEnvironmentObjectType	myObjectType
DtSimulationAddress	myRequesterSimId
DtSimulationAddress	myReceivingSimId

Additional Inherited Members
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap

Detailed Description

Instances of DtArealObjectRepository are used to maintain state information needed by areal object entities.

The type of areal object published depends on the object type specified: Object Types: MinefieldObject – Domain = 0 (other), Kind = 1 (obstacle), Category = 1

Object of types not specified will be published as OtherArealObjects

Constructor & Destructor Documentation

DtArealObjectRepository::DtArealObjectRepository

(

)

Default CTOR.

DtArealObjectRepository::DtArealObjectRepository

(

const DtArealObjectRepository &

orig

)

virtual DtArealObjectRepository::~DtArealObjectRepository ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual DtBreachStatus DtArealObjectRepository::breachedStatus ( ) const

virtual

Set/Get Breached Status.

virtual DtStateRepository* DtArealObjectRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEnvironmentObjectRepository.

static DtArealObjectRepository* DtArealObjectRepository::create ( )

static

Static creation method.

Reimplemented from DtEnvironmentObjectRepository.

virtual DtDamageState DtArealObjectRepository::damagedAppearance ( ) const

virtual

virtual bool DtArealObjectRepository::deactivated ( ) const

virtual

virtual bool DtArealObjectRepository::flaming ( ) const

virtual

virtual DtU16 DtArealObjectRepository::generalAppearance ( ) const

virtual

virtual DtAppearAttrVal DtArealObjectRepository::generalAppearanceAttribute ( DtAppearAttribute  attr ) const

virtual

virtual bool DtArealObjectRepository::getPointLocation ( int  index, DtVector &  point  ) const

virtual

virtual DtU32 DtArealObjectRepository::mineCount ( ) const

virtual

Set/Get Breached Status.

virtual DtU8 DtArealObjectRepository::modifications ( ) const

virtual

virtual int DtArealObjectRepository::numberOfPoints ( ) const

virtual

virtual bool DtArealObjectRepository::objectPreDistributed ( ) const

virtual

DtArealObjectRepository& DtArealObjectRepository::operator=

(

const DtArealObjectRepository &

orig

)

Assignment Operator.

virtual DtU32 DtArealObjectRepository::percentComplete ( ) const

virtual

virtual void DtArealObjectRepository::printData ( ) const

virtual

Prints data to DtInfo.

Reimplemented from DtEnvironmentObjectRepository.

virtual void DtArealObjectRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Prints data to the specified stream.

Reimplemented from DtEnvironmentObjectRepository.

virtual void DtArealObjectRepository::setBreachedStatus ( DtBreachStatus  status )

virtual

Set/Get Breached Status.

virtual void DtArealObjectRepository::setDamagedAppearance ( DtDamageState  damage )

virtual

Set/Get Damaged Appearance.

virtual void DtArealObjectRepository::setDeactivated ( bool  onOff )

virtual

Set/Get Deactivated.

virtual void DtArealObjectRepository::setFlaming ( bool  onOff )

virtual

Set/Get Flaming.

virtual void DtArealObjectRepository::setGeneralAppearance ( DtU16  appearance )

virtual

Set/Get General Appearance.

virtual void DtArealObjectRepository::setGeneralAppearanceAttribute ( DtAppearAttribute  attr, DtAppearAttrVal  val  )

virtual

Set/Get General Appearance Attribute.

virtual void DtArealObjectRepository::setMineCount ( DtU32  numMines )

virtual

Set/Get Mine Count.

virtual void DtArealObjectRepository::setModifications ( DtU8  mod )

virtual

Set/Get Modifications.

virtual bool DtArealObjectRepository::setNumberOfPoints ( int  newNumberOfPoints )

virtual

Set/Get the number of points.

Set returns false if the requested number is too large. Changing this number will erase all previous data.

virtual void DtArealObjectRepository::setObjectPreDistributed ( bool  predistributed )

virtual

Set/Get Object Predistributed.

virtual void DtArealObjectRepository::setPercentComplete ( DtU32  percent )

virtual

Set/Get Percent Complete.

virtual bool DtArealObjectRepository::setPointLocation ( int  index, const DtVector &  point  )

virtual

Set/Get a point location.

Returns false if the index is invalid.

virtual void DtArealObjectRepository::setSmoking ( bool  onOff )

virtual

Set/Get Smoking.

virtual void DtArealObjectRepository::setSpecificAppearance ( DtU32  appearance )

virtual

Set/Get Specific Appearance.

virtual void DtArealObjectRepository::setSpecificAppearanceAttribute ( DtAppearAttribute  attr, DtAppearAttrVal  val  )

virtual

Set/Get Specific Appearance Attribute.

virtual bool DtArealObjectRepository::smoking ( ) const

virtual

virtual DtU32 DtArealObjectRepository::specificAppearance ( ) const

virtual

virtual DtU32 DtArealObjectRepository::specificAppearanceAttribute ( DtAppearAttribute  attr ) const

virtual

Member Data Documentation

DtU16 DtArealObjectRepository::myGeneralAppearance

protected

DtU8 DtArealObjectRepository::myModifications

protected

int DtArealObjectRepository::myNumberOfPoints

protected

DtVector* DtArealObjectRepository::myPoints

protected

DtU32 DtArealObjectRepository::mySpecificAppearance

protected

---

The documentation for this class was generated from the following file:

• arealObjectRepository.h
