DtStateRepository Class Reference

DtStateRepository is an abstract base class for maintaining state for an object. More...

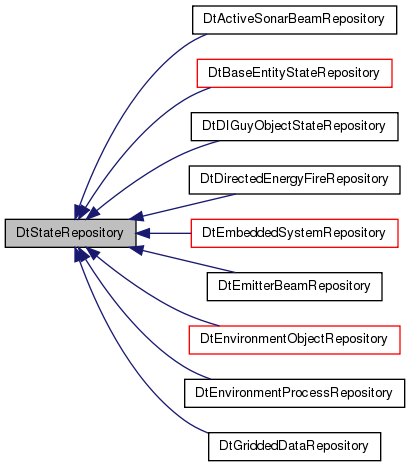

Inheritance diagram for DtStateRepository:

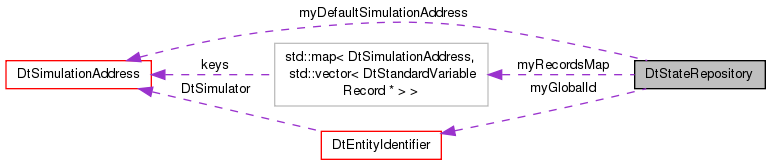

Collaboration diagram for DtStateRepository:

Public Member Functions
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	Print State Data to the DtInfo Stream.
virtual void	printDataToStream (std::ostream &stream) const
	Prints the State Data to the stream specified.
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	The following functions are related to the extendability part of DIS 7.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const
virtual unsigned int	numberOfAttributeRecords () const

Public Attributes
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap

Detailed Description

DtStateRepository is an abstract base class for maintaining state for an object.

Instances of DtStateRepository subclasses are used to store state for specific object types, such as vehicles or lifeforms.

Constructor & Destructor Documentation

DtStateRepository::DtStateRepository

(

)

default constructor

DtStateRepository::DtStateRepository

(

const DtStateRepository &

orig

)

copy constructor

virtual DtStateRepository::~DtStateRepository ( )

virtual

destructor

Member Function Documentation

virtual void DtStateRepository::addAttributeRecord ( DtStandardVariableRecord *  record )

virtual

Reimplemented in DtEmitterSystemRepository.

virtual const std::vector<DtStandardVariableRecord*> DtStateRepository::attributeRecords ( unsigned int  recordType = 0 ) const

virtual

Reimplemented in DtEmitterSystemRepository.

virtual void DtStateRepository::clearAttributeRecords ( )

virtual

Reimplemented in DtEmitterSystemRepository.

virtual DtStateRepository* DtStateRepository::clone ( bool  copy = false ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented in DtLinearObjectRepository, DtUnderwaterAcousticsStateRepository, DtEmitterBeamRepository, DtIffStateRepository, DtEntityStateRepository, DtActiveSonarStateRepository, DtBaseEntityStateRepository, DtPointObjectRepository, DtEmitterSystemRepository, DtAggregateStateRepository, DtArealObjectRepository, DtRadioTransmitterRepository, DtEnvironmentProcessRepository, DtEnvironmentObjectRepository, DtActiveSonarBeamRepository, DtDIGuyObjectStateRepository, DtDirectedEnergyFireRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtEmbeddedSystemRepository, DtGriddedDataRepository, DtDesignatorRepository, DtUnderwaterAcousticsEmissionRepository, and DtRadioReceiverRepository.

virtual void DtStateRepository::getAttributeRecords ( std::vector< DtStandardVariableRecord * > &  vec, unsigned int  recordType = 0  ) const

virtual

Reimplemented in DtEmitterSystemRepository.

virtual const DtGlobalObjectDesignator& DtStateRepository::globalId ( ) const

virtual

virtual unsigned int DtStateRepository::numberOfAttributeRecords ( ) const

virtual

DtStateRepository& DtStateRepository::operator=

(

const DtStateRepository &

orig

)

assignment operator

virtual void DtStateRepository::printData ( ) const

virtual

Print State Data to the DtInfo Stream.

Reimplemented in DtBaseEntityStateRepository, DtEntityStateRepository, DtRadioTransmitterRepository, DtAggregateStateRepository, DtPointObjectRepository, DtEmitterBeamRepository, DtGriddedDataRepository, DtArealObjectRepository, DtDirectedEnergyFireRepository, DtLinearObjectRepository, DtRadioReceiverRepository, DtEnvironmentObjectRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtEmbeddedSystemRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtDIGuyObjectStateRepository, DtEnvironmentProcessRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, and DtActiveSonarBeamRepository.

virtual void DtStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the State Data to the stream specified.

Reimplemented in DtBaseEntityStateRepository, DtEntityStateRepository, DtRadioTransmitterRepository, DtAggregateStateRepository, DtPointObjectRepository, DtEmitterBeamRepository, DtGriddedDataRepository, DtArealObjectRepository, DtDirectedEnergyFireRepository, DtRadioReceiverRepository, DtLinearObjectRepository, DtEnvironmentObjectRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtEmbeddedSystemRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtDIGuyObjectStateRepository, DtEnvironmentProcessRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, and DtActiveSonarBeamRepository.

virtual void DtStateRepository::setAttributeRecords ( const std::vector< DtStandardVariableRecord * > &  records )

virtual

The following functions are related to the extendability part of DIS 7.

Get/Set records

Reimplemented in DtEmitterSystemRepository.

virtual void DtStateRepository::setAttributeRecords ( const std::vector< DtStandardVariableRecord * > &  records, const DtSimulationAddress &  address  )

virtual

virtual void DtStateRepository::setGlobalId ( const DtGlobalObjectDesignator &  id )

virtual

Get/Set global identifier, or name.

Set by VR-Link for reflected objects. Not necessary to set for local objects.

virtual void DtStateRepository::setSimAddr ( const DtSimulationAddress &  id )

virtual

Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)

virtual const DtSimulationAddress& DtStateRepository::simAddr ( ) const

virtual

Member Data Documentation

DtSimulationAddress DtStateRepository::myDefaultSimulationAddress

DtGlobalObjectDesignator DtStateRepository::myGlobalId

std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord* > > DtStateRepository::myRecordsMap

---

The documentation for this class was generated from the following file:

• stateRepository.h
