DtEmbeddedSystemRepository Class Reference

Instances of DtEmbeddedSystemRepository are used to store the state of embedded systems. More...

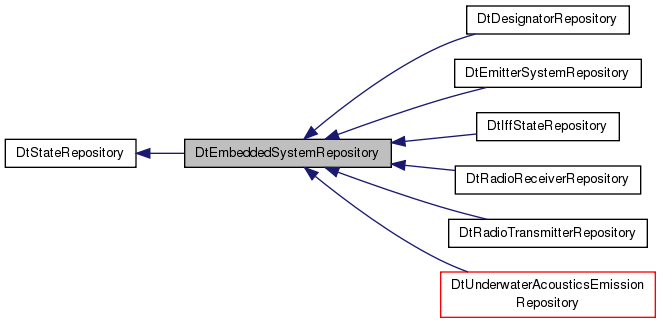

Inheritance diagram for DtEmbeddedSystemRepository:

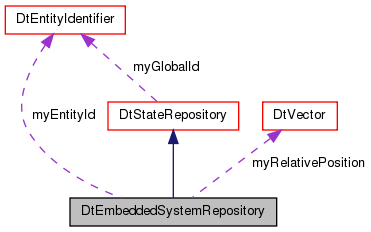

Collaboration diagram for DtEmbeddedSystemRepository:

Public Member Functions
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector &position)
	Set the position of the object relative to the entity.
virtual const DtVector &	relativePosition () const
	Get the position of the object relative to the entity.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print state data to the specified stream.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	The following functions are related to the extendability part of DIS 7.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const
virtual unsigned int	numberOfAttributeRecords () const

Static Public Member Functions
static DtEmbeddedSystemRepository *	create ()

Protected Attributes
DtEntityIdentifier	myEntityId
DtVector	myRelativePosition

Additional Inherited Members
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap

Detailed Description

Instances of DtEmbeddedSystemRepository are used to store the state of embedded systems.

An embedded system is an object which is a component of an entity: for example, a radar unit on an aircraft.

Constructor & Destructor Documentation

DtEmbeddedSystemRepository::DtEmbeddedSystemRepository

(

)

default constructor

DtEmbeddedSystemRepository::DtEmbeddedSystemRepository

(

const DtEmbeddedSystemRepository &

orig

)

copy constructor

virtual DtEmbeddedSystemRepository::~DtEmbeddedSystemRepository ( )

virtual

destructor

Member Function Documentation

virtual DtStateRepository* DtEmbeddedSystemRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtStateRepository.

Reimplemented in DtUnderwaterAcousticsStateRepository, DtIffStateRepository, DtActiveSonarStateRepository, DtEmitterSystemRepository, DtRadioTransmitterRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtDesignatorRepository, DtUnderwaterAcousticsEmissionRepository, and DtRadioReceiverRepository.

static DtEmbeddedSystemRepository* DtEmbeddedSystemRepository::create ( )

static

Reimplemented in DtIffStateRepository, DtRadioTransmitterRepository, DtEmitterSystemRepository, DtUnderwaterAcousticsStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtActiveSonarStateRepository, DtDesignatorRepository, and DtRadioReceiverRepository.

virtual const DtEntityIdentifier& DtEmbeddedSystemRepository::entityId ( ) const

virtual

Get the entity identifier.

In DIS this is the same as the HostID, but may not be used in HLA.

virtual const DtGlobalObjectDesignator& DtEmbeddedSystemRepository::hostId ( ) const

virtual

Get the host identifier.

(corresponds to the emitting system ID) for DIS this is the SAME as EntityId

DtEmbeddedSystemRepository& DtEmbeddedSystemRepository::operator=

(

const DtEmbeddedSystemRepository &

orig

)

assignment operator

virtual void DtEmbeddedSystemRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtStateRepository.

Reimplemented in DtRadioTransmitterRepository, DtRadioReceiverRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, and DtDesignatorRepository.

virtual void DtEmbeddedSystemRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print state data to the specified stream.

Reimplemented from DtStateRepository.

Reimplemented in DtRadioTransmitterRepository, DtRadioReceiverRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, and DtDesignatorRepository.

virtual const DtVector& DtEmbeddedSystemRepository::relativePosition ( ) const

virtual

Get the position of the object relative to the entity.

virtual void DtEmbeddedSystemRepository::setEntityId ( const DtEntityIdentifier &  id )

virtual

Set the entity identifier.

In DIS this is the same as the HostID, used by RPR FOM, but may not be present in all FOMS.

Reimplemented in DtUnderwaterAcousticsStateRepository.

virtual void DtEmbeddedSystemRepository::setHostId ( const DtGlobalObjectDesignator &  id )

virtual

Set the host identifier.

(corresponds to the emitting system ID) for DIS this is the SAME as EntityId

Reimplemented in DtUnderwaterAcousticsStateRepository.

virtual void DtEmbeddedSystemRepository::setRelativePosition ( const DtVector &  position )

virtual

Set the position of the object relative to the entity.

Member Data Documentation

DtEntityIdentifier DtEmbeddedSystemRepository::myEntityId

protected

DtVector DtEmbeddedSystemRepository::myRelativePosition

protected

---

The documentation for this class was generated from the following file:

• embeddedSystemRepository.h
