DtIffPublisher Class Reference

Instances of DtIffPublisher are used to take care of the details associated with publishing the state of an emitter system. More...

Inheritance diagram for DtIffPublisher:

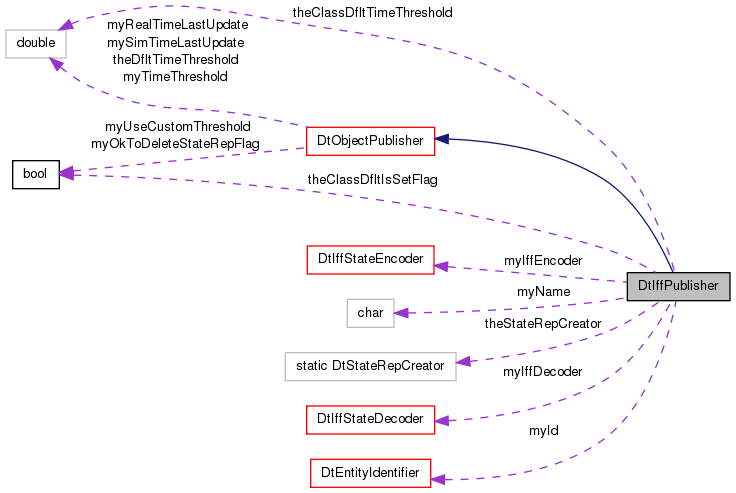

Collaboration diagram for DtIffPublisher:

Public Types
typedef DtIffStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEntityStateRepositories.

Public Member Functions
	DtIffPublisher (DtIffStateRepository *stateRepToUse, DtExerciseConn *conn, const DtObjectId &id=iffFindOwnId())
	constructor
	DtIffPublisher (DtIffAtcNavaidsSysType type, DtExerciseConn *conn, const DtObjectId &id=iffFindOwnId())
	constructor
	DtIffPublisher (DtExerciseConn *conn, const DtObjectId &id=iffFindOwnId())
	constructor
	DtIffPublisher (DtExerciseConn *conn, const char *name, const DtObjectId &id=iffFindOwnId())
	constructor
virtual	~DtIffPublisher ()
	destructor
virtual void	tick ()
	Tick the publisher.
virtual void	forceUpdate ()
	Force a PDU update even if there is nothing to update.
virtual DtIffStateRepository *	iffStateRep ()
	Get the emitter system state repository for this emitter system publisher.
virtual DtIffStateRepository *	isr ()
virtual const DtObjectId &	id () const
	Get the entity's identifier.
virtual const DtObjectId &	localId () const
	Get the entity's localId - same as id for DIS.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the global object designator - same as id for DIS.
Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn *conn, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, bool okToDeleteStateRep=true)
	Constructor takes an DtExerciseConn which must have a lifetime greater than the ObjectPubliser.
virtual	~DtObjectPublisher ()
	Destructor.
virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtStateRepository *	sr ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection.
virtual void	setTimeThreshold (DtTime time)
	Set the heartbeat rate for this object.
virtual DtTime	timeThreshold () const
	The heartbeat rate for this object.
virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message.
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.
virtual void	setUseCustomThreshold (bool useCustom)
	Sets whether or not this object will use a custom threshold value, or the default.
virtual bool	useCustomThreshold ()
	Returns whether or not this object will use a custom threshold value, or the default.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
static void	setClassDfltTimeThreshold (DtTime threshold)
static const DtObjectId &	findOwnId ()
	Returns an id of (-1,-1,-1).
Static Public Member Functions inherited from DtObjectPublisher
static void	setDfltTimeThreshold (DtTime time)
	Set the default heartbeat rate.
static DtTime	dfltTimeThreshold ()
	The default heartbeat rate, see setDfltTimeThreshold().

Protected Member Functions
void	init (const char *name, const DtEntityIdentifier &id)
	Not virtual since called from constructor.
	DtIffPublisher (const DtIffPublisher &orig)
	copy constructor – not implemented
DtIffPublisher &	operator= (const DtIffPublisher &orig)
	assignment operator – not implemented
Protected Member Functions inherited from DtObjectPublisher
virtual void	send (DtPdu *pdu) const
	Puts the PDU on the network and updates timestamps.

Protected Attributes
DtObjectId	myId
DtIffStateDecoder *	myIffDecoder
DtIffStateEncoder *	myIffEncoder
char *	myName
Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn
DtStateRepository *	myStateRep
DtStateRepository *	myAsSeenByRemote
bool	myOkToDeleteStateRepFlag
bool	myUseCustomThreshold
DtTime	myTimeThreshold
DtTime	mySimTimeLastUpdate
	Set in const send() method.
DtTime	myRealTimeLastUpdate
	Set in const send() method.

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
static DtTime	theClassDfltTimeThreshold
static bool	theClassDfltIsSetFlag
Static Protected Attributes inherited from DtObjectPublisher
static DtTime	theDfltTimeThreshold

Detailed Description

Instances of DtIffPublisher are used to take care of the details associated with publishing the state of an emitter system.

Member Typedef Documentation

typedef DtIffStateRepository*(* DtIffPublisher::DtStateRepCreator)()

Function prototype for functions that create DtEntityStateRepositories.

Constructor & Destructor Documentation

DtIffPublisher::DtIffPublisher	(	DtIffStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const DtObjectId &	id = iffFindOwnId()
	)

constructor

DtIffPublisher::DtIffPublisher	(	DtIffAtcNavaidsSysType	type,
		DtExerciseConn *	conn,
		const DtObjectId &	id = iffFindOwnId()
	)

constructor

DtIffPublisher::DtIffPublisher	(	DtExerciseConn *	conn,
		const DtObjectId &	id = iffFindOwnId()
	)

constructor

DtIffPublisher::DtIffPublisher	(	DtExerciseConn *	conn,
		const char *	name,
		const DtObjectId &	id = iffFindOwnId()
	)

constructor

virtual DtIffPublisher::~DtIffPublisher ( )

virtual

destructor

DtIffPublisher::DtIffPublisher ( const DtIffPublisher &  orig )

protected

copy constructor – not implemented

Member Function Documentation

static const DtObjectId& DtIffPublisher::findOwnId ( )

static

Returns an id of (-1,-1,-1).

virtual void DtIffPublisher::forceUpdate ( )

virtual

Force a PDU update even if there is nothing to update.

The update occurs on the next call to tick()

Implements DtObjectPublisher.

virtual const DtGlobalObjectDesignator& DtIffPublisher::globalId ( ) const

virtual

Get the global object designator - same as id for DIS.

Implements DtObjectPublisher.

virtual const DtObjectId& DtIffPublisher::id ( ) const

virtual

Get the entity's identifier.

Implements DtObjectPublisher.

Referenced by localId().

virtual DtIffStateRepository* DtIffPublisher::iffStateRep ( )

virtual

Get the emitter system state repository for this emitter system publisher.

void DtIffPublisher::init ( const char *  name, const DtEntityIdentifier &  id  )

protected

Not virtual since called from constructor.

DtIffStateRepository * DtIffPublisher::isr ( )

inlinevirtual

References DtObjectPublisher::myStateRep.

const DtObjectId & DtIffPublisher::localId ( ) const

inlinevirtual

Get the entity's localId - same as id for DIS.

Implements DtObjectPublisher.

References id().

DtIffPublisher& DtIffPublisher::operator= ( const DtIffPublisher &  orig )

protected

assignment operator – not implemented

static void DtIffPublisher::setClassDfltTimeThreshold ( DtTime  threshold )

static

static void DtIffPublisher::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

static DtStateRepCreator DtIffPublisher::stateRepCreator ( void  )

static

virtual void DtIffPublisher::tick ( )

virtual

Tick the publisher.

Implements DtObjectPublisher.

Member Data Documentation

DtObjectId DtIffPublisher::myId

protected

DtIffStateDecoder* DtIffPublisher::myIffDecoder

protected

DtIffStateEncoder* DtIffPublisher::myIffEncoder

protected

char* DtIffPublisher::myName

protected

bool DtIffPublisher::theClassDfltIsSetFlag

staticprotected

DtTime DtIffPublisher::theClassDfltTimeThreshold

staticprotected

DtStateRepCreator DtIffPublisher::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• iffPublisherDIS.h
