DtReflectedIff Class Reference

Instances of DtReflectedIff represent Iff object simulated by remote applications. More...

Inheritance diagram for DtReflectedIff:

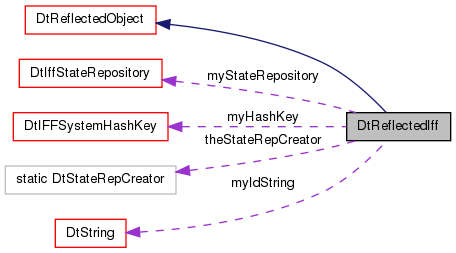

Collaboration diagram for DtReflectedIff:

Public Types
typedef DtIffStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtIffStateRepositories.

Public Member Functions
	DtReflectedIff (DtExerciseConn *conn, const DtGlobalObjectDesignator &emittingEntity, DtU16 systemType, DtU16 systemName, DtU8 systemDesignator)
	Constructor.
virtual	~DtReflectedIff ()
	destructor
virtual DtIffStateRepository *	iffRep () const
	Get the iff system's state repository.
virtual DtIffStateRepository *	isr () const
	Synonym for iffRep().
virtual DtIffStateRepository *	iffStateRep () const
	Synonym for iffRep().
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information.
virtual void	processStateMessage (const DtStateMsg &msg)
	Process an electronic emissions PDU.
virtual DtReflectedIff *	next () const
	Get the next remote iff.
virtual DtReflectedIff *	prev () const
	Get the previous remote iff.
virtual DtReflectedIff *	wrapNext () const
	Get the next remote iff.
virtual DtReflectedIff *	wrapPrev () const
	Get the previous remote iff.
virtual void	addPostUpdateCallback (DtIffCallbackFunction cb, void *userData)
	iff state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtIffCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the iff's object's global object identifier - for DIS, it's the same as its DtEntityIdentifier.
virtual DtString	idString () const
	Get a string identification of this object.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor.
virtual	~DtListedObj ()
	Destructor.

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)

Protected Member Functions
	DtReflectedIff (const DtReflectedIff &orig)
	copy constructor – not implemented
DtReflectedIff &	operator= (const DtReflectedIff &orig)
	assignment operator – not implemented
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtIffStateRepository *	myStateRepository
DtIFFSystemHashKey	myHashKey
DtString	myIdString
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtReflectedIff represent Iff object simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtIffStateRepository*(* DtReflectedIff::DtStateRepCreator)()

Function prototype for functions that create DtIffStateRepositories.

Constructor & Destructor Documentation

DtReflectedIff::DtReflectedIff	(	DtExerciseConn *	conn,
		const DtGlobalObjectDesignator &	emittingEntity,
		DtU16	systemType,
		DtU16	systemName,
		DtU8	systemDesignator
	)

Constructor.

virtual DtReflectedIff::~DtReflectedIff ( )

virtual

destructor

DtReflectedIff::DtReflectedIff ( const DtReflectedIff &  orig )

protected

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedIff::addPostUpdateCallback ( DtIffCallbackFunction  cb, void *  userData  )

virtual

iff state callback registration/deregistration.

virtual const DtGlobalObjectDesignator& DtReflectedIff::globalId ( ) const

virtual

Get the iff's object's global object identifier - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedIff::hashKey ( ) const

virtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual DtString DtReflectedIff::idString ( ) const

virtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtIffStateRepository* DtReflectedIff::iffRep ( ) const

virtual

Get the iff system's state repository.

virtual DtIffStateRepository* DtReflectedIff::iffStateRep ( ) const

virtual

Synonym for iffRep().

virtual DtIffStateRepository* DtReflectedIff::isr ( ) const

virtual

Synonym for iffRep().

virtual DtReflectedIff* DtReflectedIff::next ( ) const

virtual

Get the next remote iff.

Reimplemented from DtListedObj.

DtReflectedIff& DtReflectedIff::operator= ( const DtReflectedIff &  orig )

protected

assignment operator – not implemented

virtual DtReflectedIff* DtReflectedIff::prev ( ) const

virtual

Get the previous remote iff.

Reimplemented from DtListedObj.

virtual void DtReflectedIff::processStateMessage ( const DtStateMsg &  msg )

virtual

Process an electronic emissions PDU.

Implementation for abstract base class.

Reimplemented from DtReflectedObject.

virtual void DtReflectedIff::removePostUpdateCallback ( DtIffCallbackFunction  cb, void *  userData  )

virtual

static void DtReflectedIff::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedIff::stateRep ( ) const

virtual

Returns a pointer to the StateRepository - through which you can inspect current state information.

Implementation for abstract base class. Calls esr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedIff::stateRepCreator ( void  )

static

virtual DtReflectedIff* DtReflectedIff::wrapNext ( ) const

virtual

Get the next remote iff.

Will cycle back to the first remote iff.

Reimplemented from DtListedObj.

virtual DtReflectedIff* DtReflectedIff::wrapPrev ( ) const

virtual

Get the previous remote iff.

Will cycle back to the last remote iff.

Reimplemented from DtListedObj.

Member Data Documentation

DtIFFSystemHashKey DtReflectedIff::myHashKey

protected

DtString DtReflectedIff::myIdString

protected

DtIffStateRepository* DtReflectedIff::myStateRepository

protected

DtStateRepCreator DtReflectedIff::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedIffDIS.h
