DtStateEncoder Class Reference

The DtStateEncoder class provides a base class for all DIS encoders. More...

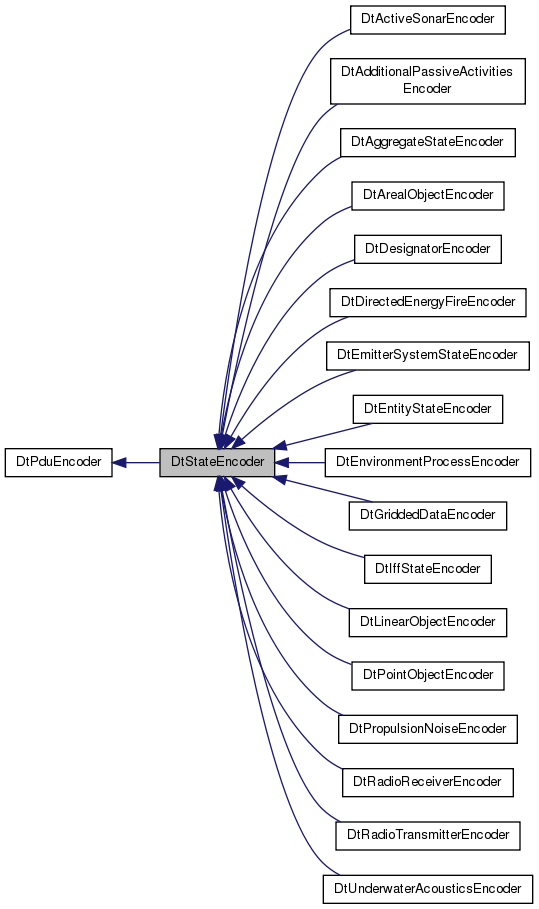

Inheritance diagram for DtStateEncoder:

Collaboration diagram for DtStateEncoder:

Public Member Functions
	DtStateEncoder ()
	Default constructor.
virtual	~DtStateEncoder ()
	Destructor.
	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor.
DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator.
void	setSendNeeded ()
	Sets myForceSendNeeded to true.
virtual DtPduEncoder *	clone () const =0
	clone.
virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders.
virtual void	fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true)
	DIS 7 requires filling the Attribute Records for a coupled Attribute PDU.
virtual bool	sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote) const
	In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote.
Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Attributes
bool	myForceSendNeeded

Detailed Description

The DtStateEncoder class provides a base class for all DIS encoders.

Constructor & Destructor Documentation

DtStateEncoder::DtStateEncoder

(

)

Default constructor.

virtual DtStateEncoder::~DtStateEncoder ( )

virtual

Destructor.

DtStateEncoder::DtStateEncoder

(

const DtStateEncoder &

orig

)

Copy constructor.

Member Function Documentation

virtual DtPduEncoder* DtStateEncoder::clone ( ) const

pure virtual

clone.

Must be defined in your child class. This is easily done by defining DtCLONE_ENCODER(DtChildClass)

Implements DtPduEncoder.

Implemented in DtDirectedEnergyFireEncoder.

virtual void DtStateEncoder::encode ( DtPdu *  pdu )

virtual

This is a dummy method for backwards compatibility with DIS encoders.

Implements DtPduEncoder.

Reimplemented in DtDirectedEnergyFireEncoder.

virtual void DtStateEncoder::fillOutAttributeRecords ( const DtStateRepository &  stateRep, DtPduWithAttributeRecordSets *  pdu, const DtEntityIdentifier &  id, bool  clearBeforeAdding = true  )

virtual

DIS 7 requires filling the Attribute Records for a coupled Attribute PDU.

It is filled in this function.

DtStateEncoder& DtStateEncoder::operator=

(

const DtStateEncoder &

orig

)

Assignment operator.

virtual bool DtStateEncoder::sendNeededAttributeRecords ( const DtStateRepository &  stateRep, const DtStateRepository &  asSeenByRemote  ) const

virtual

In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote.

(DIS 7).

void DtStateEncoder::setSendNeeded

(

)

Sets myForceSendNeeded to true.

Referenced by DtDirectedEnergyFirePublisher::forceUpdate(), DtDesignatorPublisher::forceUpdate(), DtLinearObjectPublisher::forceUpdate(), DtPointObjectPublisher::forceUpdate(), and DtArealObjectPublisher::forceUpdate().

Member Data Documentation

bool DtStateEncoder::myForceSendNeeded

protected

---

The documentation for this class was generated from the following file:

• stateEncoder.h
