DtEmitterSystemRepository Class Reference

Instances of DtEmitterSystemRepository are used to store state data for emitter systems in both HLA and DIS environments. More...

Inheritance diagram for DtEmitterSystemRepository:

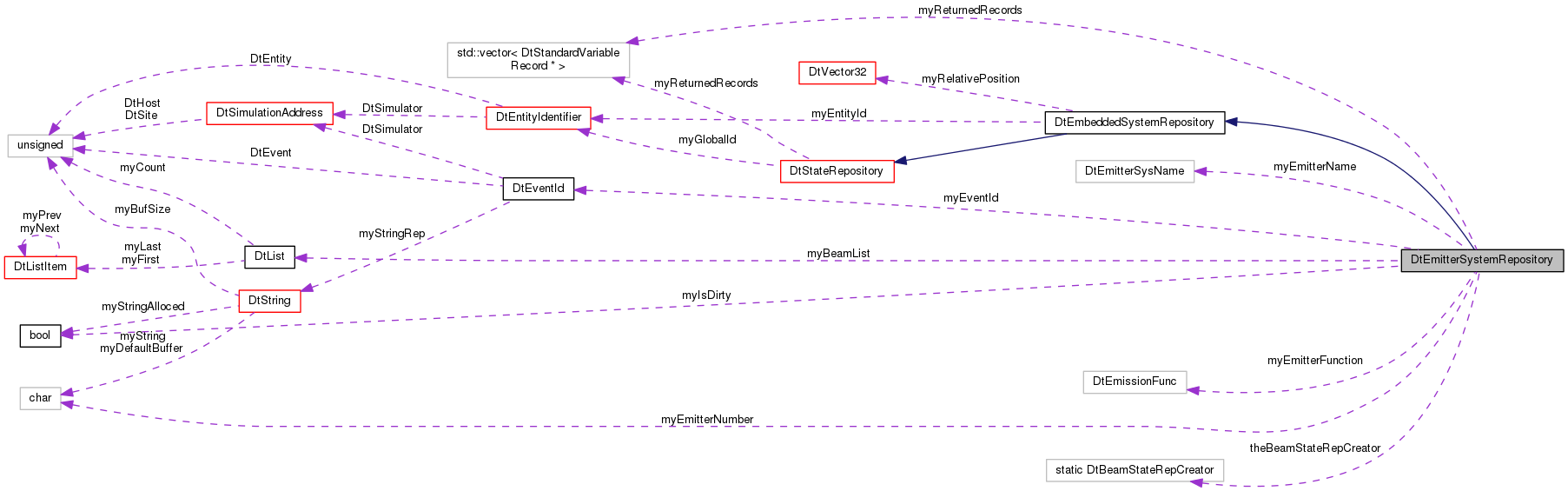

Collaboration diagram for DtEmitterSystemRepository:

Public Types
typedef DtEmitterBeamRepository *(*	DtBeamStateRepCreator )()
	Function prototype for functions that create Beam State Repositories. More...
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap

Public Member Functions
	DtEmitterSystemRepository ()
	default constructor More...
virtual	~DtEmitterSystemRepository ()
	destructor More...
	DtEmitterSystemRepository (const DtEmitterSystemRepository &orig)
	copy constructor More...
DtEmitterSystemRepository &	operator= (const DtEmitterSystemRepository &orig)
	assignment operator More...
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this. More...
virtual void	setEmitterFunction (DtEmissionFunc function)
	Set/Get the emitter function. More...
virtual DtEmissionFunc	emitterFunction () const
virtual void	setEmitterName (DtEmitterSysName name)
	Set/Get the emitter name. More...
virtual DtEmitterSysName	emitterName () const
virtual void	setEmitterNumber (DtU8 number)
	Set/Get the emitter number. More...
virtual DtU8	emitterNumber () const
virtual void	setEventId (const DtEventId &id)
	Set/Get Event Id - not used until RPR 0.7. More...
virtual const DtEventId &	eventId () const
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual DtEmitterBeamRepository *	beamSRById (DtU8 beamId, DtEmitterSysRetCode *retcode=NULL)
	Return a pointer to the first BeamSR with specified beamID. More...
virtual DtEmitterBeamRepository *	addBeam (DtU8 beamId=0, DtBeamType type=DtRegularBeam, DtEmitterSysRetCode *retcode=NULL)
	Add/remove a new emitter beam within this system. More...
virtual DtEmitterSysRetCode	removeBeam (DtU8 beamId)
	removes an emitter beam, if there are duplicate beams it will remove the first beam with the given beamID. More...
virtual int	numBeams () const
	Returns number of beams. More...
virtual const DtList *	beamList () const
	Returns DtList of DtEmitterBeamStateRepositories. More...
virtual DtList *	beamList ()
bool	isMember (DtEmitterBeamRepository *bsr) const
	Returns true if the give BSR is in this ESR's list of BSRs. More...
virtual bool	isDirty () const
	Returns true if there's been a change in the emitter state repository. More...
virtual void	clearIsDirtyFlag ()
virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Get/Set records Note that these methods will actually add/subtract/query into every beam in this Emitter System. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set. More...
virtual void	clearAttributeRecords ()
	Clear all records. More...
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor More...
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor More...
virtual	~DtEmbeddedSystemRepository ()
	destructor More...
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator More...
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier. More...
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier. More...
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier. More...
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier. More...
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity. More...
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity. More...
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
virtual unsigned int	numberOfAttributeRecords () const
virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7. More...
virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set. More...
virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set. More...
virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More...
virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual void	addAttributeRecord (std::unique_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtEmitterSystemRepository *	create ()
static DtBeamStateRepCreator	setStateRepCreator (DtBeamStateRepCreator creator)
	Give us a function to be used for creating Beam SRs. More...
Static Public Member Functions inherited from DtEmbeddedSystemRepository
static DtEmbeddedSystemRepository *	create ()
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Member Functions
virtual void	purgeBeamList ()

Protected Attributes
DtEventId	myEventId
DtEmissionFunc	myEmitterFunction
DtEmitterSysName	myEmitterName
DtU8	myEmitterNumber
bool	myIsDirty
DtList	myBeamList
	List of beams in this system. More...
DtStandardVariableRecordPtrVector	myReturnedRecords
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtVector32	myRelativePosition

Static Protected Attributes
static DtBeamStateRepCreator	theBeamStateRepCreator

Additional Inherited Members
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtAttributeRecordSet	myAttributeRecords
DtStandardVariableRecordPtrVector	myReturnedRecords
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtEmitterSystemRepository are used to store state data for emitter systems in both HLA and DIS environments.

Member Typedef Documentation

typedef DtEmitterBeamRepository*(* DtEmitterSystemRepository::DtBeamStateRepCreator)()

Function prototype for functions that create Beam State Repositories.

Constructor & Destructor Documentation

DtEmitterSystemRepository::DtEmitterSystemRepository

(

)

default constructor

virtual DtEmitterSystemRepository::~DtEmitterSystemRepository ( )

virtual

destructor

DtEmitterSystemRepository::DtEmitterSystemRepository

(

const DtEmitterSystemRepository &

orig

)

copy constructor

Member Function Documentation

virtual void DtEmitterSystemRepository::addAttributeRecord ( DtStandardVariableRecord *  record )

virtual

Add a clone of given record to the attribute record set.

Reimplemented from DtStateRepository.

virtual DtEmitterBeamRepository* DtEmitterSystemRepository::addBeam ( DtU8  beamId = 0, DtBeamType  type = DtRegularBeam, DtEmitterSysRetCode *  retcode = NULL  )

virtual

Add/remove a new emitter beam within this system.

If you add a beam with duplicate ID, retcode will be set to DtDuplicateBeam, and beamSRById will return the first beamSR with the given ID.

virtual const DtStandardVariableRecordPtrVector& DtEmitterSystemRepository::attributeRecords ( ) const

virtual

Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet.

Reimplemented from DtStateRepository.

virtual const DtStandardVariableRecordPtrVector& DtEmitterSystemRepository::attributeRecords ( unsigned int  recordType ) const

virtual

Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet.

Reimplemented from DtStateRepository.

virtual const DtList* DtEmitterSystemRepository::beamList ( ) const

virtual

Returns DtList of DtEmitterBeamStateRepositories.

virtual DtList* DtEmitterSystemRepository::beamList ( )

virtual

virtual DtEmitterBeamRepository* DtEmitterSystemRepository::beamSRById ( DtU8  beamId, DtEmitterSysRetCode *  retcode = NULL  )

virtual

Return a pointer to the first BeamSR with specified beamID.

virtual void DtEmitterSystemRepository::clearAttributeRecords ( )

virtual

Clear all records.

Reimplemented from DtStateRepository.

virtual void DtEmitterSystemRepository::clearIsDirtyFlag ( )

virtual

virtual DtStateRepository* DtEmitterSystemRepository::clone ( bool  copy = false ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEmbeddedSystemRepository.

static DtEmitterSystemRepository* DtEmitterSystemRepository::create ( )

static

virtual DtEmissionFunc DtEmitterSystemRepository::emitterFunction ( ) const

virtual

virtual DtEmitterSysName DtEmitterSystemRepository::emitterName ( ) const

virtual

virtual DtU8 DtEmitterSystemRepository::emitterNumber ( ) const

virtual

virtual const DtEventId& DtEmitterSystemRepository::eventId ( ) const

virtual

virtual DtStandardVariableRecordPtrVector& DtEmitterSystemRepository::getAttributeRecords ( unsigned int  recordType, DtStandardVariableRecordPtrVector &  vec  ) const

virtual

Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet.

Reimplemented from DtStateRepository.

virtual bool DtEmitterSystemRepository::isDirty ( ) const

virtual

Returns true if there's been a change in the emitter state repository.

bool DtEmitterSystemRepository::isMember

(

DtEmitterBeamRepository *

bsr

)

const

Returns true if the give BSR is in this ESR's list of BSRs.

virtual int DtEmitterSystemRepository::numBeams ( ) const

virtual

Returns number of beams.

DtEmitterSystemRepository& DtEmitterSystemRepository::operator=

(

const DtEmitterSystemRepository &

orig

)

assignment operator

virtual void DtEmitterSystemRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtEmitterSystemRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtEmitterSystemRepository::purgeBeamList ( )

protectedvirtual

virtual DtEmitterSysRetCode DtEmitterSystemRepository::removeBeam ( DtU8  beamId )

virtual

removes an emitter beam, if there are duplicate beams it will remove the first beam with the given beamID.

This can cause crashes in HLA as this may not be the HLA object which was actually removed. It is safer in HLA to call removeBeam which takes a GlobalId

virtual void DtEmitterSystemRepository::setAttributeRecords ( const DtStandardVariableRecordPtrVector &  records )

virtual

Get/Set records Note that these methods will actually add/subtract/query into every beam in this Emitter System.

Reimplemented from DtStateRepository.

virtual void DtEmitterSystemRepository::setEmitterFunction ( DtEmissionFunc  function )

virtual

Set/Get the emitter function.

virtual void DtEmitterSystemRepository::setEmitterName ( DtEmitterSysName  name )

virtual

Set/Get the emitter name.

virtual void DtEmitterSystemRepository::setEmitterNumber ( DtU8  number )

virtual

Set/Get the emitter number.

virtual void DtEmitterSystemRepository::setEventId ( const DtEventId &  id )

virtual

Set/Get Event Id - not used until RPR 0.7.

static DtBeamStateRepCreator DtEmitterSystemRepository::setStateRepCreator ( DtBeamStateRepCreator  creator )

static

Give us a function to be used for creating Beam SRs.

Member Data Documentation

DtList DtEmitterSystemRepository::myBeamList

protected

List of beams in this system.

DtEmissionFunc DtEmitterSystemRepository::myEmitterFunction

protected

DtEmitterSysName DtEmitterSystemRepository::myEmitterName

protected

DtU8 DtEmitterSystemRepository::myEmitterNumber

protected

DtEventId DtEmitterSystemRepository::myEventId

protected

bool DtEmitterSystemRepository::myIsDirty

protected

DtStandardVariableRecordPtrVector DtEmitterSystemRepository::myReturnedRecords

mutableprotected

DtBeamStateRepCreator DtEmitterSystemRepository::theBeamStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• emitterSystemRepository.h
