Instances of this class provide a protocol independent interface to a list of Runways in a DIS environment. More...

Inheritance diagram for DtReflectedRunwayList:

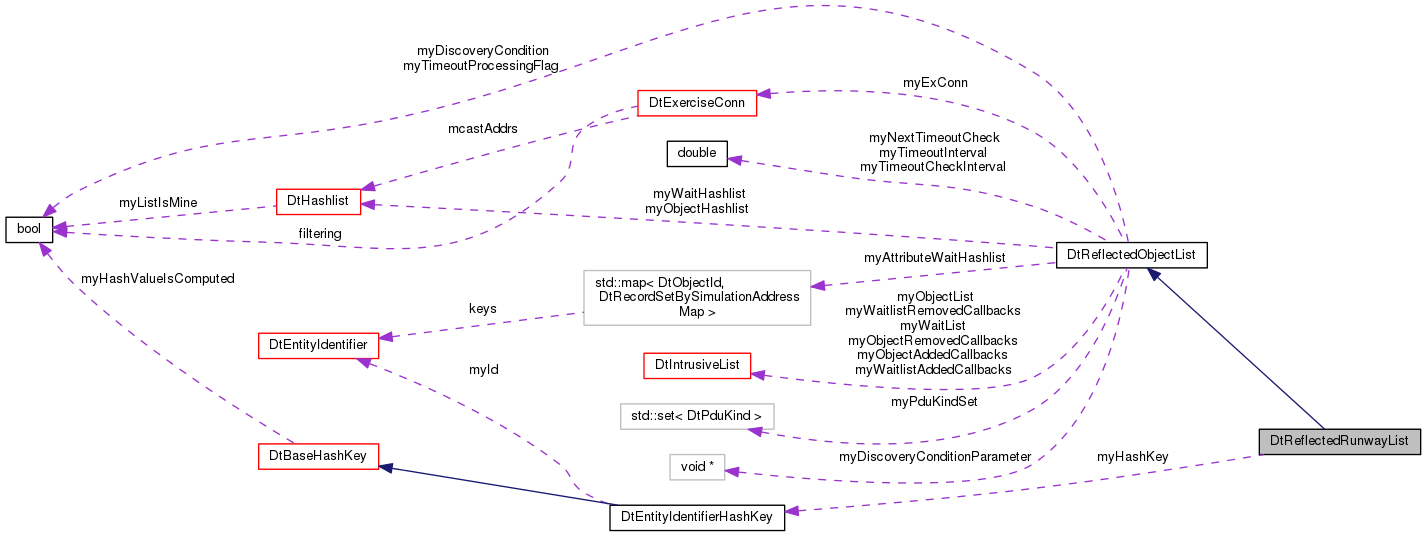

Collaboration diagram for DtReflectedRunwayList:

Public Member Functions
	DtReflectedRunwayList (DtExerciseConn *exConn)
	Constructor. More...

virtual	~DtReflectedRunwayList ()
	Destructor. More...

virtual DtReflectedRunway *	first () const

virtual DtReflectedRunway *	last () const

virtual void	addRunwayAdditionCallback (DtRunwayStateCallbackFunction cb, void *userData)
	Runway added callback registration/deregistration. More...

virtual void	removeRunwayAdditionCallback (DtRunwayStateCallbackFunction cb, void *userData)

virtual void	addRunwayRemovalCallback (DtRunwayStateCallbackFunction cb, void *userData)
	Runway removed callback registration/deregistration. More...

virtual void	removeRunwayRemovalCallback (DtRunwayStateCallbackFunction cb, void *userData)

virtual void	print ()
	Print the SRs of all objects. More...

virtual DtReflectedRunway *	processRunwayState (const DtRunwayPdu &pdu)
	Process an incoming Runway state pdu. More...

Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, int numBucketsPrimeNumber=503)
	Constructor. More...

virtual	~DtReflectedObjectList ()
	destructor Warning: makes non-virtual call to removeAndDelete More...

virtual void	initializeAttributePduKindsOfInterest (const std::set< DtPduKind > &pduKinds)
	This initializes which PDU kinds will be processed when receiving an Attribute PDU. More...

virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...

virtual DtReflectedObject *	lastObj () const

virtual int	count () const
	Get number of objects. More...

virtual DtReflectedObject *	lookupObj (const DtBaseHashKey &key) const
	Search for an object. More...

virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...

virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...

virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...

virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	print () const
	Print the SRs of all objects. More...

virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...

virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...

virtual DtTime	timeoutInterval ()

virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the ref. More...

virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition. More...

virtual void	removeAndDelete (DtReflectedObject obj, const char msg=NULL)
	Remove the remote object from the list if found and delete it. More...

virtual void	removeObject (DtReflectedObject *obj)
	This is the same as removeAndDelete, it exists to maintain equality with HLA objects. More...

virtual DtTime	timeoutCheckInterval () const

virtual void	setTimeoutCheckInterval (DtTime interval)

virtual void	addWaitlistAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Callback registration for when objects are added or removed from the waitlist. More...

virtual void	removeWaitlistAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	addWaitlistRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Waitlist removed callback registration/deregistration. More...

virtual void	removeWaitlistRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)

Protected Member Functions
virtual DtReflectedObject *	newReflectedObj (const DtStateMsg &msg)
	Create a new object from a state message. More...

virtual DtReflectedObject *	processStateMessage (const DtStateMsg &msg)
	Process an incoming state message. More...

virtual void	objectAdded (DtReflectedObject *obj)
	Called after an Runway is added and before additional callbacks are processed. More...

virtual int	acceptPdu (const DtStateMsg &msg) const
	Determines if a PDU should be processed or not. More...

virtual const DtBaseHashKey &	hashKeyFromStateMessage (const DtStateMsg *msg)
	Get a hash key from a state message. More...

virtual DtReflectedRunway *	newReflectedRunway () const
	Create a new reflected Runway. More...

virtual void	runwayAdded (DtReflectedRunway *agg)
	Called after a reflected Aerodrome object is added and before additional callbacks are processed. More...

Protected Member Functions inherited from DtReflectedObjectList
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...

virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...

void	emptyLists ()
	Empty the object list and the timeout list. More...

void	emptyCallbackLists ()

virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...

virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)

virtual void	processWaitlistAdditionCallbacks (DtReflectedObject *object)
	Process waitlist addition/removal callbacks. More...

virtual void	processWaitlistRemovalCallbacks (DtReflectedObject *object)

virtual DtBaseHashKey *	hashKeyFromAttributeRecordSet (const DtAttributeRecordSet &recordSet)
	Get a hash key from an attribute record set. More...

virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within. More...

virtual void	processAttributePduCb (DtAttributeInteraction *inter)

virtual void	processAttributePduRecordSet (const DtAttributeRecordSet &recordSet, const DtSimulationAddress &simAddr, DtReflectedObject *obj=0)

virtual void	processAttributePduWaitListCb (DtReflectedObject *obj)

virtual void	deleteRecordSetBySimulationAddressMap (DtRecordSetBySimulationAddressMap &recordSetMap, const DtSimulationAddress &simAddr=DtSimulationAddress()) const

Static Protected Member Functions
static void	runwayStateCb (DtRunwayPdu pdu, void usr)
	Callback for the exercise connection. More...

Static Protected Member Functions inherited from DtReflectedObjectList
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...

static void	processAttributePduCb (DtAttributeInteraction inter, void usr)

static void	processAttributePduWaitListCb (DtReflectedObject obj, void userData)

Private Member Functions
DtReflectedRunwayList &	operator= (const DtReflectedRunwayList &orig)
	Assignment operator – not implemented. More...

	DtReflectedRunwayList (const DtReflectedRunwayList &orig)
	Copy constructor – not implemented. More...

Detailed Description

Instances of this class provide a protocol independent interface to a list of Runways in a DIS environment.

Constructor & Destructor Documentation

DtReflectedRunwayList::DtReflectedRunwayList ( DtExerciseConn * exConn )

Constructor.

virtual DtReflectedRunwayList::~DtReflectedRunwayList ( )

virtual

Destructor.

DtReflectedRunwayList::DtReflectedRunwayList ( const DtReflectedRunwayList & orig )

private

Copy constructor – not implemented.

Member Function Documentation

virtual int DtReflectedRunwayList::acceptPdu ( const DtStateMsg & msg ) const

protectedvirtual

Determines if a PDU should be processed or not.

Looks at the METOC Layer Record Type in the PDU for a TroposphereLayerRecord

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedRunwayList::addRunwayAdditionCallback	(	DtRunwayStateCallbackFunction	cb,
		void *	userData
	)

virtual

Runway added callback registration/deregistration.

virtual void DtReflectedRunwayList::addRunwayRemovalCallback	(	DtRunwayStateCallbackFunction	cb,
		void *	userData
	)

virtual

Runway removed callback registration/deregistration.

virtual DtReflectedRunway* DtReflectedRunwayList::first ( ) const

virtual

virtual const DtBaseHashKey& DtReflectedRunwayList::hashKeyFromStateMessage ( const DtStateMsg * msg )

protectedvirtual

Get a hash key from a state message.

Implements DtReflectedObjectList.

virtual DtReflectedRunway* DtReflectedRunwayList::last ( ) const

virtual

virtual DtReflectedObject* DtReflectedRunwayList::newReflectedObj ( const DtStateMsg & msg )

protectedvirtual

Create a new object from a state message.

Implements DtReflectedObjectList.

virtual DtReflectedRunway* DtReflectedRunwayList::newReflectedRunway ( ) const

protectedvirtual

Create a new reflected Runway.

virtual void DtReflectedRunwayList::objectAdded ( DtReflectedObject * obj )

protectedvirtual

Called after an Runway is added and before additional callbacks are processed.

Right now, this function only calls DtInfo.

Reimplemented from DtReflectedObjectList.

DtReflectedRunwayList& DtReflectedRunwayList::operator= ( const DtReflectedRunwayList & orig )

private

Assignment operator – not implemented.

virtual void DtReflectedRunwayList::print ( )

virtual

Print the SRs of all objects.

virtual DtReflectedRunway* DtReflectedRunwayList::processRunwayState ( const DtRunwayPdu & pdu )

virtual

Process an incoming Runway state pdu.

Then calls down to base class processStateMessage().

virtual DtReflectedObject* DtReflectedRunwayList::processStateMessage ( const DtStateMsg & msg )

protectedvirtual

Process an incoming state message.

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedRunwayList::removeRunwayAdditionCallback	(	DtRunwayStateCallbackFunction	cb,
		void *	userData
	)

virtual

virtual void DtReflectedRunwayList::removeRunwayRemovalCallback	(	DtRunwayStateCallbackFunction	cb,
		void *	userData
	)

virtual

virtual void DtReflectedRunwayList::runwayAdded ( DtReflectedRunway * agg )

protectedvirtual

Called after a reflected Aerodrome object is added and before additional callbacks are processed.

Right now, this function only calls DtInfo.

static void DtReflectedRunwayList::runwayStateCb	(	DtRunwayPdu *	pdu,
		void *	usr
	)

staticprotected

Callback for the exercise connection.

Member Data Documentation

DtEntityIdentifierHashKey DtReflectedRunwayList::myHashKey

protected

The documentation for this class was generated from the following file:

reflectedRunwayListDIS.h

Protected Attributes
DtEntityIdentifierHashKey	myHashKey

Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn

DtIntrusiveList	myObjectAddedCallbacks

DtIntrusiveList	myObjectRemovedCallbacks

DtIntrusiveList	myWaitlistAddedCallbacks

DtIntrusiveList	myWaitlistRemovedCallbacks

DtIntrusiveList	myObjectList

DtIntrusiveList	myWaitList

DtHashlist	myObjectHashlist

DtHashlist	myWaitHashlist

DtAttributesByObjectIdMap	myAttributeWaitHashlist

DtTime	myTimeoutInterval

DtTime	myNextTimeoutCheck

DtTime	myTimeoutCheckInterval

bool	myTimeoutProcessingFlag

DtDiscoveryCondition	myDiscoveryCondition

void *	myDiscoveryConditionParameter

std::set< DtPduKind >	myPduKindSet
