VR-Link API Documentation for HLA 1.3
|
class DtEnvironmentObjectEncoder: More...

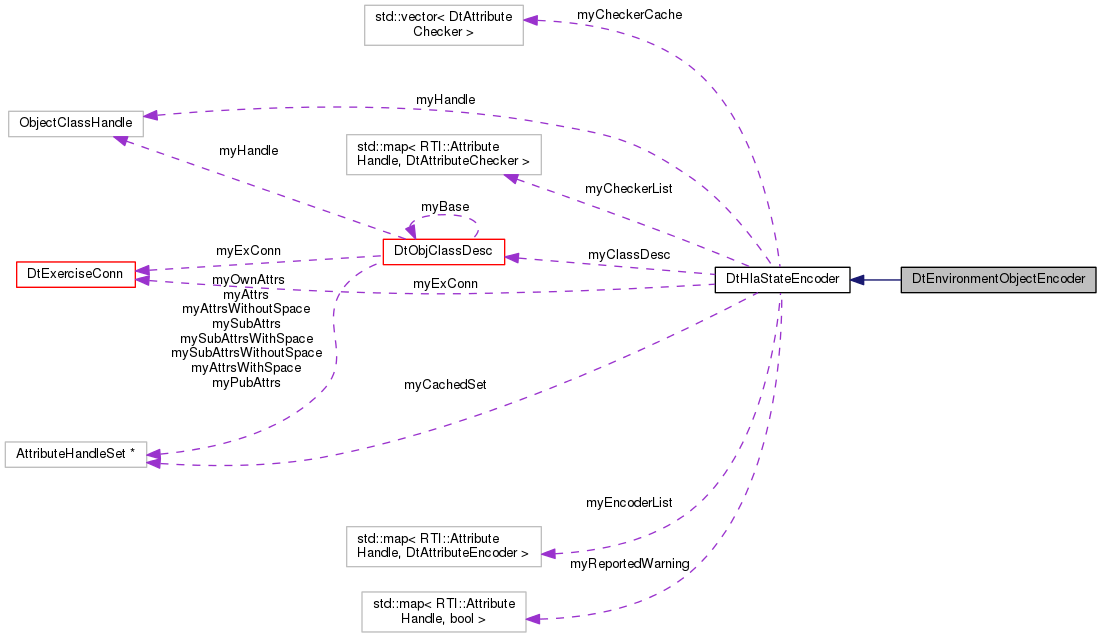

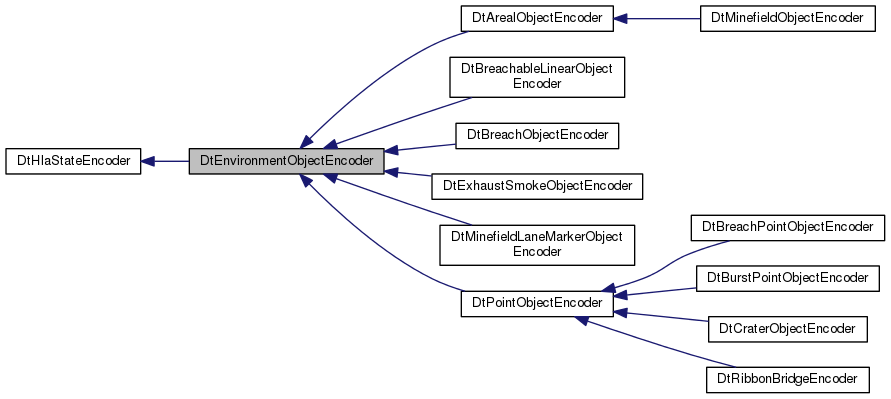

Inheritance diagram for DtEnvironmentObjectEncoder: Collaboration diagram for DtEnvironmentObjectEncoder:Public Member Functions | |
| DtEnvironmentObjectEncoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc) | |
| default constructor More... | |
| virtual | ~DtEnvironmentObjectEncoder () |
| destructor More... | |
| DtEnvironmentObjectEncoder (const DtEnvironmentObjectEncoder &orig) | |
| copy constructor More... | |
| DtEnvironmentObjectEncoder & | operator= (const DtEnvironmentObjectEncoder &orig) |
| assignment operator More... | |
| Public Member Functions inherited from DtHlaStateEncoder | |
| DtHlaStateEncoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc) | |
| constructor More... | |
| virtual | ~DtHlaStateEncoder () |
| destructor More... | |
| DtHlaStateEncoder (const DtHlaStateEncoder &orig) | |
| copy constructor More... | |
| DtHlaStateEncoder & | operator= (const DtHlaStateEncoder &orig) |
| assignment operator More... | |
| DtAttributeEncoder | addEncoder (RTI::AttributeHandle hand, DtAttributeEncoder func) |
| Add/Remove an encoding function for the attribute specified by handle. More... | |
| DtAttributeEncoder | removeEncoder (RTI::AttributeHandle hand) |
| DtAttributeEncoder | addEncoder (char *name, DtAttributeEncoder func, bool complain=true) |
| Add/Remove an encoding function for the attribute specified by name. More... | |
| DtAttributeEncoder | removeEncoder (char *name, bool complain=true) |
| DtAttributeChecker | addChecker (RTI::AttributeHandle hand, DtAttributeChecker func) |
| Add/Remove a checker function for the attribute specified by handle. More... | |
| DtAttributeChecker | removeChecker (RTI::AttributeHandle hand) |
| DtAttributeChecker | addChecker (char *name, DtAttributeChecker func, bool complain=true) |
| Add/Remove a checker function for the attribute specified by name. More... | |
| DtAttributeChecker | removeChecker (char *name, bool complain=true) |
| DtAttributeEncoder | encoder (const RTI::AttributeHandle &handle) |
| Get the attribute encoder for the specified handle. More... | |
| DtAttributeChecker | checker (const RTI::AttributeHandle &handle) |
| Get the attribute checker for the specified handle. More... | |
| virtual void | encode (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, const RTI::AttributeHandleSet &neededAttrs, const RTI::AttributeHandleSet &includeThese, DtStateMsg *msg) |
| Encode necessary values from the state repository. More... | |
| virtual RTI::ObjectClassHandle | objectClassHandle () |
| Get the object's class handle. More... | |
| virtual DtHlaStateEncoder * | clone (DtObjClassDesc *classDesc) const |
| Returns a new-ed clone of this object which corresponds to the class description classDesc. More... | |
| virtual DtHlaStateEncoder * | clone () const |
| Returns a new-ed clone of this object. More... | |
| virtual void | preCalculateEligible (const RTI::AttributeHandleSet &neededAttrs) |
Static Public Member Functions | |
| static DtHlaStateEncoder * | create (DtExerciseConn *exConn, DtObjClassDesc *classDesc) |
| Create a DtBaseEntityEncoder. Caller is responsible for deletion. More... | |
| Static Public Member Functions inherited from DtHlaStateEncoder | |
| static bool | trueChecker (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote) |
| A checker function that always returns 1, meaning that the attribute for which it is being used will be deemed necessary to send on every tick. More... | |
| static bool | falseChecker (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote) |
| A checker function that always returns 0, meaning that the attribute for which it is being used will never be deemed necessary to send. More... | |
| static void | wideStringToHlaUnicodeString (const std::wstring &wideString, RTI::AttributeHandleValuePairSet *avList, RTI::AttributeHandle attrHandle) |
| Puts a unicode widestring into a buffer of the appropriate size and adds it to the attribute value list with it's attribute handle. More... | |
Protected Member Functions | |
| DtDECLARE_ENVIRONMENTOBJ_ATTR_CHECKER (ObjectIdentifier) | |
| Used for RPR > 2.0002. More... | |
| DtDECLARE_ENVIRONMENTOBJ_ATTR_CHECKER (ReferencedObjectIdentifier) | |
| DtDECLARE_ENVIRONMENTOBJ_ATTR_CHECKER (ForceIdentifier) | |
| DtDECLARE_ENVIRONMENTOBJ_ATTR_CHECKER (ObjectType) | |
| DtDECLARE_ENVIRONMENTOBJ_ATTR_ENCODER (ObjectIdentifier) | |
| DtDECLARE_ENVIRONMENTOBJ_ATTR_ENCODER (ReferencedObjectIdentifier) | |
| DtDECLARE_ENVIRONMENTOBJ_ATTR_ENCODER (ForceIdentifier) | |
| DtDECLARE_ENVIRONMENTOBJ_ATTR_ENCODER (ObjectType) | |
Additional Inherited Members | |
| Public Types inherited from DtHlaStateEncoder | |
| typedef void(* | DtAttributeEncoder )(const DtStateRepository &stateRep, RTI::AttributeHandleValuePairSet *avList, RTI::AttributeHandle handle) |
| Attribute encoding function declaration. More... | |
| typedef bool(* | DtAttributeChecker )(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote) |
| Attribute checking function declaration. More... | |
| typedef bool(* | DtAttributeCheckerWithHandle )(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, RTI::AttributeHandle handle) |
| Attribute checking function declaration that takes a handle and checks the specific attribute pointed to by that handle. More... | |
| Protected Attributes inherited from DtHlaStateEncoder | |
| DtExerciseConn * | myExConn |
| DtObjClassDesc * | myClassDesc |
| RTI::ObjectClassHandle | myHandle |
| std::map< RTI::AttributeHandle, DtAttributeEncoder > | myEncoderList |
| myEncoderList and myCheckerList are arrays of classDesc->maxAttrHandle() items. More... | |
| std::map< RTI::AttributeHandle, DtAttributeChecker > | myCheckerList |
| std::vector< DtAttributeChecker > | myCheckerCache |
| This is a helper variable that pre-lookups decoder functions in order to avoid making map calls on every update. More... | |
| const RTI::AttributeHandleSet * | myCachedSet |
| std::map< RTI::AttributeHandle, bool > | myReportedWarning |
| myReportedWarning is an array for keeping track of which warnings have already been reported More... | |
class DtEnvironmentObjectEncoder:
Instances of DtEnvironmentObjectEncoder are used to encode environment object state messages from a state repository in an HLA environment.
| DtEnvironmentObjectEncoder::DtEnvironmentObjectEncoder | ( | DtExerciseConn * | exConn, |
| DtObjClassDesc * | classDesc | ||
| ) |
default constructor
|
virtual |
destructor
| DtEnvironmentObjectEncoder::DtEnvironmentObjectEncoder | ( | const DtEnvironmentObjectEncoder & | orig | ) |
copy constructor
|
static |
Create a DtBaseEntityEncoder. Caller is responsible for deletion.
|
protected |
Used for RPR > 2.0002.
|
protected |
|
protected |
|
protected |
|
protected |
|
protected |
|
protected |
|
protected |
| DtEnvironmentObjectEncoder& DtEnvironmentObjectEncoder::operator= | ( | const DtEnvironmentObjectEncoder & | orig | ) |
assignment operator
