DtStateRepository is an abstract base class for maintaining state for an object. More...

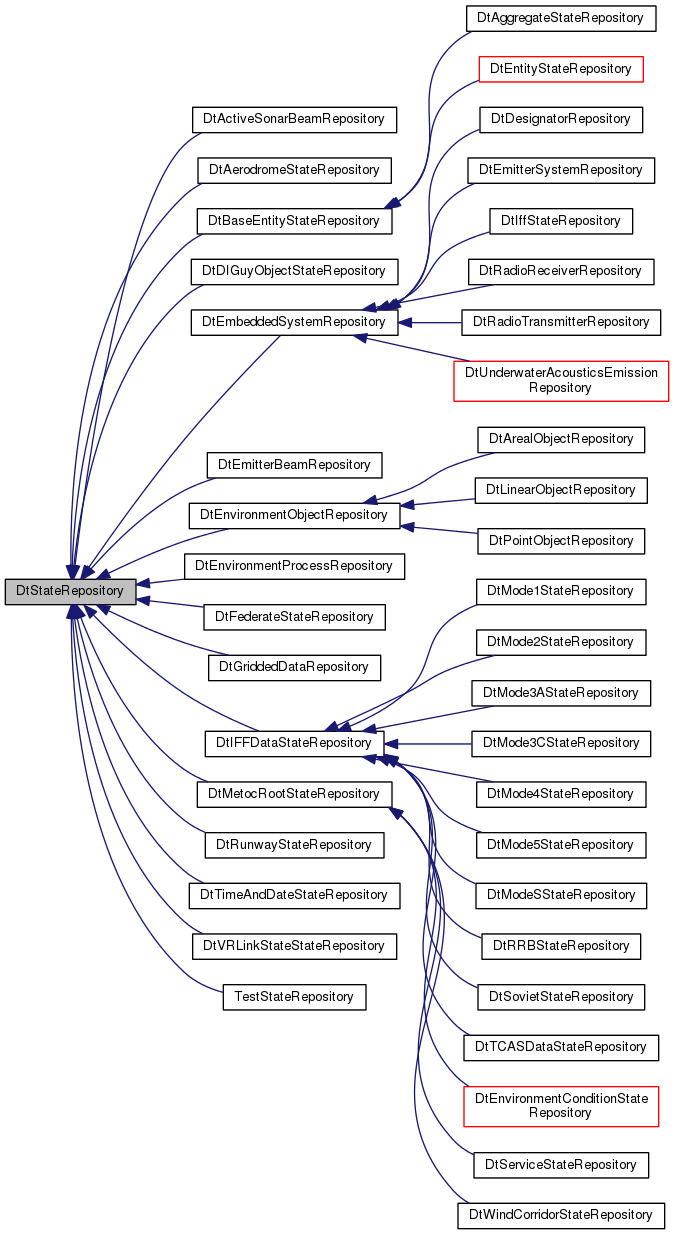

Inheritance diagram for DtStateRepository:

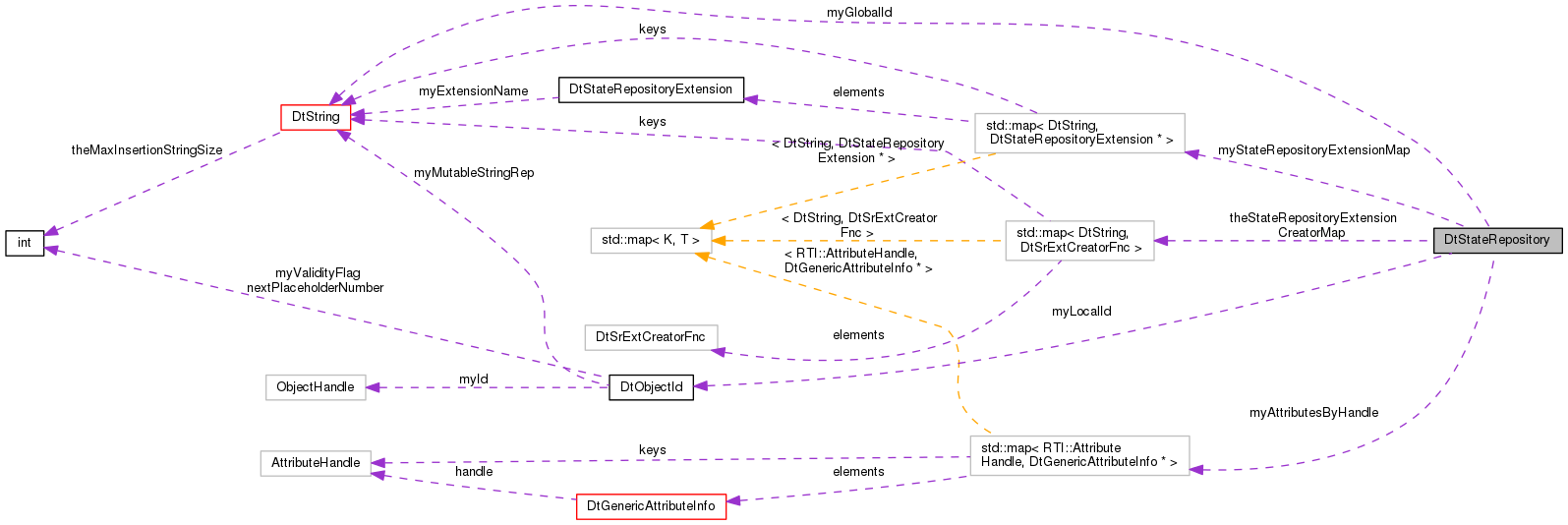

Collaboration diagram for DtStateRepository:

Public Types
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap

Public Member Functions
	DtStateRepository ()
	default constructor More...

	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...

virtual	~DtStateRepository ()
	destructor More...

DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...

virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this. More...

virtual void	printData () const
	Print State Data to the DtInfo Stream. More...

virtual void	printDataToStream (std::ostream &stream) const
	Prints the State Data to the stream specified. More...

virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...

virtual const DtString &	globalId () const

virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...

virtual const DtObjectId &	localId () const

virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...

virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...

virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...

virtual void	setAttributeByName (const DtString &attrName, const char attrValue, unsigned size, DtHlaObject hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...

virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...

virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...

Public Attributes
DtString	myGlobalId

DtObjectId	myLocalId

std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...

DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap

Static Public Attributes
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...

virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Detailed Description

DtStateRepository is an abstract base class for maintaining state for an object.

Instances of DtStateRepository subclasses are used to store state for specific object types, such as vehicles or lifeforms.

Member Typedef Documentation

typedef std::map<DtString, DtStateRepositoryExtension*> DtStateRepository::DtStateRepositoryExtensionMap

Constructor & Destructor Documentation

DtStateRepository::DtStateRepository ( )

default constructor

DtStateRepository::DtStateRepository ( const DtStateRepository & orig )

copy constructor

virtual DtStateRepository::~DtStateRepository ( )

virtual

destructor

Member Function Documentation

static bool DtStateRepository::addStateRepositoryExtension	(	DtString	srExtName,
		DtSrExtCreatorFnc	fnc
	)

static

The following functions are for extending state repositories through State Repository Extension classes.

Adds the State Repository Creator function to the creator function list return value indicates whether the add was successful or not

virtual DtStateRepository* DtStateRepository::clone ( bool copy = false ) const

virtual

Return a copy/empty object of the same type as this.

virtual const char* DtStateRepository::getAttributeByHandle	(	const RTI::AttributeHandle &	attrHdl,
		unsigned &	size
	)		const

virtual

Get a pointer to attribute value for the attribute with the given handle.

This will return an empty pointer if there is a non-existent attribute. If the attribute exists and the size is zero, the pointer will be set to a static value instead of null.

virtual const char* DtStateRepository::getAttributeByHandleIfUpdated	(	const RTI::AttributeHandle &	attrHdl,
		unsigned &	size
	)		const

virtual

Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it.

If it hasn't been update it returns null If the attribute exists and the size is zero, the pointer will be set to a static value instead of null.

virtual const char* DtStateRepository::getAttributeByName	(	const DtString &	attrName,
		unsigned &	size,
		DtHlaObject *	hlaObj
	)		const

virtual

Get a pointer to attribute value for the attribute with the given name.

Note that in order to do this you must provide a DtHlaObject.

virtual const DtString& DtStateRepository::globalId ( ) const

virtual

virtual const DtObjectId& DtStateRepository::localId ( ) const

virtual

DtStateRepository& DtStateRepository::operator= ( const DtStateRepository & orig )

assignment operator

virtual void DtStateRepository::printData ( ) const

virtual

Print State Data to the DtInfo Stream.

Reimplemented in DtEntityStateRepository, DtBaseEntityStateRepository, DtRadioTransmitterRepository, DtAggregateStateRepository, DtEmitterBeamRepository, DtPointObjectRepository, DtGriddedDataRepository, DtArealObjectRepository, DtLinearObjectRepository, DtRadioReceiverRepository, DtEnvironmentObjectRepository, DtUnderwaterAcousticsStateRepository, DtFederateStateRepository, DtEmitterSystemRepository, DtEmbeddedSystemRepository, DtVRLinkStateStateRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtWeatherStateRepository, DtDIGuyObjectStateRepository, DtIFFDataStateRepository, DtSubsurfaceLayerStateRepository, DtWaterSurfaceStateRepository, DtLandSurfaceStateRepository, DtTroposphereLayerStateRepository, DtEnvironmentConditionStateRepository, DtMode5StateRepository, DtServiceStateRepository, DtWindCorridorStateRepository, DtAerodromeStateRepository, DtMode1StateRepository, DtMode2StateRepository, DtMode3AStateRepository, DtMode4StateRepository, DtModeSStateRepository, DtRRBStateRepository, DtSovietStateRepository, DtTCASDataStateRepository, DtMetocRootStateRepository, DtTurbulenceLayerStateRepository, DtEnvironmentProcessRepository, DtMode3CStateRepository, DtTimeAndDateStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, DtRunwayStateRepository, TestStateRepository, DtActiveSonarBeamRepository, and MyEntityStateRep.

virtual void DtStateRepository::printDataToStream ( std::ostream & stream ) const

virtual

Prints the State Data to the stream specified.

Reimplemented in DtEntityStateRepository, DtBaseEntityStateRepository, DtRadioTransmitterRepository, DtAggregateStateRepository, DtEmitterBeamRepository, DtPointObjectRepository, DtGriddedDataRepository, DtArealObjectRepository, DtRadioReceiverRepository, DtLinearObjectRepository, DtEnvironmentObjectRepository, DtUnderwaterAcousticsStateRepository, DtFederateStateRepository, DtEmitterSystemRepository, DtEmbeddedSystemRepository, DtVRLinkStateStateRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtWeatherStateRepository, DtDIGuyObjectStateRepository, DtIFFDataStateRepository, DtSubsurfaceLayerStateRepository, DtWaterSurfaceStateRepository, DtLandSurfaceStateRepository, DtTroposphereLayerStateRepository, DtEnvironmentConditionStateRepository, DtMode5StateRepository, DtServiceStateRepository, DtWindCorridorStateRepository, DtAerodromeStateRepository, DtMode1StateRepository, DtMode2StateRepository, DtMode3AStateRepository, DtMode4StateRepository, DtModeSStateRepository, DtRRBStateRepository, DtSovietStateRepository, DtTCASDataStateRepository, DtMetocRootStateRepository, DtTurbulenceLayerStateRepository, DtMode3CStateRepository, DtEnvironmentProcessRepository, DtTimeAndDateStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, DtRunwayStateRepository, TestStateRepository, and DtActiveSonarBeamRepository.

virtual bool DtStateRepository::publishesAttribute ( const RTI::AttributeHandle & val ) const

virtual

Returns true if the attribute is published.

virtual void DtStateRepository::setAttributeByHandle	(	const RTI::AttributeHandle &	attrHdl,
		const char *	attrValue,
		unsigned	size
	)

virtual

Set the attribute with the given handle.

virtual void DtStateRepository::setAttributeByName	(	const DtString &	attrName,
		const char *	attrValue,
		unsigned	size,
		DtHlaObject *	hlaObj
	)

virtual

Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject.

virtual void DtStateRepository::setGlobalId ( const DtString & id )

virtual

Get/Set global identifier, or name.

Set by VR-Link for reflected objects. Not necessary to set for local objects.

virtual void DtStateRepository::setLocalId ( const DtObjectId & id )

virtual

Get/Set local identifier, or handle.

Set by VR-Link for reflected objects. Not necessary to set for local objects.

virtual void DtStateRepository::setStateRepositoryExtensions ( std::map< DtString, DtStateRepositoryExtension * > extensions )

virtual

Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.

virtual DtStateRepositoryExtension* DtStateRepository::stateRepositoryExtension ( DtString srExtName ) const

virtual

Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.

virtual std::vector<DtString> DtStateRepository::stateRepositoryExtensionNames ( ) const

virtual

Returns a set of the registered state repository extension names.

virtual const std::map<DtString, DtStateRepositoryExtension*> DtStateRepository::stateRepositoryExtensions ( ) const

virtual

Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.

Member Data Documentation

std::map<RTI::AttributeHandle, DtGenericAttributeInfo*> DtStateRepository::myAttributesByHandle

Attributes by handle.

DtString DtStateRepository::myGlobalId

DtObjectId DtStateRepository::myLocalId

DtStateRepositoryExtensionMap DtStateRepository::myStateRepositoryExtensionMap

std::map<DtString, DtSrExtCreatorFnc> DtStateRepository::theStateRepositoryExtensionCreatorMap

static

The documentation for this class was generated from the following file:

stateRepository.h
