DtMode5StateRepository Class Reference

Instances of DtMode5StateRepository are used to store state data for IFFData.Mode5 objects. More...

Inheritance diagram for DtMode5StateRepository:

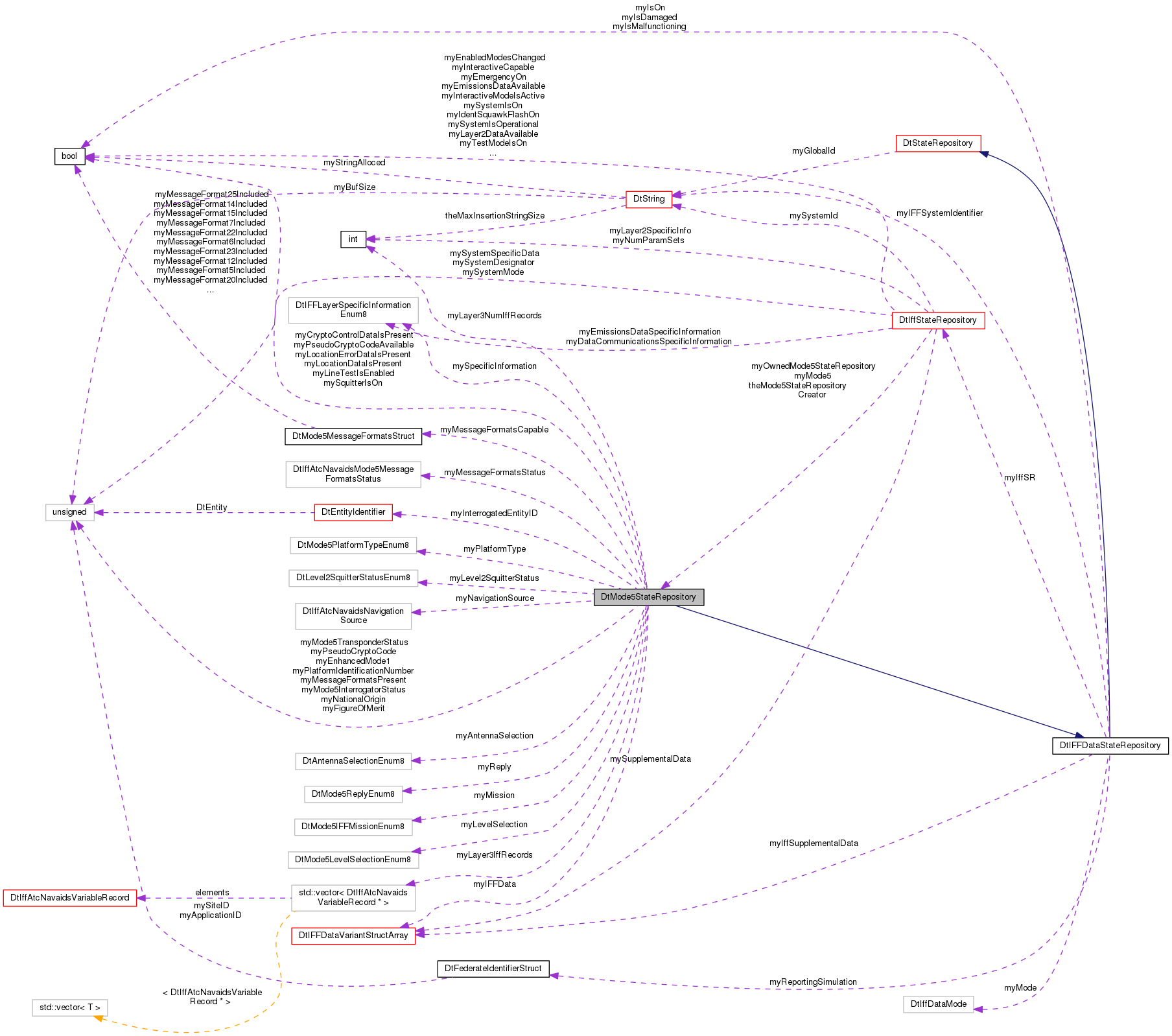

Collaboration diagram for DtMode5StateRepository:

Public Member Functions
	DtMode5StateRepository ()
	Constructor. More...
virtual	~DtMode5StateRepository ()
	Destructor. More...
	DtMode5StateRepository (const DtMode5StateRepository &orig)
	Copy Constructor. More...
DtMode5StateRepository &	operator= (const DtMode5StateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual void	setPseudoCryptoCodeAvailable (bool val)
	Set the PseudoCryptoCodeAvailable. More...
virtual bool	pseudoCryptoCodeAvailable () const
	Get the PseudoCryptoCodeAvailable. More...
virtual void	setPseudoCryptoCode (DtU16 val)
	Set the PseudoCryptoCode. More...
virtual DtU16	pseudoCryptoCode () const
	Get the PseudoCryptoCodeA. More...
virtual void	setMessageFormatsCapable (const DtMode5MessageFormatsStruct &val)
	Set the MessageFormatsCapable The included message formats that this Mode 5 interrogator or transponder is capable of supporting and could be in a Mode 5 interrogation or in a reply to a Mode 5 interrogation. More...
virtual const DtMode5MessageFormatsStruct &	messageFormatsCapable () const
	Get the MessageFormatsCapable. More...
virtual void	setMessageFormatsCapable (std::vector< int > &binVal)
	Set the MessageFormatsCapable The included message formats that this Mode 5 interrogator or transponder is capable of supporting and could be in a Mode 5 interrogation or in a reply to a Mode 5 interrogation. More...
virtual void	setMission (const DtMode5IFFMissionEnum8 &val)
	Set the Mission. More...
virtual const DtMode5IFFMissionEnum8 &	mission () const
	Get the Mission. More...
virtual void	setSpecificInformation (const DtIFFLayerSpecificInformationEnum8 &val)
	Set the SpecificInformation. More...
virtual const DtIFFLayerSpecificInformationEnum8 &	specificInformation () const
	Get the SpecificInformation. More...
virtual void	setMode5InterrogatorStatusBit (DtIffAtcNavaidsMode5InterrogatorStatus bit, bool value)
virtual bool	mode5InterrogatorStatusBit (DtIffAtcNavaidsMode5InterrogatorStatus bit) const
virtual void	setMode5TransponderStatusBit (DtIffAtcNavaidsMode5TransponderStatus bit, bool value)
virtual bool	mode5TransponderStatusBit (DtIffAtcNavaidsMode5TransponderStatus bit)
virtual void	setMode5TransponderSupplementalDataBit (DtIffAtcNavaidsMode5TransponderSupplementalData bit, bool value)
virtual bool	mode5TransponderSupplementalDataBit (DtIffAtcNavaidsMode5TransponderSupplementalData bit) const
virtual void	setIFFData (const DtIFFDataVariantStructArray &val)
	Set the IFFData. More...
virtual const DtIFFDataVariantStructArray &	IFFData () const
	Get the IFFData. More...
Mode5 Transponder-Specific Attributes
Set the Reply attribute Parameters val Reply from the Mode 5 Interrogator as Valid, Invalid, No Response, or Unable to Verify
virtual void	setReply (const DtMode5ReplyEnum8 &val)
	Get the Reply attribute. More...
virtual const DtMode5ReplyEnum8 &	reply () const
	Get the Reply attribute. More...
virtual void	setLevelSelection (const DtMode5LevelSelectionEnum8 &val)
	Set the LevelSelection. More...
virtual const DtMode5LevelSelectionEnum8 &	levelSelection () const
	Get the LevelSelection. More...
virtual void	setSquitterIsOn (bool val)
	Set the SquitterIsOn. More...
virtual bool	squitterIsOn () const
	Get the SquitterIsOn. More...
virtual void	setLevel2SquitterStatus (const DtLevel2SquitterStatusEnum8 &val)
	Set the Level2SquitterStatus. More...
virtual const DtLevel2SquitterStatusEnum8 &	level2SquitterStatus () const
	Get the Level2SquitterStatus. More...
virtual void	setPlatformType (const DtMode5PlatformTypeEnum8 &val)
	Set the PlatformType. More...
virtual const DtMode5PlatformTypeEnum8 &	platformType () const
	Get the PlatformType. More...
virtual void	setPin (DtU16 b)
	Set the PlatformIdentificationNumber. More...
virtual DtU16	pin () const
	Get the PlatformIdentificationNumber. More...
virtual void	setNationalOrigin (DtU16 b)
	Set the NationalOrigin. More...
virtual DtU16	nationalOrigin () const
	Get the NationalOrigin. More...
virtual void	setFigureOfMerit (DtU8 val)
	Set the FigureOfMerit. More...
virtual DtU8	figureOfMerit () const
	Get the FigureOfMerit. More...
virtual void	setAntennaSelection (const DtAntennaSelectionEnum8 &val)
	Set the AntennaSelection. More...
virtual const DtAntennaSelectionEnum8 &	antennaSelection () const
	Get the AntennaSelection. More...
virtual void	setLineTestIsEnabled (bool val)
	Set the LineTestIsEnabled. More...
virtual bool	lineTestIsEnabled () const
	Get the LineTestIsEnabled. More...
virtual void	setNavigationSource (const DtIffAtcNavaidsNavigationSource &val)
	Set the NavigationSource. More...
virtual const DtIffAtcNavaidsNavigationSource &	navigationSource () const
	Get the NavigationSource. More...
virtual void	setLocationDataIsPresent (bool val)
	Set the LocationDataIsPresent. More...
virtual bool	locationDataIsPresent () const
	Get the LocationDataIsPresent. More...
virtual void	setLocationErrorDataIsPresent (bool val)
	Set the LocationErrorDataIsPresent. More...
virtual bool	locationErrorDataIsPresent () const
	Get the LocationErrorDataIsPresent. More...
DIS Layer 3 Transponder Basic Data (Mode 5)
virtual void	setSupplementalData (DtU8 b)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual DtU8	supplementalData () const
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual void	setMessageFormatsPresent (DtU32 b)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual DtU32	messageFormatsPresent () const
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual void	setMode5TransponderStatus (DtU16 b)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual DtU16	mode5TransponderStatus () const
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual void	setEnhancedMode1 (DtU16 b)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual DtU16	enhancedMode1 () const
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual void	setEnhancedMode1Code1 (int value)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual int	enhancedMode1Code1 ()
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual void	setEnhancedMode1Code2 (int value)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual int	enhancedMode1Code2 ()
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual void	setEnhancedMode1Code3 (int value)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual int	enhancedMode1Code3 ()
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual void	setEnhancedMode1Code4 (int value)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual int	enhancedMode1Code4 ()
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual void	setEnhancedMode1On (bool value)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual bool	enhancedMode1On ()
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual void	setEnhancedMode1DamageStatus (bool value)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual bool	enhancedMode1DamageStatus ()
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual void	setEnhancedMode1MalfunctionStatus (bool value)
	Only used by Layer 3 (Mode 5)Transponder. More...
virtual bool	enhancedMode1MalfunctionStatus ()
	Only used by Layer 3 (Mode 5)Transponder. More...
DIS Layer 3 Transponder Status Record (Mode 5)
Set the CryptoControl Parameters val Indicate that pseudo crypto control is present and be set to either Crypto Control IFF Data Record Not Present(0) or Crypto Control IFF Data Record Present(1)
virtual void	setCryptoControlDataIsPresent (bool val)
	Get the CryptoControl. More...
virtual bool	cryptoControlDataIsPresent () const
	Get the CryptoControl. More...
DIS Layer 3 Interrogator Attributes (Mode 5)
DIS Layer 3 (Mode 5) Interrogator Basic Data
virtual void	setMode5InterrogatorStatus (DtU8 b)
	Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1) More...
virtual DtU8	mode5InterrogatorStatus () const
	Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1) More...
virtual void	setMessageFormatsStatus (DtIffAtcNavaidsMode5MessageFormatsStatus status)
	Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1) More...
virtual DtIffAtcNavaidsMode5MessageFormatsStatus	messageFormatsStatus () const
	Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1) More...
virtual void	setInterrogatedEntityID (DtEntityIdentifier b)
	Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1) More...
virtual DtEntityIdentifier	interrogatedEntityID () const
	Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1) More...
Public Member Functions inherited from DtIFFDataStateRepository
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...
virtual	~DtIFFDataStateRepository ()
	Destructor. More...
	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...
DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...
virtual void	setIsOn (bool val)
	Set the IsOn attribute. More...
virtual bool	isOn () const
	Get the IsOn attribute. More...
virtual void	setIsDamaged (bool val)
	Set the IsDamaged attribute. More...
virtual bool	isDamaged () const
	Get the IsDamaged attribute. More...
virtual void	setIsMalfunctioning (bool val)
	Set the IsMalfunctioning attribute. More...
virtual bool	isMalfunctioning () const
	Get the IsMalfunctioning attribute. More...
virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...
virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier. More...
virtual void	setReportingSimulation (const DtFederateIdentifierStruct &val)
	Set the ReportingSimulation attribute. More...
virtual const DtFederateIdentifierStruct &	reportingSimulation () const
	Get the ReportingSimulation. More...
virtual void	setIffStateRepository (const DtIffStateRepository *sr)
virtual const DtIffStateRepository *	isr () const
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtMode5StateRepository *	create ()
	Create a DtMode5StateRepository. More...
Static Public Member Functions inherited from DtIFFDataStateRepository
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
bool	myPseudoCryptoCodeAvailable
DtU16	myPseudoCryptoCode
DtIFFLayerSpecificInformationEnum8	mySpecificInformation
DtMode5IFFMissionEnum8	myMission
DtMode5MessageFormatsStruct	myMessageFormatsCapable
DtIFFDataVariantStructArray	myIFFData
DtMode5PlatformTypeEnum8	myPlatformType
DtU16	myNationalOrigin
DtU16	myPlatformIdentificationNumber
DtAntennaSelectionEnum8	myAntennaSelection
DtMode5LevelSelectionEnum8	myLevelSelection
bool	mySquitterIsOn
DtLevel2SquitterStatusEnum8	myLevel2SquitterStatus
bool	myLineTestIsEnabled
DtMode5ReplyEnum8	myReply
DtU8	myFigureOfMerit
DtIffAtcNavaidsNavigationSource	myNavigationSource
bool	myCryptoControlDataIsPresent
bool	myLocationDataIsPresent
bool	myLocationErrorDataIsPresent
DtU32	myMessageFormatsPresent
	DIS Layer 3 Mode 5 Attributes. More...
DtU8	myMode5InterrogatorStatus
DtIffAtcNavaidsMode5MessageFormatsStatus	myMessageFormatsStatus
int	myLayer3NumIffRecords
std::vector < DtIffAtcNavaidsVariableRecord * >	myLayer3IffRecords
DtEntityIdentifier	myInterrogatedEntityID
	Layer 3 (Mode 5)Interrogator. More...
DtU16	myEnhancedMode1
	Layer 3 (Mode 5)Transponder. More...
DtU16	myMode5TransponderStatus
Protected Attributes inherited from DtIFFDataStateRepository
DtGlobalObjectDesignator	myIFFSystemIdentifier
DtIFFDataVariantStructArray	myIffSupplementalData
DtFederateIdentifierStruct	myReportingSimulation
DtIffDataMode	myMode
const DtIffStateRepository *	myIffSR
bool	myIsOn
bool	myIsDamaged
bool	myIsMalfunctioning

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtMode5StateRepository are used to store state data for IFFData.Mode5 objects.

Constructor & Destructor Documentation

DtMode5StateRepository::DtMode5StateRepository

(

)

Constructor.

virtual DtMode5StateRepository::~DtMode5StateRepository ( )

virtual

Destructor.

DtMode5StateRepository::DtMode5StateRepository

(

const DtMode5StateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual const DtAntennaSelectionEnum8& DtMode5StateRepository::antennaSelection ( ) const

virtual

Get the AntennaSelection.

virtual DtStateRepository* DtMode5StateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtIFFDataStateRepository.

static DtMode5StateRepository* DtMode5StateRepository::create ( )

static

Create a DtMode5StateRepository.

virtual bool DtMode5StateRepository::cryptoControlDataIsPresent ( ) const

virtual

Get the CryptoControl.

virtual DtU16 DtMode5StateRepository::enhancedMode1 ( ) const

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual int DtMode5StateRepository::enhancedMode1Code1 ( )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual int DtMode5StateRepository::enhancedMode1Code2 ( )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual int DtMode5StateRepository::enhancedMode1Code3 ( )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual int DtMode5StateRepository::enhancedMode1Code4 ( )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual bool DtMode5StateRepository::enhancedMode1DamageStatus ( )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual bool DtMode5StateRepository::enhancedMode1MalfunctionStatus ( )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual bool DtMode5StateRepository::enhancedMode1On ( )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual DtU8 DtMode5StateRepository::figureOfMerit ( ) const

virtual

Get the FigureOfMerit.

virtual const DtIFFDataVariantStructArray& DtMode5StateRepository::IFFData ( ) const

virtual

Get the IFFData.

Reimplemented from DtIFFDataStateRepository.

virtual DtEntityIdentifier DtMode5StateRepository::interrogatedEntityID ( ) const

virtual

Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1)

virtual const DtLevel2SquitterStatusEnum8& DtMode5StateRepository::level2SquitterStatus ( ) const

virtual

Get the Level2SquitterStatus.

virtual const DtMode5LevelSelectionEnum8& DtMode5StateRepository::levelSelection ( ) const

virtual

Get the LevelSelection.

virtual bool DtMode5StateRepository::lineTestIsEnabled ( ) const

virtual

Get the LineTestIsEnabled.

virtual bool DtMode5StateRepository::locationDataIsPresent ( ) const

virtual

Get the LocationDataIsPresent.

virtual bool DtMode5StateRepository::locationErrorDataIsPresent ( ) const

virtual

Get the LocationErrorDataIsPresent.

virtual const DtMode5MessageFormatsStruct& DtMode5StateRepository::messageFormatsCapable ( ) const

virtual

Get the MessageFormatsCapable.

virtual DtU32 DtMode5StateRepository::messageFormatsPresent ( ) const

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual DtIffAtcNavaidsMode5MessageFormatsStatus DtMode5StateRepository::messageFormatsStatus ( ) const

virtual

Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1)

virtual const DtMode5IFFMissionEnum8& DtMode5StateRepository::mission ( ) const

virtual

Get the Mission.

virtual DtU8 DtMode5StateRepository::mode5InterrogatorStatus ( ) const

virtual

Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1)

virtual bool DtMode5StateRepository::mode5InterrogatorStatusBit ( DtIffAtcNavaidsMode5InterrogatorStatus  bit ) const

virtual

virtual DtU16 DtMode5StateRepository::mode5TransponderStatus ( ) const

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual bool DtMode5StateRepository::mode5TransponderStatusBit ( DtIffAtcNavaidsMode5TransponderStatus  bit )

virtual

virtual bool DtMode5StateRepository::mode5TransponderSupplementalDataBit ( DtIffAtcNavaidsMode5TransponderSupplementalData  bit ) const

virtual

virtual DtU16 DtMode5StateRepository::nationalOrigin ( ) const

virtual

Get the NationalOrigin.

virtual const DtIffAtcNavaidsNavigationSource& DtMode5StateRepository::navigationSource ( ) const

virtual

Get the NavigationSource.

DtMode5StateRepository& DtMode5StateRepository::operator=

(

const DtMode5StateRepository &

orig

)

Assignment Operator.

virtual DtU16 DtMode5StateRepository::pin ( ) const

virtual

Get the PlatformIdentificationNumber.

virtual const DtMode5PlatformTypeEnum8& DtMode5StateRepository::platformType ( ) const

virtual

Get the PlatformType.

virtual void DtMode5StateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtIFFDataStateRepository.

virtual void DtMode5StateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtIFFDataStateRepository.

virtual DtU16 DtMode5StateRepository::pseudoCryptoCode ( ) const

virtual

Get the PseudoCryptoCodeA.

virtual bool DtMode5StateRepository::pseudoCryptoCodeAvailable ( ) const

virtual

Get the PseudoCryptoCodeAvailable.

virtual const DtMode5ReplyEnum8& DtMode5StateRepository::reply ( ) const

virtual

Get the Reply attribute.

Returns

Reply received from the Mode 5 Interrogator

virtual void DtMode5StateRepository::setAntennaSelection ( const DtAntennaSelectionEnum8 &  val )

virtual

Set the AntennaSelection.

Parameters

val	Indicate the present Mode 5 transponder antenna selection and shall be set to either No Statement (0) if the Mode 5 antenna position is not available or to Top (1), Bottom (2), or Diversity (3)

virtual void DtMode5StateRepository::setCryptoControlDataIsPresent ( bool  val )

virtual

Get the CryptoControl.

virtual void DtMode5StateRepository::setEnhancedMode1 ( DtU16  b )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual void DtMode5StateRepository::setEnhancedMode1Code1 ( int  value )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual void DtMode5StateRepository::setEnhancedMode1Code2 ( int  value )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual void DtMode5StateRepository::setEnhancedMode1Code3 ( int  value )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual void DtMode5StateRepository::setEnhancedMode1Code4 ( int  value )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual void DtMode5StateRepository::setEnhancedMode1DamageStatus ( bool  value )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual void DtMode5StateRepository::setEnhancedMode1MalfunctionStatus ( bool  value )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual void DtMode5StateRepository::setEnhancedMode1On ( bool  value )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual void DtMode5StateRepository::setFigureOfMerit ( DtU8  val )

virtual

Set the FigureOfMerit.

Parameters

val	A number in the range of 0 to 31 decimal

virtual void DtMode5StateRepository::setIFFData ( const DtIFFDataVariantStructArray &  val )

virtual

Set the IFFData.

Parameters

val	Mode 5 IFF Data

Reimplemented from DtIFFDataStateRepository.

virtual void DtMode5StateRepository::setInterrogatedEntityID ( DtEntityIdentifier  b )

virtual

Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1)

virtual void DtMode5StateRepository::setLevel2SquitterStatus ( const DtLevel2SquitterStatusEnum8 &  val )

virtual

Set the Level2SquitterStatus.

Parameters

val	Indicates whether Mode 5 Level 2 squitter is Disabled (0) or Enabled (1)

virtual void DtMode5StateRepository::setLevelSelection ( const DtMode5LevelSelectionEnum8 &  val )

virtual

Set the LevelSelection.

Parameters

val	Indicates whether Mode 5 Level 1 (0) or Mode 5 Level 2 (1) is currently selected for this Mode 5 transponder

virtual void DtMode5StateRepository::setLineTestIsEnabled ( bool  val )

virtual

Set the LineTestIsEnabled.

Parameters

val	Indicates whether a line test is in progress

virtual void DtMode5StateRepository::setLocationDataIsPresent ( bool  val )

virtual

Set the LocationDataIsPresent.

Parameters

val	Indicates whether the source of Mode 5 latitude, longitude, and altitude information is present in a Mode 5 Transponder Location IFF Data record in the SupplementalData array attribute (1), or is to be computed locally (0)

virtual void DtMode5StateRepository::setLocationErrorDataIsPresent ( bool  val )

virtual

Set the LocationErrorDataIsPresent.

Parameters

val	Indicates whether there are location errors associated with Mode 5 latitude, longitude, or altitude present in a Transponder Location Error IFF Data record in the SupplementalData array attribute (1), or No Location Errors are provided (0)

virtual void DtMode5StateRepository::setMessageFormatsCapable ( const DtMode5MessageFormatsStruct &  val )

virtual

Set the MessageFormatsCapable The included message formats that this Mode 5 interrogator or transponder is capable of supporting and could be in a Mode 5 interrogation or in a reply to a Mode 5 interrogation.

Parameters

val	A struct indicating the message formats capable in Mode 5

virtual void DtMode5StateRepository::setMessageFormatsCapable ( std::vector< int > &  binVal )

virtual

Set the MessageFormatsCapable The included message formats that this Mode 5 interrogator or transponder is capable of supporting and could be in a Mode 5 interrogation or in a reply to a Mode 5 interrogation.

Parameters

binVal

A 32-bit vector of the binary value of the Mode 5 Message Formats record

virtual void DtMode5StateRepository::setMessageFormatsPresent ( DtU32  b )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual void DtMode5StateRepository::setMessageFormatsStatus ( DtIffAtcNavaidsMode5MessageFormatsStatus  status )

virtual

Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1)

virtual void DtMode5StateRepository::setMission ( const DtMode5IFFMissionEnum8 &  val )

virtual

Set the Mission.

Parameters

val	The IFF mission of this Mode 5 interrogator or transponder

virtual void DtMode5StateRepository::setMode5InterrogatorStatus ( DtU8  b )

virtual

Message Formats Status This 1-bit enumeration field indicates whether Mode 5 Message Formats record indicates a Capability(0) or an Active Interrogation(1)

virtual void DtMode5StateRepository::setMode5InterrogatorStatusBit ( DtIffAtcNavaidsMode5InterrogatorStatus  bit, bool  value  )

virtual

virtual void DtMode5StateRepository::setMode5TransponderStatus ( DtU16  b )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual void DtMode5StateRepository::setMode5TransponderStatusBit ( DtIffAtcNavaidsMode5TransponderStatus  bit, bool  value  )

virtual

virtual void DtMode5StateRepository::setMode5TransponderSupplementalDataBit ( DtIffAtcNavaidsMode5TransponderSupplementalData  bit, bool  value  )

virtual

virtual void DtMode5StateRepository::setNationalOrigin ( DtU16  b )

virtual

Set the NationalOrigin.

Parameters

val	The country that owns the platform carrying a Mode 5 transponder

virtual void DtMode5StateRepository::setNavigationSource ( const DtIffAtcNavaidsNavigationSource &  val )

virtual

Set the NavigationSource.

Parameters

val	The Navigation source

virtual void DtMode5StateRepository::setPin ( DtU16  b )

virtual

Set the PlatformIdentificationNumber.

Parameters

val	The Platform Identification Number (PIN) that uniquely identifies the platform carrying this Mode 5 transponder. The PIN shall be a number in the range 00 000 octal to 37 777 octal

virtual void DtMode5StateRepository::setPlatformType ( const DtMode5PlatformTypeEnum8 &  val )

virtual

Set the PlatformType.

Parameters

val	Indicates the type of platform (air or ground) that is associated with this Mode 5 transponder

virtual void DtMode5StateRepository::setPseudoCryptoCode ( DtU16  val )

virtual

Set the PseudoCryptoCode.

Parameters

val	Mode 5 pseudo crypto code in the range 0 to 4094 decimal

virtual void DtMode5StateRepository::setPseudoCryptoCodeAvailable ( bool  val )

virtual

Set the PseudoCryptoCodeAvailable.

Parameters

val	Indicates whether a Mode 5 pseudo crypto code value is available in the attribute PseudoCryptoCode or that Reply is to be used instead.

virtual void DtMode5StateRepository::setReply ( const DtMode5ReplyEnum8 &  val )

virtual

Get the Reply attribute.

Returns

Reply received from the Mode 5 Interrogator

virtual void DtMode5StateRepository::setSpecificInformation ( const DtIFFLayerSpecificInformationEnum8 &  val )

virtual

Set the SpecificInformation.

Parameters

val	Specific information for Mode 5 data that varies by System Type

virtual void DtMode5StateRepository::setSquitterIsOn ( bool  val )

virtual

Set the SquitterIsOn.

Parameters

val	Indicates whether Mode 5 squitter is On (1) or Off (0)

virtual void DtMode5StateRepository::setSupplementalData ( DtU8  b )

virtual

Only used by Layer 3 (Mode 5)Transponder.

virtual const DtIFFLayerSpecificInformationEnum8& DtMode5StateRepository::specificInformation ( ) const

virtual

Get the SpecificInformation.

virtual bool DtMode5StateRepository::squitterIsOn ( ) const

virtual

Get the SquitterIsOn.

virtual DtU8 DtMode5StateRepository::supplementalData ( ) const

virtual

Only used by Layer 3 (Mode 5)Transponder.

Member Data Documentation

DtAntennaSelectionEnum8 DtMode5StateRepository::myAntennaSelection

protected

bool DtMode5StateRepository::myCryptoControlDataIsPresent

protected

DtU16 DtMode5StateRepository::myEnhancedMode1

protected

Layer 3 (Mode 5)Transponder.

DtU8 DtMode5StateRepository::myFigureOfMerit

protected

DtIFFDataVariantStructArray DtMode5StateRepository::myIFFData

protected

DtEntityIdentifier DtMode5StateRepository::myInterrogatedEntityID

protected

Layer 3 (Mode 5)Interrogator.

std::vector<DtIffAtcNavaidsVariableRecord*> DtMode5StateRepository::myLayer3IffRecords

protected

int DtMode5StateRepository::myLayer3NumIffRecords

protected

DtLevel2SquitterStatusEnum8 DtMode5StateRepository::myLevel2SquitterStatus

protected

DtMode5LevelSelectionEnum8 DtMode5StateRepository::myLevelSelection

protected

bool DtMode5StateRepository::myLineTestIsEnabled

protected

bool DtMode5StateRepository::myLocationDataIsPresent

protected

bool DtMode5StateRepository::myLocationErrorDataIsPresent

protected

DtMode5MessageFormatsStruct DtMode5StateRepository::myMessageFormatsCapable

protected

DtU32 DtMode5StateRepository::myMessageFormatsPresent

protected

DIS Layer 3 Mode 5 Attributes.

DtIffAtcNavaidsMode5MessageFormatsStatus DtMode5StateRepository::myMessageFormatsStatus

protected

DtMode5IFFMissionEnum8 DtMode5StateRepository::myMission

protected

DtU8 DtMode5StateRepository::myMode5InterrogatorStatus

protected

DtU16 DtMode5StateRepository::myMode5TransponderStatus

protected

DtU16 DtMode5StateRepository::myNationalOrigin

protected

DtIffAtcNavaidsNavigationSource DtMode5StateRepository::myNavigationSource

protected

DtU16 DtMode5StateRepository::myPlatformIdentificationNumber

protected

DtMode5PlatformTypeEnum8 DtMode5StateRepository::myPlatformType

protected

DtU16 DtMode5StateRepository::myPseudoCryptoCode

protected

bool DtMode5StateRepository::myPseudoCryptoCodeAvailable

protected

DtMode5ReplyEnum8 DtMode5StateRepository::myReply

protected

DtIFFLayerSpecificInformationEnum8 DtMode5StateRepository::mySpecificInformation

protected

bool DtMode5StateRepository::mySquitterIsOn

protected

---

The documentation for this class was generated from the following file:

• iffMode5StateRepository.h
