DtReflectedTurbulenceLayer Class Reference

Instances of DtReflectedTurbulenceLayer are used to represent a simulated HLAobjectRoot.METOC_Root.EnvironmentCondition.TurbulenceLayer object reflected across a network. More...

Inheritance diagram for DtReflectedTurbulenceLayer:

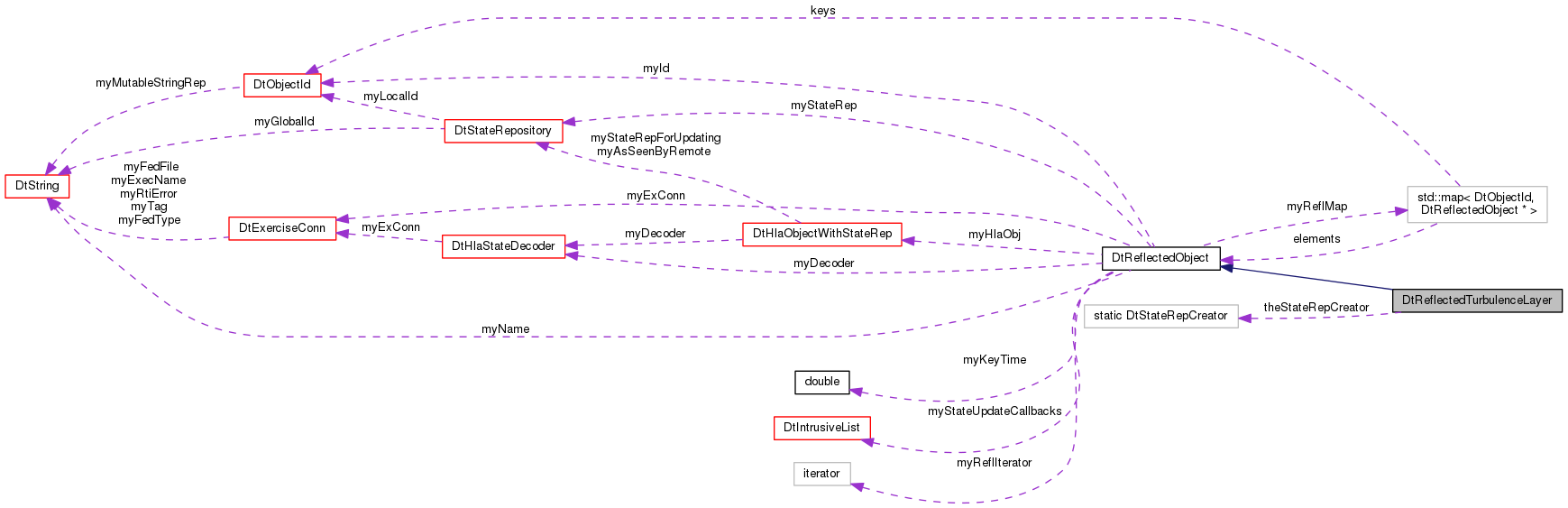

Collaboration diagram for DtReflectedTurbulenceLayer:

Public Types
typedef DtTurbulenceLayerStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create a DtTurbulenceLayerStateRepository. More...
Public Types inherited from DtReflectedObject
typedef DtStateRepository *(*	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories. More...

Public Member Functions
	DtReflectedTurbulenceLayer (DtHlaObject *obj, DtExerciseConn *exConn)
	Constructor. More...
virtual	~DtReflectedTurbulenceLayer ()
	Destructor. More...
virtual DtTurbulenceLayerStateRepository *	turbulenceLayerStateRep () const
	Returns the Turbulence Layer's state repository. More...
virtual DtTurbulenceLayerStateRepository *	tsr () const
	Shorter version of lifeformRep. More...
virtual DtReflectedTurbulenceLayer *	next () const
	Returns the next reflected Turbulence Layer in the DtReflectedTurbulenceLayerList. More...
virtual DtReflectedTurbulenceLayer *	prev () const
	Returns the previous reflected Turbulence Layer in the DtReflectedTurbulenceLayerList. More...
virtual DtReflectedTurbulenceLayer *	wrapNext () const
	Returns the next reflected Turbulence Layer. More...
virtual DtReflectedTurbulenceLayer *	wrapPrev () const
	Returns the previous reflected Turbulence Layer. More...
virtual void	addPostUpdateCallback (DtTurbulenceLayerCallbackFunction cb, void *userData)
	Add a callback that is called when the DtReflectedTurbulenceLayer is updated. More...
virtual void	removePostUpdateCallback (DtTurbulenceLayerCallbackFunction cb, void *userData)
	Remove the callback that is called when the DtReflectedTurbulenceLayer is updated. More...
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn, DtStateRepository *stateRep)
	Primary constructor. More...
	DtReflectedObject (DtHlaObject *obj, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR. More...
virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject). More...
virtual const DtObjectId &	objectId () const
	Get the HLA object's id. More...
virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID). More...
virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID). More...
virtual const DtString &	name () const
	Get the HLA object name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
void	setHlaObject (DtHlaObject *obj, DtHlaStateDecoder *decoder=NULL)
	Start reflecting this object, using this decoder. More...
virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object. More...
void	detachHlaObject ()
	Ends managing of current HLA object. More...
virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update. More...
virtual DtTime	keyTime () const
	Set/Get the time value used with ID to define a map key Key is used to store objects by time but still allow index by ID (using this keyTime) More...
virtual void	setKeyTime (DtTime timeValue)
	Set/Get the time value used with ID to define a map key Key is used to store objects by time but still allow index by ID (using this keyTime) More...

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Set the function to be called for creating state repositories. More...

Protected Member Functions
	DtReflectedTurbulenceLayer (const DtReflectedTurbulenceLayer &orig)
	Copy Constructor not implemented. More...
DtReflectedTurbulenceLayer &	operator= (const DtReflectedTurbulenceLayer &orig)
	Assignment operator not implemented. More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
	The function called to create state repositories. More...

Additional Inherited Members
Static Protected Member Functions inherited from DtReflectedObject
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject *obj, void *usr)
	Callback from HlaObject to process post update callbacks. More...
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtHlaStateDecoder *	myDecoder
DtIntrusiveList	myStateUpdateCallbacks
DtObjectId	myId
DtString	myName
DtTime	myKeyTime
DtRefHlaObjectMap::iterator	myReflIterator
DtRefHlaObjectMap *	myReflMap

Detailed Description

Instances of DtReflectedTurbulenceLayer are used to represent a simulated HLAobjectRoot.METOC_Root.EnvironmentCondition.TurbulenceLayer object reflected across a network.

Member Typedef Documentation

typedef DtTurbulenceLayerStateRepository*(* DtReflectedTurbulenceLayer::DtStateRepCreator)()

Function prototype for functions that create a DtTurbulenceLayerStateRepository.

Constructor & Destructor Documentation

DtReflectedTurbulenceLayer::DtReflectedTurbulenceLayer	(	DtHlaObject *	obj,
		DtExerciseConn *	exConn
	)

Constructor.

virtual DtReflectedTurbulenceLayer::~DtReflectedTurbulenceLayer ( )

virtual

Destructor.

DtReflectedTurbulenceLayer::DtReflectedTurbulenceLayer ( const DtReflectedTurbulenceLayer &  orig )

protected

Copy Constructor not implemented.

Member Function Documentation

virtual void DtReflectedTurbulenceLayer::addPostUpdateCallback ( DtTurbulenceLayerCallbackFunction  cb, void *  userData  )

virtual

Add a callback that is called when the DtReflectedTurbulenceLayer is updated.

virtual DtReflectedTurbulenceLayer* DtReflectedTurbulenceLayer::next ( ) const

virtual

Returns the next reflected Turbulence Layer in the DtReflectedTurbulenceLayerList.

DtReflectedTurbulenceLayer& DtReflectedTurbulenceLayer::operator= ( const DtReflectedTurbulenceLayer &  orig )

protected

Assignment operator not implemented.

virtual DtReflectedTurbulenceLayer* DtReflectedTurbulenceLayer::prev ( ) const

virtual

Returns the previous reflected Turbulence Layer in the DtReflectedTurbulenceLayerList.

virtual void DtReflectedTurbulenceLayer::removePostUpdateCallback ( DtTurbulenceLayerCallbackFunction  cb, void *  userData  )

virtual

Remove the callback that is called when the DtReflectedTurbulenceLayer is updated.

static DtStateRepCreator DtReflectedTurbulenceLayer::setStateRepCreator ( DtStateRepCreator  creator )

static

Set the function to be called for creating state repositories.

DtTurbulenceLayerStateRepository * DtReflectedTurbulenceLayer::tsr ( ) const

inlinevirtual

Shorter version of lifeformRep.

References DtReflectedObject::myStateRep.

DtTurbulenceLayerStateRepository * DtReflectedTurbulenceLayer::turbulenceLayerStateRep ( ) const

inlinevirtual

Returns the Turbulence Layer's state repository.

References DtReflectedObject::myStateRep.

virtual DtReflectedTurbulenceLayer* DtReflectedTurbulenceLayer::wrapNext ( ) const

virtual

Returns the next reflected Turbulence Layer.

Will cycle back to the first remote Turbulence Layer in the DtReflectedTurbulenceLayerList.

virtual DtReflectedTurbulenceLayer* DtReflectedTurbulenceLayer::wrapPrev ( ) const

virtual

Returns the previous reflected Turbulence Layer.

Will cycle back to the first remote Turbulence Layer in the DtReflectedTurbulenceLayerList.

Member Data Documentation

DtStateRepCreator DtReflectedTurbulenceLayer::theStateRepCreator

staticprotected

The function called to create state repositories.

---

The documentation for this class was generated from the following file:

• reflectedTurbulenceLayerHLA.h
