Inheritance diagram for DtTransferControlManager:

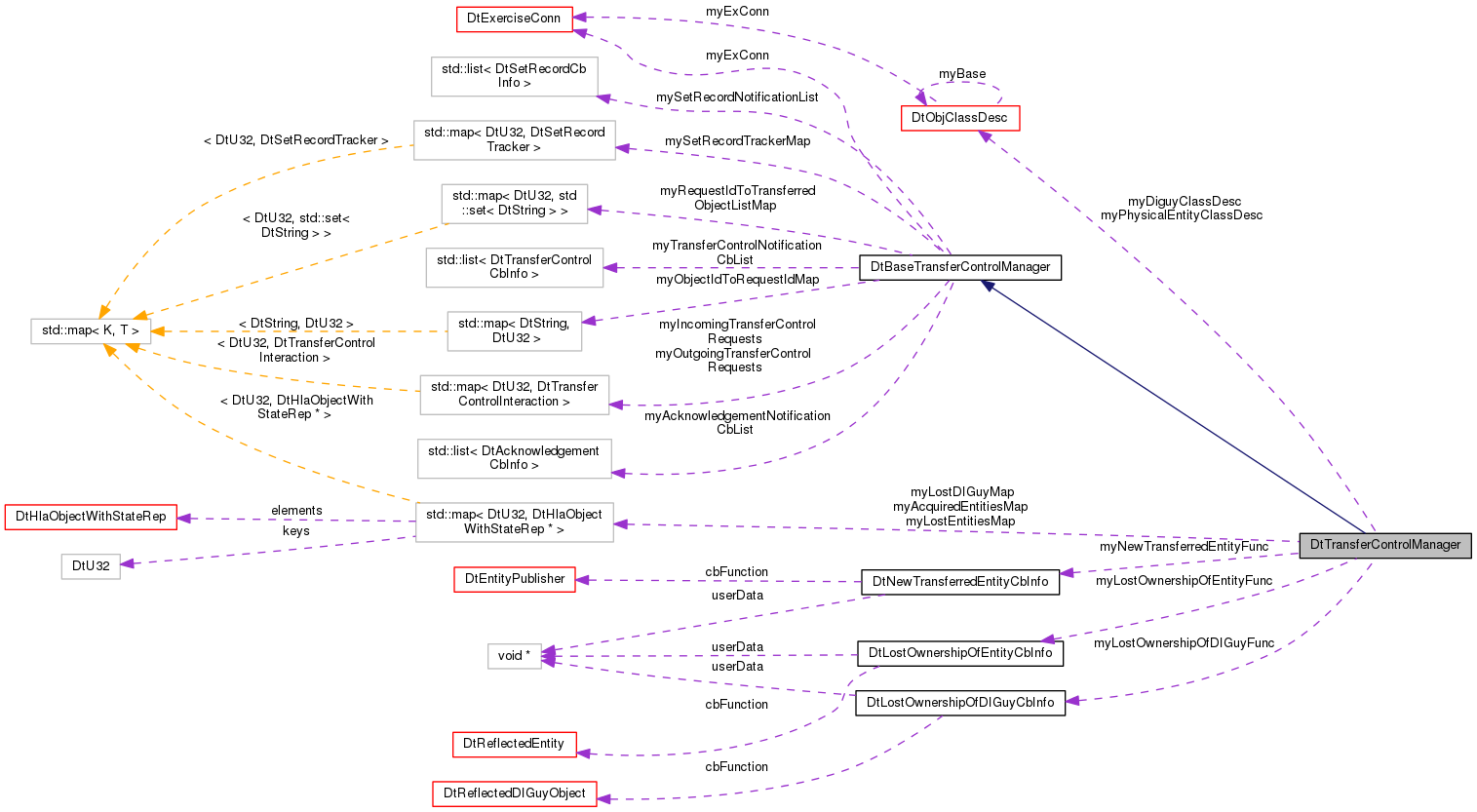

Collaboration diagram for DtTransferControlManager:

Public Member Functions
	DtTransferControlManager (DtExerciseConn *exConn)

	~DtTransferControlManager ()

virtual void	processGainedOwnership (DtHlaObject *hlaObject)

virtual void	processLostOwnership (DtHlaObject *hlaObject)

virtual void	sendSetRecordInteraction (DtU32 requestIdentifier)
	Pure virtual functions that are protocol specific and must be defined in subclass. More...

virtual void	setNewTransferredEntityCallback (DtNewTransferredEntityCb func, void *usr)
	Set the callback function to invoke when gaining ownership of a new entity. More...

virtual void	setLostOwnershipOfEntityCallback (DtLostOwnershipOfEntityCb func, void *usr)
	Set the callback function to invoke when losing ownership of an entity. More...

virtual void	setLostOwnershipOfDIGuyCallback (DtLostOwnershipOfDIGuyCb func, void *usr)
	Set the callback function to invoke when losing ownership of a DIGuy Object. More...

virtual void	processSetRecord (DtSetRecordInteraction *setRec)
	Processes the incoming SetRecord interaction. Tracks the number of records for each individual request ID. More...

virtual void	invokeNewAndLostObjectCallbacks ()
	Post drain callback that calls both invokeNewObjectCallbacks() and invokeLostObjectCallbacks(). More...

virtual void	invokeNewObjectCallbacks ()
	Post drain callback that invokes createEntityPublisher function when all related objects have been transferred. More...

virtual void	invokeLostObjectCallbacks ()
	Post drain callback that invokes createReflectedEntity function when all related objects have been transferred. More...

virtual DtEntityPublisher *	createEntityPublisher (DtHlaObjectWithStateRep hlaObj, DtExerciseConn exConn)
	function that creates new Entity Publishers from transferred objects. More...

virtual DtReflectedEntity *	createReflectedEntity (DtHlaObjectWithStateRep hlaObj, DtExerciseConn exConn)
	function that creates new reflected entity objects after losing ownership of an object. More...

virtual DtReflectedDIGuyObject *	createReflectedDIGuyObject (DtHlaObjectWithStateRep hlaObj, DtExerciseConn exConn)
	function that creates new reflected DIGuy objects after losing ownership of an object. More...

Public Member Functions inherited from DtBaseTransferControlManager
	DtBaseTransferControlManager (DtExerciseConn *exConn)

	~DtBaseTransferControlManager ()

virtual void	addTransferControlNotificationCallback (DtTransferControlInteractionCb usrCallback, void *user)
	Callbacks for transfer control interactions that are intended for this application. More...

virtual void	addAcknowledgementNotificationCallback (DtAcknowledgeInteractionCb usrCallback, void *user)
	Callbacks for acknowledgement interactions that match up with requests made. More...

virtual void	addSetRecordNotificationCallback (DtSetRecordInteractionCb usrCallback, void *user)
	Callbacks for set record interactions that match up with requests made. More...

virtual void	processTransferControlRequest (DtTransferControlInteraction *tci)
	Processes incoming transfer control requests. More...

virtual bool	processAcknowledge (DtAcknowledgeInteraction *tci)
	Processes incoming transfer control requests. More...

virtual void	sendAcknowledgement (DtU32 requestIdentifier, bool approve, DtRecordSetList recordSetList=nullptr, DtStateRepository stateRepo=nullptr)
	Send an ackowledgement for a transfer control request specified by the requestIdentifier while indicating approval or disapproval of the transfer. More...

virtual void	sendSetRecord (DtEntityIdentifier originatingApplicationId, DtU32 requestIdentifier, DtRecordSetList recordSetList, DtStateRepository stateRepo)
	Send out the SetRecord interaction for internal data. More...

virtual unsigned int	sendTransferControlRequest (DtTransferControlInteraction *tci)
	Send the supplied transfer control request. More...

virtual unsigned int	sendTransferControlRequest (DtEntityIdentifier receivingApplicationId, DtGlobalObjectDesignator transferredEntityId)
	Send a transfer control request with the supplied receiving application identifier and transferred entity identifier. More...

virtual DtTransferControlInteraction *	pendingOutgoingTransferRequest (DtU32 requestIdentifier)
	return a pointer to the pending outgoing transfer request with the given requestIdentifier. More...

virtual bool	getSetRecordTracker (DtU32 requestIdentifier, DtSetRecordTracker &tracker)
	get a DtSetRecordTracker object for the given Request Identifier, returns a bool to indicate success or failure. More...

virtual void	sendEventReport (DtGlobalObjectDesignator identifier)
	sends out a Ownership Event Report interaction, indicating the new owner of the indicated object More...

virtual DtU32	findRequestIdForObject (const DtGlobalObjectDesignator &objDesignator)

virtual bool	removeObjectFromTransferredSet (const DtGlobalObjectDesignator &objectDesignator, DtU32 requestId)

virtual bool	isTransferredSetEmpty (DtU32 requestIdentifier) const

Static Public Member Functions
static void	gainedOwnershipCallback (DtHlaObject hlaObject, void usr)
	Static callback function invoked after successfully acquiring an object. More...

static void	lostOwnershipCallback (DtHlaObject hlaObject, void usr)
	Calls processLostOwnership. More...

Static Public Member Functions inherited from DtBaseTransferControlManager
static void	transferControlRequestCallback (DtTransferControlInteraction tci, void user)
	Callback for incoming Transer Control Requests. More...

static void	acknowledgeCallback (DtAcknowledgeInteraction ack, void user)
	Callback for incoming acknowledgement interactions. More...

static void	setRecordCallback (DtSetRecordInteraction setRec, void user)
	Callback for incoming SetRecord interactions. More...

static void	postDrainCallback (void *user)
	Post Drain callback. More...

Protected Attributes
DtObjClassDesc *	myPhysicalEntityClassDesc

DtObjClassDesc *	myDiguyClassDesc

DtNewTransferredEntityCbInfo	myNewTransferredEntityFunc

DtLostOwnershipOfEntityCbInfo	myLostOwnershipOfEntityFunc

DtLostOwnershipOfDIGuyCbInfo	myLostOwnershipOfDIGuyFunc

std::map< DtU32, DtHlaObjectWithStateRep * >	myAcquiredEntitiesMap

std::map< DtU32, DtHlaObjectWithStateRep * >	myLostEntitiesMap

std::map< DtU32, DtHlaObjectWithStateRep * >	myLostDIGuyMap

Protected Attributes inherited from DtBaseTransferControlManager
DtExerciseConn *	myExConn

std::list < DtTransferControlCbInfo >	myTransferControlNotificationCbList

std::list < DtAcknowledgementCbInfo >	myAcknowledgementNotificationCbList

std::list< DtSetRecordCbInfo >	mySetRecordNotificationList

std::map< DtU32, DtTransferControlInteraction >	myIncomingTransferControlRequests

std::map< DtU32, DtTransferControlInteraction >	myOutgoingTransferControlRequests

std::map < DtGlobalObjectDesignator, DtU32 >	myObjectIdToRequestIdMap

std::map< DtU32, DtSetRecordTracker >	mySetRecordTrackerMap

std::map< DtU32, std::set < DtGlobalObjectDesignator > >	myRequestIdToTransferredObjectListMap

Private Member Functions
	DtTransferControlManager (const DtTransferControlManager &orig)
	copy constructor – Not Implemented More...

DtTransferControlManager &	operator= (const DtTransferControlManager &orig)
	assignment operator – Not Implemented More...

Additional Inherited Members
Protected Member Functions inherited from DtBaseTransferControlManager
virtual void	addOutgoingTransferControlRequest (DtTransferControlInteraction *tci)
	Adds the outoing transfer control interaction to a map of outgoing transfer control interactions, sorted by Request Identifier. More...

virtual void	addIncomingTransferControlRequest (DtTransferControlInteraction *tci)
	Adds the incoming transfer control interaction to a map of incoming transfer control interactions, sorted by Request Identifier. More...

virtual void	removeOutgoingTransferControlRequest (DtGlobalObjectDesignator identifier)
	Removes the outgoing transfer control interaction to a map of outgoing transfer control interactions, sorted by Request Identifier Called when a transfer completes, either successfully or unsucessfully. More...

virtual void	removeIncomingTransferControlRequest (DtGlobalObjectDesignator identifier)
	Removes the incoming transfer control interaction to a map of incoming transfer control interactions, sorted by Request Identifier Called when a transfer completes, either successfully or unsucessfully. More...

Constructor & Destructor Documentation

DtTransferControlManager::DtTransferControlManager ( DtExerciseConn * exConn )

DtTransferControlManager::~DtTransferControlManager ( )

DtTransferControlManager::DtTransferControlManager ( const DtTransferControlManager & orig )

private

copy constructor – Not Implemented

Member Function Documentation

virtual DtEntityPublisher* DtTransferControlManager::createEntityPublisher	(	DtHlaObjectWithStateRep *	hlaObj,
		DtExerciseConn *	exConn
	)

virtual

function that creates new Entity Publishers from transferred objects.

Overwrite this to create extended publisher classes.

virtual DtReflectedDIGuyObject* DtTransferControlManager::createReflectedDIGuyObject	(	DtHlaObjectWithStateRep *	hlaObj,
		DtExerciseConn *	exConn
	)

virtual

function that creates new reflected DIGuy objects after losing ownership of an object.

Overwrite this to create extended reflected classes

virtual DtReflectedEntity* DtTransferControlManager::createReflectedEntity	(	DtHlaObjectWithStateRep *	hlaObj,
		DtExerciseConn *	exConn
	)

virtual

function that creates new reflected entity objects after losing ownership of an object.

Overwrite this to create extended reflected classes

static void DtTransferControlManager::gainedOwnershipCallback	(	DtHlaObject *	hlaObject,
		void *	usr
	)

static

Static callback function invoked after successfully acquiring an object.

Calls processGainedOwnership

virtual void DtTransferControlManager::invokeLostObjectCallbacks ( )

virtual

Post drain callback that invokes createReflectedEntity function when all related objects have been transferred.

virtual void DtTransferControlManager::invokeNewAndLostObjectCallbacks ( )

virtual

Post drain callback that calls both invokeNewObjectCallbacks() and invokeLostObjectCallbacks().

Implements DtBaseTransferControlManager.

virtual void DtTransferControlManager::invokeNewObjectCallbacks ( )

virtual

Post drain callback that invokes createEntityPublisher function when all related objects have been transferred.

static void DtTransferControlManager::lostOwnershipCallback	(	DtHlaObject *	hlaObject,
		void *	usr
	)

static

Calls processLostOwnership.

DtTransferControlManager& DtTransferControlManager::operator= ( const DtTransferControlManager & orig )

private

assignment operator – Not Implemented

virtual void DtTransferControlManager::processGainedOwnership ( DtHlaObject * hlaObject )

virtual

virtual void DtTransferControlManager::processLostOwnership ( DtHlaObject * hlaObject )

virtual

virtual void DtTransferControlManager::processSetRecord ( DtSetRecordInteraction * setRec )

virtual

Processes the incoming SetRecord interaction. Tracks the number of records for each individual request ID.

Reimplemented from DtBaseTransferControlManager.

virtual void DtTransferControlManager::sendSetRecordInteraction ( DtU32 requestIdentifier )

virtual

Pure virtual functions that are protocol specific and must be defined in subclass.

Implements DtBaseTransferControlManager.

virtual void DtTransferControlManager::setLostOwnershipOfDIGuyCallback	(	DtLostOwnershipOfDIGuyCb	func,
		void *	usr
	)

virtual

Set the callback function to invoke when losing ownership of a DIGuy Object.

Returns a DtReflect4edDIGuy pointer. User is reponsible for adding this DtReflectedDIGuy to their reflected list.

virtual void DtTransferControlManager::setLostOwnershipOfEntityCallback	(	DtLostOwnershipOfEntityCb	func,
		void *	usr
	)

virtual

Set the callback function to invoke when losing ownership of an entity.

Returns a DtReflectedEntity pointer. User is reponsible for adding this DtReflectedEntity to their reflected list as well as removing the matching DtEntityPublisher from their application.

virtual void DtTransferControlManager::setNewTransferredEntityCallback	(	DtNewTransferredEntityCb	func,
		void *	usr
	)

virtual

Set the callback function to invoke when gaining ownership of a new entity.

Returns a DtEntityPublisher pointer. User is responsible for removing the matching DtReflectedEntity from their DtReflectedEntityList

Member Data Documentation

std::map<DtU32, DtHlaObjectWithStateRep*> DtTransferControlManager::myAcquiredEntitiesMap

protected

DtObjClassDesc* DtTransferControlManager::myDiguyClassDesc

protected

std::map<DtU32, DtHlaObjectWithStateRep*> DtTransferControlManager::myLostDIGuyMap

protected

std::map<DtU32, DtHlaObjectWithStateRep*> DtTransferControlManager::myLostEntitiesMap

protected

DtLostOwnershipOfDIGuyCbInfo DtTransferControlManager::myLostOwnershipOfDIGuyFunc

protected

DtLostOwnershipOfEntityCbInfo DtTransferControlManager::myLostOwnershipOfEntityFunc

protected

DtNewTransferredEntityCbInfo DtTransferControlManager::myNewTransferredEntityFunc

protected

DtObjClassDesc* DtTransferControlManager::myPhysicalEntityClassDesc

protected

The documentation for this class was generated from the following file:

transferControlManagerHLA.h
