Maintains a list of enumerations read in from files. More...

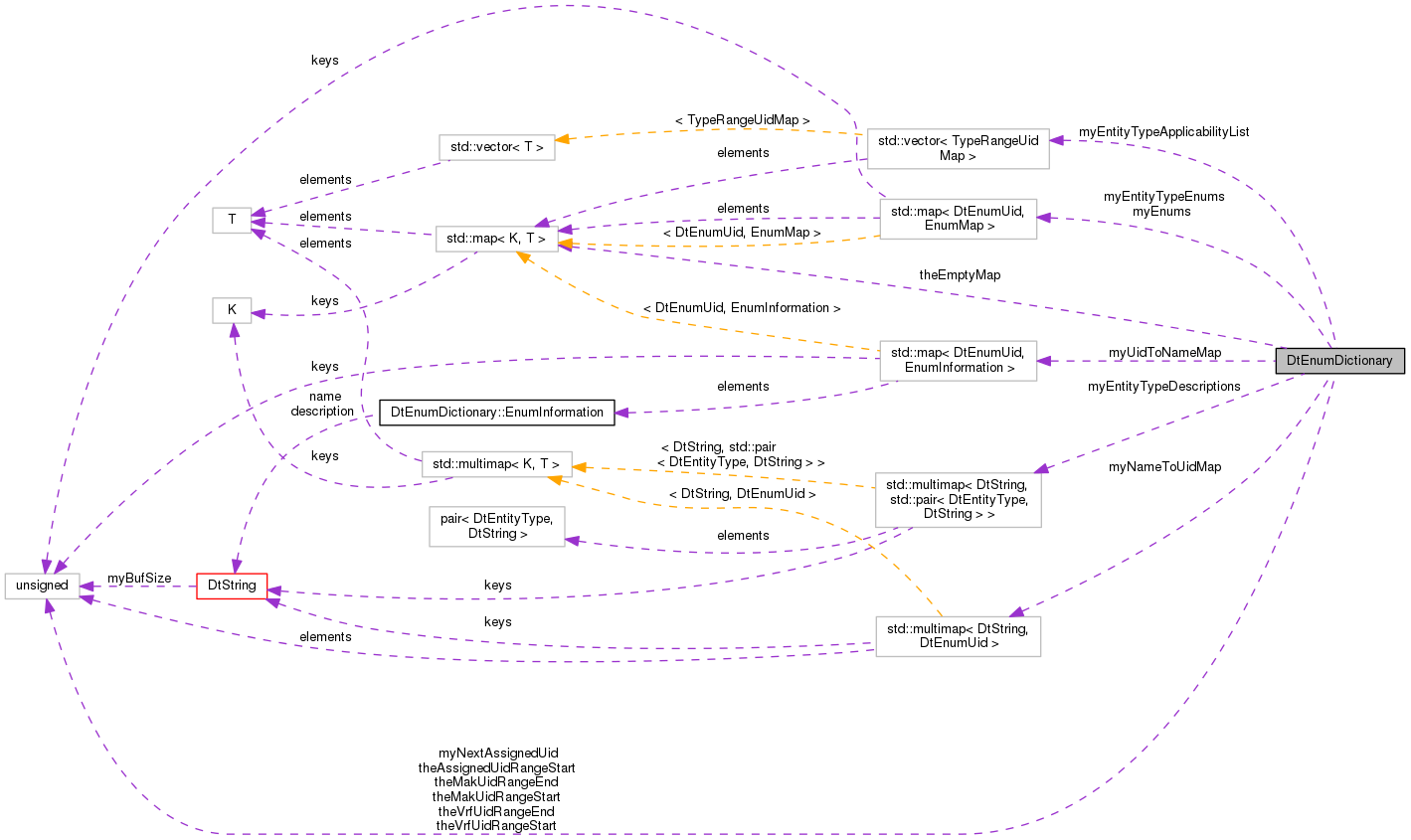

Collaboration diagram for DtEnumDictionary:

Classes
struct	EnumInformation

Public Types
typedef std::map< int, DtEnumInfo >	EnumMap

typedef std::map< DtEntityType, DtString >	EntityTypeDescriptionMap

typedef std::map< DtEnumUid, EnumInformation >	UidToNameMap

Public Member Functions
	DtEnumDictionary ()
	Constructor - constructs an empty dictionary. More...

virtual	~DtEnumDictionary ()
	Destructor. More...

virtual void	print (std::ostream &strm) const
	Prints the lists of enumerations within this dictionary to the given stream. More...

const UidToNameMap &	uidToNameMap () const

Entity Type Enumerations
Functions for adding and looking up entity type enumerations.
virtual EnumMap	entityTypeEnumValues (DtEntityTypeField fieldLevel, const DtEntityType &higherLevelFields=DtEntityType::defaultType()) const
	Returns the map of enumerated values that are defined at the given field level. More...

virtual int	entityTypeValueFromName (DtEntityTypeField fieldLevel, const DtString &name, const DtEntityType &higherLevelFields=DtEntityType::defaultType()) const
	Returns the specific entity type field enumerated value that matches the specified name. More...

virtual DtString	entityTypeNameFromValue (DtEntityTypeField fieldLevel, const DtEntityType &entityType) const
	Returns the specific entity type field enumerated value name that matches the specified entity type. More...

virtual DtString	displayName (const DtEntityType &, bool includeKind=true, int stopAt=DtSubcategoryField, bool *isDeprecated=0) const
	Given the entity type, return a name that best represents the type. More...

virtual void	findEntriesContaining (const DtString &text, EntityTypeDescriptionMap &results, int maxResults)
	Finds entity type descriptions containing the specified text. More...

virtual bool	isDeprecatedEntityTypeValue (DtEntityTypeField fieldLevel, const DtEntityType &entityType) const
	Returns true if the the specified entity type has been deprecated at the given field level. More...

virtual void	addEntityTypeEnum (DtEntityTypeField fieldLevel, const EnumMap &enums, const DtEntityTypeRange &applic=DtEntityTypeRange::AllEntityTypes())
	Adds an enumeration at the given field level, with an optional applicability. More...

virtual void	addEntityTypeEnumWithUid (DtEnumUid uid, DtEntityTypeField fieldLevel, const EnumMap &enums, const DtEntityTypeRange &applic=DtEntityTypeRange::AllEntityTypes())
	Adds an enumeration with a specified uid at the given field level, with an optional applicability. More...

General Enumerations
Functions for adding and looking up general enumerations.
virtual void	addEnum (DtEnumUid uid, const EnumMap &list, const DtString &name, const DtString &description="")
	Adds a new enum and list of values to the dictionary. More...

virtual void	merge (const DtEnumDictionary &)
	Merges the contents of the supplied dictionary into this dictionary. More...

virtual const EnumMap &	enumValues (DtEnumUid uid) const
	Returns the enumerated values and descriptions for the enumeration with the given uid. More...

virtual int	nextId (DtEnumUid uid, bool startFromUser=true) const
	Given the enum id, with the map, return the next highest key, assuming an ordered EnumMap Returns the name of the enumeration with the given uid. More...

virtual DtString	enumName (DtEnumUid uid) const
	Adds a new enum and list of values to the dictionary. More...

virtual DtString	enumDescription (DtEnumUid uid) const
	Adds a new enum and list of values to the dictionary. More...

virtual std::vector< DtEnumUid >	enumUid (const DtString &name) const
	Returns the uids of any enumerations with the given name. More...

virtual int	enumValueFromName (DtEnumUid uid, const DtString &n) const
	Maps the name of enumerated value of a given enumeration to its value. More...

virtual DtString	enumNameFromValue (DtEnumUid uid, int v) const
	Maps an enumerated value of a given enumeration to its name. More...

virtual bool	hasNameFromValue (DtEnumUid uid, int val) const
	Returns true if the name and value exist. More...

virtual bool	removeValue (DtEnumUid uid, int val)
	Removes the value from the enum. Returns true if remove successful. More...

virtual bool	isDeprecatedValue (DtEnumUid uid, int val) const
	Returns true if this enumerated value has been deprecated. More...

Static Public Attributes
static const unsigned	theMakUidRangeStart = 1000000
	The start of the general MAK uid range. More...

static const unsigned	theMakUidRangeEnd = 2000000
	The end of the general MAK uid range. More...

static const unsigned	theVrfUidRangeStart = 2000000
	The start of the VRF uid range. More...

static const unsigned	theVrfUidRangeEnd = 3000000
	The end of the VRF uid range. More...

static const unsigned	theAssignedUidRangeStart = 10000000
	Some entity enumerations are not defined with a uid, but the dictionary will assign one from a pool of ids starting with this value. More...

Protected Types
typedef std::multimap < DtString, DtEnumUid >	NameToUidMap

typedef std::map< DtEnumUid, EnumMap >	UidEnumMap

typedef std::vector< EnumMap >	UidEnumList

typedef std::map < DtEntityTypeRange, DtEnumUid >	TypeRangeUidMap

typedef std::vector < TypeRangeUidMap >	EntityTypeUidList

typedef std::multimap < DtString, std::pair < DtEntityType, DtString > >	DescriptionEntityTypeMap

Protected Member Functions
virtual void	mergeEnumMap (EnumMap &dest, const EnumMap &src) const
	Merges the src map into the dest map, keeping values in the dest when they conflict. More...

virtual DtEnumUid	getAssignedUid ()
	For enumerations without configured uids, assign one from the pool of values starting with theAssignedUidRangeStart. More...

virtual void	printMap (const EnumMap &enumMap, std::ostream &strm, unsigned indentLvl) const
	Prints the enum map to the specified stream with indentation. More...

virtual void	printMap (const TypeRangeUidMap &enumMap, std::ostream &strm, unsigned indentLvl) const
	Prints the enum map to the specified stream with indentation. More...

Static Protected Member Functions
static void	setEntityTypeField (DtEntityType &entityType, DtEntityTypeField field, int val)
	Sets the specified field in the entity type with the given value. More...

static int	getEntityTypeField (const DtEntityType &entityType, DtEntityTypeField field)
	Returns the value of the specified field in the entity type. More...

Protected Attributes
DtEnumUid	myNextAssignedUid
	The next uid that can be assigned to an entity type enumeration without a uid defined. More...

Entity Type Enumeration Storage
UidEnumMap	myEntityTypeEnums
	All of the defined entity type enumerations, mapped by uid, where uids are assigned when not defined by the calling application. More...

EntityTypeUidList	myEntityTypeApplicabilityList
	A map to provide lookups from entity type applicability in higher level fields to the uid of the available enumerated values. More...

DescriptionEntityTypeMap	myEntityTypeDescriptions
	Map of entity type descriptions to their enumerated types. More...

UidEnumMap	myEnums
	All of the defined general enumerations mapped by uid. More...

NameToUidMap	myNameToUidMap
	Map of descriptive enumeration names to their uids. More...

UidToNameMap	myUidToNameMap
	Map of uids to their descriptive enumeration names. More...

Static Protected Attributes
static const EnumMap	theEmptyMap

Detailed Description

Maintains a list of enumerations read in from files.

The dictionary supports two different types of enumerations:

Entity Types Entity types enumerations are used to identify the type of entity being simulated. An entity type is made up of seven different values: kind, domain, country, category, subcategory, specific, and extra. These are distinct levels, and the meaning of values at lower levels are dependent on the values of the upper levels. The DtEnumDictionary keeps track of which lower level values are applicable to which higher level values.
General Enumerations All other enumerations fall into this category. These are just lists of enumerated values and their meanings.

All enumerations have an identifying uid. This is used to differentiate one list of enumerations from another. Entity type enumerations do not need to have uids provided, as they can be identified by their higher level applicability.

Member Typedef Documentation

typedef std::multimap<DtString, std::pair<DtEntityType, DtString> > DtEnumDictionary::DescriptionEntityTypeMap

protected

typedef std::map<DtEntityType, DtString> DtEnumDictionary::EntityTypeDescriptionMap

typedef std::vector<TypeRangeUidMap> DtEnumDictionary::EntityTypeUidList

protected

typedef std::map<int, DtEnumInfo> DtEnumDictionary::EnumMap

typedef std::multimap<DtString, DtEnumUid> DtEnumDictionary::NameToUidMap

protected

typedef std::map<DtEntityTypeRange, DtEnumUid> DtEnumDictionary::TypeRangeUidMap

protected

typedef std::vector<EnumMap> DtEnumDictionary::UidEnumList

protected

typedef std::map<DtEnumUid, EnumMap> DtEnumDictionary::UidEnumMap

protected

typedef std::map<DtEnumUid, EnumInformation> DtEnumDictionary::UidToNameMap

Constructor & Destructor Documentation

DtEnumDictionary::DtEnumDictionary ( )

Constructor - constructs an empty dictionary.

virtual DtEnumDictionary::~DtEnumDictionary ( )

virtual

Destructor.

Member Function Documentation

virtual void DtEnumDictionary::addEntityTypeEnum	(	DtEntityTypeField	fieldLevel,
		const EnumMap &	enums,
		const DtEntityTypeRange &	applic = `DtEntityTypeRange::AllEntityTypes()`
	)

virtual

Adds an enumeration at the given field level, with an optional applicability.

If no applicability is specified then it is assumed it is relevant to all higher level entity types (e.g. -1:-1:-1:-1:-1:-1:-1).

virtual void DtEnumDictionary::addEntityTypeEnumWithUid	(	DtEnumUid	uid,
		DtEntityTypeField	fieldLevel,
		const EnumMap &	enums,
		const DtEntityTypeRange &	applic = `DtEntityTypeRange::AllEntityTypes()`
	)

virtual

Adds an enumeration with a specified uid at the given field level, with an optional applicability.

If no applicability is specified then it is assumed it is relevant to all higher level entity types (e.g. -1:-1:-1:-1:-1:-1:-1).

virtual void DtEnumDictionary::addEnum	(	DtEnumUid	uid,
		const EnumMap &	list,
		const DtString &	name,
		const DtString &	description = `""`
	)

virtual

Adds a new enum and list of values to the dictionary.

If already present, merges the new list with the existing, preferring the existing where they conflict.

virtual DtString DtEnumDictionary::displayName	(	const DtEntityType &	,
		bool	includeKind = `true`,
		int	stopAt = `DtSubcategoryField`,
		bool *	isDeprecated = `0`
	)		const

virtual

Given the entity type, return a name that best represents the type.

The last non-wildcarded item will be used as the name.

virtual EnumMap DtEnumDictionary::entityTypeEnumValues	(	DtEntityTypeField	fieldLevel,
		const DtEntityType &	higherLevelFields = `DtEntityType::defaultType()`
	)		const

virtual

Returns the map of enumerated values that are defined at the given field level.

If higherLevelFields are specified, then it finds the values at that level that are applicable to the higher level fields of the given entity type. Example:

* EnumMap enumeration = dict.entityTypeEnumValues(DtCategoryField, DtEntityType(1, 2, 255, -1, -1, -1, -1));

*

virtual DtString DtEnumDictionary::entityTypeNameFromValue	(	DtEntityTypeField	fieldLevel,
		const DtEntityType &	entityType
	)		const

virtual

Returns the specific entity type field enumerated value name that matches the specified entity type.

virtual int DtEnumDictionary::entityTypeValueFromName	(	DtEntityTypeField	fieldLevel,
		const DtString &	name,
		const DtEntityType &	higherLevelFields = `DtEntityType::defaultType()`
	)		const

virtual

Returns the specific entity type field enumerated value that matches the specified name.

Will use the specified higher level entity type fields to determine which of the enumerations at the specified field level will be searched.

virtual DtString DtEnumDictionary::enumDescription ( DtEnumUid uid ) const

virtual

Adds a new enum and list of values to the dictionary.

If already present, merges the new list with the existing, preferring the existing where they conflict.

virtual DtString DtEnumDictionary::enumName ( DtEnumUid uid ) const

virtual

Adds a new enum and list of values to the dictionary.

If already present, merges the new list with the existing, preferring the existing where they conflict.

virtual DtString DtEnumDictionary::enumNameFromValue	(	DtEnumUid	uid,
		int	v
	)		const

virtual

Maps an enumerated value of a given enumeration to its name.

virtual std::vector<DtEnumUid> DtEnumDictionary::enumUid ( const DtString & name ) const

virtual

Returns the uids of any enumerations with the given name.

Usually there is only one, but there is no guarantee of unique names.

virtual int DtEnumDictionary::enumValueFromName	(	DtEnumUid	uid,
		const DtString &	n
	)		const

virtual

Maps the name of enumerated value of a given enumeration to its value.

virtual const EnumMap& DtEnumDictionary::enumValues ( DtEnumUid uid ) const

virtual

Returns the enumerated values and descriptions for the enumeration with the given uid.

virtual void DtEnumDictionary::findEntriesContaining	(	const DtString &	text,
		EntityTypeDescriptionMap &	results,
		int	maxResults
	)

virtual

Finds entity type descriptions containing the specified text.

virtual DtEnumUid DtEnumDictionary::getAssignedUid ( )

protectedvirtual

For enumerations without configured uids, assign one from the pool of values starting with theAssignedUidRangeStart.

static int DtEnumDictionary::getEntityTypeField	(	const DtEntityType &	entityType,
		DtEntityTypeField	field
	)

staticprotected

Returns the value of the specified field in the entity type.

virtual bool DtEnumDictionary::hasNameFromValue	(	DtEnumUid	uid,
		int	val
	)		const

virtual

Returns true if the name and value exist.

virtual bool DtEnumDictionary::isDeprecatedEntityTypeValue	(	DtEntityTypeField	fieldLevel,
		const DtEntityType &	entityType
	)		const

virtual

Returns true if the the specified entity type has been deprecated at the given field level.

virtual bool DtEnumDictionary::isDeprecatedValue	(	DtEnumUid	uid,
		int	val
	)		const

virtual

Returns true if this enumerated value has been deprecated.

virtual void DtEnumDictionary::merge ( const DtEnumDictionary & )

virtual

Merges the contents of the supplied dictionary into this dictionary.

virtual void DtEnumDictionary::mergeEnumMap	(	EnumMap &	dest,
		const EnumMap &	src
	)		const

protectedvirtual

Merges the src map into the dest map, keeping values in the dest when they conflict.

virtual int DtEnumDictionary::nextId	(	DtEnumUid	uid,
		bool	startFromUser = `true`
	)		const

virtual

Given the enum id, with the map, return the next highest key, assuming an ordered EnumMap Returns the name of the enumeration with the given uid.

virtual void DtEnumDictionary::print ( std::ostream & strm ) const

virtual

Prints the lists of enumerations within this dictionary to the given stream.

virtual void DtEnumDictionary::printMap	(	const EnumMap &	enumMap,
		std::ostream &	strm,
		unsigned	indentLvl
	)		const

protectedvirtual

Prints the enum map to the specified stream with indentation.

virtual void DtEnumDictionary::printMap	(	const TypeRangeUidMap &	enumMap,
		std::ostream &	strm,
		unsigned	indentLvl
	)		const

protectedvirtual

Prints the enum map to the specified stream with indentation.

virtual bool DtEnumDictionary::removeValue	(	DtEnumUid	uid,
		int	val
	)

virtual

Removes the value from the enum. Returns true if remove successful.

static void DtEnumDictionary::setEntityTypeField	(	DtEntityType &	entityType,
		DtEntityTypeField	field,
		int	val
	)

staticprotected

Sets the specified field in the entity type with the given value.

const UidToNameMap& DtEnumDictionary::uidToNameMap ( ) const

inline

Member Data Documentation

EntityTypeUidList DtEnumDictionary::myEntityTypeApplicabilityList

protected

A map to provide lookups from entity type applicability in higher level fields to the uid of the available enumerated values.

This, for example, provides a lookup to find the uid of the category enumeration for all military, ground, US entities.

DescriptionEntityTypeMap DtEnumDictionary::myEntityTypeDescriptions

protected

Map of entity type descriptions to their enumerated types.

UidEnumMap DtEnumDictionary::myEntityTypeEnums

protected

All of the defined entity type enumerations, mapped by uid, where uids are assigned when not defined by the calling application.

UidEnumMap DtEnumDictionary::myEnums

protected

All of the defined general enumerations mapped by uid.

uid must be defined when added to this dictionary.

NameToUidMap DtEnumDictionary::myNameToUidMap

protected

Map of descriptive enumeration names to their uids.

DtEnumUid DtEnumDictionary::myNextAssignedUid

protected

The next uid that can be assigned to an entity type enumeration without a uid defined.

UidToNameMap DtEnumDictionary::myUidToNameMap

protected

Map of uids to their descriptive enumeration names.

const unsigned DtEnumDictionary::theAssignedUidRangeStart = 10000000

static

Some entity enumerations are not defined with a uid, but the dictionary will assign one from a pool of ids starting with this value.

const EnumMap DtEnumDictionary::theEmptyMap

staticprotected

const unsigned DtEnumDictionary::theMakUidRangeEnd = 2000000

static

The end of the general MAK uid range.

const unsigned DtEnumDictionary::theMakUidRangeStart = 1000000

static

The start of the general MAK uid range.

const unsigned DtEnumDictionary::theVrfUidRangeEnd = 3000000

static

The end of the VRF uid range.

const unsigned DtEnumDictionary::theVrfUidRangeStart = 2000000

static

The start of the VRF uid range.

The documentation for this class was generated from the following file:

enumDictionary.h

Classes

Public Types

Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
