Instances of DtExerciseConn are used to provide an application's interface or connection to the network in an HLA environment. More...

Inheritance diagram for DtExerciseConn:

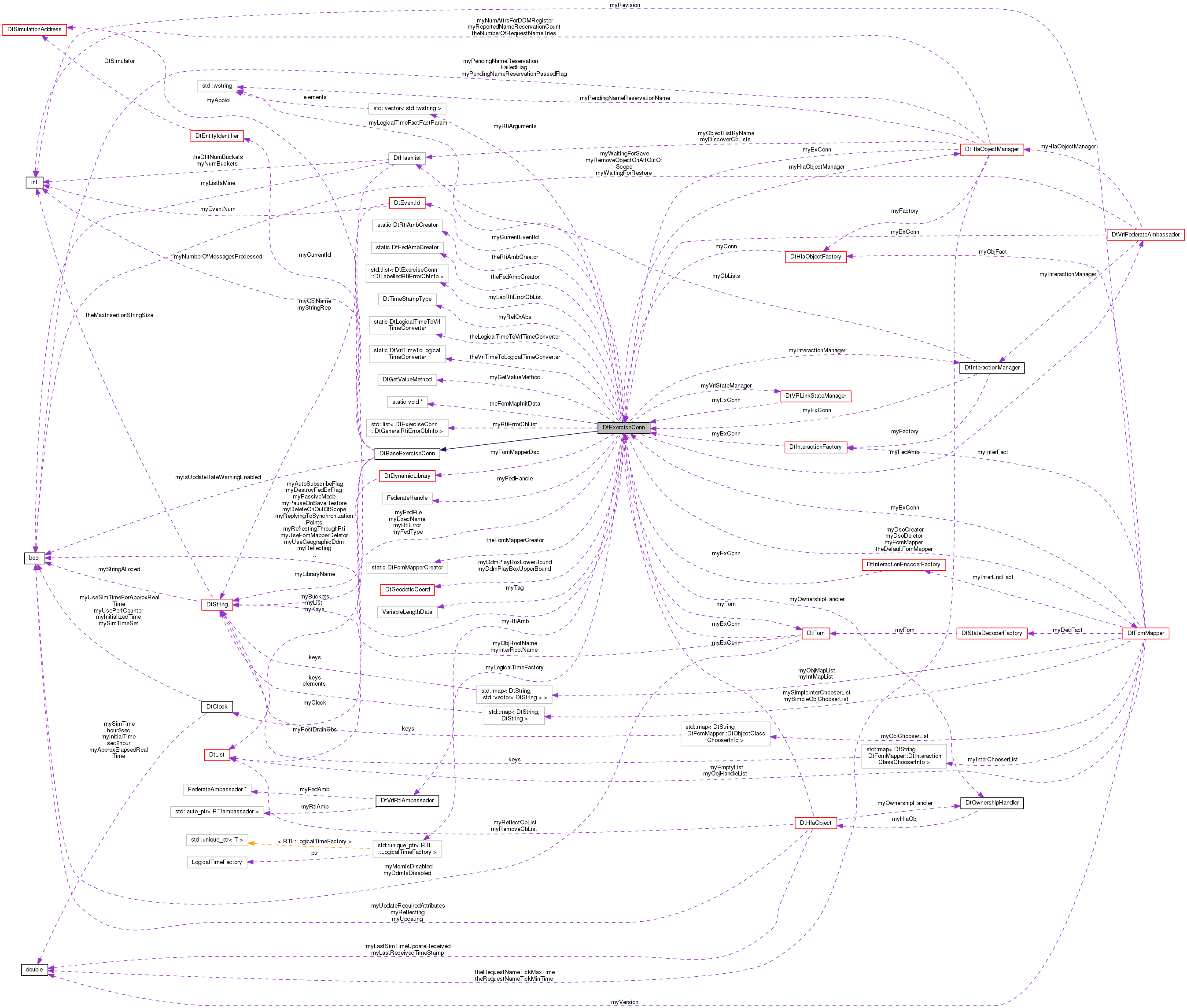

Collaboration diagram for DtExerciseConn:

Classes
struct	DtGeneralRtiErrorCbInfo

struct	DtLabelledRtiErrorCbInfo

Public Types
enum	InitializationStatus { DtINIT_SUCCESS = 0, DtCOULD_NOT_CREATE_RTIAMB = 1, DtCOULD_NOT_CREATE_FEDEX = 2, DtCOULD_NOT_JOIN_FEDEX = 3, DtCOULD_NOT_OPEN_FED = 4, DtCOULD_NOT_PARSE_FED = 5, DtCOULD_NOT_FIND_FOMMAPPER = 6, DtERROR_OPENING_FOMMAPPER_LIB = 7, DtCOULD_NOT_CONNECT_RTIAMB = 8 }
	Initialization Error Enumerations. More...

typedef DtVrlFederateAmbassador (	DtFedAmbCreator )()

typedef DtFomMapper (	DtFomMapperCreator )(void *usr)

typedef void(*	DtFomMapperDeletor )(DtFomMapper *)

typedef void(*	DtRtiErrorCb )(const char label, void usr)

typedef DtVrlRtiAmbassador (	DtRtiAmbCreator )(const std::vector< std::wstring > &)
	RTIambassador creator function. More...

typedef DtTime(*	DtLogicalTimeToVrlTimeConverter )(const RTI::LogicalTime &theLogicalTime)

typedef std::unique_ptr < RTI::LogicalTime >(*	DtVrlTimeToLogicalTimeConverter )(const DtTime &time)

Public Member Functions
	DtExerciseConn (const DtExerciseConnInitializer &init, InitializationStatus *status=0)
	This constructor takes a DtExerciseConnInitializer and creates an exercise connection based on the parameters set within the initializer. More...

	DtExerciseConn (const char execName, const char federateType, DtFomMapper mapper=defaultFomMapper(), const char fedFileName=0, InitializationStatus *status=0)
	Constructor. More...

	DtExerciseConn (const char execName, const char federateType, const char dsoName, const char fedFileName=0, void fomMapInitData=0, InitializationStatus status=0)
	Constructor. More...

virtual	~DtExerciseConn ()
	destructor More...

virtual void	setReflecting ()
	Set a flag that determines whether local objects and interactions will be reflected back to us. More...

virtual bool	reflecting () const
	Get the reflecting flag. See above description. More...

virtual void	setPassiveMode ()
	Set a flag that determines whether HLA should subscribe actively (The default) or passively. More...

virtual bool	passiveMode () const
	Get the passive mode flag. See above description. More...

virtual void	setReflectRemoteUpdatesIntoPubFlag (bool onff)
	Set the reflectRemoteUpdatesIntoPub flag. More...

virtual bool	reflectRemoteUpdatesIntoPubFlag () const
	Get the reflectRemoteUpdatesIntoPub flag. See above description. More...

virtual void	setReflectingThroughRti ()
	Set the reflecting through RTI flag to true. More...

virtual bool	reflectingThroughRti () const
	Get the reflecting through RTI flag. More...

virtual void	ignoreAdvisories ()
	The following functions control whether VR-Link should send updates for classes, attributes, and interactions based on advisories describing the existence of remote subscribing federates. More...

virtual bool	usingAdvisories () const
	Get the advisories flag. See above description. More...

virtual void	setRemoveObjectOnAttOutOfScope (bool remove)

virtual bool	enabledGenericAttributes () const
	Get the Generic attributes flag. More...

virtual void	send (const DtStateMsg &msg)
	Send a state message to the network. More...

virtual void	send (const DtInteraction &msg)
	Send an interaction to the network. More...

virtual void	send (const DtInteraction &msg, const RTI::RegionHandleSet *region)
	Send an interaction to the network (DDM version). More...

virtual void	sendStamped (const DtStateMsg &msg)
	Send a state message to the network which has been time stamped with the current time. More...

virtual void	sendStamped (const DtInteraction &msg)
	Send an interaction to the network which has been time stamped with the current time. More...

virtual void	sendStampedWithRegion (const DtInteraction &msg, DtDDMRegionSP region)
	Send an interaction to the network with the DDM region described by region. More...

virtual void	sendStamped (const DtInteraction &msg, const RTI::RegionHandleSet *region)
	Send an interaction to the network which has been time stamped with the current time (DDM version). More...

virtual DtTime	currentTimeForStamping ()
	currentTimeForStamping() returns time to send with outgoing messages (default is real time if absolute time-stamping, sim time otherwise. More...

virtual int	drainInput (DtTime maxTime=-1, DtTime minTime=0.0)
	Processes input from the exercise by calling the RTI's tick function. More...

virtual void	setObjectIdForEventId (const DtGlobalObjectDesignator &id)
	Set objectID to use in the next event ID. More...

virtual const DtEventID &	nextEventId ()
	Get a unique event ID. More...

virtual DtVrlRtiAmbassador *	rtiAmb ()
	Get the RTI ambassador. More...

virtual DtVrlFederateAmbassador *	fedAmb ()
	Get the federate ambassador. More...

virtual RTI::FederateHandle	fedHandle () const
	Get the federate handle. More...

virtual const DtString &	fedType () const
	Returns the specified type of the federate. More...

virtual const DtString &	execName () const
	Get the federation execution name. More...

virtual bool	isUsingMakRti () const
	Returns true if MAK RTI is in use. More...

virtual DtString	rtiName () const
	Returns the name of the RTI in use. More...

virtual DtString	rtiVersion () const
	Returns the version of the RTI in use. More...

virtual DtString	rtiError () const
	Returns the error string (used to store the exceptions thrown by RTI during the connection initialization stage. More...

virtual DtFom *	fom ()
	Get the FOM. More...

virtual DtInteractionFactory *	interactionFactory ()
	Get the interaction factory. More...

virtual DtHlaObjectFactory *	objectFactory ()
	Get the object factory. More...

virtual DtFomMapper *	fomMapper () const
	Get the FOM Mapper. More...

virtual DtHlaObjectManager *	hlaObjectManager ()
	Get the hlaObjectManager. More...

virtual void	setTimeStampType (DtTimeStampType relOrAbs)
	Set the time stamp type (DtTimeStampAbsolute or DtTimeStampRelative). More...

virtual DtTimeStampType	timeStampType () const
	Get the time stamp type. More...

virtual void	addInteractionCallback (RTI::InteractionClassHandle h, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add an interaction callback by class handle, which is called with the user data when the specified interaction is received. More...

virtual void	addInteractionCallbackByName (const char className, DtReceiveInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add an interaction callback by class name, which is called with the user data when the specified interaction is received. More...

virtual void	removeInteractionCallback (RTI::InteractionClassHandle h, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Remove an interaction callback by class handle. More...

virtual void	removeInteractionCallbackByName (const char className, DtReceiveInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
	Remove an interaction callback by class name. More...

virtual void	addDiscoverObjectCallback (RTI::ObjectClassHandle h, DtDiscoverObjectCb cb, void *usr)
	Add a discoverObject callback which is called with the user data when the specified interaction is received. More...

virtual void	removeDiscoverObjectCallback (RTI::ObjectClassHandle h, DtDiscoverObjectCb cb, void *usr)
	Remove a discoverObject callback. More...

virtual void	addRemoveObjectCallback (RTI::ObjectInstanceHandle id, DtRemoveObjectCb cb, void *usr)
	Add a removeObject callback which is called with the user data when the specified interaction is received. More...

virtual void	removeRemoveObjectCallback (RTI::ObjectInstanceHandle id, DtRemoveObjectCb cb, void *usr)
	Remove a removeObject callback. More...

virtual void	setDestroyFedExecFlag (bool flag)
	Set the flag that determines whether or not the DtExerciseConn destructor will attempt to destroy the federation execution. More...

virtual bool	destroyFedExecFlag ()
	Get the destroy fed exec flag. See above description. More...

virtual void	setReplyingToSynchronizationPoints (bool yesNo)
	Get/Set flag which determines whether the exConn will respond to synchronization points. More...

virtual bool	replyingToSynchronizationPoints ()
	Get the reply to synchronization points flag. More...

virtual void	replyToSynchronizationPoint (const char *label)
	Replies to sync point. More...

virtual void	setAutoSubscribeFlag (bool flag)
	Set flag which determines whether to automatically subscribe to interaction classes for which callbacks are being registered. More...

virtual bool	autoSubscribeFlag () const
	Get the auto subscribe flag. See above description. More...

virtual void	setSendFedTime (bool flag)
	Set flag which determines whether to use Time Stamp Order when sending and receiving interactions. More...

virtual bool	sendFedTime () const
	Get the send fed time flag. See above description. More...

virtual void	setUseGeographicDdm (bool flag)
	Set flag which indicates geographic whether Geographic DDM is to be used or not. More...

virtual bool	useGeographicDdm () const
	Returns whether this federate is using Geographic DDM. More...

virtual void	setDeleteOnOutOfScope (bool yesNo)

virtual bool	deleteOnOutOfScope () const

virtual RTI::LogicalTimeFactory *	logicalTimeFactory () const
	returns a pointer to the logicalTimeFactory used by the exerciseConnection; More...

virtual void	registerSynchronizationPoint (const DtString &label)
	Register a synchronization point. More...

virtual void	registerSynchronizationPoint (const DtString &label, const RTI::VariableLengthData &tag)
	Register a synchronization point with user tag supplied. More...

virtual void	addFederateSaveCb (const DtString &label, DtFederateSaveCb func, void *usr)
	Add callback for save federation. More...

virtual void	addFederateSaveCb (DtFederateSaveCb func, void *usr)

virtual void	addFederateRestoreCb (const DtString &label, DtFederateSaveCb func, void *usr)
	Add callback for restore federation. More...

virtual void	addFederateRestoreCb (DtFederateSaveCb func, void *usr)

virtual void	removeFederateSaveCb (const DtString &label, DtFederateSaveCb func, void *usr)
	Remove callback for save federation. More...

virtual void	removeFederateSaveCb (DtFederateSaveCb func, void *usr)

virtual void	removeFederateRestoreCb (const DtString &label, DtFederateSaveCb func, void *usr)
	Remove callback for restore federation. More...

virtual void	removeFederateRestoreCb (DtFederateSaveCb func, void *usr)

virtual void	addSynchPointRegistrationSucceededCb (const DtString &label, DtSynchPointCb func, void *usr)
	Add callback for sync point registration succeeded, for a specific label. More...

virtual void	addSynchPointRegistrationSucceededCb (DtSynchPointCb func, void *usr)
	Add a callback for any sync point registration succeeded. More...

virtual void	removeSynchPointRegistrationSucceededCb (const DtString &label, DtSynchPointCb func, void *usr)
	Remove a callback for sync point registration succeeded, for a specific label. More...

virtual void	removeSynchPointRegistrationSucceededCb (DtSynchPointCb func, void *usr)
	Remove a callback for any sync point registration succeeded. More...

virtual void	addSynchPointRegistrationFailedCb (const DtString &label, DtSynchPointCb func, void *usr)
	Add a callback for sync point registration failed, for a specific label. More...

virtual void	addSynchPointRegistrationFailedCb (DtSynchPointCb func, void *usr)
	Add a callback for any sync point registration failed. More...

virtual void	removeSynchPointRegistrationFailedCb (const DtString &label, DtSynchPointCb func, void *usr)
	Remove a callback for sync point registration failed, for a specific label. More...

virtual void	removeSynchPointRegistrationFailedCb (DtSynchPointCb func, void *usr)
	Remove a callback for sync point registration failed. More...

virtual void	addFederationSynchedCb (const DtString &label, DtSynchPointCb func, void *usr)
	Add a callback for federation synced callback, for a specific label. More...

virtual void	addFederationSynchedCb (DtSynchPointCb func, void *usr)
	Add a callback for federation synced callback, for any label. More...

virtual void	removeFederationSynchedCb (const DtString &label, DtSynchPointCb func, void *usr)
	Remove a callback for federation synced callback, for a specific label. More...

virtual void	removeFederationSynchedCb (DtSynchPointCb func, void *usr)
	Remove a callback for federation synced callback, for any label. More...

virtual void	addAnnounceSynchPointCb (const DtString &label, DtAnnounceSynchPointCb func, void *usr)
	Add a callback for announce sync point callback, for a specific label. More...

virtual void	addAnnounceSynchPointCb (DtAnnounceSynchPointCb func, void *usr)
	Add a callback for announce sync point callback, for a specific label. More...

virtual void	removeAnnounceSynchPointCb (const DtString &label, DtAnnounceSynchPointCb func, void *usr)
	Remove a callback for announce sync point callback, for a specific label. More...

virtual void	removeAnnounceSynchPointCb (DtAnnounceSynchPointCb func, void *usr)
	Remove a callback for announce sync point callback, for any label. More...

virtual void	setDdmPlayBoxLowerBound (const DtGeodeticCoord &bound)
	Sets the lower bound of the play-box. More...

virtual void	setDdmPlayBoxUpperBound (const DtGeodeticCoord &bound)
	Sets the upper bound of the play-box. More...

virtual const DtGeodeticCoord &	ddmPlayBoxLowerBound () const
	Returns the lower bound of the play-box. More...

virtual const DtGeodeticCoord &	ddmPlayBoxUpperBound () const
	Returns the upper bound of the play-box. More...

virtual void	setObjectTagModifier (const DtString &className, DtObjectTagModifierSP modifier, bool applyToSubClasses=true)
	Sets the object tag modifier class for the class name. More...

virtual void	setInteractionTagModifier (const DtString &className, DtInteractionTagModifierSP modifier, bool applyToSubClasses=true)
	Sets the interaction tag modifier class for the class name. More...

virtual void	setExecutionStatus (DtVRLExecutionStatus status)
	Set the initialization/execution status. More...

virtual bool	isInitialized () const
	Return true if exercise connection is initialized (or executing) along with all known VRLinkState objects. More...

virtual bool	callRtiErrorCallback (DtString &label)
	Notify the system that something bad happened with the RTI Do not call this unless you want to notify the system there is an error. More...


virtual void	setDefaultOwnershipHandler (DtOwnershipHandler *ownershipHandler)
	If you are using Ownership Management, you want to give each HLA Object an ownership handler. More...

virtual DtOwnershipHandler *	defaultOwnershipHandler ()
	If you are using Ownership Management, you want to give each HLA Object an ownership handler. More...


virtual void	addRtiErrorCb (const DtString &label, DtRtiErrorCb func, void *usr)
	Add/remove a callback for an RTI requested shutdown. More...

virtual void	removeRtiErrorCb (const DtString &label, DtRtiErrorCb func, void *usr)
	Add/remove a callback for an RTI requested shutdown. More...

virtual void	addRtiErrorCb (DtRtiErrorCb func, void *usr)
	Add/remove a callback for an RTI requested shutdown. More...

virtual void	removeRtiErrorCb (DtRtiErrorCb func, void *usr)
	Add/remove a callback for an RTI requested shutdown. More...


virtual void	setGetValueMethod (DtExerciseConnInitializer::DtGetValueMethod getValueMethodChoice)
	Configure how VR-Link retrieves data from RTI attribute/parameter handle value pair sets. More...

virtual DtExerciseConnInitializer::DtGetValueMethod	getValueMethod () const
	Configure how VR-Link retrieves data from RTI attribute/parameter handle value pair sets. More...

Public Member Functions inherited from DtBaseExerciseConn
virtual	~DtBaseExerciseConn ()
	destructor More...

virtual void	addPostDrainCallback (DtPostDrainCb cb, void *usr)
	Add/remove callbacks to be executed from within drainInput right before it returns. More...

virtual void	removePostDrainCallback (DtPostDrainCb cb, void *usr)

virtual void	removeAllPostDrainCallbacks ()

virtual void	setClock (DtClock *clock)
	This function allows one to set the exercise connection's clock – overriding the default clock and setting the simulation time to zero. More...

virtual DtClock *	clock ()
	Get reference to exercise connection's clock. More...

virtual int	lastDrainInputReceiveCount () const

virtual void	incrementNumberOfMessagesProcessed ()
	Increments myNumberOfMessagesProcessed. More...

virtual void	setApplicationId (int siteId, int applNum)
	----------------—— ID MANAGEMENT ----------------—— More...

virtual DtSimulationAddress	applicationId ()

virtual const DtEntityIdentifier &	nextId ()
	Returns the next valid entity ID formed by calling makeEntityId with the current value of a entity number counter. More...

virtual DtEntityIdentifier	makeEntityId (int entityNum)
	Returns an entity ID consisting of the DtExerciseConn's site and host numbers, and entityNum as the entity number. More...

virtual void	setIsUpdateRateWarningEnabled (bool value)
	Setter/getter methods for updateRateWArning toggle. More...

virtual bool	isUpdateRateWarningEnabled () const

Static Public Member Functions
static void	setLogicalTimeFactoryFactoryParameter (std::wstring)
	Set the parameter passed to RTI::LogicalTimeFactoryFactory to create the default LogicalTime Factory. More...

static std::wstring	logicalTimeFactoryFactoryParameter ()
	Get the parameter described above. More...

static void	setFedAmbCreator (DtFedAmbCreator creator)
	Set the function to be used to create a federate ambassador. More...

static DtFedAmbCreator	fedAmbCreator ()
	Get the function used to create a federate ambassador. More...

static void	setRtiAmbCreator (DtRtiAmbCreator creator)
	Set the function to be used to create an RTI ambassador. More...

static DtRtiAmbCreator	rtiAmbCreator ()
	Get the function used to create an RTI ambassador. More...

static void	overrideRidParameters (const std::map< DtString, DtString > &ridParams)
	Overrides the parameters defined in the RTI rid file. More...

static void	setFomMapperCreator (DtFomMapperCreator creator, void *usr=0)
	Set the default FomMapper creator - used to create a fomMapper when a NULL FOM Mapper or invalid FOM Mapper DSO name is passed to the constructor. More...

static DtFomMapperCreator	fomMapperCreator ()
	Get the default FomMapper creator. See above description. More...

static DtFomMapper *	defaultFomMapper ()
	Return default FOM mapper. More...

static void	setLogicalTimeToVrlTimeConverter (DtLogicalTimeToVrlTimeConverter func)
	Set/Get the function to convert RTI::FedTime/RTI::LogicalTime to DtTime. More...

static DtLogicalTimeToVrlTimeConverter	logicalTimeToVrlTimeConverter ()

static void	setVrlTimeToLogicalTimeConverter (DtVrlTimeToLogicalTimeConverter func)
	Set/Get the function to convert DtTime to RTI::FedTime/RTI::LogicalTIme. More...

static DtVrlTimeToLogicalTimeConverter	vrlTimeToLogicalTimeConverter ()

static DtTime	defaultDtLogicalTimeToVrlTimeConverter (const RTI::LogicalTime &time)
	The next two methods convert between RTI::FedTime (HLA 1.3)/ RTI::LogicalTime(1516) and DtTime. More...

static std::unique_ptr < RTI::LogicalTime >	defaultVrlTimeToLogicalTimeConverter (const DtTime &time)
	See Comments for defaultDtFedTimeToVrlTimeConverter (above). More...

static DtString	vrlinkVersion ()
	Returns a string indicating the VR-Link version number. More...

Protected Member Functions
bool	checkRtiVersionForPointerAlignment ()
	Not virtual, since called by constructor. More...

void	initializeConnection (InitializationStatus *result)
	Not virtual, since called by constructor. More...

void	initializeFomMapper (const char dsoName, void fomMapInitData, InitializationStatus *result)
	Not virtual, since called by constructor. More...

void	getFuncsFromSharedLib (DtDynamicLibrary &dso, DtFomMapperCreator creator, DtFomMapperDeletor deletor)
	Not virtual, since called by CTOR. More...

void	handleFedFile (const DtString &fedFileName)
	Not virtual, since called by CTOR. More...

int	initFom (InitializationStatus *result)
	Not virtual, since called by CTOR. More...

int	createRtiAmb (InitializationStatus *result)
	Create the RTI ambassador. More...

int	connectRtiAmb (InitializationStatus *result)
	Connect to the RTI ambassador. More...

int	createFedEx (InitializationStatus *result)
	Create the federation execution. More...

int	createFedAmb (InitializationStatus *result)
	Create the federate ambassador. More...

int	joinFedEx (InitializationStatus *result)
	Join the federation execution. More...

bool	fedFileExists (const DtFilename &name) const
	Checks the local directory, then the RTI_CONFIG directory to find out if the file exists and is readable. More...

virtual void	rtiSend (DtInteraction &msg, RTI::InteractionClassHandle handle, const RTI::RegionHandleSet *region)
	Perform the specific RTI send call. More...

virtual void	selfReflectInteraction (DtInteraction &msg, RTI::InteractionClassHandle handle, const RTI::RegionHandleSet *region)
	Perform a self reflect of an interaction. More...

Protected Member Functions inherited from DtBaseExerciseConn
	DtBaseExerciseConn ()
	Constructors are protected since this is an abstract base class. More...

	DtBaseExerciseConn (const DtBaseExerciseConn &)
	copy constructor – Not implemented More...

DtBaseExerciseConn &	operator= (const DtBaseExerciseConn &)
	Assignment Operator – Not Implemented. More...

virtual void	executePostDrainCbs ()
	Should be called by derived class's drainInputs. More...

Static Protected Member Functions
static void	replyToSyncPointCallback (void *usr)
	Callback function for automatically responding to sync points. More...

Protected Attributes
DtString	myExecName

DtString	myFedType

std::unique_ptr < RTI::LogicalTimeFactory >	myLogicalTimeFactory

DtVrlRtiAmbassador *	myRtiAmb

RTI::FederateHandle	myFedHandle

DtVrlFederateAmbassador *	myFedAmb

DtFom *	myFom

DtHlaObjectManager *	myHlaObjectManager

DtInteractionManager *	myInteractionManager

DtOwnershipHandler *	myOwnershipHandler

DtFomMapper *	myFomMapper

DtDynamicLibrary *	myFomMapperDso

DtFomMapperCreator	myDsoCreator

DtFomMapperDeletor	myDsoDeletor

DtEventID	myCurrentEventId

DtTimeStampType	myRelOrAbs

bool	myDestroyFedExFlag

bool	myUseFomMapperDeletor

bool	myGenericAttributes

bool	myPassiveMode

bool	myReflecting

bool	myReflectRemoteUpdatesIntoPubFlag

bool	myReflectingThroughRti

bool	myReplyingToSynchronizationPoints

bool	myUsingAdvisories

bool	myAutoSubscribeFlag

bool	mySendFedTimeFlag

DtExerciseConnInitializer::DtGetValueMethod	myGetValueMethod

bool	myPauseOnSaveRestore

bool	myUseGeographicDdm

bool	myDeleteOnOutOfScope

DtString	myRtiError
	used to save the Rti error incurred during connection init stage More...

DtString	myFedFile
	myFedFile is used to specify a Fed File for the federation. More...

std::vector< std::wstring >	myRtiArguments

RTI::VariableLengthData	myTag

DtGeodeticCoord	myDdmPlayBoxLowerBound
	The lower bound of the play box - or total simulation area - when using geographic DDM. More...

DtGeodeticCoord	myDdmPlayBoxUpperBound
	The upper bound of the play box - or the total simulation area - when using geographic DDM. More...

std::list < DtGeneralRtiErrorCbInfo >	myRtiErrorCbList

std::list < DtLabelledRtiErrorCbInfo >	myLabRtiErrorCbList

DtVRLinkStateManager *	myVrlStateManager

Protected Attributes inherited from DtBaseExerciseConn
DtSimulationAddress	myAppId

DtEntityIdentifier	myCurrentId

DtList	myPostDrainCbs

DtClock *	myClock

int	myNumberOfMessagesProcessed

bool	myIsUpdateRateWarningEnabled

Static Protected Attributes
static std::wstring	myLogicalTimeFactFactParam

static DtFedAmbCreator	theFedAmbCreator

static DtRtiAmbCreator	theRtiAmbCreator

static DtFomMapperCreator	theFomMapperCreator

static DtFomMapper *	theDefaultFomMapper

static void *	theFomMapInitData

static DtVrlTimeToLogicalTimeConverter	theVrlTimeToLogicalTimeConverter

static DtLogicalTimeToVrlTimeConverter	theLogicalTimeToVrlTimeConverter

Private Member Functions
	DtExerciseConn (const DtExerciseConn &orig)
	copy constructor – Not Implemented More...

DtExerciseConn &	operator= (const DtExerciseConn &orig)
	assignment operator – Not Implemented More...

Detailed Description

Instances of DtExerciseConn are used to provide an application's interface or connection to the network in an HLA environment.

DtExerciseConn maintains an application's interface to the RTI via the RTI Ambassador. DtExerciseConn also maintains the RTI's connection to the federate via the federate ambassador. A federate must continually tick() the DtExerciseConn so that the LRC (Local RTI Component may process RTI messages, and receive callbacks.

Protocol Independant Examples

HLA Specific Examples

Regulator (Time Managed Talk)

See Also: DtExerciseConnInitializer

Member Typedef Documentation

typedef DtVrlFederateAmbassador*(* DtExerciseConn::DtFedAmbCreator)()

typedef DtFomMapper*(* DtExerciseConn::DtFomMapperCreator)(void *usr)

typedef void(* DtExerciseConn::DtFomMapperDeletor)(DtFomMapper *)

typedef DtTime(* DtExerciseConn::DtLogicalTimeToVrlTimeConverter)(const RTI::LogicalTime &theLogicalTime)

typedef DtVrlRtiAmbassador*(* DtExerciseConn::DtRtiAmbCreator)(const std::vector< std::wstring > &)

RTIambassador creator function.

The argument is used only in HLA 1516-2000 to specify the creation arguments. It has no effect in HLA 1.3 and Evolved.

typedef void(* DtExerciseConn::DtRtiErrorCb)(const char *label, void *usr)

typedef std::unique_ptr<RTI::LogicalTime>(* DtExerciseConn::DtVrlTimeToLogicalTimeConverter)(const DtTime &time)

Member Enumeration Documentation

enum DtExerciseConn::InitializationStatus

Initialization Error Enumerations.

InitializationStatus enumerates possible values to be returned by the ExerciseConns's optional 'status' variable. When status is non-null, DtFatalError will not get called, allowing users to check programatically for initialization errors and hence deal with them as they wish. If no errors occur, status will equal DtINIT_SUCCESS.

Note: Do not attempt to use a DtExerciseConn instance when an error is indicated: VR-Link's behavior will be undefined.

Enumerator
DtINIT_SUCCESS
DtCOULD_NOT_CREATE_RTIAMB
DtCOULD_NOT_CREATE_FEDEX
DtCOULD_NOT_JOIN_FEDEX
DtCOULD_NOT_OPEN_FED
DtCOULD_NOT_PARSE_FED
DtCOULD_NOT_FIND_FOMMAPPER
DtERROR_OPENING_FOMMAPPER_LIB
DtCOULD_NOT_CONNECT_RTIAMB

Constructor & Destructor Documentation

DtExerciseConn::DtExerciseConn	(	const DtExerciseConnInitializer &	init,
		InitializationStatus *	status = `0`
	)

This constructor takes a DtExerciseConnInitializer and creates an exercise connection based on the parameters set within the initializer.

DtExerciseConn::DtExerciseConn	(	const char *	execName,
		const char *	federateType,
		DtFomMapper *	mapper = `defaultFomMapper()`,
		const char *	fedFileName = `0`,
		InitializationStatus *	status = `0`
	)

Constructor.

Mapper is a pointer to a new'ed FOM Mapper to use. The FOM Mapper's init() function will be called by the DtExerciseConn constructor. The default value for mapper is a new'ed DtRprFomMapper. The mapper is deleted by DtExerciseConn destructor. If mapper is NULL, we create one using the creator function passed to setFomMapperCreator (default is an empty FOM Mapper). The FOM Mapper's init function is called after the RTI is initialized. If fedFileName is NULL, <execName>.fdd is used, unless using HLA 1516 then <execName>.xml. Use status when you want to know whether the exercise connection has successfully initialized itself (see note above under "Error enumerations").

Deprecated:: Users should now use the DtExeciseConnInitializer CTOR

DtExerciseConn::DtExerciseConn	(	const char *	execName,
		const char *	federateType,
		const char *	dsoName,
		const char *	fedFileName = `0`,
		void *	fomMapInitData = `0`,
		InitializationStatus *	status = `0`
	)

Constructor.

Similar to above, but rather than passing a FOM Mapper, pass the name of a shared library (DSO or DLL) that contains a FOM Mapper creation function called DtCreateFomMapper (and a FOM Mapper destruction function called DtDeleteFomMapper. fomMapInitData is a pointer to arbitrary data that you wish to have passed to the FOM Mapper creation function in your FOM Mapper shared library.

Deprecated:: Users should now use the DtExeciseConnInitializer CTOR

virtual DtExerciseConn::~DtExerciseConn ( )

virtual

destructor

DtExerciseConn::DtExerciseConn ( const DtExerciseConn & orig )

private

copy constructor – Not Implemented

Member Function Documentation

virtual void DtExerciseConn::addAnnounceSynchPointCb	(	const DtString &	label,
		DtAnnounceSynchPointCb	func,
		void *	usr
	)

virtual

Add a callback for announce sync point callback, for a specific label.

If a callback is registered, and replyingToSynchronizationCallbacks() is true, DtExerciseConn will not auto-reply (for "label")

virtual void DtExerciseConn::addAnnounceSynchPointCb	(	DtAnnounceSynchPointCb	func,
		void *	usr
	)

virtual

Add a callback for announce sync point callback, for a specific label.

If a callback is registered, and replyingToSynchronizationCallbacks() is true, DtExerciseConn will not auto-reply (for any label)

virtual void DtExerciseConn::addDiscoverObjectCallback	(	RTI::ObjectClassHandle	h,
		DtDiscoverObjectCb	cb,
		void *	usr
	)

virtual

Add a discoverObject callback which is called with the user data when the specified interaction is received.

virtual void DtExerciseConn::addFederateRestoreCb	(	const DtString &	label,
		DtFederateSaveCb	func,
		void *	usr
	)

virtual

Add callback for restore federation.

virtual void DtExerciseConn::addFederateRestoreCb	(	DtFederateSaveCb	func,
		void *	usr
	)

virtual

virtual void DtExerciseConn::addFederateSaveCb	(	const DtString &	label,
		DtFederateSaveCb	func,
		void *	usr
	)

virtual

Add callback for save federation.

virtual void DtExerciseConn::addFederateSaveCb	(	DtFederateSaveCb	func,
		void *	usr
	)

virtual

virtual void DtExerciseConn::addFederationSynchedCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)

virtual

Add a callback for federation synced callback, for a specific label.

virtual void DtExerciseConn::addFederationSynchedCb	(	DtSynchPointCb	func,
		void *	usr
	)

virtual

Add a callback for federation synced callback, for any label.

virtual void DtExerciseConn::addInteractionCallback	(	RTI::InteractionClassHandle	h,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

virtual

Add an interaction callback by class handle, which is called with the user data when the specified interaction is received.

Rather than using this function, user code should typically use each derived DtInteraction's addCallback function.

virtual void DtExerciseConn::addInteractionCallbackByName	(	const char *	className,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

virtual

Add an interaction callback by class name, which is called with the user data when the specified interaction is received.

Rather than using this function, user code should typically use each derived DtInteraction's addCallback function.

virtual void DtExerciseConn::addRemoveObjectCallback	(	RTI::ObjectInstanceHandle	id,
		DtRemoveObjectCb	cb,
		void *	usr
	)

virtual

Add a removeObject callback which is called with the user data when the specified interaction is received.

virtual void DtExerciseConn::addRtiErrorCb	(	const DtString &	label,
		DtRtiErrorCb	func,
		void *	usr
	)

virtual

Add/remove a callback for an RTI requested shutdown.

If a shutdown is not handled, it is likely that your application will simply crash. This callback allows you to shutdown your application gracefully before that happens

virtual void DtExerciseConn::addRtiErrorCb	(	DtRtiErrorCb	func,
		void *	usr
	)

virtual

Add/remove a callback for an RTI requested shutdown.

If a shutdown is not handled, it is likely that your application will simply crash. This callback allows you to shutdown your application gracefully before that happens

virtual void DtExerciseConn::addSynchPointRegistrationFailedCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)

virtual

Add a callback for sync point registration failed, for a specific label.

virtual void DtExerciseConn::addSynchPointRegistrationFailedCb	(	DtSynchPointCb	func,
		void *	usr
	)

virtual

Add a callback for any sync point registration failed.

virtual void DtExerciseConn::addSynchPointRegistrationSucceededCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)

virtual

Add callback for sync point registration succeeded, for a specific label.

virtual void DtExerciseConn::addSynchPointRegistrationSucceededCb	(	DtSynchPointCb	func,
		void *	usr
	)

virtual

Add a callback for any sync point registration succeeded.

virtual bool DtExerciseConn::autoSubscribeFlag ( ) const

virtual

Get the auto subscribe flag. See above description.

virtual bool DtExerciseConn::callRtiErrorCallback ( DtString & label )

virtual

Notify the system that something bad happened with the RTI Do not call this unless you want to notify the system there is an error.

Returns: true if the callback exists false otherwise.

bool DtExerciseConn::checkRtiVersionForPointerAlignment ( )

protected

Not virtual, since called by constructor.

int DtExerciseConn::connectRtiAmb ( InitializationStatus * result )

protected

Connect to the RTI ambassador.

Not virtual, since called by the CTOR. Exclusive to HLA1516 Evolved, as connection to the ambassador is implicit in the RTI Ambassador instantiation in 1.3/1516 If result is NULL, calls DtFatalError on failure; otherwise, it sets result to DtCOULD_NOT_CONNECT_RTIAMB and returns 0. Returns 1 on success.

int DtExerciseConn::createFedAmb ( InitializationStatus * result )

protected

Create the federate ambassador.

Not virtual, since called by constructor. Currently, always returns 1.

int DtExerciseConn::createFedEx ( InitializationStatus * result )

protected

Create the federation execution.

Not virtual, since called by constructor. If result is NULL, calls DtFatalError on failure; otherwise, it sets result to either DtCOULD_NOT_CREATE_FEDEX and return 0. Returns 1 on success.

int DtExerciseConn::createRtiAmb ( InitializationStatus * result )

protected

Create the RTI ambassador.

Not virtual, since called by CTOR. If result is NULL, calls DtFatalError on failure; otherwise, it sets result to DtCOULD_NOT_CREATE_RTIAMB and return 0. Returns 1 on success.

virtual DtTime DtExerciseConn::currentTimeForStamping ( )

virtual

currentTimeForStamping() returns time to send with outgoing messages (default is real time if absolute time-stamping, sim time otherwise.

virtual const DtGeodeticCoord& DtExerciseConn::ddmPlayBoxLowerBound ( ) const

virtual

Returns the lower bound of the play-box.

See Also: myDdmPlayBoxLowerBound

virtual const DtGeodeticCoord& DtExerciseConn::ddmPlayBoxUpperBound ( ) const

virtual

Returns the upper bound of the play-box.

See Also: myDdmPlayBoxLowerBound

static DtTime DtExerciseConn::defaultDtLogicalTimeToVrlTimeConverter ( const RTI::LogicalTime & time )

static

The next two methods convert between RTI::FedTime (HLA 1.3)/ RTI::LogicalTime(1516) and DtTime.

They are installed by default and used by VR-Link to communicate time to the RTI. These functions PRESUME you are using the FedTime/LogicalTime implementation which is shipped with the MAK RTI. If you are not, you MUST create your own conversion functions and register them with the Exercise Connection.

static DtFomMapper* DtExerciseConn::defaultFomMapper ( )

static

Return default FOM mapper.

virtual DtOwnershipHandler* DtExerciseConn::defaultOwnershipHandler ( )

virtual

If you are using Ownership Management, you want to give each HLA Object an ownership handler.

If you set this value, HLA Objects created will receive a copy of this handler automatically.

static std::unique_ptr<RTI::LogicalTime> DtExerciseConn::defaultVrlTimeToLogicalTimeConverter ( const DtTime & time )

static

See Comments for defaultDtFedTimeToVrlTimeConverter (above).

bool DtExerciseConn::deleteOnOutOfScope ( ) const

inlinevirtual

References myDeleteOnOutOfScope.

virtual bool DtExerciseConn::destroyFedExecFlag ( )

virtual

Get the destroy fed exec flag. See above description.

virtual int DtExerciseConn::drainInput	(	DtTime	maxTime = `-1`,
		DtTime	minTime = `0.0`
	)

virtual

Processes input from the exercise by calling the RTI's tick function.

It is from within drainInput that user callbacks are executed. If maxTime is negative, then we call tick with no arguments, to read all available input without bound on time spent before returning. Zero is returned indicated there is no more data to read. If maxTime is positive, we pass minTime and maxTime to tick, and return its result. If maxTime is zero, we do not call tick at all, and return -1, indicating that we do not know if data is still available or not. minTime and maxTime are the approximate minimum and maximum time to spend in tick. (In reality, most RTI implementations will slightly overrun maxTime.) Note that unlike tick, maxTime is the first argument here, so that we can have a default value for minTime.

Exceptions

DtException if an RTI Exception is caught when ticking.

virtual bool DtExerciseConn::enabledGenericAttributes ( ) const

virtual

Get the Generic attributes flag.

Generic Attributes enables the ability to encode and decode all attributes, even the ones that VR-Link does not understand. Those attributes' bytes are accessible through the state repository. This variable can only be set by an ExerciseConnInitializer

const DtString & DtExerciseConn::execName ( ) const

inlinevirtual

Get the federation execution name.

References myExecName.

DtVrlFederateAmbassador * DtExerciseConn::fedAmb ( )

inlinevirtual

Get the federate ambassador.

For an example see: Regulator (Time Managed Talk)

References myFedAmb.

static DtFedAmbCreator DtExerciseConn::fedAmbCreator ( )

static

Get the function used to create a federate ambassador.

bool DtExerciseConn::fedFileExists ( const DtFilename & name ) const

protected

Checks the local directory, then the RTI_CONFIG directory to find out if the file exists and is readable.

If the file exists it returns true, else returns false. This is not virtual because it is called in the constructor.

RTI::FederateHandle DtExerciseConn::fedHandle ( ) const

inlinevirtual

Get the federate handle.

References myFedHandle.

const DtString & DtExerciseConn::fedType ( ) const

inlinevirtual

Returns the specified type of the federate.

References myFedType.

DtFom * DtExerciseConn::fom ( )

inlinevirtual

Get the FOM.

References myFom.

virtual DtFomMapper* DtExerciseConn::fomMapper ( ) const

virtual

Get the FOM Mapper.

static DtFomMapperCreator DtExerciseConn::fomMapperCreator ( )

static

Get the default FomMapper creator. See above description.

void DtExerciseConn::getFuncsFromSharedLib	(	DtDynamicLibrary &	dso,
		DtFomMapperCreator *	creator,
		DtFomMapperDeletor *	deletor
	)

protected

Not virtual, since called by CTOR.

Get pointers to functions called DtCreateFomMapper and DtDestroyFomMapper from DtDynamicLibrary called. Pointers will point to NULL on failure.

virtual DtExerciseConnInitializer::DtGetValueMethod DtExerciseConn::getValueMethod ( ) const

virtual

Configure how VR-Link retrieves data from RTI attribute/parameter handle value pair sets.

When retrieving data from RTI attribute/parameter handle value pair sets, getValuePointer is more efficient but it may not guarantee 64-bit alignment. The alternative is the getValue method which copies the data from the set into safe VR-Link buffers. Versions of the MAK RTI 4.3 and beyond guarantee that getValuePointer returns a pointer that is 64-bit aligned. By default (DtGetValuePointerWhereAvailable), VR-Link will inspect the RTI version and use getValuePointer when it can determine that the RTI supports it; otherwise, VR-Link will use getValue. The alternatives DtForceGetValue and DtForceGetValuePointer force VR-Link to use getValue and getValuePointer respectively, regardless of the RTI version.

void DtExerciseConn::handleFedFile ( const DtString & fedFileName )

protected

Not virtual, since called by CTOR.

Takes fed file name. Merges the fed file name into the creation fom modules.

DtHlaObjectManager * DtExerciseConn::hlaObjectManager ( )

inlinevirtual

Get the hlaObjectManager.

References myHlaObjectManager.

virtual void DtExerciseConn::ignoreAdvisories ( )

virtual

The following functions control whether VR-Link should send updates for classes, attributes, and interactions based on advisories describing the existence of remote subscribing federates.

Specifically, calling ignoreAdvisories() means that VR-Link will send attribute updates regardless of whether other federates are subscribed to the given attributes; and that VR-Link will assume all interactions and classes are needed by the federation. NOTE: To have the correct effect, this function needs to get called before any Publishers get created

int DtExerciseConn::initFom ( InitializationStatus * result )

protected

Not virtual, since called by CTOR.

Initializes myFom from fedFile and fomModules. If result is NULL, calls DtFatalError on failure; otherwise, it sets result to either DtCOULD_NOT_OPEN_FED or DtCOULD_NOT_PARSE_FED and return 0. Returns 1 on success.

void DtExerciseConn::initializeConnection ( InitializationStatus * result )

protected

Not virtual, since called by constructor.

void DtExerciseConn::initializeFomMapper	(	const char *	dsoName,
		void *	fomMapInitData,
		InitializationStatus *	result
	)

protected

Not virtual, since called by constructor.

If can't get functions from DSO, use fomMapperCreator().

virtual DtInteractionFactory* DtExerciseConn::interactionFactory ( )

virtual

Get the interaction factory.

virtual bool DtExerciseConn::isInitialized ( ) const

virtual

Return true if exercise connection is initialized (or executing) along with all known VRLinkState objects.

virtual bool DtExerciseConn::isUsingMakRti ( ) const

virtual

Returns true if MAK RTI is in use.

int DtExerciseConn::joinFedEx ( InitializationStatus * result )

protected

Join the federation execution.

Not virtual, since called by constructor. If result is NULL, calls DtFatalError on failure; otherwise, it sets result to either DtCOULD_NOT_JOIN_FEDEX and return 0. Returns 1 on success.

virtual RTI::LogicalTimeFactory* DtExerciseConn::logicalTimeFactory ( ) const

virtual

returns a pointer to the logicalTimeFactory used by the exerciseConnection;

static std::wstring DtExerciseConn::logicalTimeFactoryFactoryParameter ( )

static

Get the parameter described above.

static DtLogicalTimeToVrlTimeConverter DtExerciseConn::logicalTimeToVrlTimeConverter ( )

static

virtual const DtEventID& DtExerciseConn::nextEventId ( )

virtual

Get a unique event ID.

virtual DtHlaObjectFactory* DtExerciseConn::objectFactory ( )

virtual

Get the object factory.

DtExerciseConn& DtExerciseConn::operator= ( const DtExerciseConn & orig )

private

assignment operator – Not Implemented

static void DtExerciseConn::overrideRidParameters ( const std::map< DtString, DtString > & ridParams )

static

Overrides the parameters defined in the RTI rid file.

This can only be used before the RTI Ambassador has been created, i.e. before the exConn is initialized. Throws an exception if the Ambassador has already been created or if the function is unavailable.

virtual bool DtExerciseConn::passiveMode ( ) const

virtual

Get the passive mode flag. See above description.

virtual bool DtExerciseConn::reflecting ( ) const

virtual

Get the reflecting flag. See above description.

virtual bool DtExerciseConn::reflectingThroughRti ( ) const

virtual

Get the reflecting through RTI flag.

virtual bool DtExerciseConn::reflectRemoteUpdatesIntoPubFlag ( ) const

virtual

Get the reflectRemoteUpdatesIntoPub flag. See above description.

virtual void DtExerciseConn::registerSynchronizationPoint ( const DtString & label )

virtual

Register a synchronization point.

Uses the current time as the user-defined tag

virtual void DtExerciseConn::registerSynchronizationPoint	(	const DtString &	label,
		const RTI::VariableLengthData &	tag
	)

virtual

Register a synchronization point with user tag supplied.

virtual void DtExerciseConn::removeAnnounceSynchPointCb	(	const DtString &	label,
		DtAnnounceSynchPointCb	func,
		void *	usr
	)

virtual

Remove a callback for announce sync point callback, for a specific label.

virtual void DtExerciseConn::removeAnnounceSynchPointCb	(	DtAnnounceSynchPointCb	func,
		void *	usr
	)

virtual

Remove a callback for announce sync point callback, for any label.

virtual void DtExerciseConn::removeDiscoverObjectCallback	(	RTI::ObjectClassHandle	h,
		DtDiscoverObjectCb	cb,
		void *	usr
	)

virtual

Remove a discoverObject callback.

Note: The user data is significant for identifying the callback and needs to be the same as when the callback was added.

virtual void DtExerciseConn::removeFederateRestoreCb	(	const DtString &	label,
		DtFederateSaveCb	func,
		void *	usr
	)

virtual

Remove callback for restore federation.

virtual void DtExerciseConn::removeFederateRestoreCb	(	DtFederateSaveCb	func,
		void *	usr
	)

virtual

virtual void DtExerciseConn::removeFederateSaveCb	(	const DtString &	label,
		DtFederateSaveCb	func,
		void *	usr
	)

virtual

Remove callback for save federation.

virtual void DtExerciseConn::removeFederateSaveCb	(	DtFederateSaveCb	func,
		void *	usr
	)

virtual

virtual void DtExerciseConn::removeFederationSynchedCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)

virtual

Remove a callback for federation synced callback, for a specific label.

virtual void DtExerciseConn::removeFederationSynchedCb	(	DtSynchPointCb	func,
		void *	usr
	)

virtual

Remove a callback for federation synced callback, for any label.

virtual void DtExerciseConn::removeInteractionCallback	(	RTI::InteractionClassHandle	h,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

virtual

Remove an interaction callback by class handle.

Note: The user data is significant for identifying the callback and needs to be the same as when the callback was added. Rather than using this function, user code should typically use each derived DtInteraction's addCallback function.

virtual void DtExerciseConn::removeInteractionCallbackByName	(	const char *	className,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

virtual

Remove an interaction callback by class name.

Note: The user data is significant for identifying the callback and needs to be the same as when the callback was added. Rather than using this function, user code should typically use each derived DtInteraction's addCallback function.

virtual void DtExerciseConn::removeRemoveObjectCallback	(	RTI::ObjectInstanceHandle	id,
		DtRemoveObjectCb	cb,
		void *	usr
	)

virtual

Remove a removeObject callback.

Note: The user data is significant for identifying the callback and needs to be the same as when the callback was added.

virtual void DtExerciseConn::removeRtiErrorCb	(	const DtString &	label,
		DtRtiErrorCb	func,
		void *	usr
	)

virtual

Add/remove a callback for an RTI requested shutdown.

If a shutdown is not handled, it is likely that your application will simply crash. This callback allows you to shutdown your application gracefully before that happens

virtual void DtExerciseConn::removeRtiErrorCb	(	DtRtiErrorCb	func,
		void *	usr
	)

virtual

Add/remove a callback for an RTI requested shutdown.

If a shutdown is not handled, it is likely that your application will simply crash. This callback allows you to shutdown your application gracefully before that happens

virtual void DtExerciseConn::removeSynchPointRegistrationFailedCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)

virtual

Remove a callback for sync point registration failed, for a specific label.

virtual void DtExerciseConn::removeSynchPointRegistrationFailedCb	(	DtSynchPointCb	func,
		void *	usr
	)

virtual

Remove a callback for sync point registration failed.

virtual void DtExerciseConn::removeSynchPointRegistrationSucceededCb	(	const DtString &	label,
		DtSynchPointCb	func,
		void *	usr
	)

virtual

Remove a callback for sync point registration succeeded, for a specific label.

virtual void DtExerciseConn::removeSynchPointRegistrationSucceededCb	(	DtSynchPointCb	func,
		void *	usr
	)

virtual

Remove a callback for any sync point registration succeeded.

virtual bool DtExerciseConn::replyingToSynchronizationPoints ( )

virtual

Get the reply to synchronization points flag.

virtual void DtExerciseConn::replyToSynchronizationPoint ( const char * label )

virtual

Replies to sync point.

Generally, the user should not use this function. Makes the sync point achieved call to the RTI.

static void DtExerciseConn::replyToSyncPointCallback ( void * usr )

staticprotected

Callback function for automatically responding to sync points.

DtVrlRtiAmbassador * DtExerciseConn::rtiAmb ( )

inlinevirtual

Get the RTI ambassador.

For an example see: Regulator (Time Managed Talk)

References myRtiAmb.

Referenced by DtFom::rtiAmb().

static DtRtiAmbCreator DtExerciseConn::rtiAmbCreator ( )

static

Get the function used to create an RTI ambassador.

virtual DtString DtExerciseConn::rtiError ( ) const

virtual

Returns the error string (used to store the exceptions thrown by RTI during the connection initialization stage.

virtual DtString DtExerciseConn::rtiName ( ) const

virtual

Returns the name of the RTI in use.

This is only available with the MAK RTI or with HLA1516/Evolved. If the name cannot be obtained, returns "Unknown".

virtual void DtExerciseConn::rtiSend	(	DtInteraction &	msg,
		RTI::InteractionClassHandle	handle,
		const RTI::RegionHandleSet *	region
	)

protectedvirtual

Perform the specific RTI send call.

If using Time Management this may throw DtVrlInvalidTimeException if the time set was below LBTS.

virtual DtString DtExerciseConn::rtiVersion ( ) const

virtual

Returns the version of the RTI in use.

This is only available with the MAK RTI or with HLA1516/Evolved. If the version cannot be obtained, returns "Unknown".

virtual void DtExerciseConn::selfReflectInteraction	(	DtInteraction &	msg,
		RTI::InteractionClassHandle	handle,
		const RTI::RegionHandleSet *	region
	)

protectedvirtual

Perform a self reflect of an interaction.

virtual void DtExerciseConn::send ( const DtStateMsg & msg )

virtual

Send a state message to the network.

If using Time Management this may throw DtVrlInvalidTimeException if the time set was below LBTS.

Implements DtBaseExerciseConn.

virtual void DtExerciseConn::send ( const DtInteraction & msg )

virtual

Send an interaction to the network.

If using Time Management this may throw DtVrlInvalidTimeException if the time se-t was below LBTS. This can also throw: DtException - for any RTI exception that occurs

Implements DtBaseExerciseConn.

virtual void DtExerciseConn::send	(	const DtInteraction &	msg,
		const RTI::RegionHandleSet *	region
	)

virtual

Send an interaction to the network (DDM version).

If using Time Management this may throw DtVrlInvalidTimeException if the time set was below LBTS.

bool DtExerciseConn::sendFedTime ( ) const

inlinevirtual

Get the send fed time flag. See above description.

References mySendFedTimeFlag.

virtual void DtExerciseConn::sendStamped ( const DtStateMsg & msg )

virtual

Send a state message to the network which has been time stamped with the current time.

If using Time Management this may throw DtVrlInvalidTimeException if the time set was below LBTS.

Implements DtBaseExerciseConn.

virtual void DtExerciseConn::sendStamped ( const DtInteraction & msg )

virtual

Send an interaction to the network which has been time stamped with the current time.

If using Time Management this may throw DtVrlInvalidTimeException if the time set was below LBTS.

Implements DtBaseExerciseConn.

virtual void DtExerciseConn::sendStamped	(	const DtInteraction &	msg,
		const RTI::RegionHandleSet *	region
	)

virtual

Send an interaction to the network which has been time stamped with the current time (DDM version).

If using Time Management this may throw DtVrlInvalidTimeException if the time set was below LBTS.

virtual void DtExerciseConn::sendStampedWithRegion	(	const DtInteraction &	msg,
		DtDDMRegionSP	region
	)

virtual

Send an interaction to the network with the DDM region described by region.

This method is preferable to sendStamped, which takes an interaction and region pointer/handle

virtual void DtExerciseConn::setAutoSubscribeFlag ( bool flag )

virtual

Set flag which determines whether to automatically subscribe to interaction classes for which callbacks are being registered.

Defaults to true, but should be set to false if you will be managing subscriptions manually, e.g. if using DDM.

virtual void DtExerciseConn::setDdmPlayBoxLowerBound ( const DtGeodeticCoord & bound )

virtual

Sets the lower bound of the play-box.

See Also: myDdmPlayBoxLowerBound

virtual void DtExerciseConn::setDdmPlayBoxUpperBound ( const DtGeodeticCoord & bound )

virtual

Sets the upper bound of the play-box.

See Also: myDdmPlayBoxLowerBound

virtual void DtExerciseConn::setDefaultOwnershipHandler ( DtOwnershipHandler * ownershipHandler )

virtual

If you are using Ownership Management, you want to give each HLA Object an ownership handler.

If you set this value, HLA Objects created will receive a copy of this handler automatically.

void DtExerciseConn::setDeleteOnOutOfScope ( bool yesNo )

inlinevirtual

References myDeleteOnOutOfScope.

virtual void DtExerciseConn::setDestroyFedExecFlag ( bool flag )

virtual

Set the flag that determines whether or not the DtExerciseConn destructor will attempt to destroy the federation execution.

Default is true.

virtual void DtExerciseConn::setExecutionStatus ( DtVRLExecutionStatus status )

virtual

Set the initialization/execution status.

static void DtExerciseConn::setFedAmbCreator ( DtFedAmbCreator creator )

static

Set the function to be used to create a federate ambassador.

Call before creating a DtExericseConn if you want to use something other than a DtVrlFedAmbassador.

static void DtExerciseConn::setFomMapperCreator	(	DtFomMapperCreator	creator,
		void *	usr = `0`
	)

static

Set the default FomMapper creator - used to create a fomMapper when a NULL FOM Mapper or invalid FOM Mapper DSO name is passed to the constructor.

Set before creating a DtExConn if you want it to have an effect. The FomMapperCreator defaults to DtFomMapper::create. usr allows you to specify some arbitrary initialization data that will be passed to the FOM Mapper creator when it is called. VR-Link maintains a pointer to the object passed as usr as long as the DtExerciseConn and DtFomMapper are around, and does not delete it.

virtual void DtExerciseConn::setGetValueMethod ( DtExerciseConnInitializer::DtGetValueMethod getValueMethodChoice )

virtual

Configure how VR-Link retrieves data from RTI attribute/parameter handle value pair sets.

When retrieving data from RTI attribute/parameter handle value pair sets, getValuePointer is more efficient but it may not guarantee 64-bit alignment. The alternative is the getValue method which copies the data from the set into safe VR-Link buffers. Versions of the MAK RTI 4.3 and beyond guarantee that getValuePointer returns a pointer that is 64-bit aligned. By default (DtGetValuePointerWhereAvailable), VR-Link will inspect the RTI version and use getValuePointer when it can determine that the RTI supports it; otherwise, VR-Link will use getValue. The alternatives DtForceGetValue and DtForceGetValuePointer force VR-Link to use getValue and getValuePointer respectively, regardless of the RTI version.

virtual void DtExerciseConn::setInteractionTagModifier	(	const DtString &	className,
		DtInteractionTagModifierSP	modifier,
		bool	applyToSubClasses = `true`
	)

virtual

Sets the interaction tag modifier class for the class name.

Parameters

className	is the FOM class name, e.g. "WeaponFire"
modifier	is a shared pointer to the tag modifier class implemented by the user
applyToSubclasses	determines whether the modifier will be applied to subclasses of "className" e.g. passing in "InteractionRoot" with applyToSubclasses set to true will cause modifier to be applied to all interactions

Exceptions

DtException of className is not in the FOM

static void DtExerciseConn::setLogicalTimeFactoryFactoryParameter ( std::wstring )

static

Set the parameter passed to RTI::LogicalTimeFactoryFactory to create the default LogicalTime Factory.

This should be called before an DtExerciseConnection instance is created.

static void DtExerciseConn::setLogicalTimeToVrlTimeConverter ( DtLogicalTimeToVrlTimeConverter func )

static

Set/Get the function to convert RTI::FedTime/RTI::LogicalTime to DtTime.

If this is not set functions are installed which do the conversion presuming the FedTime Implementation distributed with the MAK RTI is used. If the application developer is using an implementation other than that provided with the MAK RTI, the customer should install other conversion functions. If the function to set the Converter is called with NULL, then the default converter is installed.

virtual void DtExerciseConn::setObjectIdForEventId ( const DtGlobalObjectDesignator & id )

virtual

Set objectID to use in the next event ID.

virtual void DtExerciseConn::setObjectTagModifier	(	const DtString &	className,
		DtObjectTagModifierSP	modifier,
		bool	applyToSubClasses = `true`
	)

virtual

Sets the object tag modifier class for the class name.

Parameters

className	is the FOM class name, e.g. "BaseEntity"
modifier	is a shared pointer to the tag modifier class implemented by the user
applyToSubclasses	determines whether the modifier will be applied to subclasses of "className" e.g. passing in "ObjectRoot" with applyToSubclasses set to true will cause modifier to be applied to all objects

Exceptions

DtException of className is not in the FOM

virtual void DtExerciseConn::setPassiveMode ( )

virtual

Set a flag that determines whether HLA should subscribe actively (The default) or passively.

Passive subscription in HLA means that updates are picked up off the network, but no messages are specifically requested by your federate. Passive subscriptions just listen for existing messages and do not add to the network traffic. Passive mode should always be set before any Reflected Lists or subscriptions are created. Once it is set, it can not be turned off.

virtual void DtExerciseConn::setReflecting ( )

virtual

Set a flag that determines whether local objects and interactions will be reflected back to us.

(Default in HLA is no, since the RTI does not do this.) If reflecting is on, then objects that you register locally using publishers will show up in reflected object lists. If you are using HLA's ownership management features, you should set reflecting on, since there may be objects for which you would like to have both a publisher (for sending attributes that you own) and a reflected object (for receiving attributes that you do not). Once reflecting is turned on in an application, it can not be turned off.

virtual void DtExerciseConn::setReflectingThroughRti ( )

virtual

Set the reflecting through RTI flag to true.

Use only in rare cases when you want setReflecting() to be implemented by spoofing federate ambassador calls rather than by reflecting directly into VR-Link classes.

virtual void DtExerciseConn::setReflectRemoteUpdatesIntoPubFlag ( bool onff )

virtual

Set the reflectRemoteUpdatesIntoPub flag.

If the reflecting flag is on (see above), then we may publishers and reflected objects with different state repositories for the same HLA object. Updates that we send locally get reflected into our "reflected" view of the object. If the reflectRemoteUpdatesIntoPub flag is set, we will additionally reflect any remote updates into our publisher's state repository. This will mean that the publisher's state repository represents the best truth we know: values we've set for attributes we own, plus values we've received for attributes we don't. If this flag is off, then the publisher's state repository will contain only values that have been set locally.

virtual void DtExerciseConn::setRemoveObjectOnAttOutOfScope ( bool remove )

virtual

virtual void DtExerciseConn::setReplyingToSynchronizationPoints ( bool yesNo )

virtual

Get/Set flag which determines whether the exConn will respond to synchronization points.

Default is true.

static void DtExerciseConn::setRtiAmbCreator ( DtRtiAmbCreator creator )

static

Set the function to be used to create an RTI ambassador.

Call before creating a DtExerciseConn if you want to use something other than a DtDirectRtiAmbassador.

void DtExerciseConn::setSendFedTime ( bool flag )

inlinevirtual

Set flag which determines whether to use Time Stamp Order when sending and receiving interactions.

References mySendFedTimeFlag.

virtual void DtExerciseConn::setTimeStampType ( DtTimeStampType relOrAbs )

virtual

Set the time stamp type (DtTimeStampAbsolute or DtTimeStampRelative).

void DtExerciseConn::setUseGeographicDdm ( bool flag )

inlinevirtual

Set flag which indicates geographic whether Geographic DDM is to be used or not.

If Geographic DDM is used, entity/aggregate publishers will create regions and publish with them. The region size/values depend on the location and velocity of the entity/aggregate. Reflected lists can take advantage of this by using a region, so that published data can be filtered via DDM. Geographic DDM is off by default. Geographic DDM is a VR-Link based DDM scheme and not related to the one used by VR-Forces in Entity Boost.

References myUseGeographicDdm.

static void DtExerciseConn::setVrlTimeToLogicalTimeConverter ( DtVrlTimeToLogicalTimeConverter func )

static

Set/Get the function to convert DtTime to RTI::FedTime/RTI::LogicalTIme.

If this is not set, functions which PRESUME the MAK FedTime/LogicalTime implementations are used are installed. If the application developer is using a RTI other than the MAK RTI, it is recommended that a new conversion function is installed. If the function is passed NULL, then the default converter is installed.

virtual DtTimeStampType DtExerciseConn::timeStampType ( ) const

virtual

Get the time stamp type.

bool DtExerciseConn::useGeographicDdm ( ) const

inlinevirtual

Returns whether this federate is using Geographic DDM.

See Also: setUseGeographicDdm

References myUseGeographicDdm.

virtual bool DtExerciseConn::usingAdvisories ( ) const

virtual

Get the advisories flag. See above description.

static DtString DtExerciseConn::vrlinkVersion ( )

static

Returns a string indicating the VR-Link version number.

static DtVrlTimeToLogicalTimeConverter DtExerciseConn::vrlTimeToLogicalTimeConverter ( )

static

Member Data Documentation

bool DtExerciseConn::myAutoSubscribeFlag

protected

DtEventID DtExerciseConn::myCurrentEventId

protected

DtGeodeticCoord DtExerciseConn::myDdmPlayBoxLowerBound

protected

The lower bound of the play box - or total simulation area - when using geographic DDM.

Used for normalization purposes. Defaults to -90 degrees latitude, -180 degrees longitude.

DtGeodeticCoord DtExerciseConn::myDdmPlayBoxUpperBound

protected

The upper bound of the play box - or the total simulation area - when using geographic DDM.

Used for normalization purposes. Defaults to 90 degrees latitude, 180 degrees longitude.

bool DtExerciseConn::myDeleteOnOutOfScope

protected

Referenced by deleteOnOutOfScope(), and setDeleteOnOutOfScope().

bool DtExerciseConn::myDestroyFedExFlag

protected

DtFomMapperCreator DtExerciseConn::myDsoCreator

protected

DtFomMapperDeletor DtExerciseConn::myDsoDeletor

protected

DtString DtExerciseConn::myExecName

protected

Referenced by execName().

DtVrlFederateAmbassador* DtExerciseConn::myFedAmb

protected

Referenced by fedAmb().

DtString DtExerciseConn::myFedFile

protected

myFedFile is used to specify a Fed File for the federation.

RTI::FederateHandle DtExerciseConn::myFedHandle

protected

Referenced by fedHandle().

DtString DtExerciseConn::myFedType

protected

Referenced by fedType().

DtFom* DtExerciseConn::myFom

protected

Referenced by fom().

DtFomMapper* DtExerciseConn::myFomMapper

protected

DtDynamicLibrary* DtExerciseConn::myFomMapperDso

protected

bool DtExerciseConn::myGenericAttributes

protected

DtExerciseConnInitializer::DtGetValueMethod DtExerciseConn::myGetValueMethod

protected

DtHlaObjectManager* DtExerciseConn::myHlaObjectManager

protected

Referenced by hlaObjectManager().

DtInteractionManager* DtExerciseConn::myInteractionManager

protected

std::list<DtLabelledRtiErrorCbInfo> DtExerciseConn::myLabRtiErrorCbList

protected

std::wstring DtExerciseConn::myLogicalTimeFactFactParam

staticprotected

std::unique_ptr<RTI::LogicalTimeFactory> DtExerciseConn::myLogicalTimeFactory

protected

DtOwnershipHandler* DtExerciseConn::myOwnershipHandler

protected

bool DtExerciseConn::myPassiveMode

protected

bool DtExerciseConn::myPauseOnSaveRestore

protected

bool DtExerciseConn::myReflecting

protected

bool DtExerciseConn::myReflectingThroughRti

protected

bool DtExerciseConn::myReflectRemoteUpdatesIntoPubFlag

protected

DtTimeStampType DtExerciseConn::myRelOrAbs

protected

bool DtExerciseConn::myReplyingToSynchronizationPoints

protected

DtVrlRtiAmbassador* DtExerciseConn::myRtiAmb

protected

Referenced by rtiAmb().

std::vector<std::wstring> DtExerciseConn::myRtiArguments

protected

DtString DtExerciseConn::myRtiError

protected

used to save the Rti error incurred during connection init stage

std::list<DtGeneralRtiErrorCbInfo> DtExerciseConn::myRtiErrorCbList

protected

bool DtExerciseConn::mySendFedTimeFlag

protected

Referenced by sendFedTime(), and setSendFedTime().

RTI::VariableLengthData DtExerciseConn::myTag

protected

bool DtExerciseConn::myUseFomMapperDeletor

protected

bool DtExerciseConn::myUseGeographicDdm

protected

Referenced by setUseGeographicDdm(), and useGeographicDdm().

bool DtExerciseConn::myUsingAdvisories

protected

DtVRLinkStateManager* DtExerciseConn::myVrlStateManager

protected

DtFomMapper* DtExerciseConn::theDefaultFomMapper

staticprotected

DtFedAmbCreator DtExerciseConn::theFedAmbCreator

staticprotected

void* DtExerciseConn::theFomMapInitData

staticprotected

DtFomMapperCreator DtExerciseConn::theFomMapperCreator

staticprotected

DtLogicalTimeToVrlTimeConverter DtExerciseConn::theLogicalTimeToVrlTimeConverter

staticprotected

DtRtiAmbCreator DtExerciseConn::theRtiAmbCreator

staticprotected

DtVrlTimeToLogicalTimeConverter DtExerciseConn::theVrlTimeToLogicalTimeConverter

staticprotected

The documentation for this class was generated from the following file:

exerciseConnHLA.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
