DtFundamentalParameterDataStruct Class Reference

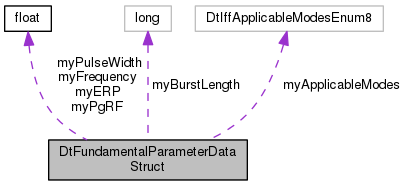

Collaboration diagram for DtFundamentalParameterDataStruct:

Public Member Functions
	DtFundamentalParameterDataStruct ()
	~DtFundamentalParameterDataStruct ()
	DtFundamentalParameterDataStruct (const DtFundamentalParameterDataStruct &orig)
DtFundamentalParameterDataStruct &	operator= (const DtFundamentalParameterDataStruct &orig)
virtual void	setERP (const DtFloat32 &val)
	Set/Get the ERP. More...
virtual const DtFloat32 &	erp () const
virtual void	setFrequency (const DtFloat32 &val)
	Set/Get the Frequency. More...
virtual const DtFloat32 &	frequency () const
virtual void	setPgRF (const DtFloat32 &val)
	Set/Get the PgRF. More...
virtual const DtFloat32 &	pgRF () const
virtual void	setPulseWidth (const DtFloat32 &val)
	Set/Get the PulseWidth. More...
virtual const DtFloat32 &	pulseWidth () const
virtual void	setBurstLength (const DtU32 &val)
	Set/Get the BurstLength. More...
virtual const DtU32 &	burstLength () const
virtual void	setApplicableModes (const DtIffApplicableModesEnum8 &val)
	Set/Get the ApplicableModes. More...
virtual const DtIffApplicableModesEnum8 &	applicableModes () const
bool	operator== (const DtFundamentalParameterDataStruct &other) const
	Set/Get the SystemSpecificData. More...
bool	operator!= (const DtFundamentalParameterDataStruct &other) const
int	netSize () const
unsigned int	getPaddingSize (unsigned long long byteOffset, unsigned int boundary) const
void	writeToBuffer (char *buffer) const
void	fillFromBuffer (const char *buffer, int bufferSize, int offset)
virtual void	printData () const
virtual void	printDataToStream (std::ostream &) const

Static Public Member Functions
static int	octetBoundary ()

Protected Attributes
DtFloat32	myERP
DtFloat32	myFrequency
DtFloat32	myPgRF
DtFloat32	myPulseWidth
DtU32	myBurstLength
DtIffApplicableModesEnum8	myApplicableModes

Constructor & Destructor Documentation

DtFundamentalParameterDataStruct::DtFundamentalParameterDataStruct

(

)

DtFundamentalParameterDataStruct::~DtFundamentalParameterDataStruct

(

)

DtFundamentalParameterDataStruct::DtFundamentalParameterDataStruct

(

const DtFundamentalParameterDataStruct &

orig

)

Member Function Documentation

virtual const DtIffApplicableModesEnum8& DtFundamentalParameterDataStruct::applicableModes ( ) const

virtual

virtual const DtU32& DtFundamentalParameterDataStruct::burstLength ( ) const

virtual

virtual const DtFloat32& DtFundamentalParameterDataStruct::erp ( ) const

virtual

void DtFundamentalParameterDataStruct::fillFromBuffer	(	const char *	buffer,
		int	bufferSize,
		int	offset
	)

virtual const DtFloat32& DtFundamentalParameterDataStruct::frequency ( ) const

virtual

unsigned int DtFundamentalParameterDataStruct::getPaddingSize	(	unsigned long long	byteOffset,
		unsigned int	boundary
	)		const

int DtFundamentalParameterDataStruct::netSize

(

)

const

static int DtFundamentalParameterDataStruct::octetBoundary ( )

static

bool DtFundamentalParameterDataStruct::operator!=

(

const DtFundamentalParameterDataStruct &

other

)

const

DtFundamentalParameterDataStruct& DtFundamentalParameterDataStruct::operator=

(

const DtFundamentalParameterDataStruct &

orig

)

bool DtFundamentalParameterDataStruct::operator==

(

const DtFundamentalParameterDataStruct &

other

)

const

Set/Get the SystemSpecificData.

Parameters

val	System specific data associated with the system type

virtual const DtFloat32& DtFundamentalParameterDataStruct::pgRF ( ) const

virtual

virtual void DtFundamentalParameterDataStruct::printData ( ) const

virtual

virtual void DtFundamentalParameterDataStruct::printDataToStream ( std::ostream &  ) const

virtual

virtual const DtFloat32& DtFundamentalParameterDataStruct::pulseWidth ( ) const

virtual

virtual void DtFundamentalParameterDataStruct::setApplicableModes ( const DtIffApplicableModesEnum8 &  val )

virtual

Set/Get the ApplicableModes.

Parameters

val	Specifies the modes to which the fundamental parameter data applies

virtual void DtFundamentalParameterDataStruct::setBurstLength ( const DtU32 &  val )

virtual

Set/Get the BurstLength.

Parameters

val	The number of emissions generated in a single burst. This field shall contain zero for continuously emitting systems and shall contain the value 1 for responders

virtual void DtFundamentalParameterDataStruct::setERP ( const DtFloat32 &  val )

virtual

Set/Get the ERP.

Parameters

val	The average peak radiated power of the emission

virtual void DtFundamentalParameterDataStruct::setFrequency ( const DtFloat32 &  val )

virtual

Set/Get the Frequency.

Parameters

val	The center frequency of the emission

virtual void DtFundamentalParameterDataStruct::setPgRF ( const DtFloat32 &  val )

virtual

Set/Get the PgRF.

Parameters

val	When applied to originators, this field shall specify the number of interrogations per second emitted. This field shall be set to zero when applied to a responder (i.e. transponder) systems

virtual void DtFundamentalParameterDataStruct::setPulseWidth ( const DtFloat32 &  val )

virtual

Set/Get the PulseWidth.

Parameters

val	The duration of the fundamental pulse of which the interrogation or reply is composed

void DtFundamentalParameterDataStruct::writeToBuffer

(

char *

buffer

)

const

Member Data Documentation

DtIffApplicableModesEnum8 DtFundamentalParameterDataStruct::myApplicableModes

protected

DtU32 DtFundamentalParameterDataStruct::myBurstLength

protected

DtFloat32 DtFundamentalParameterDataStruct::myERP

protected

DtFloat32 DtFundamentalParameterDataStruct::myFrequency

protected

DtFloat32 DtFundamentalParameterDataStruct::myPgRF

protected

DtFloat32 DtFundamentalParameterDataStruct::myPulseWidth

protected

---

The documentation for this class was generated from the following file:

• iffDatatypes.h
