DtHlaStateEncoder is used to provide encoding of a state repository into a state message in an HLA (as opposed to DIS) environment. More...

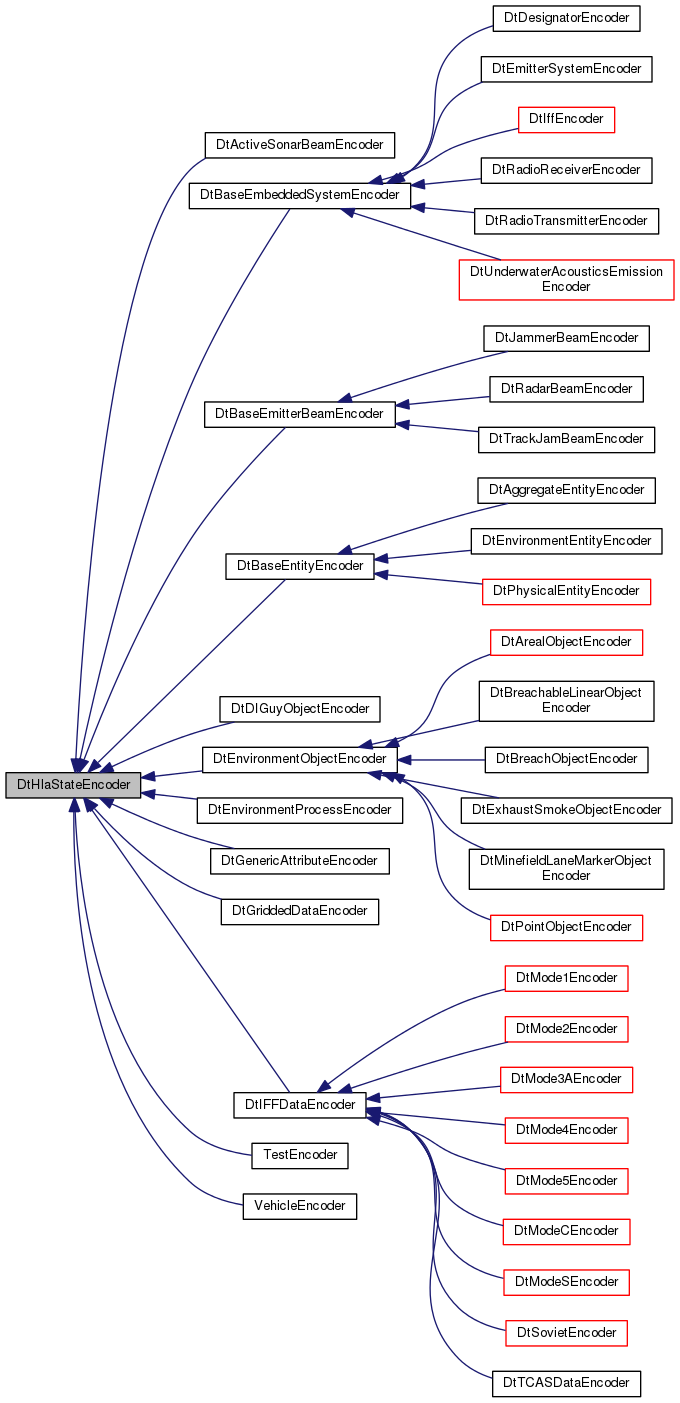

Inheritance diagram for DtHlaStateEncoder:

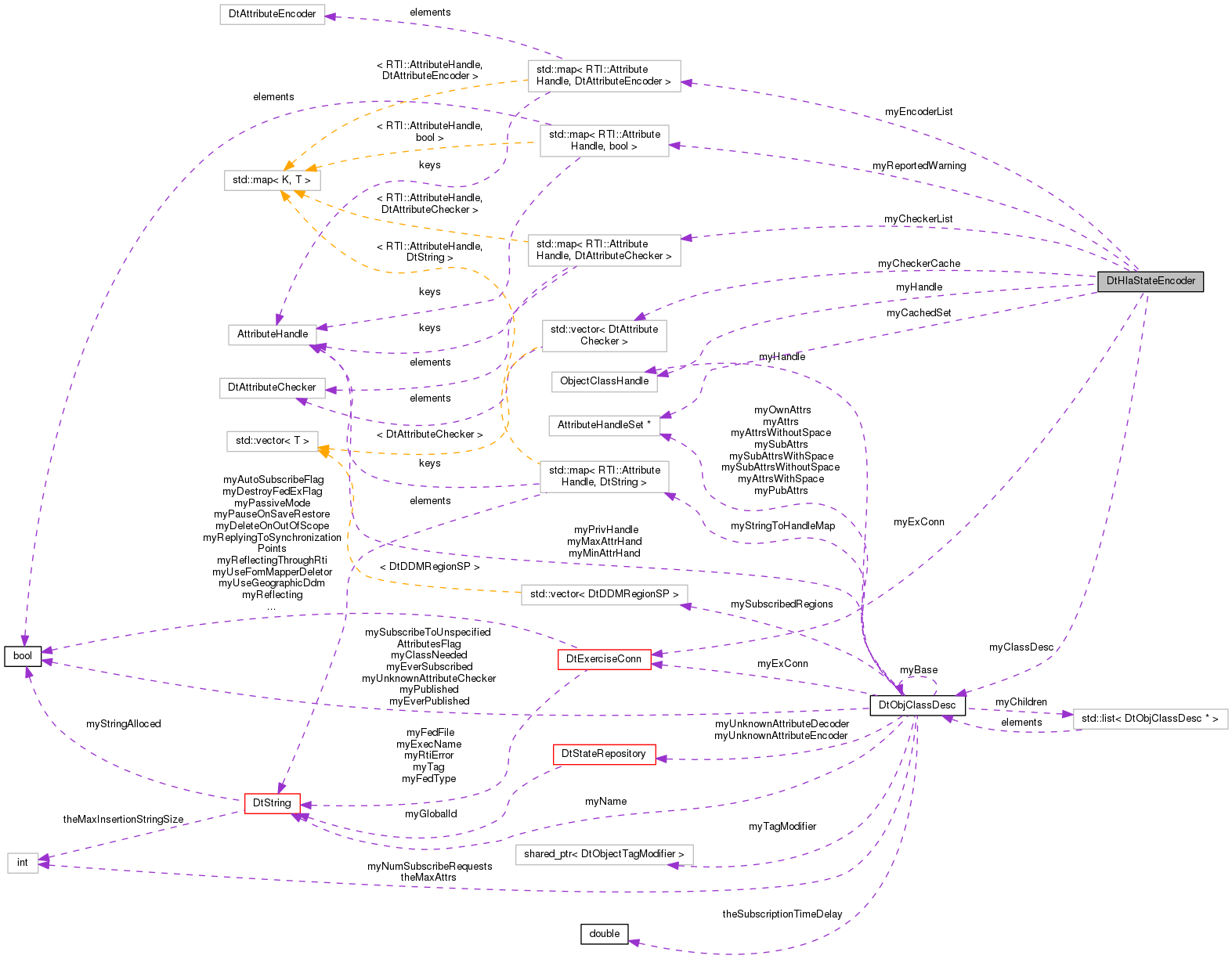

Collaboration diagram for DtHlaStateEncoder:

Public Types
typedef void(*	DtAttributeEncoder )(const DtStateRepository &stateRep, RTI::AttributeHandleValuePairSet *avList, RTI::AttributeHandle handle)
	Attribute encoding function declaration. More...

typedef bool(*	DtAttributeChecker )(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	Attribute checking function declaration. More...

typedef bool(*	DtAttributeCheckerWithHandle )(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, RTI::AttributeHandle handle)
	Attribute checking function declaration that takes a handle and checks the specific attribute pointed to by that handle. More...

Public Member Functions
	DtHlaStateEncoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	constructor More...

virtual	~DtHlaStateEncoder ()
	destructor More...

	DtHlaStateEncoder (const DtHlaStateEncoder &orig)
	copy constructor More...

DtHlaStateEncoder &	operator= (const DtHlaStateEncoder &orig)
	assignment operator More...

DtAttributeEncoder	addEncoder (RTI::AttributeHandle hand, DtAttributeEncoder func)
	Add/Remove an encoding function for the attribute specified by handle. More...

DtAttributeEncoder	removeEncoder (RTI::AttributeHandle hand)

DtAttributeEncoder	addEncoder (char *name, DtAttributeEncoder func, bool complain=true)
	Add/Remove an encoding function for the attribute specified by name. More...

DtAttributeEncoder	removeEncoder (char *name, bool complain=true)

DtAttributeChecker	addChecker (RTI::AttributeHandle hand, DtAttributeChecker func)
	Add/Remove a checker function for the attribute specified by handle. More...

DtAttributeChecker	removeChecker (RTI::AttributeHandle hand)

DtAttributeChecker	addChecker (char *name, DtAttributeChecker func, bool complain=true)
	Add/Remove a checker function for the attribute specified by name. More...

DtAttributeChecker	removeChecker (char *name, bool complain=true)

DtAttributeEncoder	encoder (const RTI::AttributeHandle &handle)
	Get the attribute encoder for the specified handle. More...

DtAttributeChecker	checker (const RTI::AttributeHandle &handle)
	Get the attribute checker for the specified handle. More...

virtual void	encode (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, const RTI::AttributeHandleSet &neededAttrs, const RTI::AttributeHandleSet &includeThese, DtStateMsg *msg)
	Encode necessary values from the state repository. More...

virtual RTI::ObjectClassHandle	objectClassHandle ()
	Get the object's class handle. More...

virtual DtHlaStateEncoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc. More...

virtual DtHlaStateEncoder *	clone () const
	Returns a new-ed clone of this object. More...

virtual void	preCalculateEligible (const RTI::AttributeHandleSet &neededAttrs)

Static Public Member Functions
static bool	trueChecker (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	A checker function that always returns 1, meaning that the attribute for which it is being used will be deemed necessary to send on every tick. More...

static bool	falseChecker (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	A checker function that always returns 0, meaning that the attribute for which it is being used will never be deemed necessary to send. More...

Protected Attributes
DtExerciseConn *	myExConn

DtObjClassDesc *	myClassDesc

RTI::ObjectClassHandle	myHandle

std::map< RTI::AttributeHandle, DtAttributeEncoder >	myEncoderList
	myEncoderList and myCheckerList are arrays of classDesc->maxAttrHandle() items. More...

std::map< RTI::AttributeHandle, DtAttributeChecker >	myCheckerList

std::vector< DtAttributeChecker >	myCheckerCache
	This is a helper varaible that pre-lookups decoder functions in order to avoid making map calls on every update. More...

const RTI::AttributeHandleSet *	myCachedSet

std::map< RTI::AttributeHandle, bool >	myReportedWarning
	myReportedWarning is an array for keeping track of which warnings have already been reported More...

Detailed Description

DtHlaStateEncoder is used to provide encoding of a state repository into a state message in an HLA (as opposed to DIS) environment.

Member Typedef Documentation

typedef bool(* DtHlaStateEncoder::DtAttributeChecker)(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)

Attribute checking function declaration.

typedef bool(* DtHlaStateEncoder::DtAttributeCheckerWithHandle)(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, RTI::AttributeHandle handle)

Attribute checking function declaration that takes a handle and checks the specific attribute pointed to by that handle.

typedef void(* DtHlaStateEncoder::DtAttributeEncoder)(const DtStateRepository &stateRep, RTI::AttributeHandleValuePairSet *avList, RTI::AttributeHandle handle)

Attribute encoding function declaration.

1516 Note: In this case, the RTI::AttributeHandleValuePairSet is defined by VR-Link for backwards compatibility

Constructor & Destructor Documentation

DtHlaStateEncoder::DtHlaStateEncoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

constructor

virtual DtHlaStateEncoder::~DtHlaStateEncoder ( )

virtual

destructor

DtHlaStateEncoder::DtHlaStateEncoder ( const DtHlaStateEncoder & orig )

copy constructor

Member Function Documentation

DtAttributeChecker DtHlaStateEncoder::addChecker	(	RTI::AttributeHandle	hand,
		DtAttributeChecker	func
	)

Add/Remove a checker function for the attribute specified by handle.

Returns the checker function which is replaced by the add/remove. Note: This is non-virtual since it is typically called by constructors.

Referenced by DtF18EntityEncoder::DtF18EntityEncoder().

DtAttributeChecker DtHlaStateEncoder::addChecker	(	char *	name,
		DtAttributeChecker	func,
		bool	complain = `true`
	)

Add/Remove a checker function for the attribute specified by name.

Complain flag determines whether to print a warning if the attribute does not exist in the FOM. Returns the checker function which is replaced by the add/remove. Note: This is non-virtual since it is typically called by constructors.

DtAttributeEncoder DtHlaStateEncoder::addEncoder	(	RTI::AttributeHandle	hand,
		DtAttributeEncoder	func
	)

Add/Remove an encoding function for the attribute specified by handle.

Returns the encoding function which is replaced by the add/remove. Note: This is non-virtual since it is typically called by constructors.

Referenced by DtF18EntityEncoder::DtF18EntityEncoder().

DtAttributeEncoder DtHlaStateEncoder::addEncoder	(	char *	name,
		DtAttributeEncoder	func,
		bool	complain = `true`
	)

Add/Remove an encoding function for the attribute specified by name.

Complain flag determines whether to print a warning if the attribute does not exist in the FOM. Returns the encoding function which is replaced by the add/remove. Note: This is non-virtual since it is typically called by constructors.

DtHlaStateEncoder::DtAttributeChecker DtHlaStateEncoder::checker ( const RTI::AttributeHandle & handle )

inline

Get the attribute checker for the specified handle.

References myCheckerList.

virtual DtHlaStateEncoder* DtHlaStateEncoder::clone ( DtObjClassDesc * classDesc ) const

virtual

Returns a new-ed clone of this object which corresponds to the class description classDesc.

Use this function if you want a subclass in the FOM to use the same encoder as its parent

virtual DtHlaStateEncoder* DtHlaStateEncoder::clone ( ) const

virtual

Returns a new-ed clone of this object.

virtual void DtHlaStateEncoder::encode	(	const DtStateRepository &	stateRep,
		const DtStateRepository &	asSeenByRemote,
		const RTI::AttributeHandleSet &	neededAttrs,
		const RTI::AttributeHandleSet &	includeThese,
		DtStateMsg *	msg
	)

virtual

Encode necessary values from the state repository.

The second state repository represents what is seen by remote simulators and is used to determine when things need to be sent in the state message. includeThese is a set of attributes that should be included even if their thresholds have not been exceeded. neededAttrs is the set of owned attributes that are needed by the federation (i.e. we've received turnOnUpdates messages including these attributes)

DtHlaStateEncoder::DtAttributeEncoder DtHlaStateEncoder::encoder ( const RTI::AttributeHandle & handle )

inline

Get the attribute encoder for the specified handle.

References myEncoderList.

static bool DtHlaStateEncoder::falseChecker	(	const DtStateRepository &	stateRep,
		const DtStateRepository &	asSeenByRemote
	)

static

A checker function that always returns 0, meaning that the attribute for which it is being used will never be deemed necessary to send.

RTI::ObjectClassHandle DtHlaStateEncoder::objectClassHandle ( )

inlinevirtual

Get the object's class handle.

References myHandle.

DtHlaStateEncoder& DtHlaStateEncoder::operator= ( const DtHlaStateEncoder & orig )

assignment operator

virtual void DtHlaStateEncoder::preCalculateEligible ( const RTI::AttributeHandleSet & neededAttrs )

virtual

DtAttributeChecker DtHlaStateEncoder::removeChecker ( RTI::AttributeHandle hand )

DtAttributeChecker DtHlaStateEncoder::removeChecker	(	char *	name,
		bool	complain = `true`
	)

DtAttributeEncoder DtHlaStateEncoder::removeEncoder ( RTI::AttributeHandle hand )

DtAttributeEncoder DtHlaStateEncoder::removeEncoder	(	char *	name,
		bool	complain = `true`
	)

static bool DtHlaStateEncoder::trueChecker	(	const DtStateRepository &	stateRep,
		const DtStateRepository &	asSeenByRemote
	)

static

A checker function that always returns 1, meaning that the attribute for which it is being used will be deemed necessary to send on every tick.

Member Data Documentation

const RTI::AttributeHandleSet* DtHlaStateEncoder::myCachedSet

protected

std::vector<DtAttributeChecker> DtHlaStateEncoder::myCheckerCache

protected

This is a helper varaible that pre-lookups decoder functions in order to avoid making map calls on every update.

std::map<RTI::AttributeHandle,DtAttributeChecker> DtHlaStateEncoder::myCheckerList

protected

Referenced by checker().

DtObjClassDesc* DtHlaStateEncoder::myClassDesc

protected

std::map<RTI::AttributeHandle,DtAttributeEncoder> DtHlaStateEncoder::myEncoderList

protected

myEncoderList and myCheckerList are arrays of classDesc->maxAttrHandle() items.

Referenced by encoder().

DtExerciseConn* DtHlaStateEncoder::myExConn

protected

RTI::ObjectClassHandle DtHlaStateEncoder::myHandle

protected

Referenced by objectClassHandle().

std::map<RTI::AttributeHandle,bool> DtHlaStateEncoder::myReportedWarning

protected

myReportedWarning is an array for keeping track of which warnings have already been reported

The documentation for this class was generated from the following file:

hlaStateEncoder.h
