DtReflectedIff Class Reference

class DtReflectedIff: More...

Inheritance diagram for DtReflectedIff:

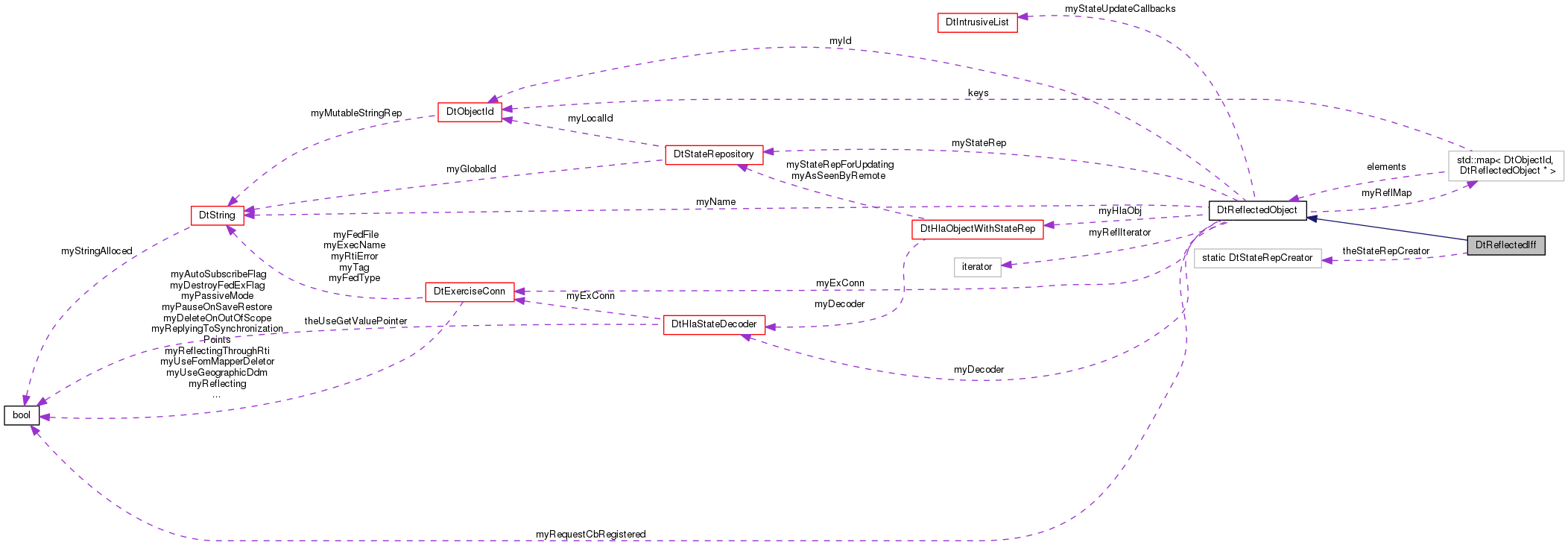

Collaboration diagram for DtReflectedIff:

Public Types
typedef DtIffStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtIffStateRepositories. More...
Public Types inherited from DtReflectedObject
typedef DtStateRepository *(*	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories. More...

Public Member Functions
	DtReflectedIff (DtHlaObject *obj, DtExerciseConn *conn)
	constructor More...
virtual	~DtReflectedIff ()
	destructor More...
virtual DtIffStateRepository *	iffStateRep () const
	Returns a pointer to the IffStateRepository, through which you can inspect current state information. More...
virtual DtIffStateRepository *	isr () const
	Synonym for iffStateRep() More...
virtual DtIffStateRepository *	iffRep () const
	Synonym for iffStateRep() More...
virtual void	syncMode5Transponder ()
virtual void	syncMode5Interrogator ()
virtual void	syncModeSTransponder ()
virtual void	syncModeSInterrogator ()
virtual DtReflectedIff *	next () const
	Functions to get the next and previous objects in the list. More...
virtual DtReflectedIff *	prev () const
virtual DtReflectedIff *	wrapNext () const
virtual DtReflectedIff *	wrapPrev () const
virtual void	addPostUpdateCallback (DtIffCallbackFunction cb, void *userData)
	Registration/deregistration of postUpdate callbacks. More...
virtual void	removePostUpdateCallback (DtIffCallbackFunction cb, void *userData)
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn, DtStateRepository *stateRep)
	Primary constructor. More...
	DtReflectedObject (DtHlaObject *obj, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR. More...
virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject). More...
virtual const DtObjectId &	objectId () const
	Get the HLA object's id. More...
virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID). More...
virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID). More...
virtual const DtString &	name () const
	Get the HLA object name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
void	setHlaObject (DtHlaObject *obj, DtHlaStateDecoder *decoder=NULL)
	Start reflecting this object, using this decoder. More...
virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object. More...
void	detachHlaObject ()
	Ends managing of current HLA object. More...
virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update. More...

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...

Protected Member Functions
	DtReflectedIff (const DtReflectedIff &orig)
	copy constructor – not implemented More...
DtReflectedIff &	operator= (const DtReflectedIff &orig)
	assignment operator – not implemented More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Additional Inherited Members
Static Protected Member Functions inherited from DtReflectedObject
static void	requestUpdatePostDrainCb (void *usr)
	Calls requestUpdate. More...
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject *obj, void *usr)
	Callback from HlaObject to process post update callbacks. More...
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtHlaStateDecoder *	myDecoder
bool	myRequestCbRegistered
DtIntrusiveList	myStateUpdateCallbacks
DtObjectId	myId
DtString	myName
DtRefHlaObjectMap::iterator	myReflIterator
DtRefHlaObjectMap *	myReflMap

Detailed Description

class DtReflectedIff:

Instances of DtReflectedIff are used to represent "IFF" objects simulated remotely, that we hear about through the RTI. Instances are created and deleted automatically by DtReflectedIffList in response to discover and remove RTI service invocations. This class is derived from DtReflectedObject, which does most of the work. The derived class mostly exists to provide type safety, and to configure the base class object.

Member Typedef Documentation

typedef DtIffStateRepository*(* DtReflectedIff::DtStateRepCreator)()

Function prototype for functions that create DtIffStateRepositories.

Constructor & Destructor Documentation

DtReflectedIff::DtReflectedIff	(	DtHlaObject *	obj,
		DtExerciseConn *	conn
	)

constructor

virtual DtReflectedIff::~DtReflectedIff ( )

virtual

destructor

DtReflectedIff::DtReflectedIff ( const DtReflectedIff &  orig )

protected

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedIff::addPostUpdateCallback ( DtIffCallbackFunction  cb, void *  userData  )

virtual

Registration/deregistration of postUpdate callbacks.

DtIffStateRepository * DtReflectedIff::iffRep ( ) const

inlinevirtual

Synonym for iffStateRep()

References DtReflectedObject::myStateRep.

DtIffStateRepository * DtReflectedIff::iffStateRep ( ) const

inlinevirtual

Returns a pointer to the IffStateRepository, through which you can inspect current state information.

References DtReflectedObject::myStateRep.

DtIffStateRepository * DtReflectedIff::isr ( ) const

inlinevirtual

Synonym for iffStateRep()

References DtReflectedObject::myStateRep.

virtual DtReflectedIff* DtReflectedIff::next ( ) const

virtual

Functions to get the next and previous objects in the list.

The "wrap" functions cycle to the beginning/end of the list.

DtReflectedIff& DtReflectedIff::operator= ( const DtReflectedIff &  orig )

protected

assignment operator – not implemented

virtual DtReflectedIff* DtReflectedIff::prev ( ) const

virtual

virtual void DtReflectedIff::removePostUpdateCallback ( DtIffCallbackFunction  cb, void *  userData  )

virtual

static DtStateRepCreator DtReflectedIff::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual void DtReflectedIff::syncMode5Interrogator ( )

virtual

virtual void DtReflectedIff::syncMode5Transponder ( )

virtual

virtual void DtReflectedIff::syncModeSInterrogator ( )

virtual

virtual void DtReflectedIff::syncModeSTransponder ( )

virtual

virtual DtReflectedIff* DtReflectedIff::wrapNext ( ) const

virtual

virtual DtReflectedIff* DtReflectedIff::wrapPrev ( ) const

virtual

Member Data Documentation

DtStateRepCreator DtReflectedIff::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedIffHLA.h
