DtReflectedIffList Class Reference

An instance of this class manages the list of "IFF" objects that are simulated remotely, and reflected to us by the RTI. More...

Inheritance diagram for DtReflectedIffList:

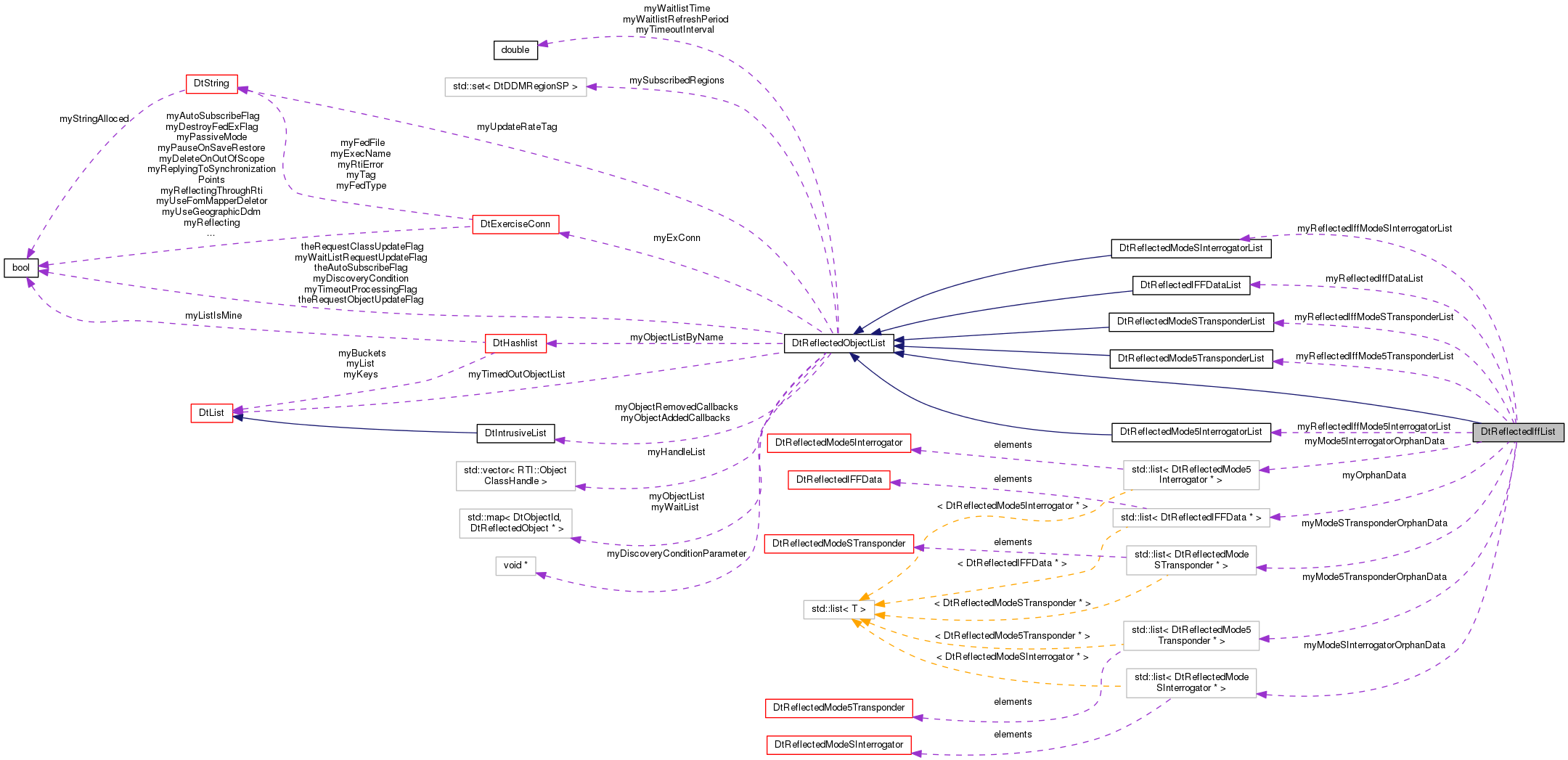

Collaboration diagram for DtReflectedIffList:

Public Member Functions
	DtReflectedIffList (DtExerciseConn *exConn, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor. More...
	DtReflectedIffList (DtExerciseConn *exConn, const DtList *handleList, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor - only subscribe to the RTI::ObjectClassHandles in handleList. More...
virtual	~DtReflectedIffList ()
	destructor More...
virtual DtReflectedIff *	lookup (RTI::ObjectHandle id)
	Look up object by identifier. More...
virtual DtReflectedIff *	lookup (const DtGlobalObjectDesignator &objName)
	Look up object by name (global object designator). More...
virtual DtReflectedIff *	first () const
	Get the first/last object in the list. More...
virtual DtReflectedIff *	last () const
virtual void	addIffAdditionCallback (DtIffCallbackFunction cb, void *userData)
	Registration/deregistration of object addition callbacks. More...
virtual void	removeIffAdditionCallback (DtIffCallbackFunction cb, void *userData)
virtual void	addIffRemovalCallback (DtIffCallbackFunction cb, void *userData)
	Registration/deregistration of object removal callbacks. More...
virtual void	removeIffRemovalCallback (DtIffCallbackFunction cb, void *userData)
Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor. More...
virtual	~DtReflectedObjectList ()
	destructor More...
virtual DtReflectedObject *	lookupObj (RTI::ObjectHandle id)
	Look up object by identifier. More...
virtual DtReflectedObject *	lookupObj (const DtGlobalObjectDesignator &objName)
	Look up object by global ID (which is the object name in RTI1.3.3). More...
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...
virtual DtReflectedObject *	lastObj () const
virtual int	count () const
	Get number of objects. More...
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...
virtual void	manageObjectClass (RTI::ObjectClassHandle handle)
	Register callbacks with exercise connection so that we get notified when an object of this class is discovered. More...
virtual bool	removeObject (const DtObjectId &id)
	Have the application act as though we had never discovered the object. More...
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects. More...
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...
virtual bool	isTimeoutProcessing () const
	Get whether or not timeout processing occurs. More...
virtual void	setWaitListRefreshEnabled (bool on)
	Set whether or not we will request updates for objects which have not met discovery and are therefor wait listed. More...
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...
virtual DtTime	timeoutInterval ()
virtual void	setWaitlistRefreshPeriod (DtTime time)
	Set/Get the wait list refresh period. More...
virtual DtTime	waitlistRefreshPeriod ()
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the reflected list. More...
virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition. More...
virtual const DtDDMRegionSet &	subscribedRegions ()
	Returns list of regions subscribed to. More...

Protected Member Functions
	DtReflectedIffList (const DtReflectedIffList &orig)
	copy constructor More...
DtReflectedIffList &	operator= (const DtReflectedIffList &orig)
	assignment operator More...
virtual const DtList *	dfltHandleList ()
	Asks the FOM Mapper for the DtList of RTI::ObjectClassHandles to use. More...
void	initIffDataLists (DtExerciseConn *exConn, const DtDDMRegionSet *regionSetToUse)
	Initializes IFF Data reflected lists, called from CTOR. More...
virtual void	objectAdded (DtReflectedObject *obj)
	Called from processDiscoverObject() after a remote transmitter has been added to the list. More...
virtual void	iffAdded (DtReflectedIff *ent)
	Called by objectAdded (which is called from processDiscoverObject()) after a remote entity has been added to the list. More...
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
	Override of virtual function that the base class uses to create the appropriate kind of DtReflectedObject. More...
virtual DtReflectedObject *	newReflectedIff (DtHlaObject *obj) const
	Override of virtual function that the base class uses to create the appropriate kind of DtReflectedObject. More...
virtual DtReflectedIff *	newReflectedIff (const DtGlobalObjectDesignator &des) const
	Create a remote IFF system object for the HLA object. More...
virtual void	removeAndDelete (DtReflectedObject *object, char *msg)
	Virtual function override. More...
virtual void	removeAndDelete (DtReflectedIff *entity, char *msg=NULL)
	Default calls down to base class version, but can be overridden. More...
virtual void	processIffDataAddition (DtReflectedIFFData *data)
	Called by similar callback functions registered with myIffDataList on IFF Data additions/removals. More...
virtual void	processIffDataUpdate (DtReflectedIFFData *data)
virtual void	processIffDataRemoval (DtReflectedIFFData *data)
virtual void	processMode5TransponderDataAddition (DtReflectedMode5Transponder *data)
virtual void	processMode5TransponderDataUpdate (DtReflectedMode5Transponder *data)
virtual void	processMode5TransponderDataRemoval (DtReflectedMode5Transponder *data)
virtual void	processMode5InterrogatorDataAddition (DtReflectedMode5Interrogator *data)
virtual void	processMode5InterrogatorDataUpdate (DtReflectedMode5Interrogator *data)
virtual void	processMode5InterrogatorDataRemoval (DtReflectedMode5Interrogator *data)
virtual void	processModeSTransponderDataAddition (DtReflectedModeSTransponder *data)
virtual void	processModeSTransponderDataUpdate (DtReflectedModeSTransponder *data)
virtual void	processModeSTransponderDataRemoval (DtReflectedModeSTransponder *data)
virtual void	processModeSInterrogatorDataAddition (DtReflectedModeSInterrogator *data)
virtual void	processModeSInterrogatorDataUpdate (DtReflectedModeSInterrogator *data)
virtual void	processModeSInterrogatorDataRemoval (DtReflectedModeSInterrogator *data)
virtual void	resolveOrphans ()
	Post drain callbacks to resolve orphan IFF Data. More...
virtual void	resolveIffDataOrphans ()
virtual void	resolveMode5TransponderOrphans ()
virtual void	resolveMode5InterrogatorOrphans ()
virtual void	resolveModeSTransponderOrphans ()
virtual void	resolveModeSInterrogatorOrphans ()
Protected Member Functions inherited from DtReflectedObjectList
virtual void	processDiscoverObject (DtHlaObject *obj)
	Process the discovery of a remote object on the network. More...
virtual void	processRemoveObject (DtHlaObject *obj)
	Process the removal of a remote object from the network. More...
virtual void	processTimedOutObjectReflect (const DtStateMsg &msg, DtHlaObject *obj)
	Handle the receipt of attributes for a remote object which was timed out. More...
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...
virtual void	doRequestWaitListUpdates ()
	Request an update for any objects which have not met their discovery criteria yet. More...
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...
virtual void	timeOutObject (DtReflectedObject *object)
	Times out object by removing it from the remote object list and deleting it. More...
virtual void	unTimeOutObject (DtHlaObject *obj)
	Manages callbacks and data used for reinstating a remote object which was timed out. More...
virtual void	addObjectClass (RTI::ObjectClassHandle handle)
	Register interest in this FOM object class. More...
virtual void	addObjectClassByName (const char *className)
	Register interest in this FOM object class by className. More...
virtual void	init (const DtList *handleList)
	Register interest in a whole list of RTI::ObjectClassHandles all at once. More...
void	emptyLists ()
	Empty the object list and the timeout list. More...
void	emptyCallbackLists ()
	Empty the callback lists. More...
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual void	findAlreadyDiscoveredObjects ()
	When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list. More...
virtual void	checkDiscoveryCondition (DtReflectedObject *refObj)
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within. More...
virtual void	addToObjectList (DtReflectedObject *refObj)
	Add refObj to myObjectList and initiates discovery callbacks. More...
virtual DtReflectedObject *	lookupObjInWaitList (RTI::ObjectHandle id)
	Find object in waitList by identifier. More...
virtual DtReflectedObject *	lookupObjInWaitList (const DtGlobalObjectDesignator &name)
	Find object in waitList by name. More...
void	unsubscribeRegions ()

Static Protected Member Functions
static void	iffDataAdditionCb (DtReflectedIFFData *data, void *usr)
	Callback functions registered with myIffDataList on iffData additions, updates, and removals. More...
static void	iffDataUpdateCb (DtReflectedIFFData *data, void *usr)
static void	iffDataRemovalCb (DtReflectedIFFData *data, void *usr)
static void	mode5TransponderDataAdditionCb (DtReflectedMode5Transponder *data, void *usr)
	Callback functions registered with myReflectedIffMode5TransponderList on mode5 transponder additions, updates, and removals. More...
static void	mode5TransponderDataUpdateCb (DtReflectedMode5Transponder *data, void *usr)
static void	mode5TransponderDataRemovalCb (DtReflectedMode5Transponder *data, void *usr)
static void	mode5InterrogatorDataAdditionCb (DtReflectedMode5Interrogator *data, void *usr)
	Callback functions registered with myReflectedIffMode5InterrogatorList on mode5 transponder additions, updates, and removals. More...
static void	mode5InterrogatorDataUpdateCb (DtReflectedMode5Interrogator *data, void *usr)
static void	mode5InterrogatorDataRemovalCb (DtReflectedMode5Interrogator *data, void *usr)
static void	modeSTransponderDataAdditionCb (DtReflectedModeSTransponder *data, void *usr)
	Callback functions registered with myReflectedIffModeSTransponderList on modeS transponder additions, updates, and removals. More...
static void	modeSTransponderDataUpdateCb (DtReflectedModeSTransponder *data, void *usr)
static void	modeSTransponderDataRemovalCb (DtReflectedModeSTransponder *data, void *usr)
static void	modeSInterrogatorDataAdditionCb (DtReflectedModeSInterrogator *data, void *usr)
	Callback functions registered with myReflectedIffModeSInterrogatorList on modeS transponder additions, updates, and removals. More...
static void	modeSInterrogatorDataUpdateCb (DtReflectedModeSInterrogator *data, void *usr)
static void	modeSInterrogatorDataRemovalCb (DtReflectedModeSInterrogator *data, void *usr)
static void	resolveOrphansPostDrainCb (void *usr)
	Callback that calls resolveOrphans. More...
Static Protected Member Functions inherited from DtReflectedObjectList
static void	discoverObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject(). More...
static void	removeObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processRemoveObject(). More...
static void	timedOutObjectReflectCb (const DtStateMsg &msg, DtHlaObject *obj, void *usr)
	Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect(). More...
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...
static void	doRequestWaitListUpdatesPostDrainCb (void *usr)
	Calls doRequestWaitListUpdates. More...
static void	postUpdateCb (DtReflectedObject *obj, void *usr)
	Calls checkDiscoveryCondition. More...

Protected Attributes
DtReflectedIFFDataList *	myReflectedIffDataList
	Internal reflected IFF Data list for subscribing and receiving IFF Data objects. More...
DtReflectedMode5TransponderList *	myReflectedIffMode5TransponderList
DtReflectedModeSTransponderList *	myReflectedIffModeSTransponderList
DtReflectedMode5InterrogatorList *	myReflectedIffMode5InterrogatorList
DtReflectedModeSInterrogatorList *	myReflectedIffModeSInterrogatorList
std::list< DtReflectedIFFData * >	myOrphanData
std::list < DtReflectedMode5Transponder * >	myMode5TransponderOrphanData
std::list < DtReflectedModeSTransponder * >	myModeSTransponderOrphanData
std::list < DtReflectedMode5Interrogator * >	myMode5InterrogatorOrphanData
std::list < DtReflectedModeSInterrogator * >	myModeSInterrogatorOrphanData
Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn
DtRefHlaObjectMap	myObjectList
DtHashList	myObjectListByName
DtRefHlaObjectMap	myWaitList
DtList	myTimedOutObjectList
std::vector < RTI::ObjectClassHandle >	myHandleList
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtTime	myTimeoutInterval
bool	myTimeoutProcessingFlag
bool	myWaitListRequestUpdateFlag
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
DtTime	myWaitlistTime
DtTime	myWaitlistRefreshPeriod
DtDDMRegionSet	mySubscribedRegions
DtString	myUpdateRateTag

Additional Inherited Members
Static Public Member Functions inherited from DtReflectedObjectList
static void	setAutoSubscribeFlag (bool flag)
	Set/Get flag which determines whether to subscribe to object classes that this list manages. More...
static bool	autoSubscribeFlag ()
static void	setRequestClassUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to. More...
static bool	requestClassUpdateFlag ()
static void	setRequestObjectUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from an object as we discover it. More...
static bool	requestObjectUpdateFlag ()
static void	findDiscoveredObjectsCb (void *usr)
	Post-drain callback that calls findAlreadyDiscovedObjects(). More...
Static Protected Attributes inherited from DtReflectedObjectList
static bool	theAutoSubscribeFlag
static bool	theRequestClassUpdateFlag
static bool	theRequestObjectUpdateFlag

Detailed Description

An instance of this class manages the list of "IFF" objects that are simulated remotely, and reflected to us by the RTI.

This class is derived from DtReflectedObjectList, which does most of the work. The derived class mostly exists to provide type safety, and to let the base class know which FOM classes should be managed by this list.

Constructor & Destructor Documentation

DtReflectedIffList::DtReflectedIffList	(	DtExerciseConn *	exConn,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = DtString("")
	)

Constructor.

DtReflectedIffList::DtReflectedIffList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = DtString("")
	)

Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.

virtual DtReflectedIffList::~DtReflectedIffList ( )

virtual

destructor

DtReflectedIffList::DtReflectedIffList ( const DtReflectedIffList &  orig )

protected

copy constructor

Member Function Documentation

virtual void DtReflectedIffList::addIffAdditionCallback ( DtIffCallbackFunction  cb, void *  userData  )

virtual

Registration/deregistration of object addition callbacks.

virtual void DtReflectedIffList::addIffRemovalCallback ( DtIffCallbackFunction  cb, void *  userData  )

virtual

Registration/deregistration of object removal callbacks.

virtual const DtList* DtReflectedIffList::dfltHandleList ( )

protectedvirtual

Asks the FOM Mapper for the DtList of RTI::ObjectClassHandles to use.

virtual DtReflectedIff* DtReflectedIffList::first ( ) const

virtual

Get the first/last object in the list.

virtual void DtReflectedIffList::iffAdded ( DtReflectedIff *  ent )

protectedvirtual

Called by objectAdded (which is called from processDiscoverObject()) after a remote entity has been added to the list.

Default implementation prints a message. Subclasses can override this function to add functionality on addition.

static void DtReflectedIffList::iffDataAdditionCb ( DtReflectedIFFData *  data, void *  usr  )

staticprotected

Callback functions registered with myIffDataList on iffData additions, updates, and removals.

Calls processIffDataAddition/Update/Removal.

static void DtReflectedIffList::iffDataRemovalCb ( DtReflectedIFFData *  data, void *  usr  )

staticprotected

static void DtReflectedIffList::iffDataUpdateCb ( DtReflectedIFFData *  data, void *  usr  )

staticprotected

void DtReflectedIffList::initIffDataLists ( DtExerciseConn *  exConn, const DtDDMRegionSet *  regionSetToUse  )

protected

Initializes IFF Data reflected lists, called from CTOR.

virtual DtReflectedIff* DtReflectedIffList::last ( ) const

virtual

virtual DtReflectedIff* DtReflectedIffList::lookup ( RTI::ObjectHandle  id )

virtual

Look up object by identifier.

virtual DtReflectedIff* DtReflectedIffList::lookup ( const DtGlobalObjectDesignator &  objName )

virtual

Look up object by name (global object designator).

static void DtReflectedIffList::mode5InterrogatorDataAdditionCb ( DtReflectedMode5Interrogator *  data, void *  usr  )

staticprotected

Callback functions registered with myReflectedIffMode5InterrogatorList on mode5 transponder additions, updates, and removals.

Calls processMode5InterrogatorDataAddition/Update/Removal.

static void DtReflectedIffList::mode5InterrogatorDataRemovalCb ( DtReflectedMode5Interrogator *  data, void *  usr  )

staticprotected

static void DtReflectedIffList::mode5InterrogatorDataUpdateCb ( DtReflectedMode5Interrogator *  data, void *  usr  )

staticprotected

static void DtReflectedIffList::mode5TransponderDataAdditionCb ( DtReflectedMode5Transponder *  data, void *  usr  )

staticprotected

Callback functions registered with myReflectedIffMode5TransponderList on mode5 transponder additions, updates, and removals.

Calls processMode5TransponderDataAddition/Update/Removal.

static void DtReflectedIffList::mode5TransponderDataRemovalCb ( DtReflectedMode5Transponder *  data, void *  usr  )

staticprotected

static void DtReflectedIffList::mode5TransponderDataUpdateCb ( DtReflectedMode5Transponder *  data, void *  usr  )

staticprotected

static void DtReflectedIffList::modeSInterrogatorDataAdditionCb ( DtReflectedModeSInterrogator *  data, void *  usr  )

staticprotected

Callback functions registered with myReflectedIffModeSInterrogatorList on modeS transponder additions, updates, and removals.

Calls processModeSInterrogatorDataAddition/Update/Removal.

static void DtReflectedIffList::modeSInterrogatorDataRemovalCb ( DtReflectedModeSInterrogator *  data, void *  usr  )

staticprotected

static void DtReflectedIffList::modeSInterrogatorDataUpdateCb ( DtReflectedModeSInterrogator *  data, void *  usr  )

staticprotected

static void DtReflectedIffList::modeSTransponderDataAdditionCb ( DtReflectedModeSTransponder *  data, void *  usr  )

staticprotected

Callback functions registered with myReflectedIffModeSTransponderList on modeS transponder additions, updates, and removals.

Calls processModeSTransponderDataAddition/Update/Removal.

static void DtReflectedIffList::modeSTransponderDataRemovalCb ( DtReflectedModeSTransponder *  data, void *  usr  )

staticprotected

static void DtReflectedIffList::modeSTransponderDataUpdateCb ( DtReflectedModeSTransponder *  data, void *  usr  )

staticprotected

virtual DtReflectedObject* DtReflectedIffList::newReflectedIff ( DtHlaObject *  obj ) const

protectedvirtual

Override of virtual function that the base class uses to create the appropriate kind of DtReflectedObject.

Here, we create a DtReflectedIff.

virtual DtReflectedIff* DtReflectedIffList::newReflectedIff ( const DtGlobalObjectDesignator &  des ) const

protectedvirtual

Create a remote IFF system object for the HLA object.

Caller is responsible for deletion.

virtual DtReflectedObject* DtReflectedIffList::newReflectedObject ( DtHlaObject *  obj ) const

protectedvirtual

Override of virtual function that the base class uses to create the appropriate kind of DtReflectedObject.

Here, we create a DtReflectedIff.

Implements DtReflectedObjectList.

virtual void DtReflectedIffList::objectAdded ( DtReflectedObject *  obj )

protectedvirtual

Called from processDiscoverObject() after a remote transmitter has been added to the list.

Calls iffAdded.

Reimplemented from DtReflectedObjectList.

DtReflectedIffList& DtReflectedIffList::operator= ( const DtReflectedIffList &  orig )

protected

assignment operator

virtual void DtReflectedIffList::processIffDataAddition ( DtReflectedIFFData *  data )

protectedvirtual

Called by similar callback functions registered with myIffDataList on IFF Data additions/removals.

Addition function adds the data to the set of orphan data (since we don't know what system he's part of), the removal function removes the data's iffDataSR from his system's systemSR. Update function calls the data's system update callbacks if dataUpdateSystems == true in the reflected system list constructor.

virtual void DtReflectedIffList::processIffDataRemoval ( DtReflectedIFFData *  data )

protectedvirtual

virtual void DtReflectedIffList::processIffDataUpdate ( DtReflectedIFFData *  data )

protectedvirtual

virtual void DtReflectedIffList::processMode5InterrogatorDataAddition ( DtReflectedMode5Interrogator *  data )

protectedvirtual

virtual void DtReflectedIffList::processMode5InterrogatorDataRemoval ( DtReflectedMode5Interrogator *  data )

protectedvirtual

virtual void DtReflectedIffList::processMode5InterrogatorDataUpdate ( DtReflectedMode5Interrogator *  data )

protectedvirtual

virtual void DtReflectedIffList::processMode5TransponderDataAddition ( DtReflectedMode5Transponder *  data )

protectedvirtual

virtual void DtReflectedIffList::processMode5TransponderDataRemoval ( DtReflectedMode5Transponder *  data )

protectedvirtual

virtual void DtReflectedIffList::processMode5TransponderDataUpdate ( DtReflectedMode5Transponder *  data )

protectedvirtual

virtual void DtReflectedIffList::processModeSInterrogatorDataAddition ( DtReflectedModeSInterrogator *  data )

protectedvirtual

virtual void DtReflectedIffList::processModeSInterrogatorDataRemoval ( DtReflectedModeSInterrogator *  data )

protectedvirtual

virtual void DtReflectedIffList::processModeSInterrogatorDataUpdate ( DtReflectedModeSInterrogator *  data )

protectedvirtual

virtual void DtReflectedIffList::processModeSTransponderDataAddition ( DtReflectedModeSTransponder *  data )

protectedvirtual

virtual void DtReflectedIffList::processModeSTransponderDataRemoval ( DtReflectedModeSTransponder *  data )

protectedvirtual

virtual void DtReflectedIffList::processModeSTransponderDataUpdate ( DtReflectedModeSTransponder *  data )

protectedvirtual

virtual void DtReflectedIffList::removeAndDelete ( DtReflectedObject *  object, char *  msg  )

protectedvirtual

Virtual function override.

Calls removeAndDelete(DtReflectedEntity*....)

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedIffList::removeAndDelete ( DtReflectedIff *  entity, char *  msg = NULL  )

protectedvirtual

Default calls down to base class version, but can be overridden.

virtual void DtReflectedIffList::removeIffAdditionCallback ( DtIffCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedIffList::removeIffRemovalCallback ( DtIffCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedIffList::resolveIffDataOrphans ( )

protectedvirtual

virtual void DtReflectedIffList::resolveMode5InterrogatorOrphans ( )

protectedvirtual

virtual void DtReflectedIffList::resolveMode5TransponderOrphans ( )

protectedvirtual

virtual void DtReflectedIffList::resolveModeSInterrogatorOrphans ( )

protectedvirtual

virtual void DtReflectedIffList::resolveModeSTransponderOrphans ( )

protectedvirtual

virtual void DtReflectedIffList::resolveOrphans ( )

protectedvirtual

Post drain callbacks to resolve orphan IFF Data.

If a parent IFF System has been discovered, IFF Data objects will be added to the IFF System's state repository

static void DtReflectedIffList::resolveOrphansPostDrainCb ( void *  usr )

staticprotected

Callback that calls resolveOrphans.

Member Data Documentation

std::list<DtReflectedMode5Interrogator*> DtReflectedIffList::myMode5InterrogatorOrphanData

protected

std::list<DtReflectedMode5Transponder*> DtReflectedIffList::myMode5TransponderOrphanData

protected

std::list<DtReflectedModeSInterrogator*> DtReflectedIffList::myModeSInterrogatorOrphanData

protected

std::list<DtReflectedModeSTransponder*> DtReflectedIffList::myModeSTransponderOrphanData

protected

std::list<DtReflectedIFFData*> DtReflectedIffList::myOrphanData

protected

DtReflectedIFFDataList* DtReflectedIffList::myReflectedIffDataList

protected

Internal reflected IFF Data list for subscribing and receiving IFF Data objects.

DtReflectedMode5InterrogatorList* DtReflectedIffList::myReflectedIffMode5InterrogatorList

protected

DtReflectedMode5TransponderList* DtReflectedIffList::myReflectedIffMode5TransponderList

protected

DtReflectedModeSInterrogatorList* DtReflectedIffList::myReflectedIffModeSInterrogatorList

protected

DtReflectedModeSTransponderList* DtReflectedIffList::myReflectedIffModeSTransponderList

protected

---

The documentation for this class was generated from the following file:

• reflectedIffListHLA.h
