DtRprInteractionEncoderFactory Class Reference

If you define DtSIMPLE_RPR to 1, and include this file, then this file defines a class called DtSimpleRprInteractionEncoderFactory, which contains mappings for only the subset of RPR FOM that is used by most MAK tools. More...

Inheritance diagram for DtRprInteractionEncoderFactory:

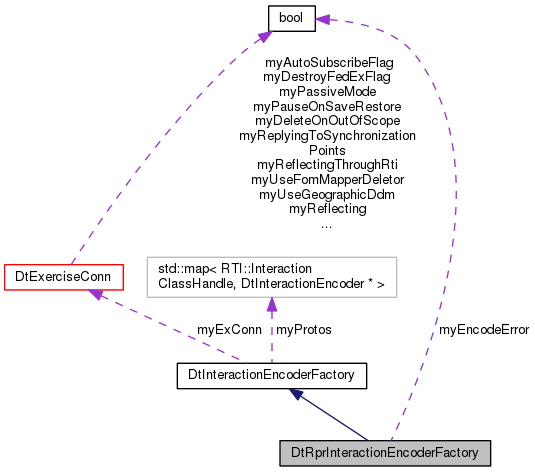

Collaboration diagram for DtRprInteractionEncoderFactory:

Public Member Functions
	DtRprInteractionEncoderFactory (DtExerciseConn *exConn)
	CTOR. More...
virtual	~DtRprInteractionEncoderFactory ()
	Virtual DTOR. More...
Public Member Functions inherited from DtInteractionEncoderFactory
	DtInteractionEncoderFactory (DtExerciseConn *exConn)
	constructor More...
virtual	~DtInteractionEncoderFactory ()
	destructor More...
virtual DtInteractionEncoder *	createEncoder (RTI::InteractionClassHandle hand)
	Create an encoder for the specified interaction class. More...
virtual DtInteractionEncoder *	addEncoder (RTI::InteractionClassHandle hand, DtInteractionEncoder *encoder)
	Add an encoder prototype to the factory. More...
virtual void	addParameterEncoder (RTI::InteractionClassHandle classHand, RTI::ParameterHandle paramHand, DtInteractionEncoder::DtParameterEncoder encoder, bool applyToSubclasses=true)
	This function is used to add a parameter encoder function to several prototype encoders all at once - namely, those associated with the interaction class denoted by hand, as well as all of its subclasses. More...
void	addParameterEncoder (char *className, RTI::ParameterHandle paramHand, DtInteractionEncoder::DtParameterEncoder func, bool applyToSubclasses=true)
	Same as above, but identify class by name. More...
void	addParameterEncoder (RTI::InteractionClassHandle classHand, char *paramName, DtInteractionEncoder::DtParameterEncoder func, bool applyToSubclasses=true)
	Same as above, but identify param by name. More...
void	addParameterEncoder (char *className, char *paramName, DtInteractionEncoder::DtParameterEncoder func, bool applyToSubclasses=true)
	Same as above, but identify class and param by name. More...
virtual DtInteractionEncoder *	encoder (RTI::InteractionClassHandle hand, bool copyBase=false)
	Returns the encoder prototype associated with handle by a previous call to addEncoder. More...

Protected Member Functions
	DtRprInteractionEncoderFactory (const DtRprInteractionEncoderFactory &orig)
	Copy constructor –not implemented. More...
DtRprInteractionEncoderFactory &	operator= (const DtRprInteractionEncoderFactory &orig)
	Assignment operator – not implemented. More...
Protected Member Functions inherited from DtInteractionEncoderFactory
	DtInteractionEncoderFactory (const DtInteractionEncoderFactory &orig)
	copy constructor - not implemented. More...
DtInteractionEncoderFactory &	operator= (const DtInteractionEncoderFactory &orig)
	assignment operator - not implemented. More...

Protected Attributes
bool	myEncodeError
Protected Attributes inherited from DtInteractionEncoderFactory
InterClassHandleToEncoderMap	myProtos
DtExerciseConn *	myExConn

Additional Inherited Members
Protected Types inherited from DtInteractionEncoderFactory
typedef std::map < RTI::InteractionClassHandle, DtInteractionEncoder * >	InterClassHandleToEncoderMap

Detailed Description

If you define DtSIMPLE_RPR to 1, and include this file, then this file defines a class called DtSimpleRprInteractionEncoderFactory, which contains mappings for only the subset of RPR FOM that is used by most MAK tools.

Instances of DtRprInteractionEncoderFactory are instances of DtInteractionEncoderFactories configured with the VR-Link's default set of Encoders.

Constructor & Destructor Documentation

DtRprInteractionEncoderFactory::DtRprInteractionEncoderFactory

(

DtExerciseConn *

exConn

)

CTOR.

Adds default RPR FOM encoders.

virtual DtRprInteractionEncoderFactory::~DtRprInteractionEncoderFactory ( )

virtual

Virtual DTOR.

DtRprInteractionEncoderFactory::DtRprInteractionEncoderFactory ( const DtRprInteractionEncoderFactory &  orig )

protected

Copy constructor –not implemented.

Member Function Documentation

DtRprInteractionEncoderFactory& DtRprInteractionEncoderFactory::operator= ( const DtRprInteractionEncoderFactory &  orig )

protected

Assignment operator – not implemented.

Member Data Documentation

bool DtRprInteractionEncoderFactory::myEncodeError

protected

---

The documentation for this class was generated from the following file:

• rprInteractionEncoderFactory.h
