DtSilentEntityList Class Reference

DtSilentEntityList is a class which contains the information needed to describe a list of silent entities for the aggregate state PDU. More...

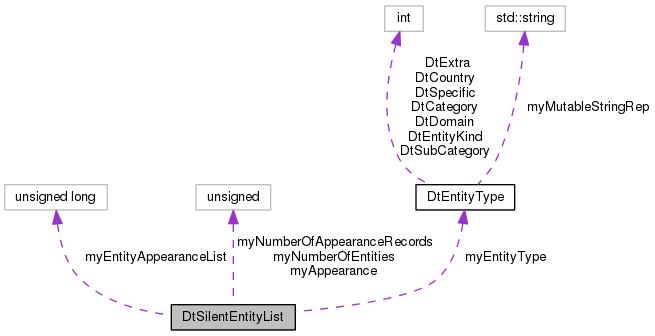

Collaboration diagram for DtSilentEntityList:

Public Member Functions
	DtSilentEntityList ()
	Constructors. More...
	DtSilentEntityList (const DtSilentEntityList &orig)
virtual	~DtSilentEntityList ()
	Destructor. More...
DtSilentEntityList &	operator= (const DtSilentEntityList &orig)
	Assignment operator. More...
DtSilentEntityList &	operator= (const DtNetSilentEntityList &orig)
int	operator== (const DtSilentEntityList &otherguy) const
	Comparison operators. More...
int	operator!= (const DtSilentEntityList &otherguy) const
virtual void	setNumberOfEntities (const DtU16 value)
	Set/Get the number of entities. More...
virtual DtU16	numberOfEntities () const
virtual void	setEntityType (const DtEntityType &type)
	Set/Get the entity type. More...
virtual const DtEntityType &	entityType () const
virtual bool	setNumberOfAppearanceRecords (const DtU16 value)
	Set/Get the number of appearance records. More...
virtual DtU16	numberOfAppearanceRecords () const
virtual void	setAppearance (DtU32 app)
	Set/Get the first appearance of an entity (as a 32 bit integer). More...
virtual DtU32	appearance () const
virtual bool	setAppearance (int index, DtU32 app)
	Set/Get the appearance of an entity (as a 32 bit integer). More...
virtual bool	getAppearance (int index, DtU32 &app) const
virtual bool	setAppearanceAttribute (int index, const DtAppearAttribute attr, const DtAppearAttrVal val)
	Set/Get appearance by attribute. More...
virtual bool	getAppearanceAttribute (int index, const DtAppearAttribute attr, DtAppearAttrVal &val) const
virtual void	printData () const
	Print the record. More...
virtual void	printDataToStream (std::ostream &stream) const
virtual void	unloadNetRecord (const DtNetSilentEntityList &record)
	Load/unload data from a packet record. More...
virtual void	unloadNetRecord (const DtNetSilentEntityList_RPR_20 &record, bool useAppearanceList=false)
virtual void	loadNetRecord (DtNetSilentEntityList &record) const
virtual void	loadNetRecord (DtNetSilentEntityList_RPR_20 &record, bool useAppearanceList=false) const
virtual int	networkByteLength (double rpr_version=1.0) const
	Get the network byte length of this record. More...

Static Public Member Functions
static int	byteLengthOfNetworkRecord (DtNetSilentEntityList *recPtr, double rprVersion=1.0)
	Get the length of the network representation of a record. More...

Protected Attributes
DtU16	myNumberOfEntities
	Data members: More...
DtEntityType	myEntityType
DtU16	myNumberOfAppearanceRecords
DtU32	myAppearance
DtU32 *	myEntityAppearanceList

Detailed Description

DtSilentEntityList is a class which contains the information needed to describe a list of silent entities for the aggregate state PDU.

Constructor & Destructor Documentation

DtSilentEntityList::DtSilentEntityList

(

)

Constructors.

DtSilentEntityList::DtSilentEntityList

(

const DtSilentEntityList &

orig

)

virtual DtSilentEntityList::~DtSilentEntityList ( )

virtual

Destructor.

Member Function Documentation

virtual DtU32 DtSilentEntityList::appearance ( ) const

virtual

static int DtSilentEntityList::byteLengthOfNetworkRecord ( DtNetSilentEntityList *  recPtr, double  rprVersion = 1.0  )

static

Get the length of the network representation of a record.

If this is for the RPR FOM, specify the version

virtual const DtEntityType& DtSilentEntityList::entityType ( ) const

virtual

virtual bool DtSilentEntityList::getAppearance ( int  index, DtU32 &  app  ) const

virtual

virtual bool DtSilentEntityList::getAppearanceAttribute ( int  index, const DtAppearAttribute  attr, DtAppearAttrVal &  val  ) const

virtual

virtual void DtSilentEntityList::loadNetRecord ( DtNetSilentEntityList &  record ) const

virtual

virtual void DtSilentEntityList::loadNetRecord ( DtNetSilentEntityList_RPR_20 &  record, bool  useAppearanceList = false  ) const

virtual

virtual int DtSilentEntityList::networkByteLength ( double  rpr_version = 1.0 ) const

virtual

Get the network byte length of this record.

If this is for the RPR FOM, specify the version.

virtual DtU16 DtSilentEntityList::numberOfAppearanceRecords ( ) const

virtual

virtual DtU16 DtSilentEntityList::numberOfEntities ( ) const

virtual

int DtSilentEntityList::operator!=

(

const DtSilentEntityList &

otherguy

)

const

DtSilentEntityList& DtSilentEntityList::operator=

(

const DtSilentEntityList &

orig

)

Assignment operator.

DtSilentEntityList& DtSilentEntityList::operator=

(

const DtNetSilentEntityList &

orig

)

int DtSilentEntityList::operator==

(

const DtSilentEntityList &

otherguy

)

const

Comparison operators.

virtual void DtSilentEntityList::printData ( ) const

virtual

Print the record.

virtual void DtSilentEntityList::printDataToStream ( std::ostream &  stream ) const

virtual

virtual void DtSilentEntityList::setAppearance ( DtU32  app )

virtual

Set/Get the first appearance of an entity (as a 32 bit integer).

In RPR 2.0006 - 2.0017, this is the only bit available. Appereances are not available at all in RPR 1.0

virtual bool DtSilentEntityList::setAppearance ( int  index, DtU32  app  )

virtual

Set/Get the appearance of an entity (as a 32 bit integer).

Returns false if the index is out of range. Set will erase all previous values. In RPR 2.0006 - 2.0017, there is only one appearance value (0) Appereances are not available at all in RPR 1.0

virtual bool DtSilentEntityList::setAppearanceAttribute ( int  index, const DtAppearAttribute  attr, const DtAppearAttrVal  val  )

virtual

Set/Get appearance by attribute.

Returns false if the index is out of range.

virtual void DtSilentEntityList::setEntityType ( const DtEntityType &  type )

virtual

Set/Get the entity type.

virtual bool DtSilentEntityList::setNumberOfAppearanceRecords ( const DtU16  value )

virtual

Set/Get the number of appearance records.

Set returns false if the value is too large, old values are not retained when the number changes.

Parameters

enableAttributeList

RPR Versions 1.0-2.0017 needs to be false due to an error those RPR versions.

virtual void DtSilentEntityList::setNumberOfEntities ( const DtU16  value )

virtual

Set/Get the number of entities.

virtual void DtSilentEntityList::unloadNetRecord ( const DtNetSilentEntityList &  record )

virtual

Load/unload data from a packet record.

virtual void DtSilentEntityList::unloadNetRecord ( const DtNetSilentEntityList_RPR_20 &  record, bool  useAppearanceList = false  )

virtual

Member Data Documentation

DtU32 DtSilentEntityList::myAppearance

protected

DtU32* DtSilentEntityList::myEntityAppearanceList

protected

DtEntityType DtSilentEntityList::myEntityType

protected

DtU16 DtSilentEntityList::myNumberOfAppearanceRecords

protected

DtU16 DtSilentEntityList::myNumberOfEntities

protected

Data members:

---

The documentation for this class was generated from the following file:

• silentEntityList.h
