Instances of DtIFFDataStateRepository are used to store state data for IFFData objects. More...

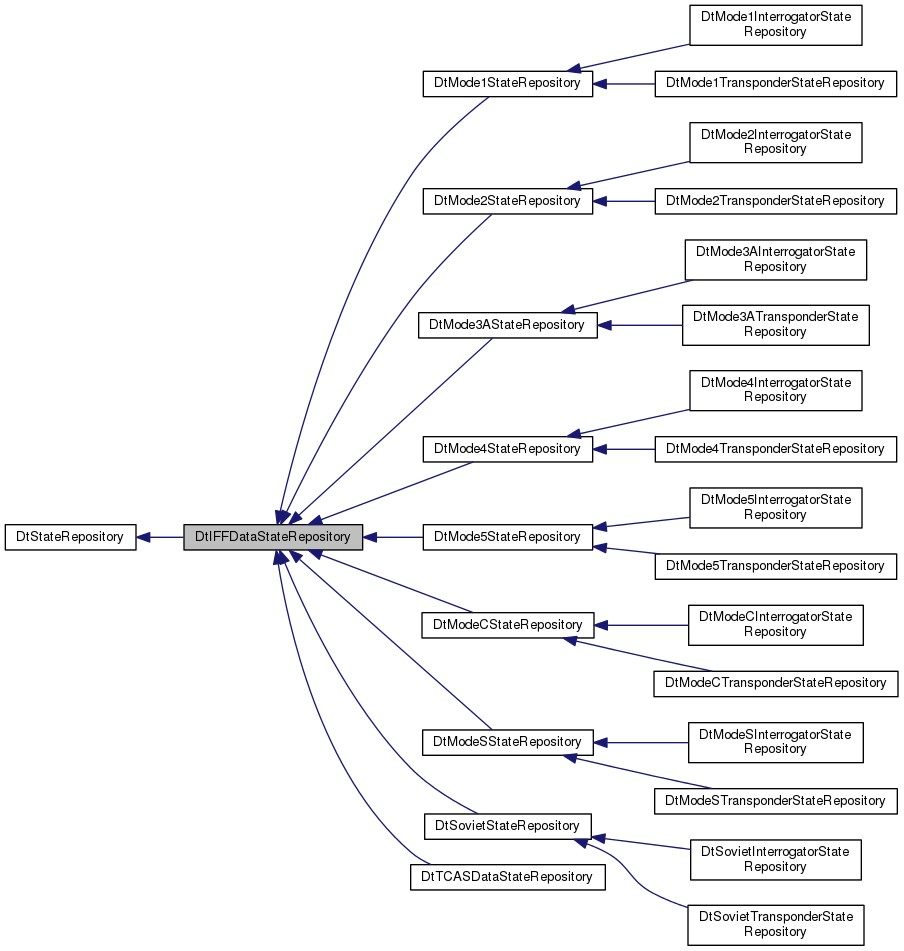

Inheritance diagram for DtIFFDataStateRepository:

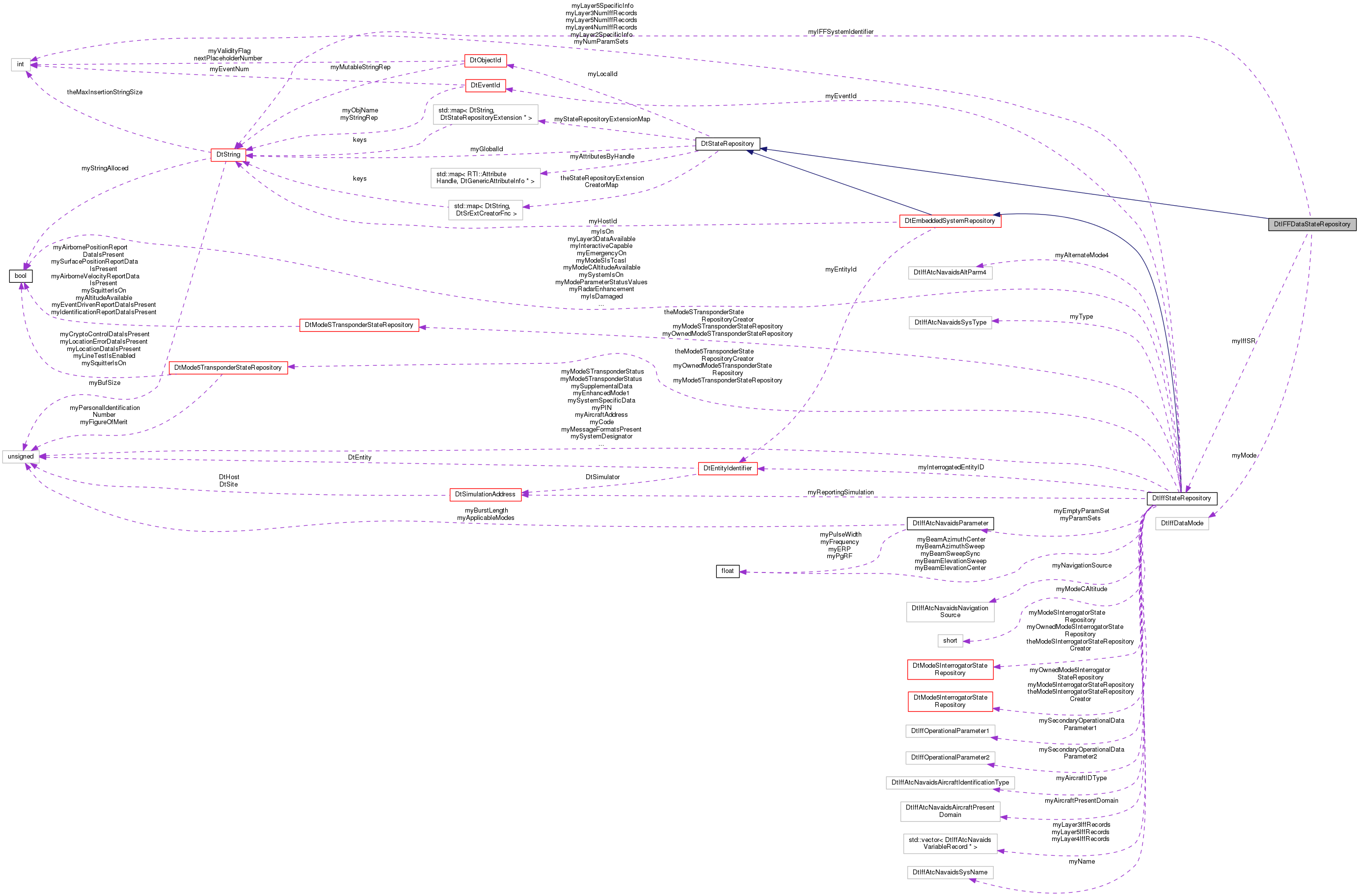

Collaboration diagram for DtIFFDataStateRepository:

Public Member Functions
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...

virtual	~DtIFFDataStateRepository ()
	Destructor. More...

	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...

DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...

virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...

virtual void	printData () const
	Print data to the DtInfo stream. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...

virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...

virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier.". More...

virtual void	setIffStateRepository (DtIffStateRepository *sr)

virtual DtIffStateRepository *	isr ()

virtual void	copyToIffSR ()
	Copy various status internal stuff to myIffSR, override per leaf class. More...

Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...

	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...

virtual	~DtStateRepository ()
	destructor More...

DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...

virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...

virtual const DtString &	globalId () const

virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...

virtual const DtObjectId &	localId () const

virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...

virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...

virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...

virtual void	setAttributeByName (const DtString &attrName, const char attrValue, unsigned size, DtHlaObject hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...

virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...

virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...

virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...

virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...

Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtGlobalObjectDesignator	myIFFSystemIdentifier

DtIffDataMode	myMode

DtIffStateRepository *	myIffSR

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap

Public Attributes inherited from DtStateRepository
DtString	myGlobalId

DtObjectId	myLocalId

std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...

DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap

Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtIFFDataStateRepository are used to store state data for IFFData objects.

Constructor & Destructor Documentation

DtIFFDataStateRepository::DtIFFDataStateRepository ( DtIffDataMode mode = DtIffModeUnk )

Constructor.

virtual DtIFFDataStateRepository::~DtIFFDataStateRepository ( )

virtual

Destructor.

DtIFFDataStateRepository::DtIFFDataStateRepository ( const DtIFFDataStateRepository & orig )

Copy Constructor.

Member Function Documentation

virtual DtStateRepository* DtIFFDataStateRepository::clone ( bool copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtStateRepository.

virtual void DtIFFDataStateRepository::copyToIffSR ( )

inlinevirtual

Copy various status internal stuff to myIffSR, override per leaf class.

Reimplemented in DtModeSTransponderStateRepository, DtMode5TransponderStateRepository, DtMode5InterrogatorStateRepository, and DtMode5StateRepository.

static DtIFFDataStateRepository* DtIFFDataStateRepository::create ( )

static

Create a DtIFFDataStateRepository.

virtual const DtGlobalObjectDesignator& DtIFFDataStateRepository::IFFSystemIdentifier ( ) const

virtual

Get the IFFSystemIdentifier.".

virtual DtIffStateRepository* DtIFFDataStateRepository::isr ( )

virtual

DtIFFDataStateRepository& DtIFFDataStateRepository::operator= ( const DtIFFDataStateRepository & orig )

Assignment Operator.

virtual void DtIFFDataStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtStateRepository.

virtual void DtIFFDataStateRepository::printDataToStream ( std::ostream & stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtStateRepository.

virtual void DtIFFDataStateRepository::setIffStateRepository ( DtIffStateRepository * sr )

virtual

virtual void DtIFFDataStateRepository::setIFFSystemIdentifier ( const DtGlobalObjectDesignator & val )

virtual

Set the IFFSystemIdentifier.

Member Data Documentation

DtIffStateRepository* DtIFFDataStateRepository::myIffSR

protected

DtGlobalObjectDesignator DtIFFDataStateRepository::myIFFSystemIdentifier

protected

DtIffDataMode DtIFFDataStateRepository::myMode

protected

The documentation for this class was generated from the following file:

IFFDataStateRepository.h
