DtModeSStateRepository Class Reference

Instances of DtModeSStateRepository are used to store state data for IFFData.ModeS objects. More...

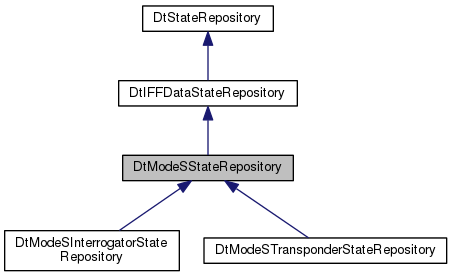

Inheritance diagram for DtModeSStateRepository:

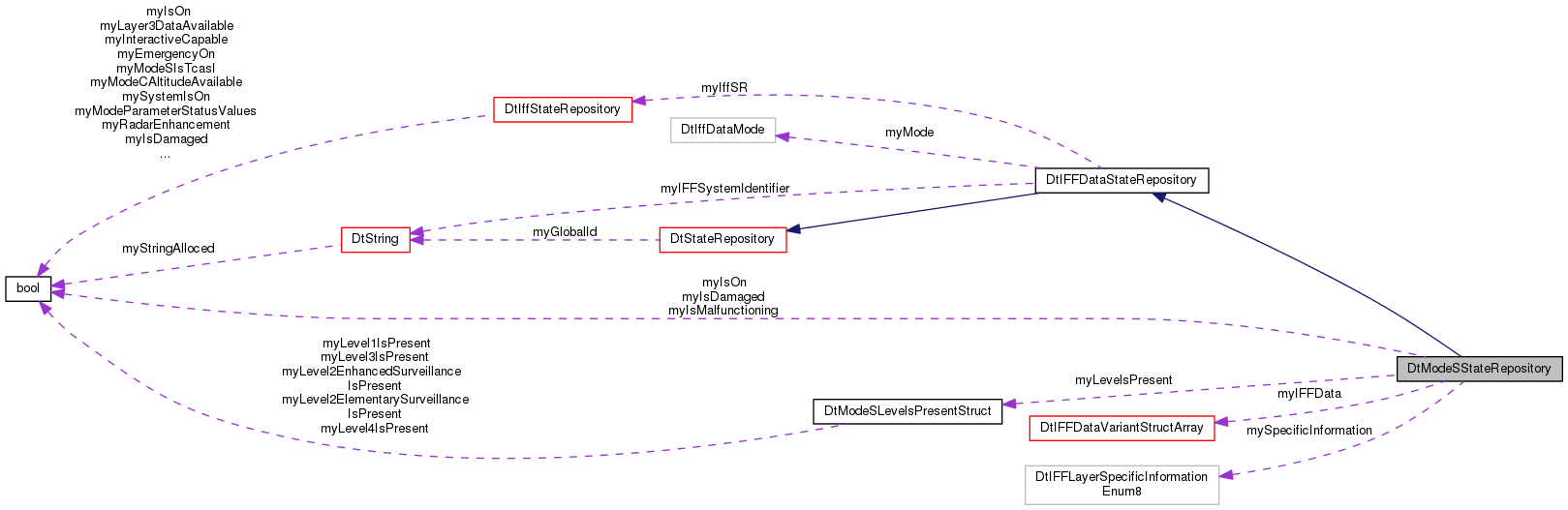

Collaboration diagram for DtModeSStateRepository:

Public Member Functions
	DtModeSStateRepository ()
	Constructor. More...
virtual	~DtModeSStateRepository ()
	Destructor. More...
	DtModeSStateRepository (const DtModeSStateRepository &orig)
	Copy Constructor. More...
DtModeSStateRepository &	operator= (const DtModeSStateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual void	setIsOn (bool val)
	Set the IsOn. More...
virtual bool	isOn () const
	Get the IsOn.". More...
virtual void	setIsDamaged (bool val)
	Set the IsDamaged. More...
virtual bool	isDamaged () const
	Get the IsDamaged.". More...
virtual void	setIsMalfunctioning (bool val)
	Set the IsMalfunctioning. More...
virtual bool	isMalfunctioning () const
	Get the IsMalfunctioning.". More...
virtual void	setSpecificInformation (const DtIFFLayerSpecificInformationEnum8 &val)
	Set the SpecificInformation. More...
virtual const DtIFFLayerSpecificInformationEnum8 &	specificInformation () const
	Get the SpecificInformation.". More...
virtual void	setLevelsPresent (const DtModeSLevelsPresentStruct &val)
	Set the LevelsPresent. More...
virtual const DtModeSLevelsPresentStruct &	levelsPresent () const
	Get the LevelsPresent.". More...
virtual void	setIFFData (const DtIFFDataVariantStructArray &val)
	Set the IFFData. More...
virtual const DtIFFDataVariantStructArray &	IFFData () const
	Get the IFFData.". More...
Public Member Functions inherited from DtIFFDataStateRepository
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...
virtual	~DtIFFDataStateRepository ()
	Destructor. More...
	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...
DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...
virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...
virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier.". More...
virtual void	setIffStateRepository (DtIffStateRepository *sr)
virtual DtIffStateRepository *	isr ()
virtual void	copyToIffSR ()
	Copy various status internal stuff to myIffSR, override per leaf class. More...
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtModeSStateRepository *	create ()
	Create a DtModeSStateRepository. More...
Static Public Member Functions inherited from DtIFFDataStateRepository
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
bool	myIsOn
bool	myIsDamaged
bool	myIsMalfunctioning
DtIFFLayerSpecificInformationEnum8	mySpecificInformation
DtModeSLevelsPresentStruct	myLevelsPresent
DtIFFDataVariantStructArray	myIFFData
Protected Attributes inherited from DtIFFDataStateRepository
DtGlobalObjectDesignator	myIFFSystemIdentifier
DtIffDataMode	myMode
DtIffStateRepository *	myIffSR

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtModeSStateRepository are used to store state data for IFFData.ModeS objects.

Constructor & Destructor Documentation

DtModeSStateRepository::DtModeSStateRepository

(

)

Constructor.

virtual DtModeSStateRepository::~DtModeSStateRepository ( )

virtual

Destructor.

DtModeSStateRepository::DtModeSStateRepository

(

const DtModeSStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual DtStateRepository* DtModeSStateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtIFFDataStateRepository.

Reimplemented in DtModeSTransponderStateRepository, and DtModeSInterrogatorStateRepository.

static DtModeSStateRepository* DtModeSStateRepository::create ( )

static

Create a DtModeSStateRepository.

virtual const DtIFFDataVariantStructArray& DtModeSStateRepository::IFFData ( ) const

virtual

Get the IFFData.".

virtual bool DtModeSStateRepository::isDamaged ( ) const

virtual

Get the IsDamaged.".

virtual bool DtModeSStateRepository::isMalfunctioning ( ) const

virtual

Get the IsMalfunctioning.".

virtual bool DtModeSStateRepository::isOn ( ) const

virtual

Get the IsOn.".

virtual const DtModeSLevelsPresentStruct& DtModeSStateRepository::levelsPresent ( ) const

virtual

Get the LevelsPresent.".

DtModeSStateRepository& DtModeSStateRepository::operator=

(

const DtModeSStateRepository &

orig

)

Assignment Operator.

virtual void DtModeSStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtIFFDataStateRepository.

Reimplemented in DtModeSTransponderStateRepository, and DtModeSInterrogatorStateRepository.

virtual void DtModeSStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtIFFDataStateRepository.

Reimplemented in DtModeSTransponderStateRepository, and DtModeSInterrogatorStateRepository.

virtual void DtModeSStateRepository::setIFFData ( const DtIFFDataVariantStructArray &  val )

virtual

Set the IFFData.

virtual void DtModeSStateRepository::setIsDamaged ( bool  val )

virtual

Set the IsDamaged.

virtual void DtModeSStateRepository::setIsMalfunctioning ( bool  val )

virtual

Set the IsMalfunctioning.

virtual void DtModeSStateRepository::setIsOn ( bool  val )

virtual

Set the IsOn.

virtual void DtModeSStateRepository::setLevelsPresent ( const DtModeSLevelsPresentStruct &  val )

virtual

Set the LevelsPresent.

virtual void DtModeSStateRepository::setSpecificInformation ( const DtIFFLayerSpecificInformationEnum8 &  val )

virtual

Set the SpecificInformation.

virtual const DtIFFLayerSpecificInformationEnum8& DtModeSStateRepository::specificInformation ( ) const

virtual

Get the SpecificInformation.".

Member Data Documentation

DtIFFDataVariantStructArray DtModeSStateRepository::myIFFData

protected

bool DtModeSStateRepository::myIsDamaged

protected

bool DtModeSStateRepository::myIsMalfunctioning

protected

bool DtModeSStateRepository::myIsOn

protected

DtModeSLevelsPresentStruct DtModeSStateRepository::myLevelsPresent

protected

DtIFFLayerSpecificInformationEnum8 DtModeSStateRepository::mySpecificInformation

protected

---

The documentation for this class was generated from the following file:

• IFFDataStateRepository.h
